Характеристики
Product Description

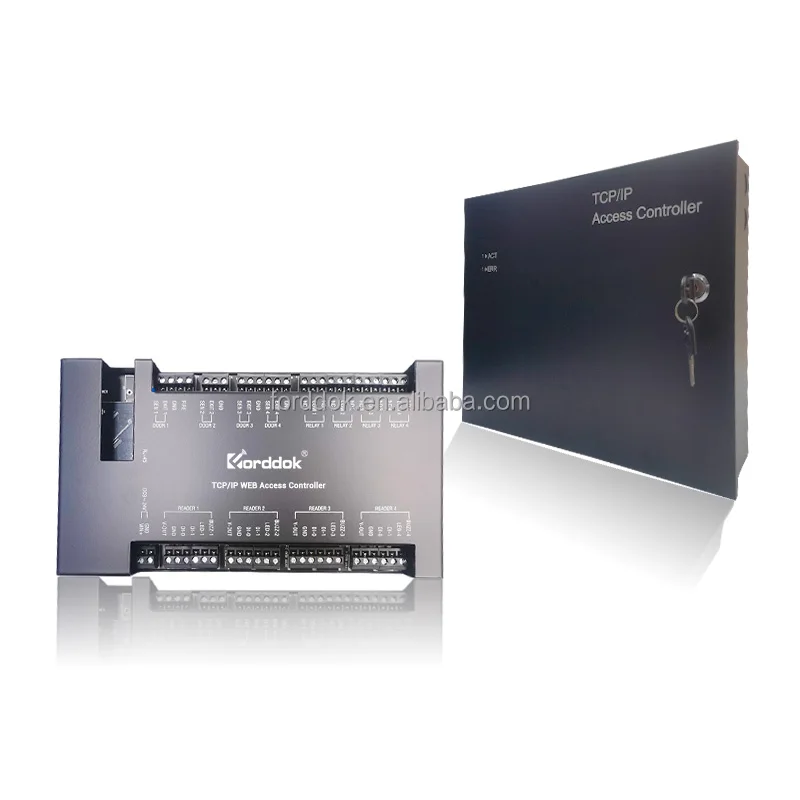

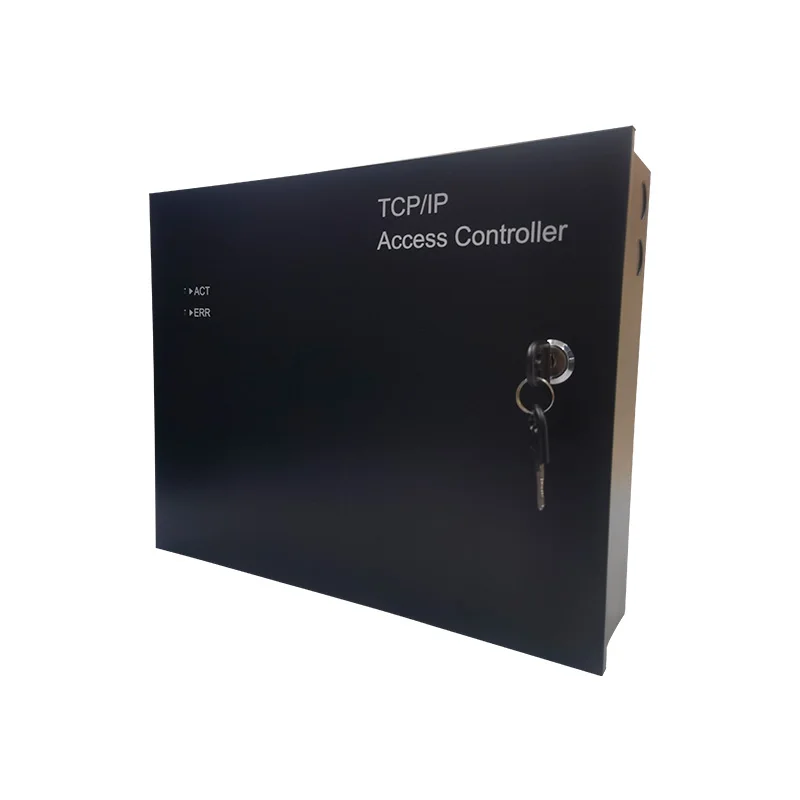

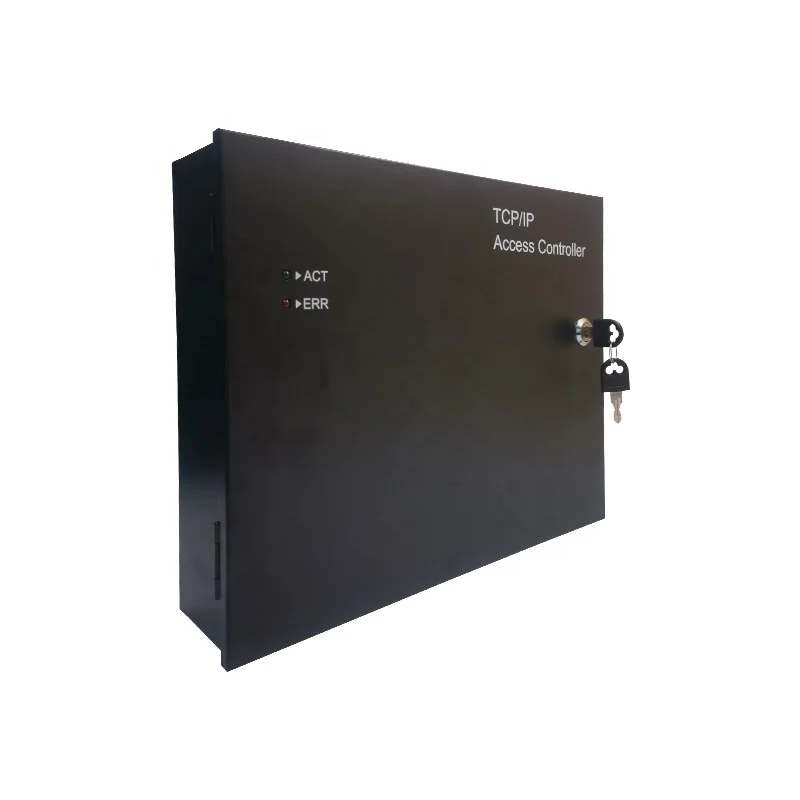

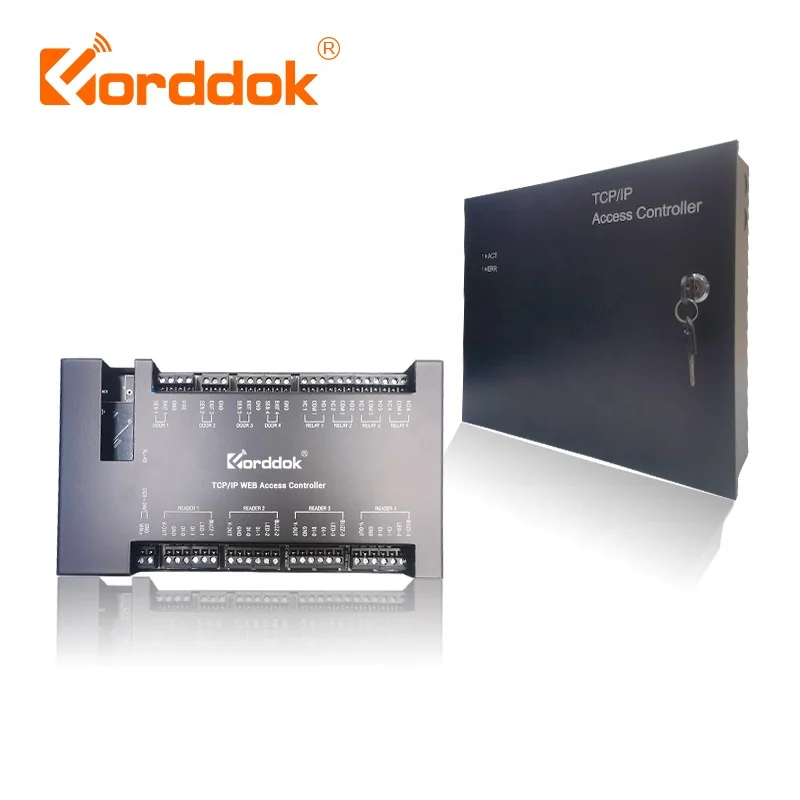

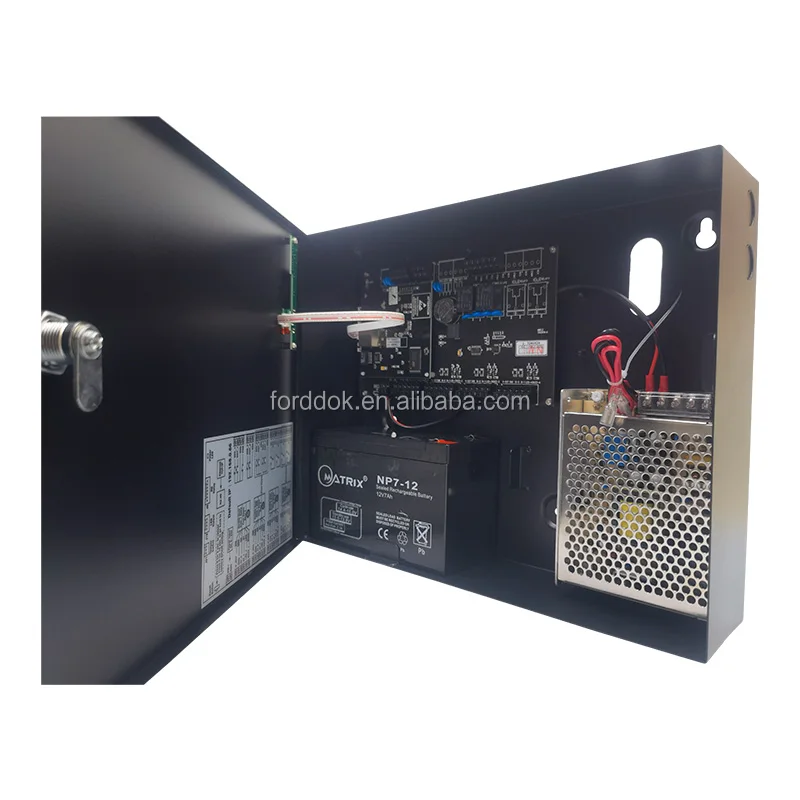

TCP/IP 4 door access control system
Free sdk WEB server 4 door access control system product
Feature
Manage 4 doors 1 way
Built in WEB server, accessible via cell phone or PC pad
20,000 user cards/ 60,000 logs and event reports/ 1,500 system logs
Authorized settings: time setting/ zone setting/ group setting/ holiday setting
Support any kind of wiegand reader with 26/ 34 format
WAN: automatically uploads logs and keeps server updated
DDNS: one server to hundreds devices
DIO function for event such as fire alarm system triggering device without delay
Anti pass back and inter-locking function for people and visitors management at different areas jail, military, bank...etc
Easy to upgrade via internet web server or TFTP tool
Online fast registry
Combine IP camera to centralize captured pictures when swiping cards or event triggered
First administrator card and multi badges functions
High accuracy timer IC with annual time deviation less than 2.5 minutes. Without power supply, lithium battery itself can support up to 6-8 years (will not consume battery energy when power is back on)
Optional 4 relay box module: 3 events handle & 1 for security or energy saving
Datasheet
| Software Application | PC/ Web Software |
Door Capacity | 4 |
Wiegand Interface | 4 |
Exit Button Connectio | 4 |
EM Lock Connection | 4 |
Sensor Connection | 4 |
Extendable TTL Interface (Require Extra Component) | 1 (Reserved) |
Extendable Input (Require Extr Component) | 2 (Reserved) |
Extendable Onput (Optional relay box module) | 4 (Optional) |
Fire Alarm Connection | Support |
Power Box LED Connection | Support |
TCP/IP Interface | Support |
Accessibility To Wiegand Reader's Light and Buzzer | Support |
Power Requirement | DC 9~24 |
Power Consumption (Exclude external device) | 300mA |
Suggest Power Spec. (Include extra relay box module and wiegand readers) | 2A |
EM Lock Relay Box Spec. | 10A 277VAC/ 28VDC |
Extend Input Spec. | 0~3.3V |
Extend Output Spec. | 0~3.3V |
Wiegand Reader Power Requirement | 9~24V |
Reader Communication Mode | Wiegand 26~66 bit |
Max. Range For Wiegand Reader | 80 Meters |
Operation Temperature | 0~65℃ |
Operation Humidity | 5%~90%, RH |
Dimension/ Weight | 200*114*27mm/250g |
