Испаритель для кубического льда форма 22*22*22

Описание и отзывы

Трекер стоимости

Характеристики

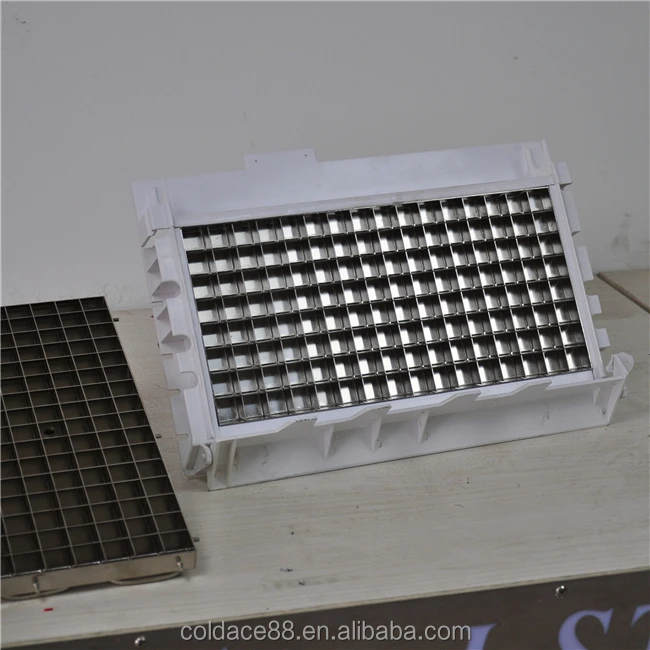

Evaporator for Cube Ice Maker  Ice making mould 22*22*22mm

Features

Advantage technology copper-nickle evaporator, making ice quicker.

Increasing evaporating area of the ice mould,ensure higher ice output and ice quality.

Perfect designing of refrigeration system ensure machines can work under a bad environment.

Fluorine-free polyurethane foaming process, making machine have a better warm-keeping capability.

Use world famous brand of key components, ensure proudcts have a stable performance.

Cube ice, with thickness adjustor. clients can adjust it easily.

Stainless steel finish, looks luxury, generouros, sanitary, and anti-corrosive.

High efficiency and energy saving disgning, make machines more competitive.

Other specification is available upon your request.



Model Specifications
Model	4×8	5×8	5×9	5×10	5×11	5×12	5×14	5×16	5×18	6×14
Dimensions	235×216×80	240×233×80	268×233×80	292×233×80	315×233×80	330×233×80	380×233×80	427×233×80	468×233×80	380×255×80
The number of ice cube	32	40	45	50	55	60	70	80	90	84
Copper pipe diamete	8	8	8	8	8	8	8	8	8	9.52
Model Specifications
Model	6×18	6×20	7×18	12×13	12×20	13×18	17×20	13×20	17×18	19×20
Dimensions	469×255×80	516×255×80	469×280×80	361×397×80	524×398×80	516×397×80	524×477×80	522×423×80	477×516×80	524×520×80
The number of ice cube	108	120	126	156	240	234	340	260	306	380
Copper pipe diamete	9.52	9.52	9.52	9.52	12	12	12	12	12	12



Utilization:
 *Mainly used for quick cycle ice-making of household and commercial ice machine
 Features
*Mainly used for quick cycle ice-making of household and commercial ice machine
*It is made of copper by welding, with advantage of heat exchanging.

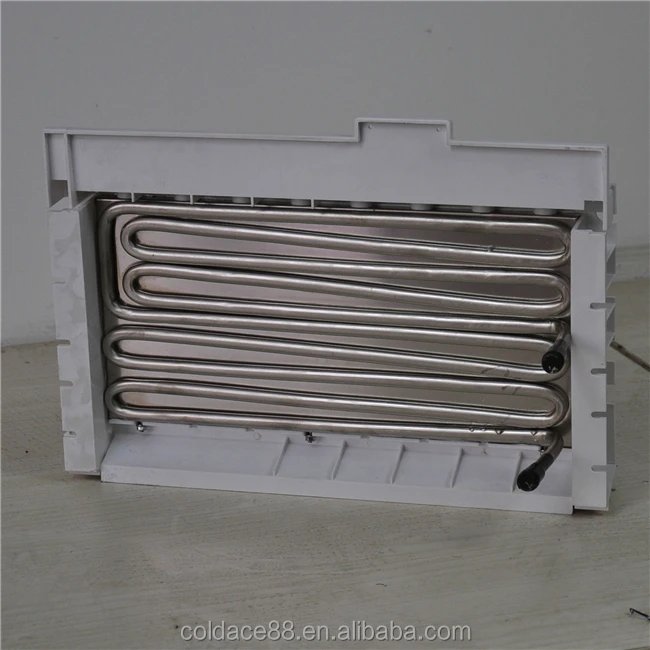

*In the back of ice board, it is using "D" tube or ellipse tube connection to enlarge the interface area of evaporator and ice board, so it can enhance the efficiency of heat exchanging, shorten the time of ice making and ice dropping and improve the ice making capacity and ice cube quality.
*The evaporator surface is chemistry plated by nickel which accords with environmental-friendly and FDA food safety demands. Compared with traditional electroplated,the chemistry plated by nickel is better in dense, lower in hole. The perfect combine of plating sheet and base material can protect the product surface well and improve the antiseptic capacity.
*There is 72°~85°incline  between  the  horizontal  septa  and  ice  board,  so  that  the  ice  cube  can  be dropped smoothly when ice dropping.
*The ice cube is nearly square, between 72°~85 and it is transparent with high density.
Working principle
By evaporating the refrigerant in tube,the heat is transferred to ice board;by recycle water pump,the water flows into the ice grid through spaying pipe,it can make ice in cooling conditions and ice drop in heating conditions.
