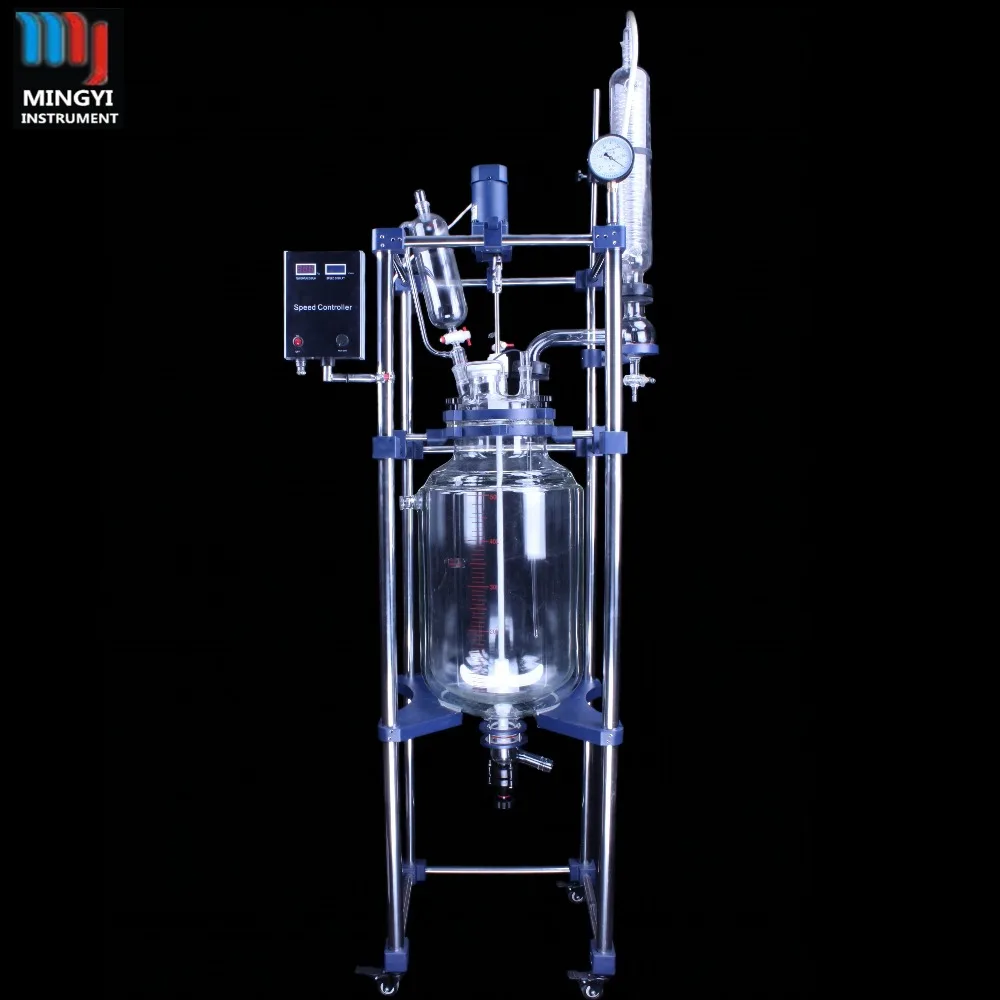

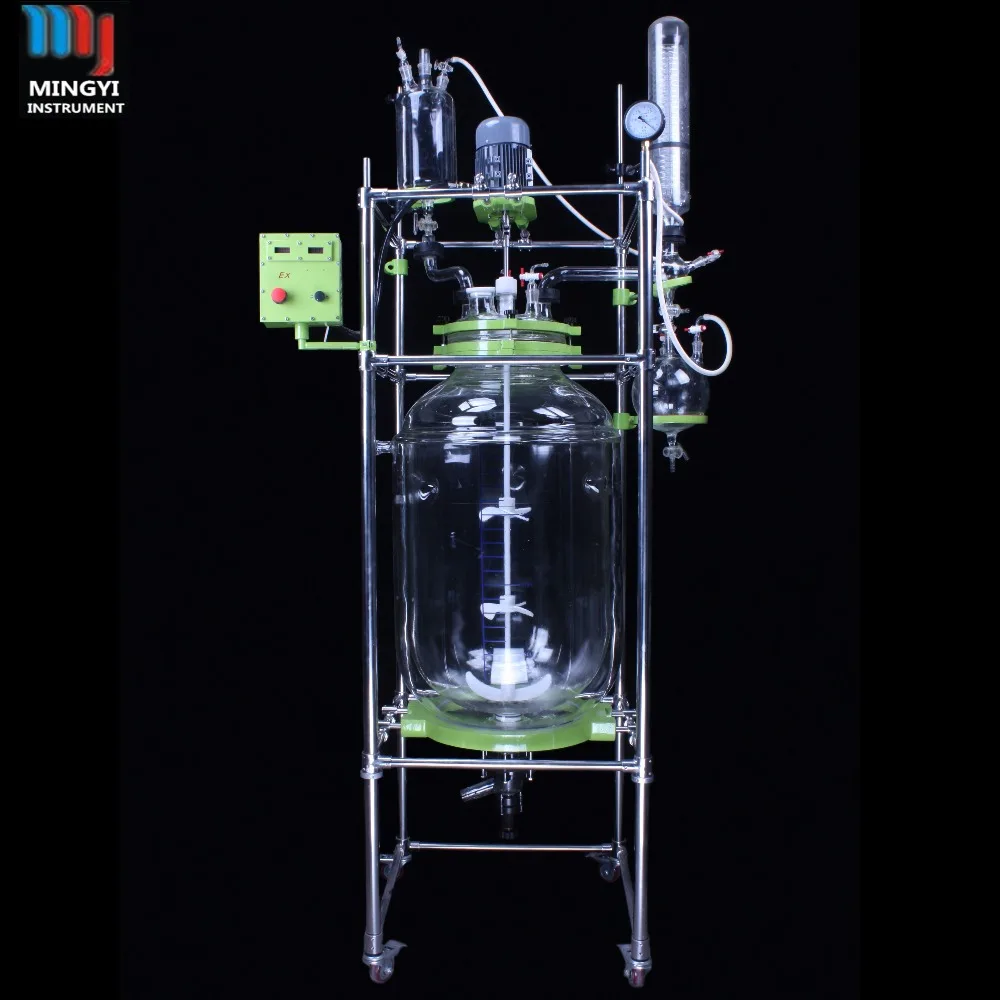

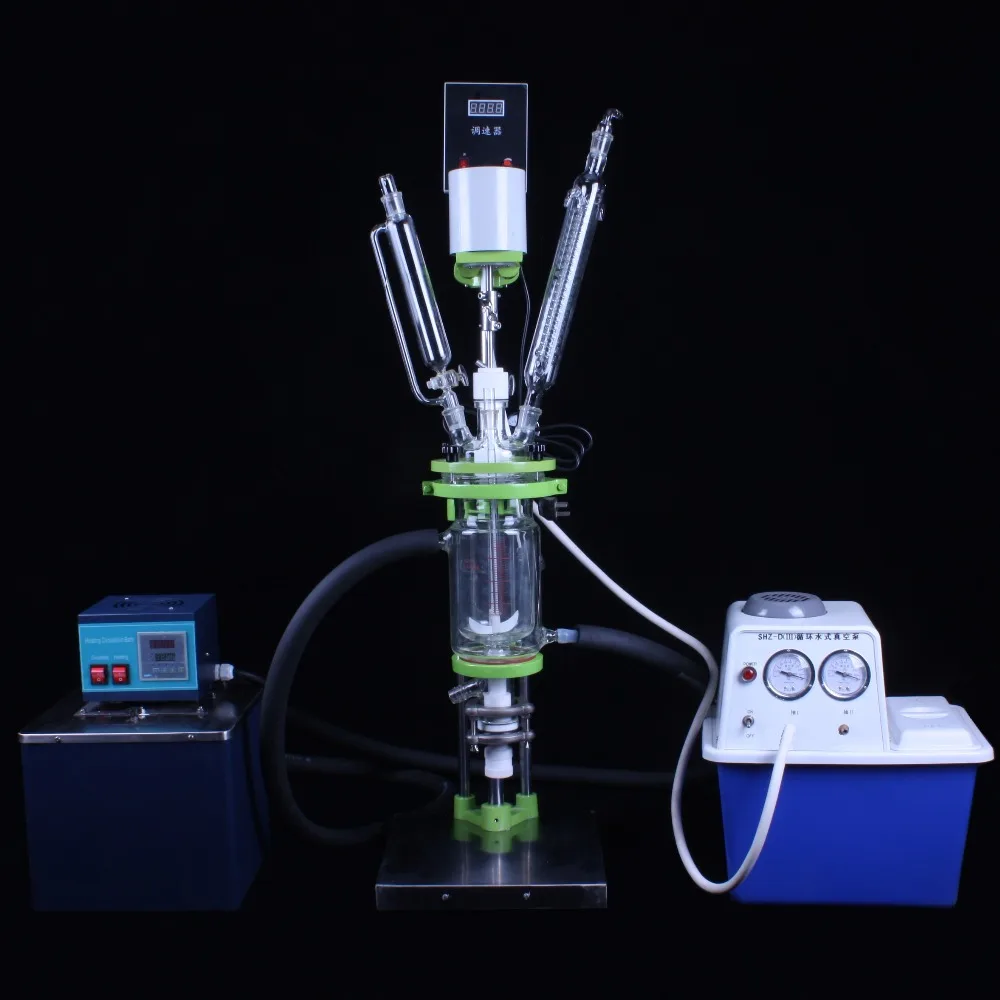

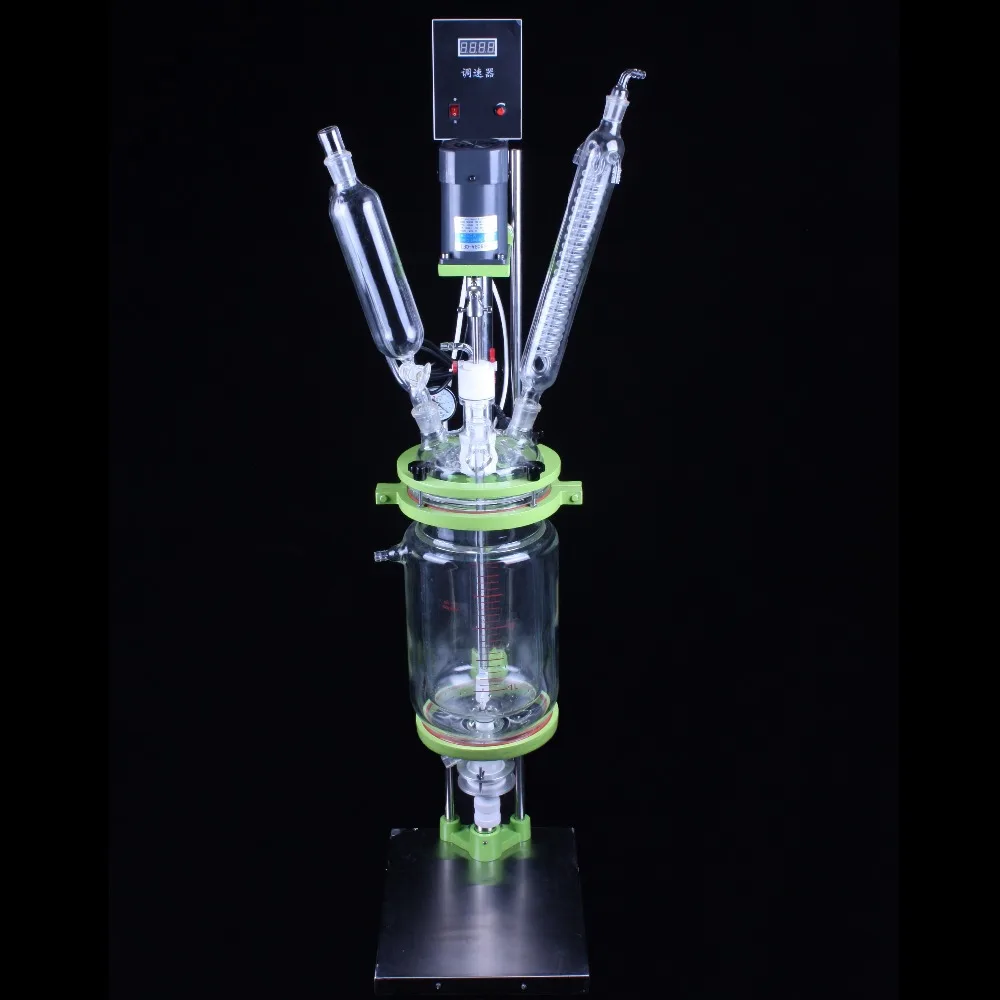

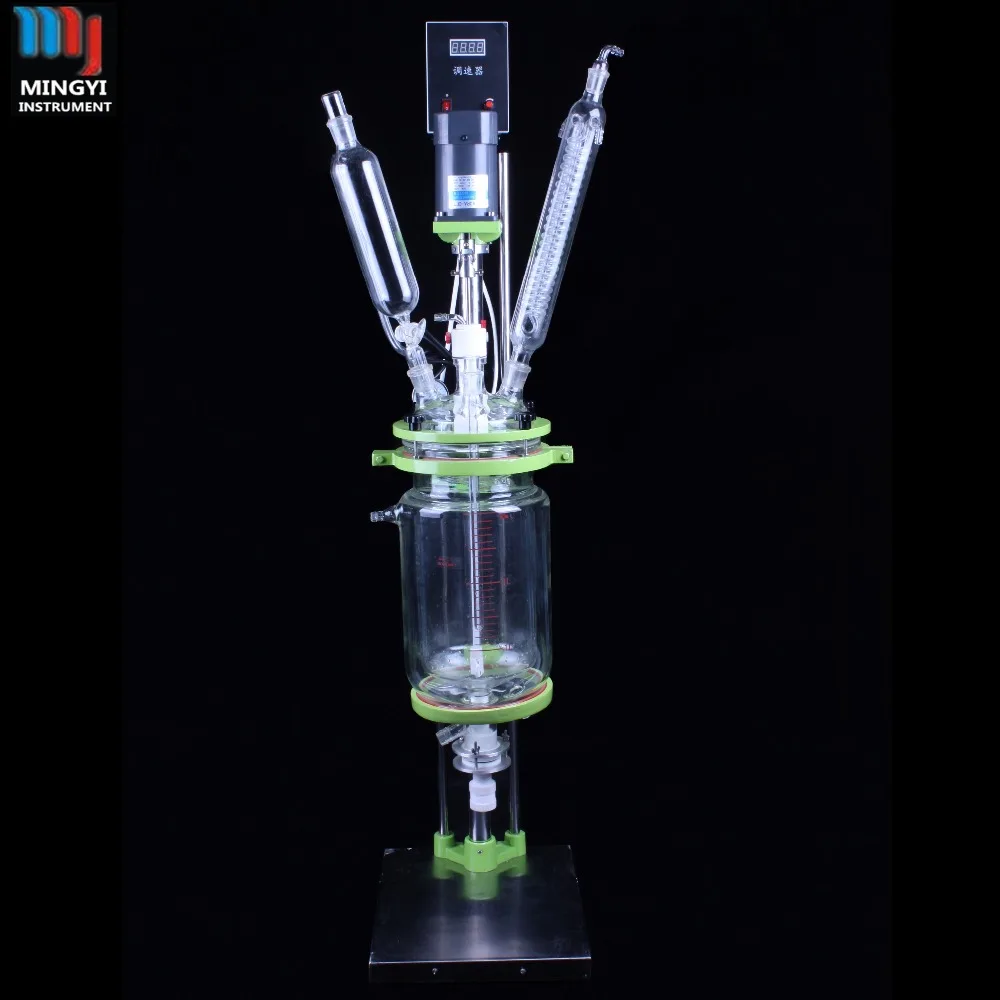

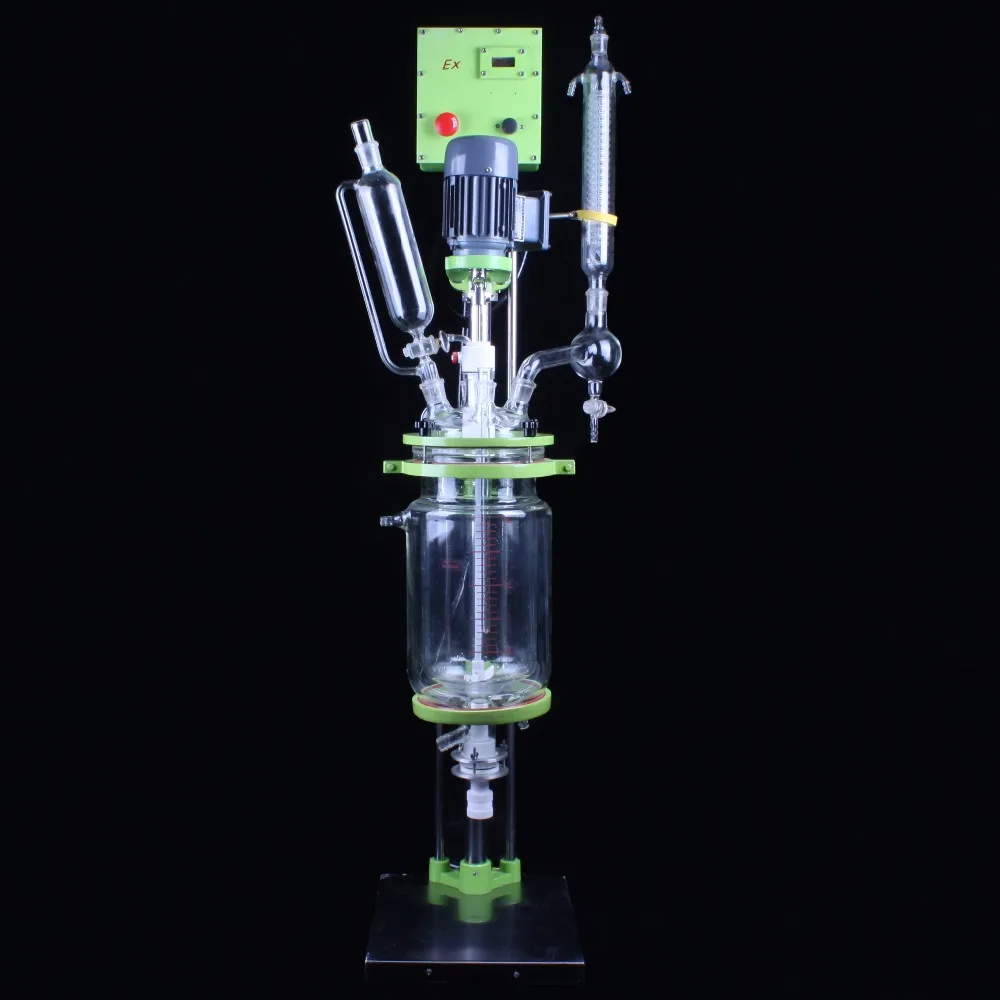

1 л химический реактор с покрытием

Main Features

1.It is with standard 304 stainless steel, it can resist acid and alkali.

2.Jacketed vessel is with material high borosilicate glass, can reach to max temperature 300degree, min temperature -80degree(tested by technician), but we need to clarify that we only suggest to use max temperature 250 degree, because of it has PTFE valve and PTFE sealing,etc.

3.Bottom Discharging valve: it has two kinds respective for side discharging and non- side discharging valve(straight down discharging), the side discharging valve is easy to connect with other afiliated equipment(for example the another reactor with same function, or getting samples easily,etc); as for non-side discharging valve, it is with same function with side discharging valve, and with 100% PTFE material.

4.Jacketed Vessel, the inner wall is 6mm,the outer wall is 8mm. The active pressure is with 0.2Mpa(about 2KGS),the negative pressure is with -0.098Mpa, the inner wall was connected with outer wall by high temperature,no faulty, no blowhole(our technician needs to do test experiment excluding faulty).

5.Reactor Lid it has standard 5 necks: the middle is the stirring port with flange,the stirring sealing is PTFE sleeve with bearing, and with a mechanical spring tapersleeve,it can be kept in good sealing condition when it is doing stirring reaction. The left is the dropping funnel with 2L(optional:5L dropping funnel),the right is condenser with glass bend with collecting flask 0.25L or 500ml).
