Лабораторная электрическая печь горизонтальная кварцевая Трубчатая Печь по заводским ценам

Application:

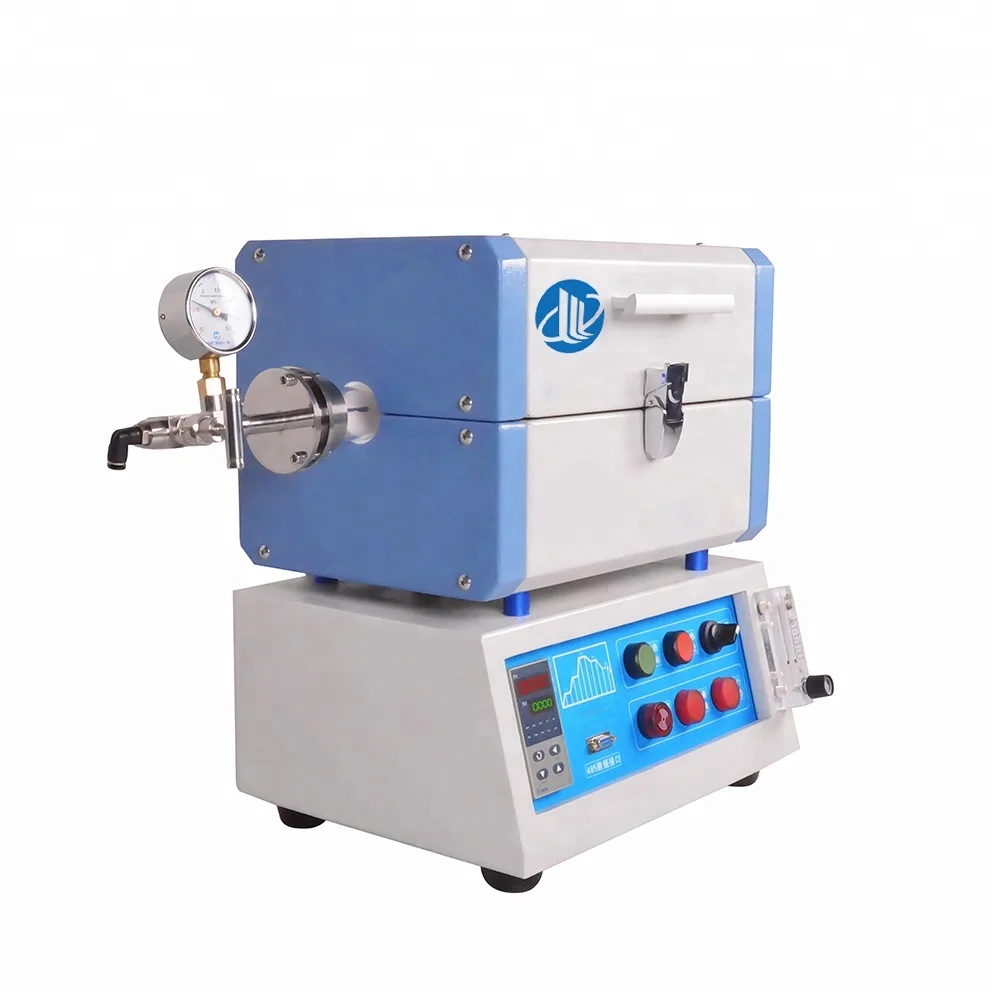

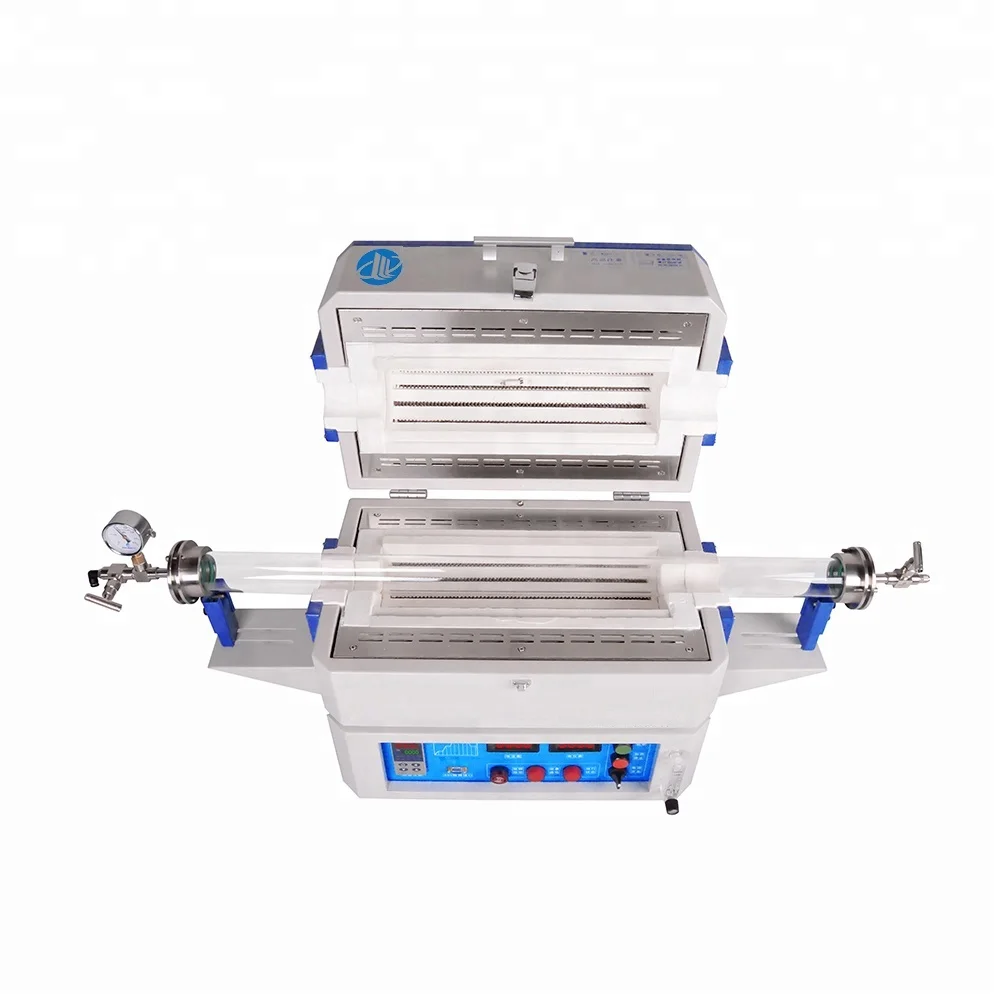

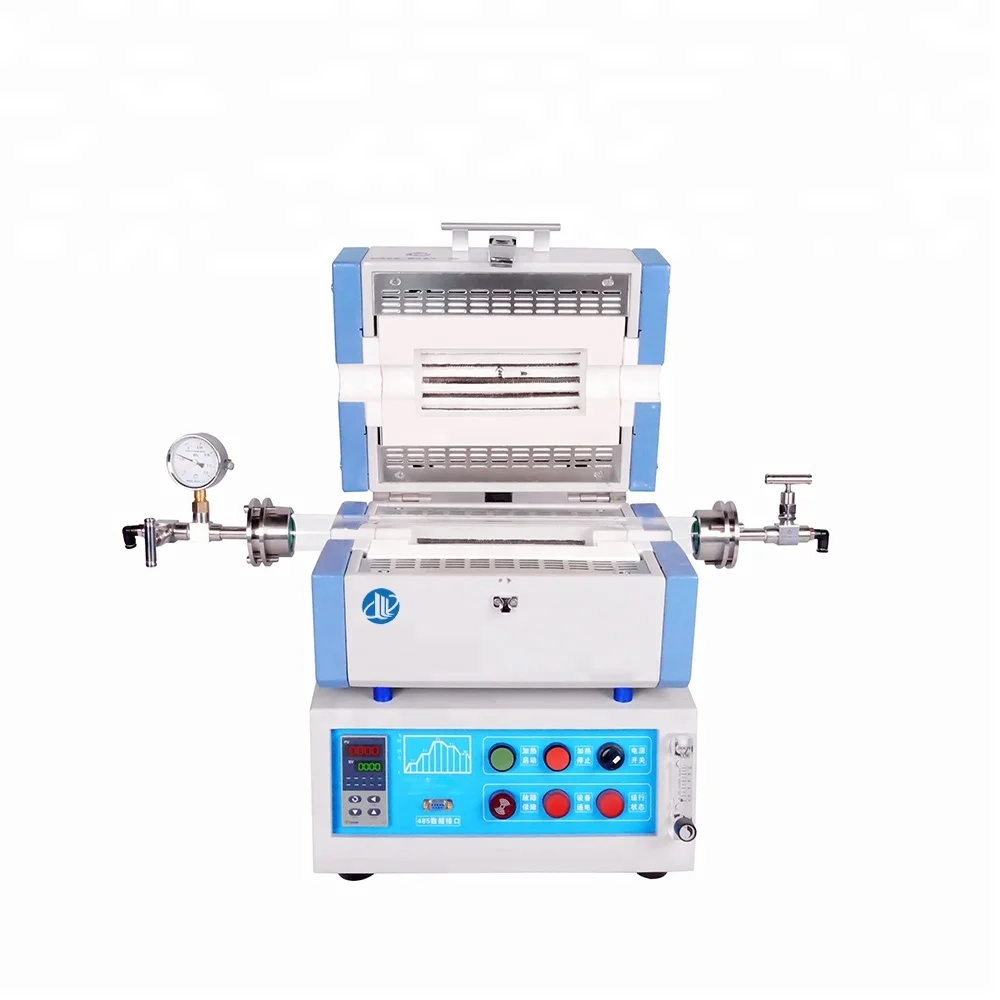

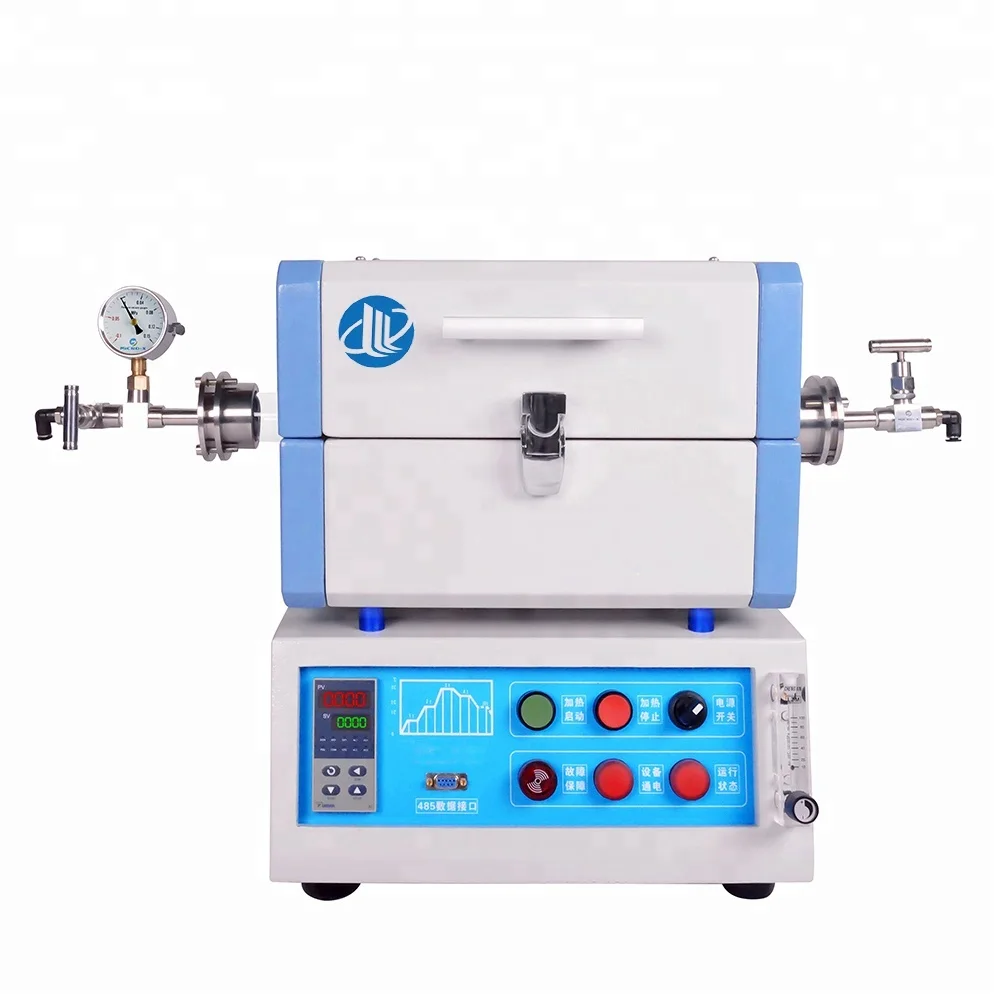

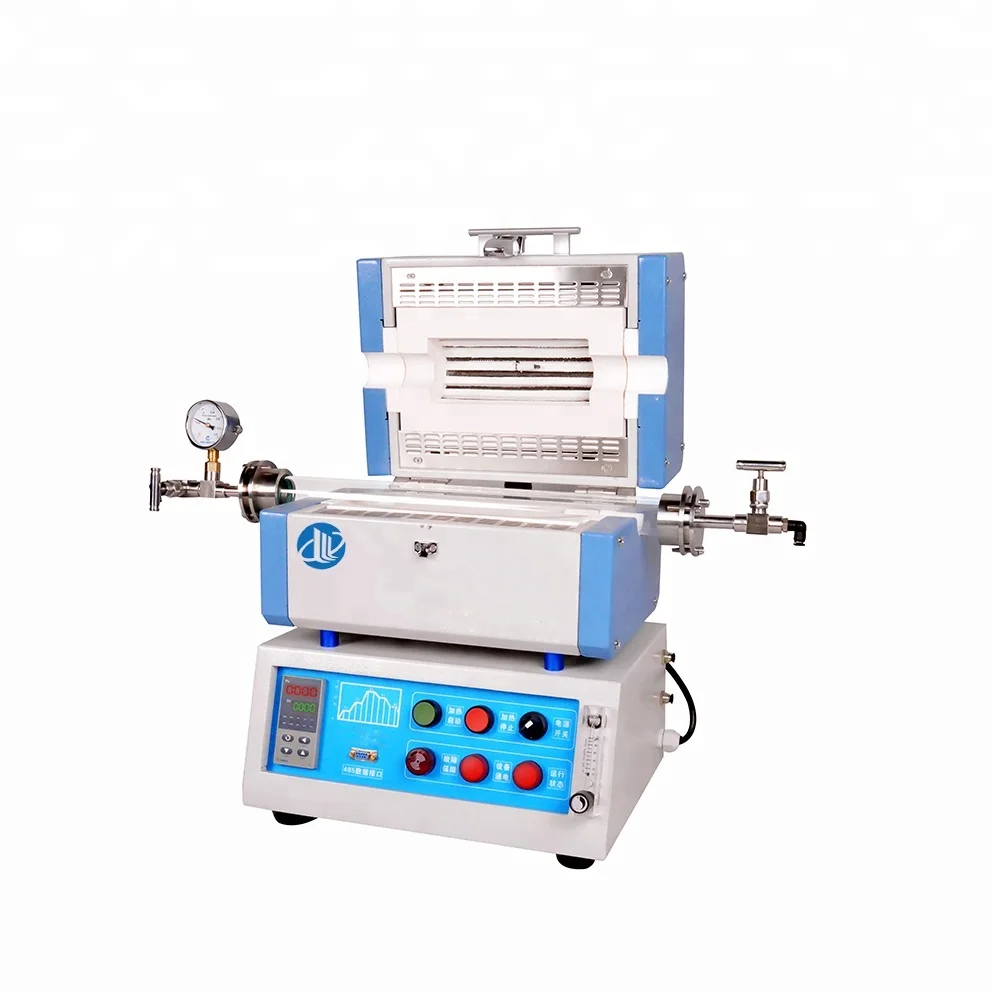

Laboratory Heating equipments high temperature electric muffle vacuum tube furnace 1200C,

Widely used in vacuum sintering, atmosphere protection sintering, vacuum film coating, CVD experiments and physical components testing for rare earth preparation, electronic lighting, crystal annealing, biological ceramics, electronic ceramics, special alloy, magnetic material, precision casting and metal heat treatment;

Functions and characteristics
1. Furnace chamber is aluminium oxide polycrystalline fibre material, with good heat insulation performance, durability, and high efficiency;
2. Heating elements is qualified silicon carbide rod, Max. Temp 1200℃;
3. 2 layer shell structure, cooperated with thermoinduction technology, equipped with wind cooling system which makes the furnace surface fast cooling;
4. KF fast connection, lower down the possibility of heating tube damaged; and easier to pick and put materials;
5. Intelligent PID control, sel- tuning, programmable 30 segments, no power consumption;
6. Reserved vacuum ports, circuit fast ports, can be cooperated with our vacuum and gases mixing system to meet customers different requirements of vacuum degree and atmosphere stations.
7. Reserved 485 Interface, if cooperated with our software, it can connect with computer thus to realize remote control of one or several sets furnaces for real-time tracking, historical records, reports output and etc.
8. Safety operation, shutdown when door opened, over-temperature, or any power leakage

Below is new model,  closed type and open type to meet different requirements,

 supply you convenient usage experience;

      Vacuum tube furnace

     Temp. from 1200-1800C

             Box-type furnace

    First choice for laboratory

       Atmosphere furnace

    Tube size is 40/60/80/ 100/        150/200mm for option

Located in Ningbo city, we are a high-tech enterprise; with superior advantage of technology and talent ; Leadmed technical staff are all in this field for more than 10 years , we are proud of their professional experience and ability in vacuum field, believe they can meet your specific requirements.

Leadmed products series include vacuum film coating machine, vacuum heat treatment furnace, vacuum chamber, laboratory high temperature electric furnace, box type furnace and tube furnace, and many kinds of vacuum valves and connections and fittings. Our products are designed for used in a variety fields, especially for universities, laboratory, institutes, materials, semi-conductor, IC equipment and etc.

Technology innovation is the eternal power for Leadmed, we will work persistently for advanced technology and customers satisfaction, to be a better brand supplier is our lasting pursuit!
