Характеристики


Product Description

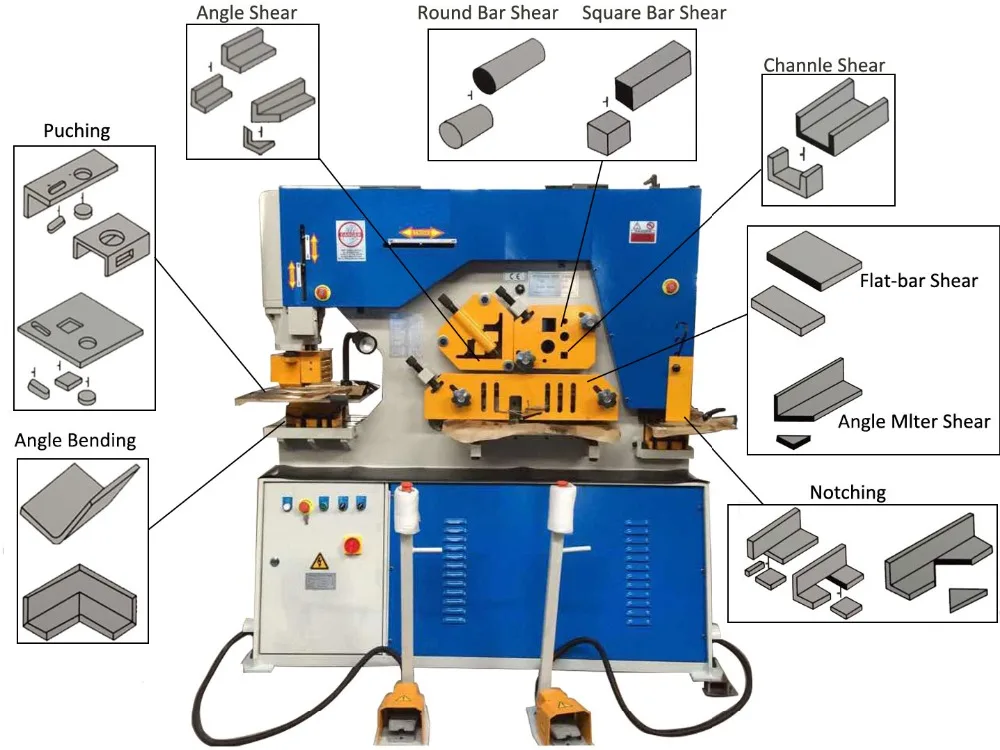

  The Iron Worker(combine punching and shearing machine) is a combination of metal shearing, punching, cutting, bending and other functions. It adopted hydraulic system, widely used in cutting/punching/notching various metal plate,squared bar,round bar,angle,channel and joinst.

  It's suitable for round hole, square hole, oblong hole punching; steel plate, flat bar, angle steel, C-channel, H-beam punching; steel plate bending; angle steel shearing, notching and bending; flat, round, square bar, C-channel, I-beam, T-bar shearing/cutting; angle bending and pipe notching.

\t

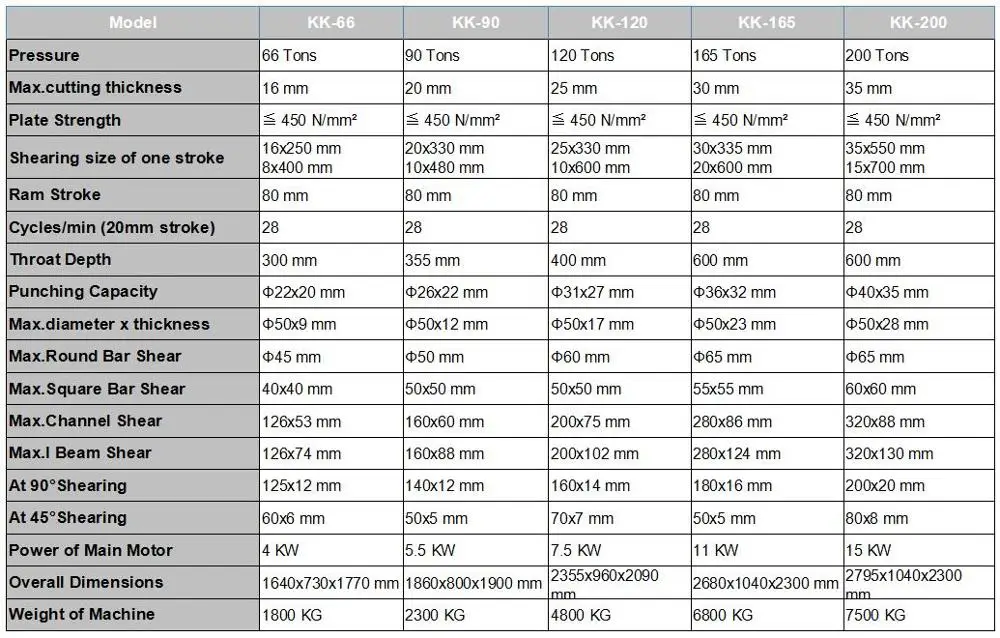

SPECIFICATIONS of KK-90 Punching and Shearing Machine
\t
Pressure
\t
90Tons
\t
Max.Cutting Thickness
\t
20mm
\t
Plate Strength
\t
≤450N/㎡
\t
Shearing Size of One Stroke
\t
20*330mm   10*480mm
\t
Ram Stroke
\t
80mm
\t
Throat Depth
\t
355mm
\t
Punching Capacity
\t
Φ26*22
\t
Max.Diameter*Thickness
\t
Φ50*12
\t
Max.Channel Shear
\t
160*60
\t
Max. Square Bar Shear
\t
50*50
\t
Max.Round Bar Shear
\t
Φ50
\t
Max.I Beam Shear
\t
160*88
\t
At 90° Shearing
\t
140*12
\t
At 45° Shearing
\t
50*5
\t
Main Motor
\t
5.5Kw
\t
Cyles/min(20mm stroke)
\t
28cyles/min
\t
Overall Dimensions
\t
L1860mm*W800mm*H1900mm
\t
Weight
\t
2300Kg

Main Features

1) Easy operation, low consumption and low maintenance cost. A customized solutions also for your needs.
2) Temperature cooling system, if the oil tempertuare beyond 55°, it will auto-cooling for protect the hydraulic system.
3) Automatic holding system, it can be chosen to set up in angle steel shearing and plate shearing work position automaticly, it's save time and improve working efficiency.
4) Being able to work under rated load continuously,stable working and high precision.
5) Electric panel with overload protection elements and integrated controls.
6) CE certified Emergency Stops and Foot Switch, safety for working and moving.

Detailed Images
Punnching, Cutting, Notching Effects

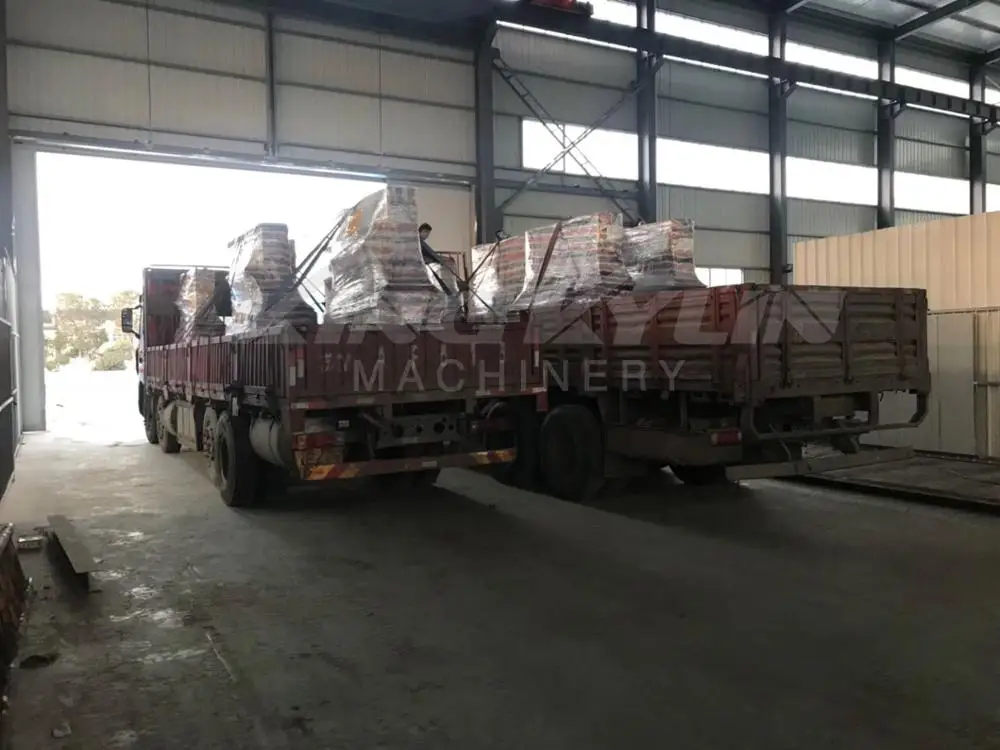

Packing & Delivery
\t
Packaging
\t
Size
\t
123 (L) * 456 (W) * 789 (D)
\t
Weight
\t
1.2 T
\t

Accessories List
\t
1. A set of hole punching die
2. A set of angle steel blade
3. A set of square and round bar blade
4. A set of shearing plate blade
5. A set of notching blade
\t
Package
\t
Fixed on iron tray, covered film.
\t
Delivery
\t
LCL/FCL delivery by sea
