Application:

The ventilator is suitable for various kinds of medical institutions for cardiopulmonary resuscitation respiratory support. Acute respiratory failure caused by various reasons or incomplete oxygenation dysfunction. Intra-operation,  post-operation respiratory support, other respiratory treatment.

Trust Points

l Simplicity: easy to use, easy to move with 4 wheels.

l Choice: adapt the equipment to your patients and procedures freely

l Patient Centered Ventilation: Precision in an anesthesia ventilator, from conventional ventilation to advanced modes, including 8 modes: IPPV; A/C; PCV; SIMV; SPONT/CPAP;PSV;SIGH;MANU.

l Designed and manufactured by Superstar Medical with over 23 years experience in this area.

l Flexible configurations to suit your needs.

l International standard and advanced technology suitable for wide range use.

l Compact interface and big screen give you better operating experience.

l Over 2,000 units installed in the world.



Features

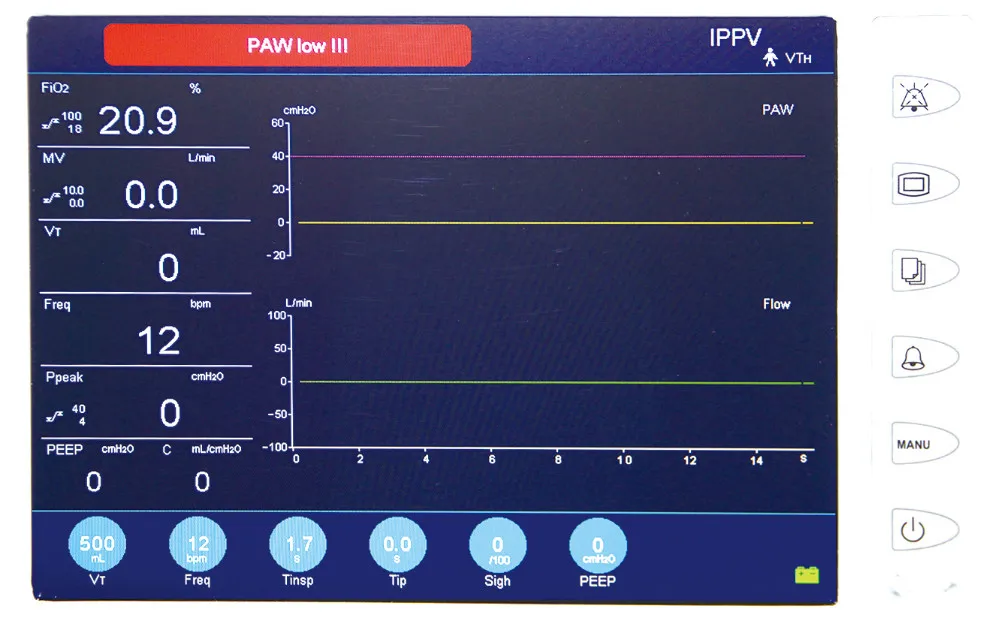

l 12.1” TFT LCD screen displays the Ventilation parameters, Alarming information and Waveform.

l Recycle breathing pipe, ensure easy operating and keep tidy.

l Multiple working modes such as volume control and pressure limit, adapt to wide range patient.

l Vaporizer with temperature, flow compensation and self-lock function, keep safety anytime.

l Multiple parameters monitoring interface, make every parameter clear, let users know the patient conditions in all aspects;

l Real time pressure-time, flow-time loop graphics and high precision O2 concentration detection function included.

l Stable and low noise air compressor, create quiet work environment for doctors.

Safety

l Three level alarming system, visual and sound alarm information.

l With lots of alarming, reminding and protection functions.

l Advanced power management control technology.

l With built-in backup power source, when outside power source goes off, back-up power source starts to work.

l Self-check before running, eliminate system mistake.

l Separate design of electric and gas, keep safety running of ventilator.

Specifications

Item		Paremeter
Model of ICU ventilator		S1100
Language		English for standard
Patients' type		Adult, Children
Display Screeen		12.1' LCD screen
		Shuttle button to set parameters
Ventilator parameter	Ventilation mode	IPPV, A/C, SIMV PCV, PSV, SPONT/CPAP, SIGH, MANU
	Frequency (Freq)	1 min ~ 100 min
	Variable Oxygen	21 % ~ 100 %
	Tidal volume(Vt)	20 - 2000ml
	I:E	4:1~1:8
	PEEP	0 cmH2O ~ 40 cmH2O
Oscillogram (2 at the same time)		P-T (pressure – time)
		F-T (flow – time)
		P-V loop (pressure – volume loop)
Alarm and protection		14 warning notice
Rapid oxygen supply		NO
ETCO2		NO
Nebulization function		NO
Humidifier		Yes, available. Heating and wetting, real-time temperature to display

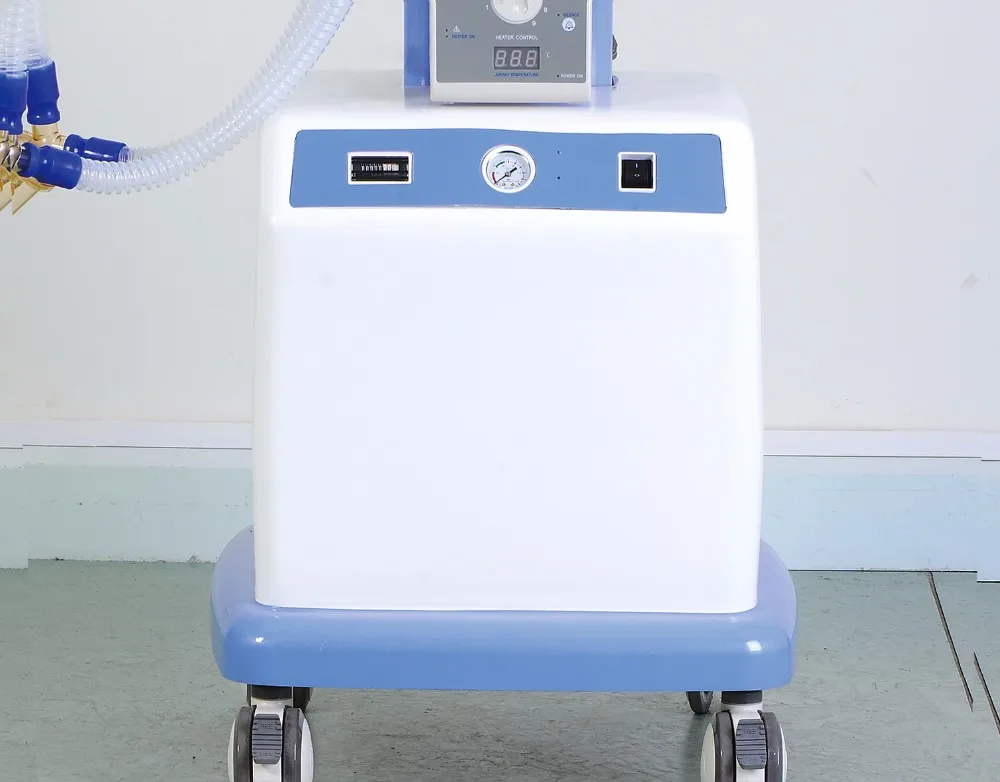

Air Compressor		Continuous output flow:  ≥25L/min Peak output flow:  ≥120L/min
		to display continous working hours
		no noise, the DB is less 40DB
		Multilevel filtration of purification system
Working condition	Gas source	O2, Air
	Pressure	280 kPa~600 kPa
Power	AC electricity	100 - 240V, 50/60HZ
	Backup battery	last to 2-3 hours
Packing size	Main engine	560x560x605 mm
	G.W / G.W	40 / 22 KGs
	Air compressor	683x687x1140 mm
	G.W / G.W	105  / 70 KG
