DW-1.2-8 Китай тоннель фрукты Дегидратор/сетка пояса сушилка сушильная машина для

Description:

This machine is a continuous penetrating flow drying equipment applied for drying pieces strip and particles state materials with good ventilation. The machine is suitable for the materials such as de-watering vegetable, fruit, herbal medicine of traditional Chinese medicine and others, for which the water contents are high and high drying temperature is not high. The machine owns the advantages, of fast drying speed, high evaporation capacity and good product quality. The de-watered & filtered cake state paste material should be made into particles or strips before drying process.

Features:

1. In the mesh belt dryer system, the following data can be a special set and adjusted in order to achieve the best drying effect: heating temperature, air flow, staying time.

2. Agility specified: we can add mesh belt washing system and product cooling system in mesh belt dryer system.

3. Agility operating: after conveying on mesh belt, wet material is dried in a totally sealed chamber during the whole drying process. Working condition is good because the system does not have powder leaking outside.

4. When wet material loaded in conveying belt, the relative position between every single material is quite stable. So for every single material, drying time is almost the same. This is especially suitable for drying that product that needs good color and uninformed water content. Additionally, during a drying process, the product will not be heavily shocked and vibrated, so granule size of granule will not break down. So this kind of mesh belt dryer is especially suitable for that product that should keep the good shape.

5. Our mesh belt dryer can also bake, cook and cooling raw material besides other than drying function.

6. Our mesh belt dryer designed intelligent air distribute construction in order to separate hot air into every single material uninformed.

7. Total construction is not complicated by Rank design. Through our human design principle, mesh belt dryer is easy for assembly, each for maintenance and transportation.

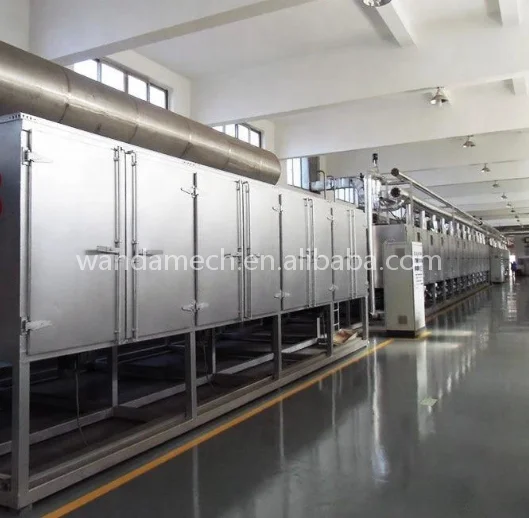

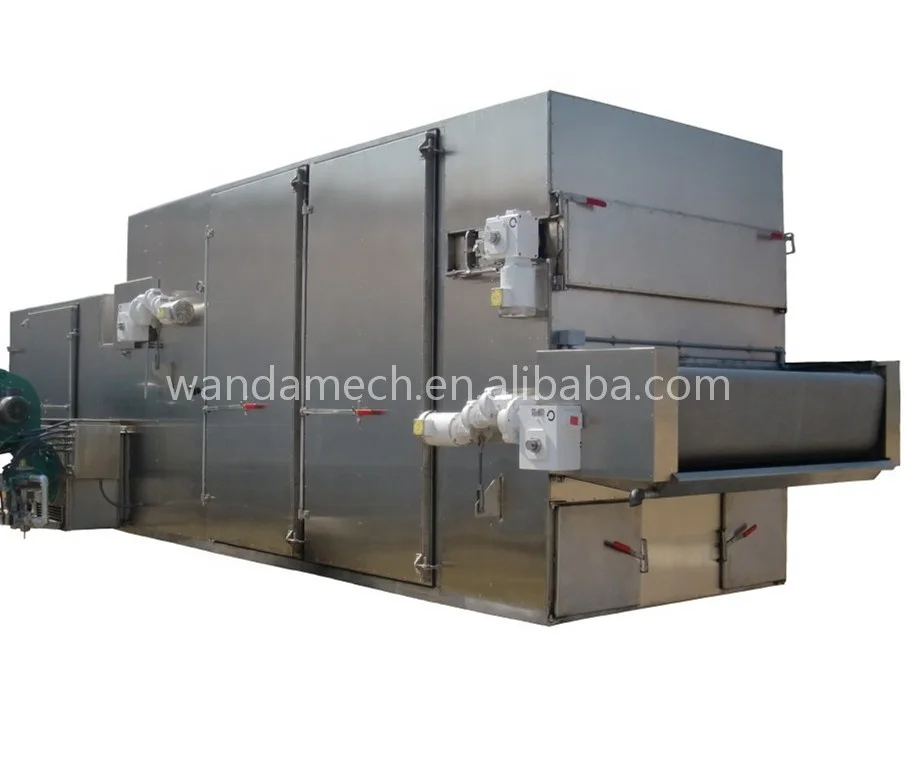

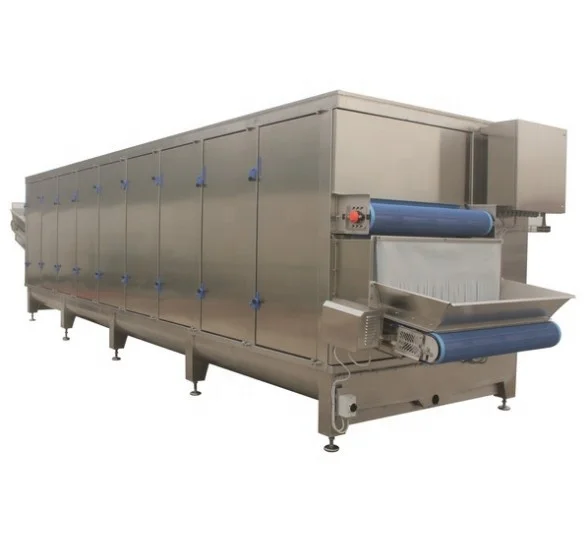

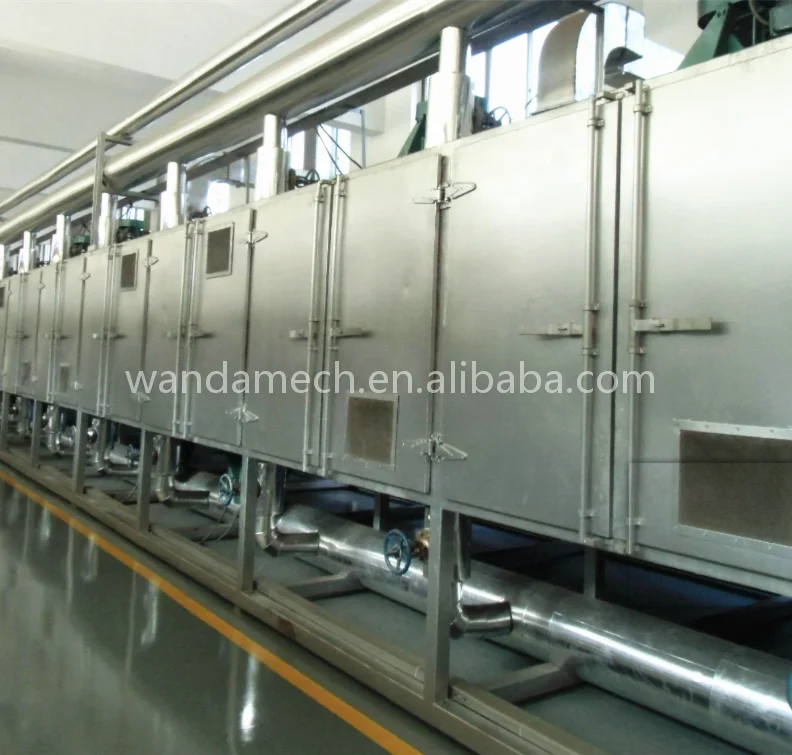

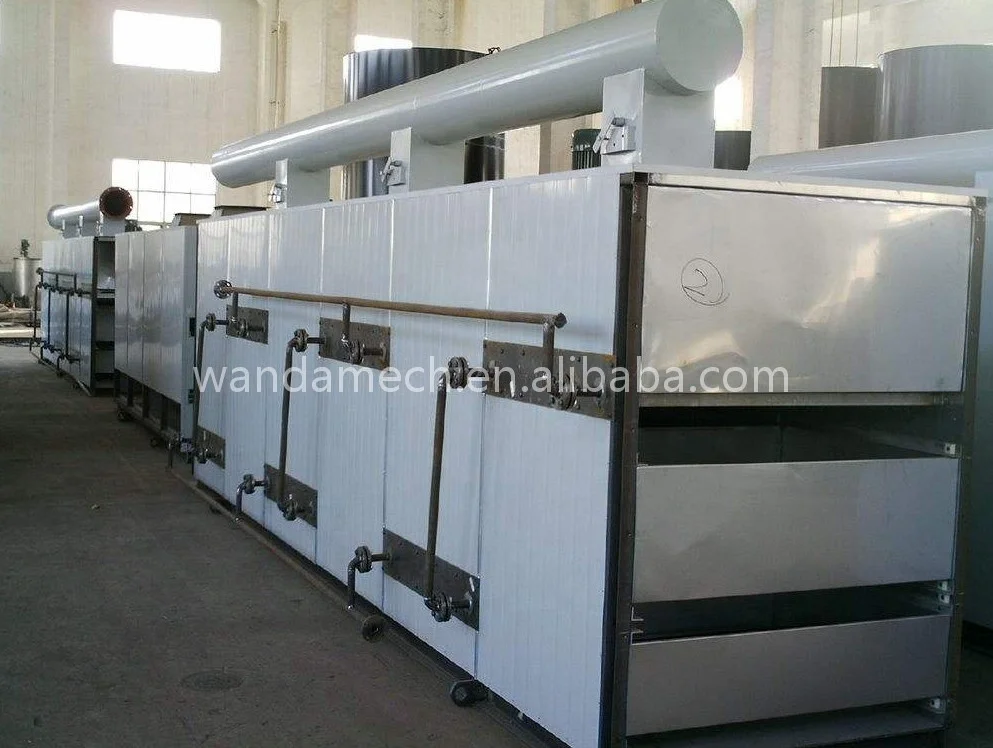

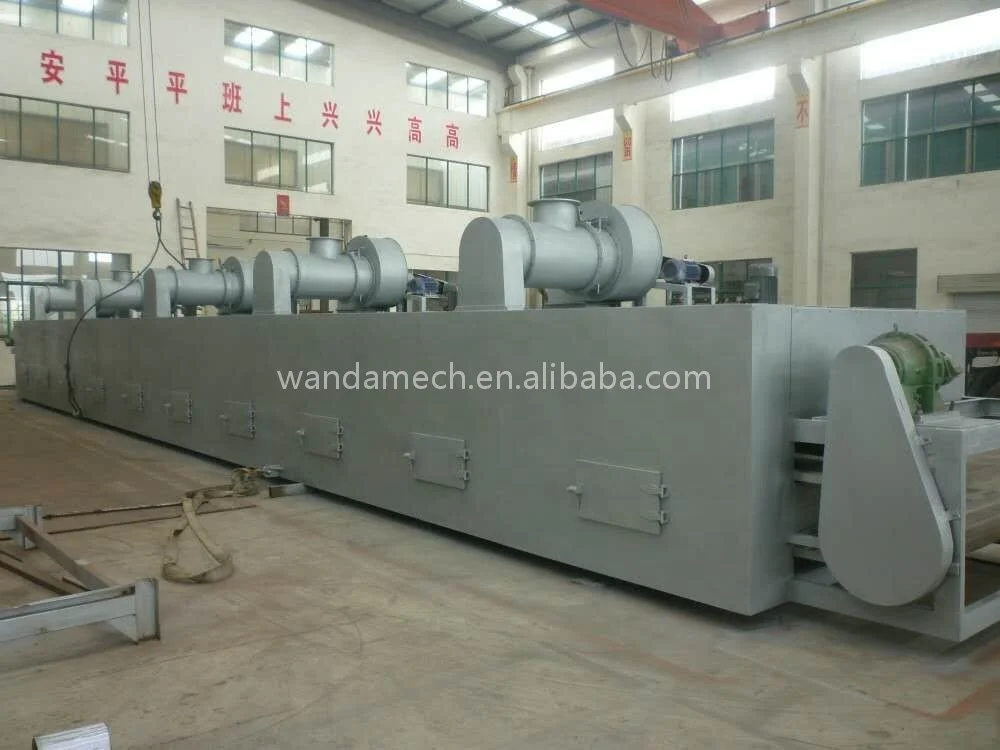

Pictures:

Details:

Field application:

De-watering vegetable, fruit, particle feed gourmet powder, shredded coconut stuffing, organic color, compound rubber, acral fiber, medicine material, small wooden product, plastic product, aging and solidification for the electronic component and device.

The materials are uniformly distributed on the mesh belt by the material feeder. The mesh belt generally adopts 12-60 mesh stainless steel mesh and it is drawn by a transmission device and move inside the dryer. The dryer is composed of several sections. For each section, the hot air is circulated separately. Part of exhausted gas is exhausted by a special moisture exhaust blower. The waste gas is controlled by an adjustment valve. The hot air passes through the mesh-belt covered with bring water material away. The mesh-belt moves slowly, running speed can be freely adjusted according to the material property. The final products after the drying process will fall into the material collector continuously. The top and low circulation units can be freely equipped according to the user's requirements. The number of section might be selected according to the production demands.

Our services:

Pre-Service

1. 24 hours onlinne consult and service

2. Introduce the product to the customer in detail, answer the question raised by customer carefully;

3. Make different plans for choice according to the needs and requirements of customers;

After-sale Service

1. Help to install and debug the equipment;

2. Provide 24 hours techincal support by e-mail or phone;

3. Keep sufficient replaceable spare parts;

4. Help customers slove any other questions about products or other aspect;

5. Establish long-term and friendly relationship.

Service Commitment

1. We will provide one-year warrantee to make sure your machine runs consistently. We always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.
2. Consultant services for whole machine life, 24 hours technical support by email and telephone.
3. Send technicians to the jobsite for guiding the installation and adjustment, training operators and finishing the check and accept together with you.

Honor:

Customers visting:

LIAOYANG WANDA MACHINERY CO.,LTD is specialized in design, development, manufacture and sale of pharmaceutical, chemical and packaging machinery. Our products include belt dryer, hollow paddle dryer, spray dryer, fluid bed dryer, rotary dryer, vacuum oven dryer, hot air circulation oven dryer, powder and guranulator packing machine and so on.

Looking to the future with a commitment to design innovation and quality products, supported by an outstanding level of customer service. The unexcelled quality medical machinery can be easily obtained from us because we maintain the quality and standard of our products from incoming raw materials to the finished products. Our company follows strict quality controls and various systematic procedures. We take utmost care of quality at every stage of the manufacturing process.

Our research and development wing is our asset that develops and incorporates innovative ideas and products. Our Team is full of experienced and qualified professionals, who have sound knowledge about the quality of our medical machinery. Our products are far sold to Europe, U.S.A., and the southeast Asia. They are well received by customers both at home and abroad.

1. What data is required to confirm the model?

(1) Materials to be dried (2) Treatment capacity per hour (3) Moisture requirements before and after drying

2. What certificates do you have?

We can provide CE, ISO9001, etc

3. What is the warranty period of the equipment?

Normally 1 year warranty

4. Can we visit your factory?

Of course, we sincerely invite you to visit

5. Can we bring our own materials to your factory for experiments?

Of course, you are welcome at any time. We will arrange professional engineers and technicians to do experiments and analyze data for you on site

6. Can it be customized?

Of course, our equipment can be customized according to the actual requirements of customers.

7. How long is the construction period?

It's about 30 days, but it also needs to be determined according to the specific equipment model, order number, etc., But if you need it urgently, please let us know, we can arrange the factory to rush production.

8. Will you provide installation services?

If you need, we can arrange professional technicians and engineers to install and debug on site.
