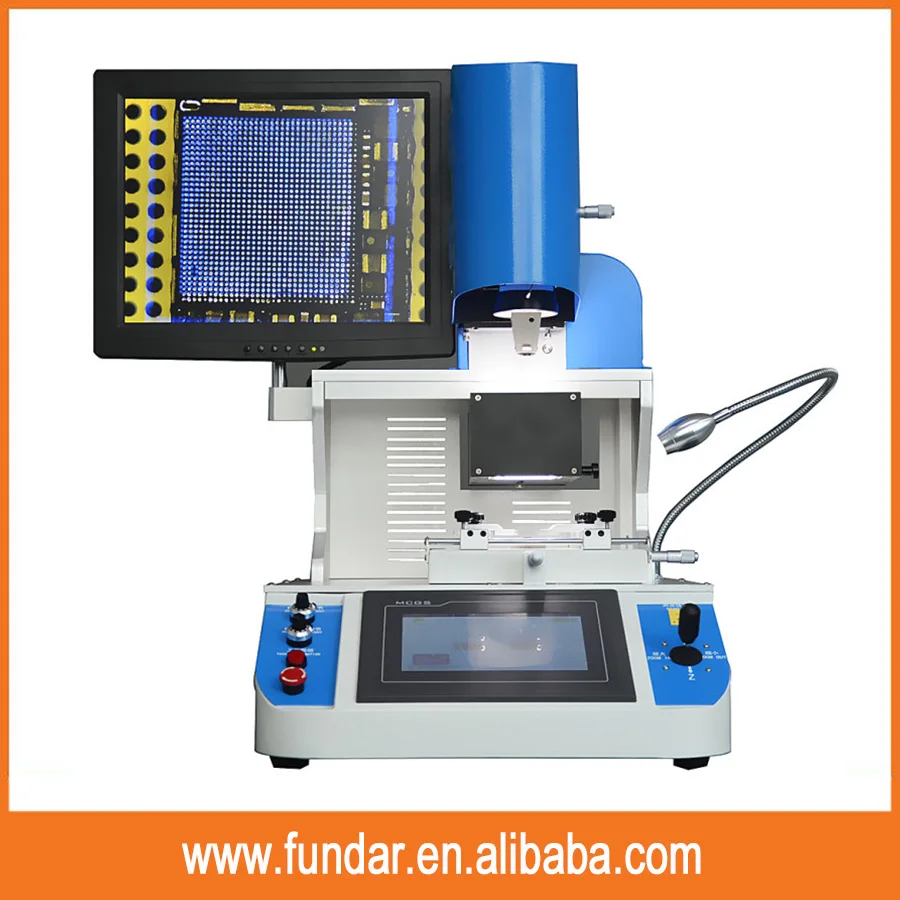

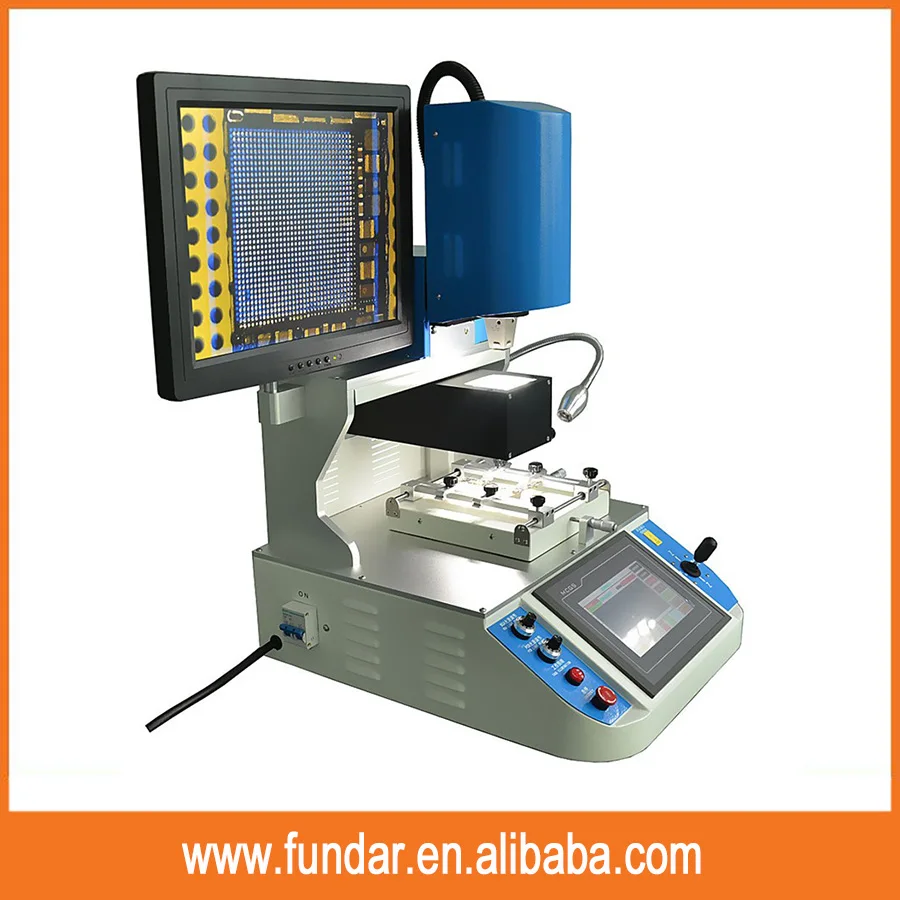

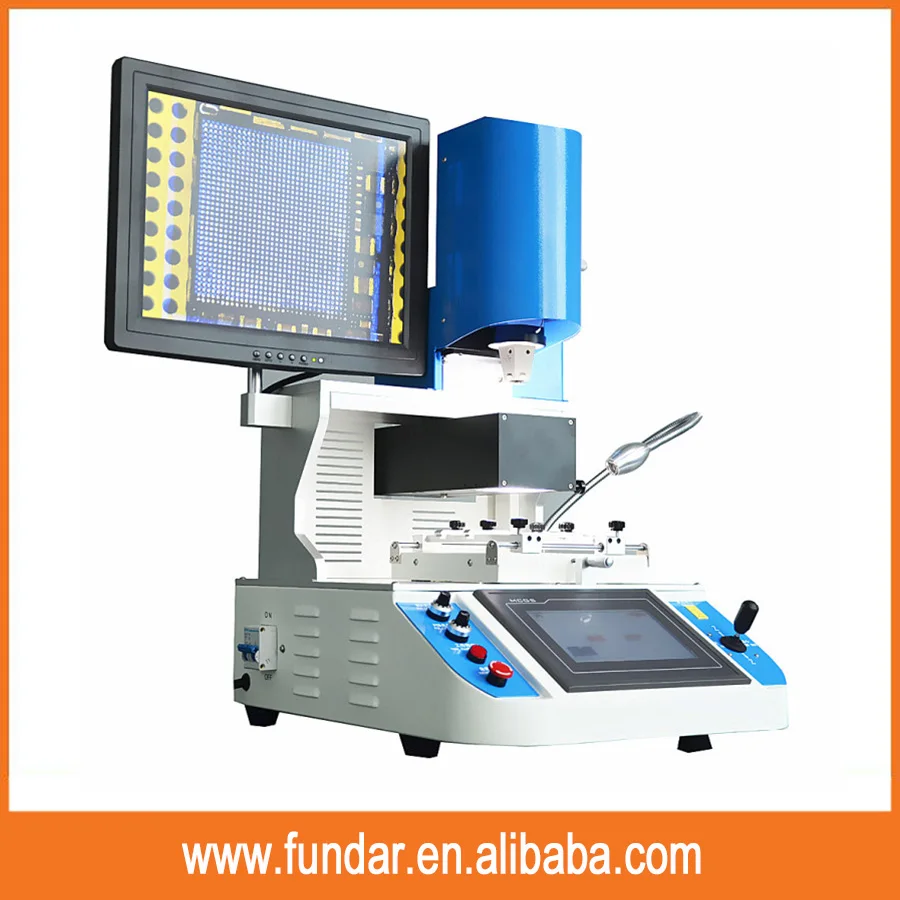

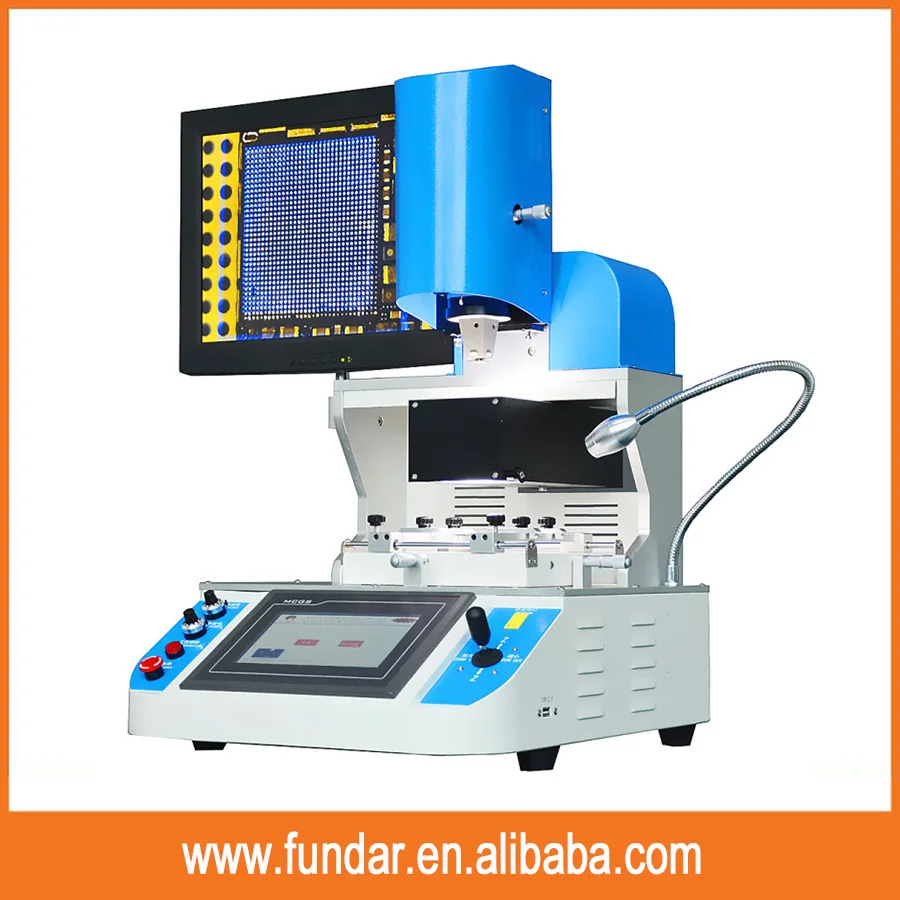

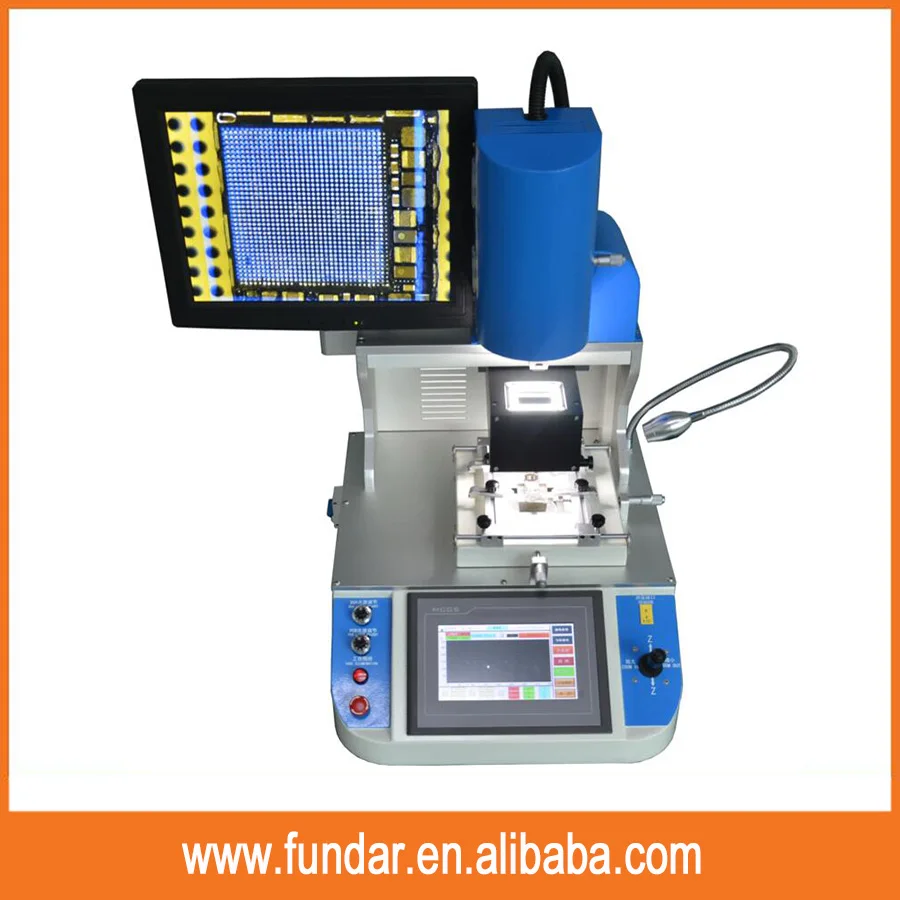

Hot sales Mobile phone repair machine WDS-700 automatic bga reballing sation for EMMC/CPU/U2 ic chip repair







Special for mobile phone motherboard samsung iphone xiaomi huawei etc.



Features:

Independent 2 heating zones temperature control system

1. The upper and lower heating zone,temperature precision control within ±1℃. which can heat up at the same time from the top of he component to the bottom of the PCB; 8 segment temperature control independently.

2. Hot air district heating for BGA and PCB at the same time,the upper or lower temperature zones could be used alone and combine freely the energy of up and lower heating element.

3. Adopted high precision K-type thermocouple close-loop control and PID parameter self-setting system;

4. temperature curves can be displayed with instant curve analysis function and multi-group user data can be saved;temperature can be tested precisely through external measurement interface,curves can be analysed,set and correct on the touch screen at any time.



Precision optical alignment system

WDS-700 Using high definition and adjustable CCD color optical alignment system,beam split, amplification, lessening, fine adjustment and auto focus with the function that automatic color aberration resolution and brightness adjustment,adjustable image contrast; equipped with 15 ” high definition LCD monitor.



Multi-functional and humanized operation system

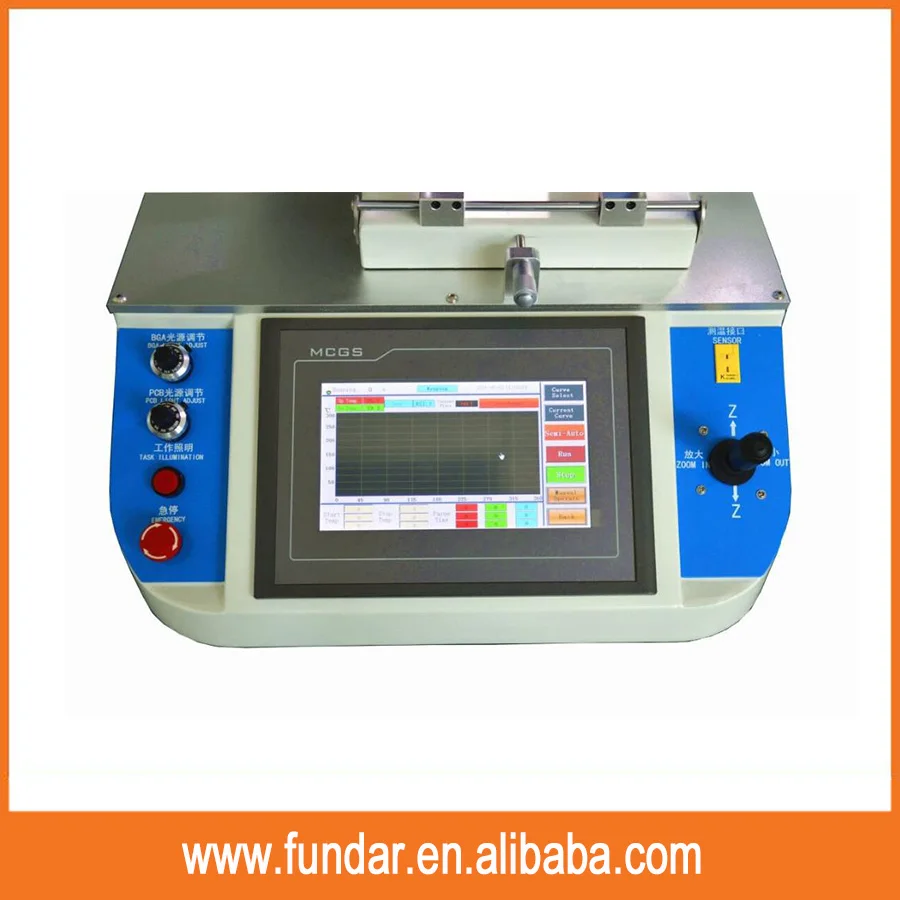

1. Adopting the HD touch human-machine interface;upper heating head and mounting head designed 2 in 1;providing many kinds of titanium alloy BGA tuyere can be rotated in 360 degree for easy installation and replacement.

2. X,Y and R angle adopted micrometer fine-tuning,accuracy locating,precision can reach ±0.01mm.



Superior safety protection function

WDS-700 With the alarm function, after the BGA welding the machine can alarm by itself.In the case of temperature abuse, the circuit can power off automatically with the double over-temperature protection.Temperature parameter having password protection to prevent any modification.





Superior function	Auto soldering desoldering mounting BGA/IC
Power supply	AC 220V±10% 50/60Hz
Total power	Max 2500W
Heater power	Upper temp. zone 1200W, Down temp. zone 1200W
Electrical material	Driving motor+ smart temp. controller+color touch screen
Temperature controlling	(high precision K-sensor)(Closed Loop), independent temp. controller, the precision can reach ±1℃
Locating way	V shape slot, PCB support jigs can adjust
PCB size	Max 200×200mm Min 5×5 mm
Applicable chips	Max 80×80mm Min 1×1 mm
Overall dimension	L450×W470×H670mm
Temperature Interface	1 pcs
Color	Blue+White
Package size	590*590*710mm
Package Weight	50kg







1 x WDS-700 BGA Rework Station
