45 мм ac Электрический тент трубчатый мотор с 5 лет

Описание и отзывы

Трекер стоимости

Характеристики

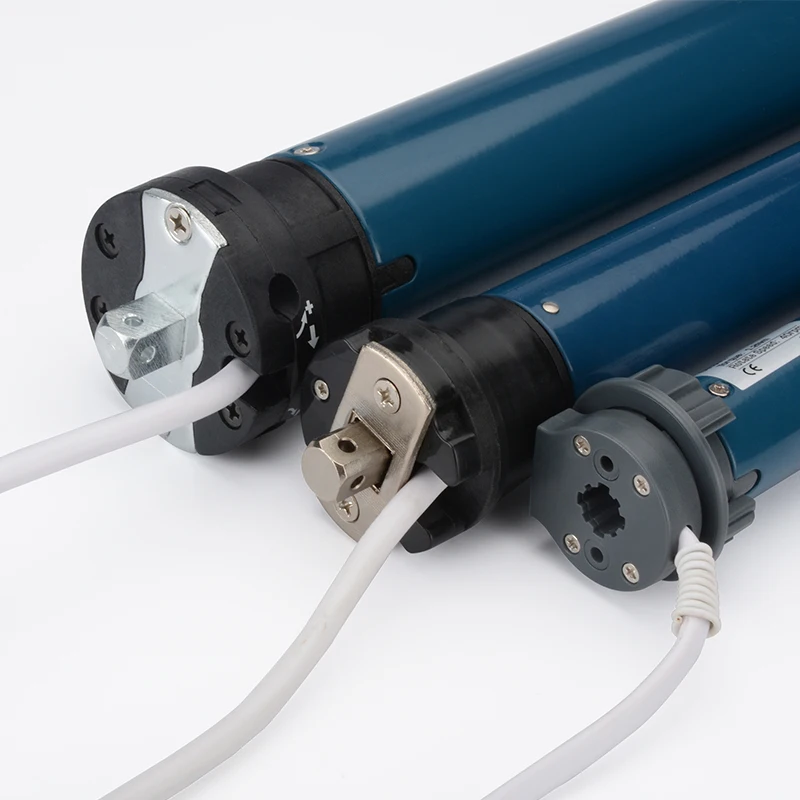

45mm ac tubular motor for roller blinds shutter

•


  ac tubular motor





•


  ac tubular motor





•


  ac tubular motor














 Application



Motorized roller blinds, Zebra roller blinds, Rome blinds, Skylight, Shutters, Screen, etc.



 Structural Features



1.Receiver built-in or without receiver;

2.Mechanical limit;

3.Large torque, low noise.





 Structural Drawing

 Performance Parameter



Motor Type	Torque	Rated Speed	Rated Voltage	Rated Current	Running Time	Max Turns	Length(L)	Remark
AT45-20	20 n.m	15 rpm	220 VAC/50HZ	0.64A	4 min	42 turns	555mm	Without Receiver
AT45-20/26	20 n.m	26 rpm	220 VAC/50HZ	0.86A	4 min	42 turns	585mm	Without Receiver
AT45-30	30 n.m	15 rpm	220 VAC/50HZ	0.83A	4 min	42 turns	585mm	Without Receiver
AT45-40	40 n.m	15 rpm	220 VAC/50HZ	0.86A	4 min	42 turns	585mm	Without Receiver
AT45R-20	20 n.m	15 rpm	220 VAC/50HZ	0.64A	4 min	42 turns	655mm	Receiver built-in
AT45R-20/26	20 n.m	26rpm	220 VAC/50HZ	0.86A	4 min	42 turns	685mm	Receiver built-in
AT45R-40	40 n.m	15 rpm	220 VAC/50HZ	0.86A	4 min	42 turns	685mm	Receiver built-in





  Accessories Lists





55mm,63mm,70mm,90mm aluminum tube and other accessories  can be choose.



 Sturcture Picture

























1.Are you manufacturer or trading company?

    We are manufacturer for 15 years experience.

2.What's your MOQ?

   1 pieces.If you order more,there will be a discount.

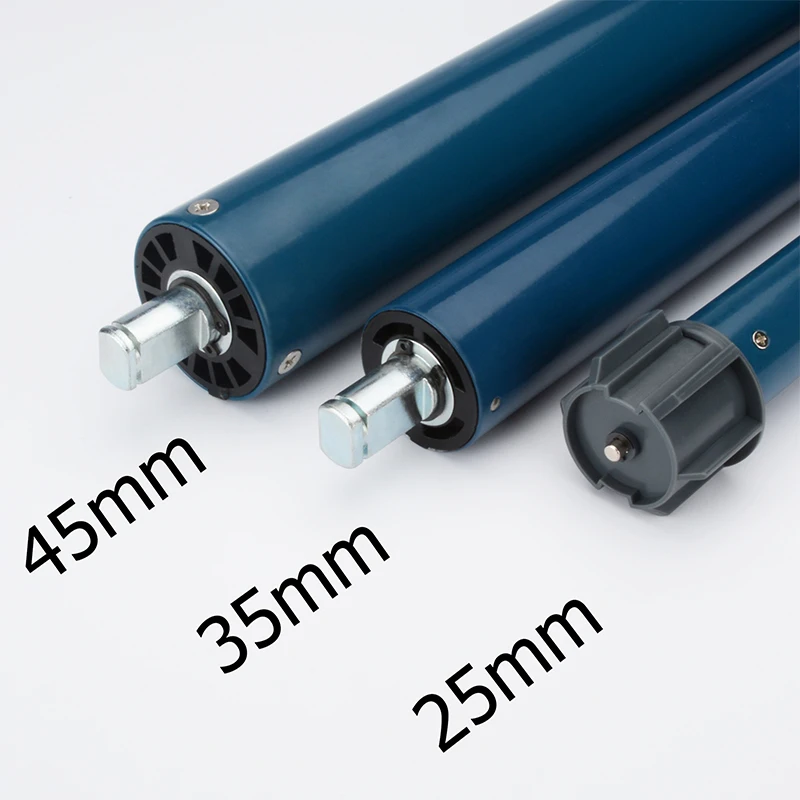

3.How to choose a suitable motor?

   If use 25mm tubular motor,the blind max width 2 meter,max load 6 KG.

   If use 35mm tubular motor,the blind max width 3 meter,max load 35 KG.

4.How to get a sample?

   You should pay for the sample and freight charges.

5.How about the lead time?

   The sample will be delivered within 3 working days. The goods will be delivered with 30 days according to

   your order.

6.Do you have finished blinds?

   Yes,we can sell finished blinds or only accessories.

7.Can I customize the blinds?

   Yes,we can produce the blinds according to your size and we provide the printed fabric that you can print

   your favorite pictures on the blinds.
