It is compatible with the4G IEEE802.11n portable router, and a solution to adapt to 3G networks, users can
connect and share high-speed 4G networks. With the emergence of 4G networks, wireless router via Wi-Fi to share the 4G connection is also a lot of people's needs. We launched the smallest 4g pocket wireless router is such a product: the SIM into the router, you can easily share via Wi Fi network 4G connection,
so you can easily make laptops and other Wi-Fi devices anywhere, anytime connectivity Internet.
smallest 4g pocket wireless router Built-in high energy density, removable lithium battery, readily available sufficient energy, high-performance built in 4G module! The appearance of small, compact, attractive
appearance, easy to carry.
Basic Product Information
Remark
Model
4g wi fi dongle
CPU (MHz)
CPU (MHz)
SA Time
4.2016
W2100 900 LTE B1 B3 B7 B8 B20
Band/Mode
TDD-LTE: B38//40 FDD-LTE: B1/B3/B7/B8/B20(B5) UMTS:B1/B8 GSM Quad Band
TDD-LTE: B38(2600)/B5(850)/B40(2300) FDD-LTE: B1(2100)/B3(1800)/B7(2600)/B8(900)/B5(850)/B20(800) UMTS(WCDMA): B1(2100)/B8(900) GSM: Quad Band (850/900/1800/1900)
HW Description
Air interfaces
GSM/GPRS/EDGE
DTM (simple class A), multislot class 12
UMTS
R99 384 kbps DL / UL R5 HSDPA 7.2 Mbps DL R6 HSUPA 5.76 Mbps UL R7 HSPA+ 21 Mbps DL / 5.76 Mbps UL R8 DC-HSPA+ 42 Mbps DL / 5.76 Mbps UL
TDD-LTE
R8 Cat3 61 Mbps DL / 18Mbps UL
FDD-LTE
R8 Cat3 100 Mbps DL / 50Mbps UL
CDMA
EVDO Rev.B: up to 14.7Mbps DL / 5.4Mbps UL EVDO Rev.A: up to3.1Mbps DL / 1.8Mbps UL
Memory
System memory
NandFlash 1Gb+DDR SDRAM 256Mb
External memory
NandFlash 1Gb+DDR SDRAM 256Mb
Micro-SD
WIFI
Frequency Band
2.4GHz
802.11b/g/n
up to 150Mbps
Modes supported: 802.11b mode 802.11g only mode 802.11n only mode 802.11b/g only mode 802.11b/g/n mode 802.11n 1x1 (2.4GHz, 20MHz)
User amount
Max to 8
LED
Power
Red
WIFI
Green
Wifi work
LTE
Blue
Connect internet
Other Description
RF Power Spec
Class 4 for UMTS/HSPA/LTE; Class 4 for GSM 850/900; Class 1 for GSM 1800/1900; Class E2 for EDGE 850/900/1800/1900
Power supply input
USB 2.0 5V-1A
Compliance
ROHS
YES, EU RoHS

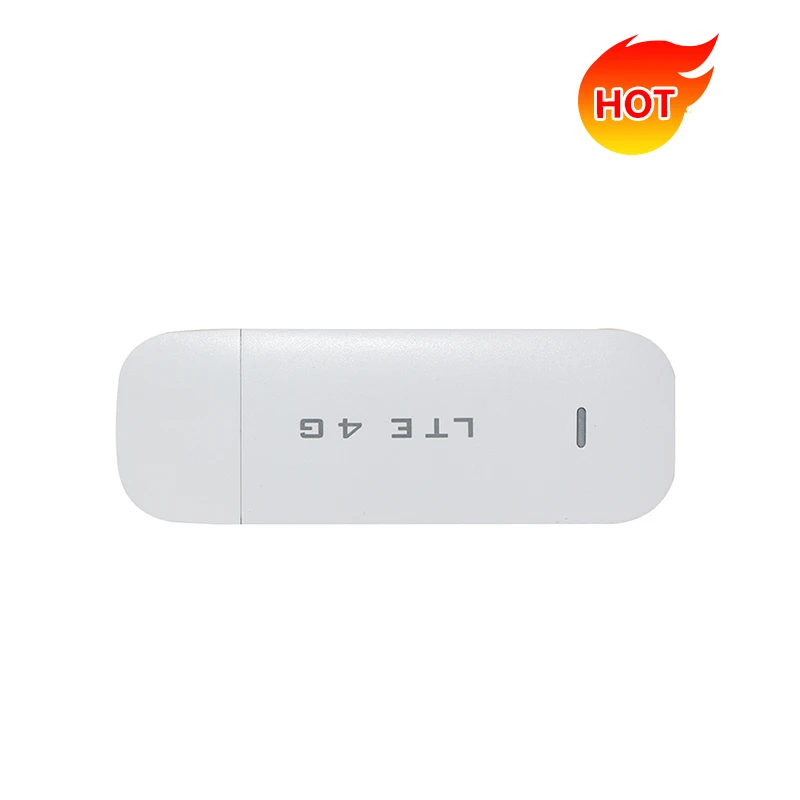

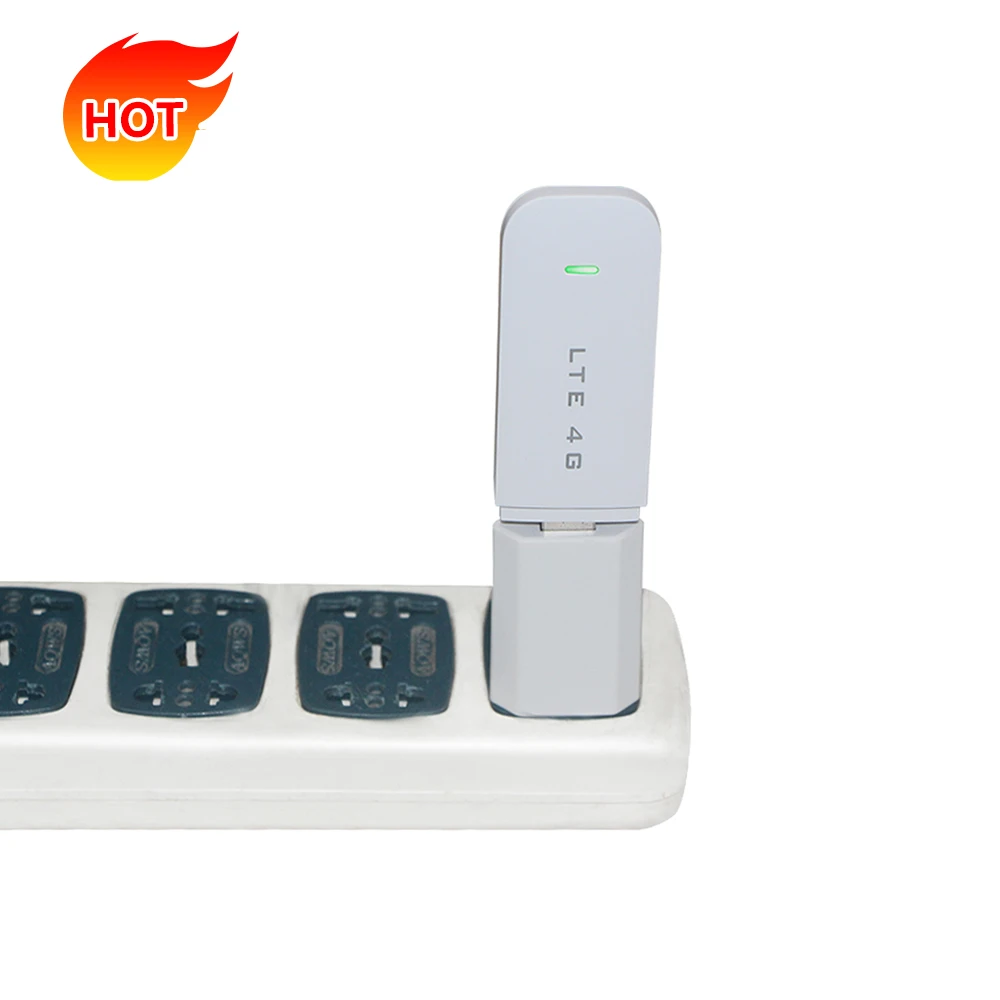

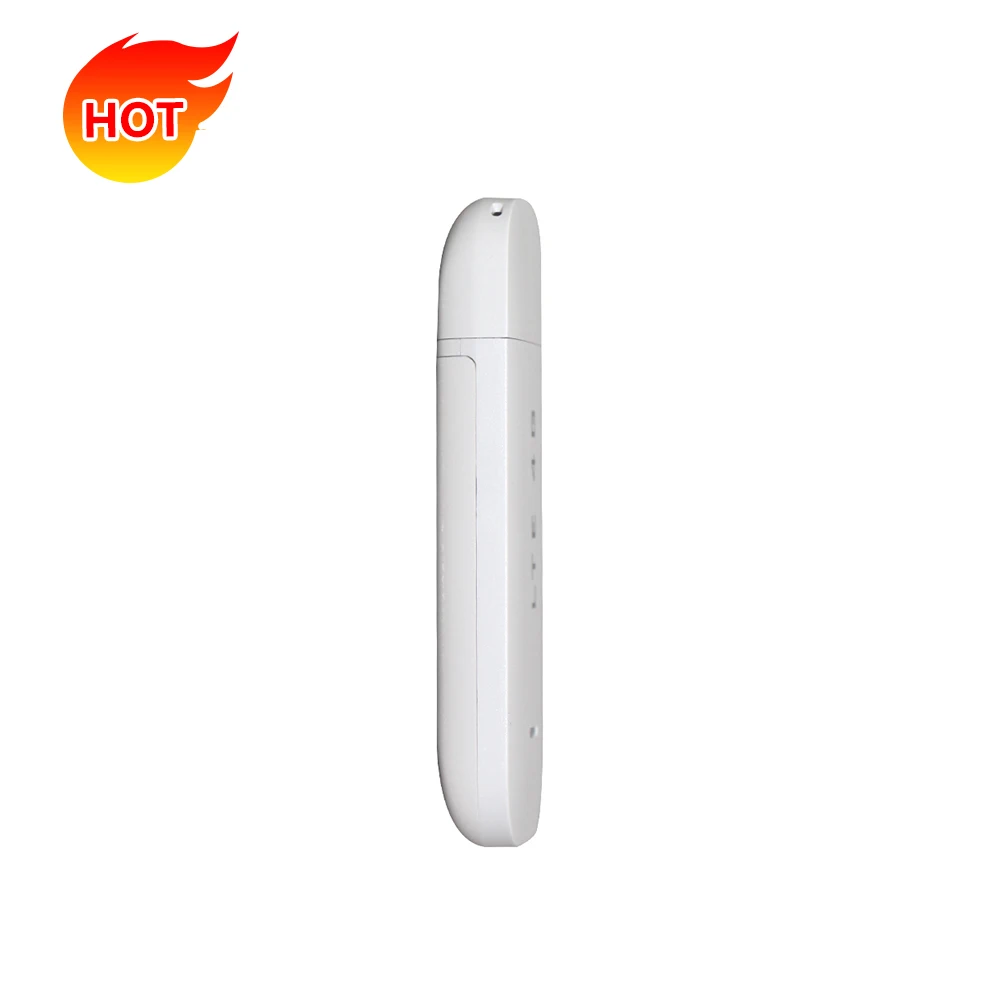

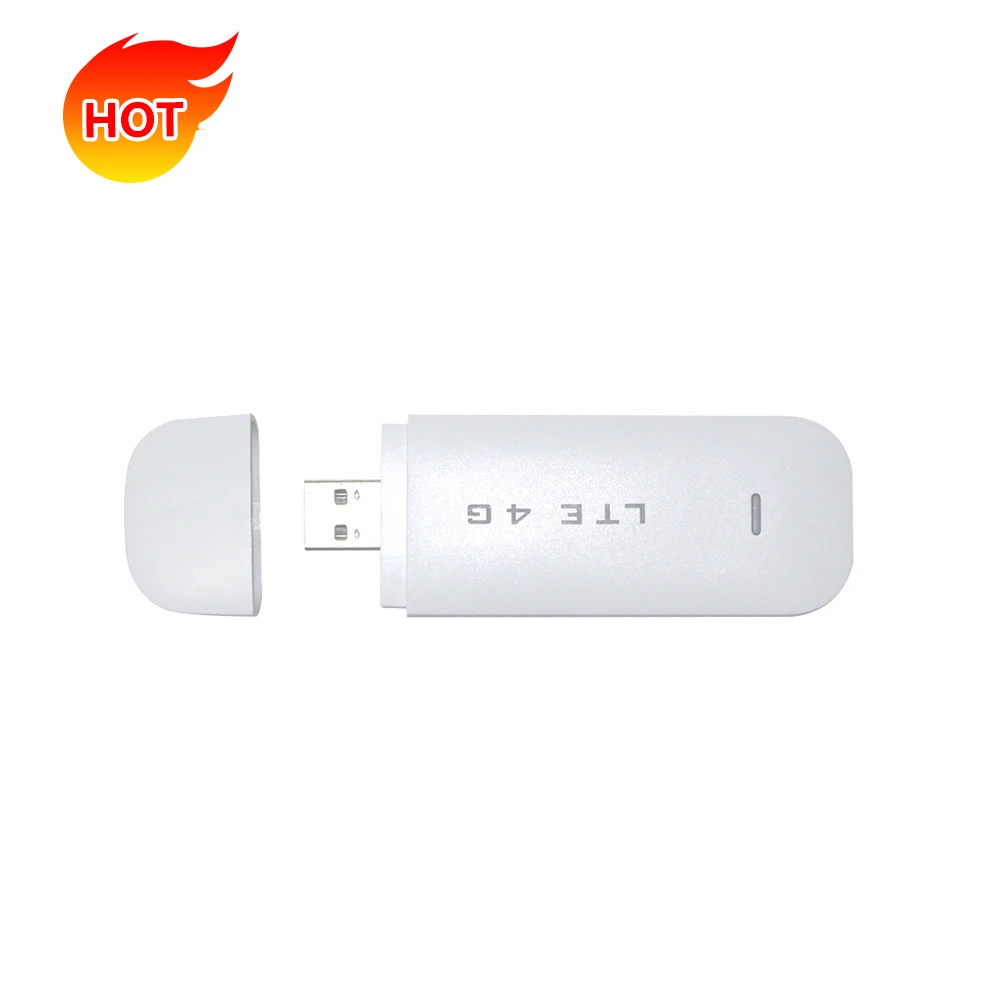

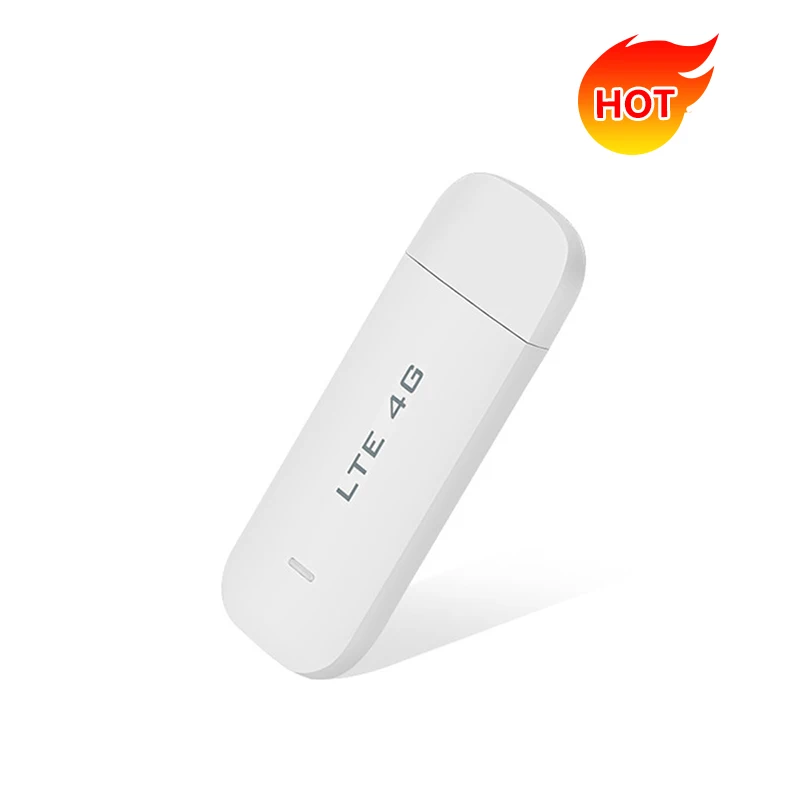

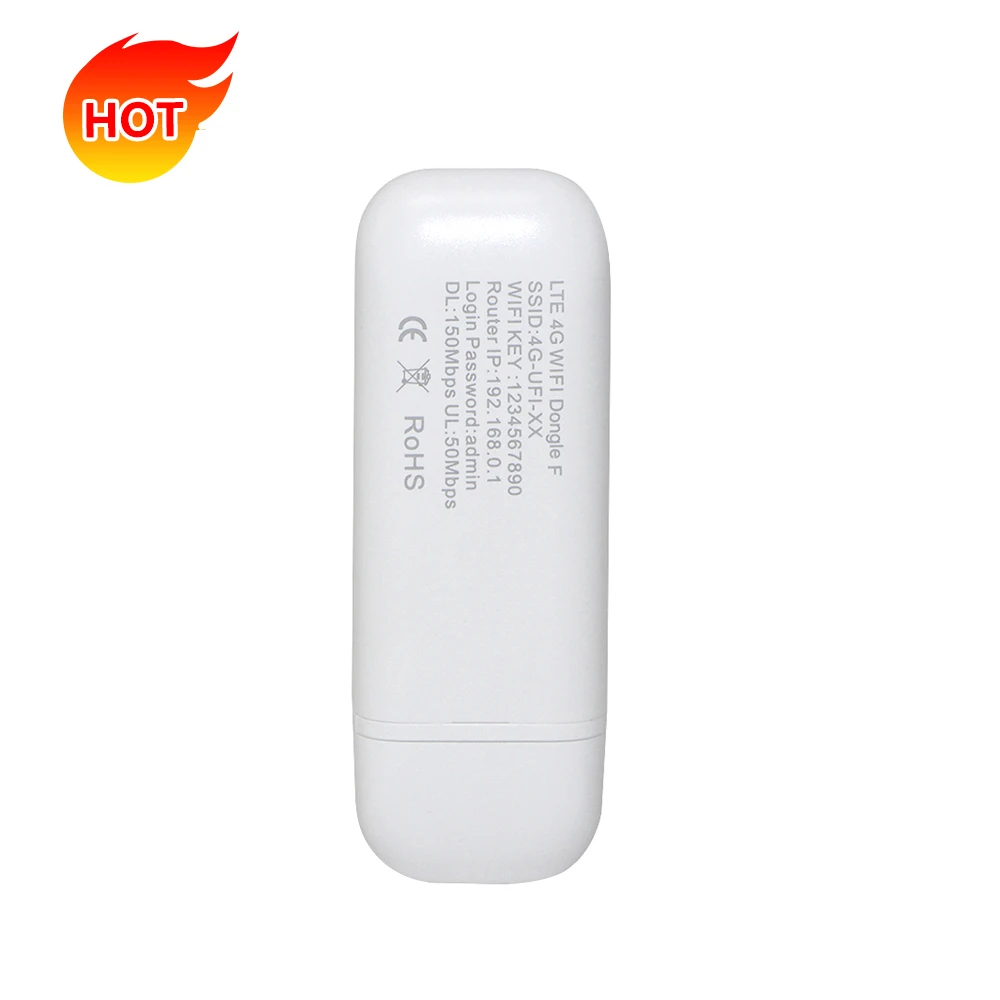

Pictures from different sides for your view:
