Стальная арматурная винтовая машина для прокатки резьбы по более низкой цене
US $580.00-$670.00
Резьбонакатный станок соединитель арматуры цементированная твердосплавная
- Категория: Формовочное оборудование для металла >>>
- Поставщик: Hebei,Yahan,Machine,Manufacturing,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 4998.87 $* | 5248.71 $* |
| Aug-18-2025 | 4956.76 $* | 5204.49 $* |
| Jul-18-2025 | 4158.72 $* | 4366.22 $* |
| Jun-18-2025 | 4872.93 $* | 5116.34 $* |
| May-18-2025 | 4242.86 $* | 4454.27 $* |
| Apr-18-2025 | 4788.40 $* | 5027.77 $* |
| Mar-18-2025 | 4746.46 $* | 4983.53 $* |
| Feb-18-2025 | 4704.27 $* | 4939.22 $* |
| Jan-18-2025 | 4662.64 $* | 4895.41 $* |
Характеристики

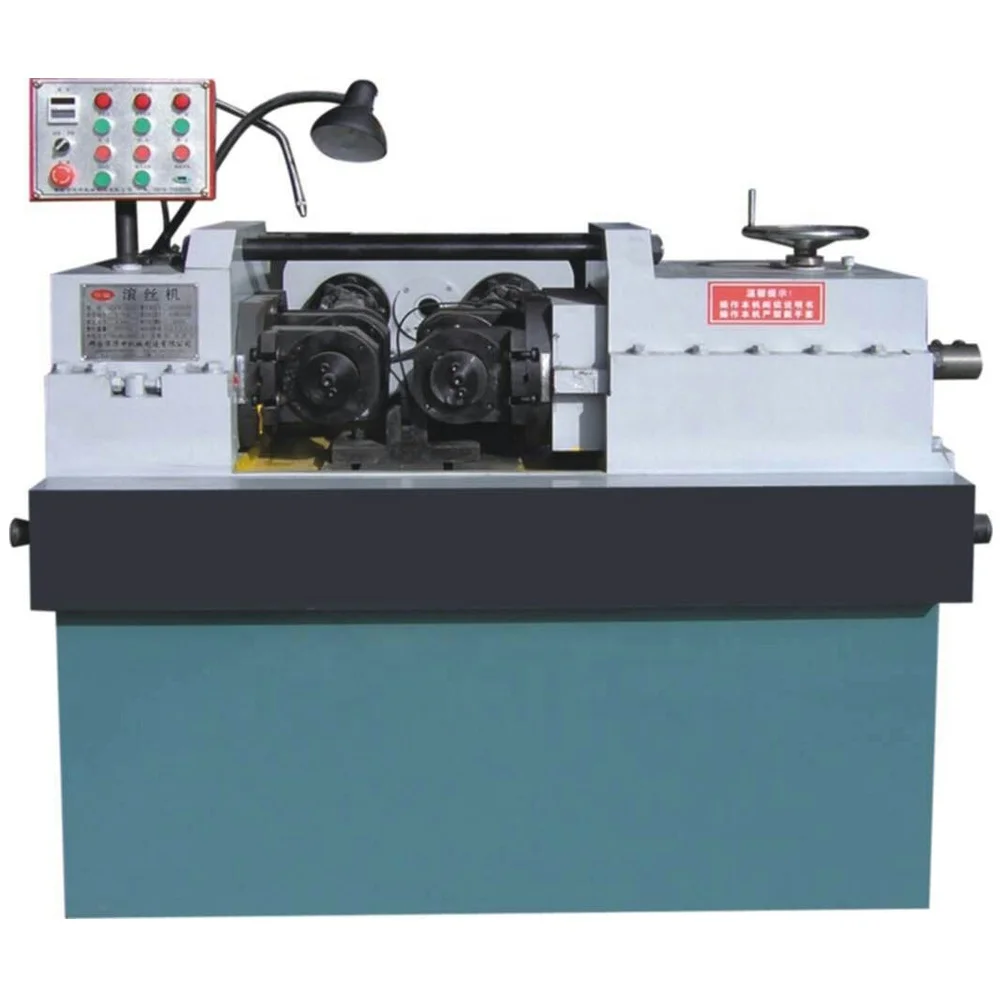

Thread rolling machine rebar coupler Cemented Carbide Thread
Product Description
Thread Rolling machine main organism, rotating box, fixed spindle seat, movable spindle seat, hydraulic system and electrical components. The two main axes of the thread rolling machine are synchronized and rotate in the same direction. The right spindle is fed in the horizontal direction driven by the rolling pressure, and the two rolling rollers roll the workpiece to make the desired thread and other shapes. Fixed spindle seat and movable spindle seat is mainly used for installing roller wheel and rolling wheel tooth position adjustment.
Max rolling pressure | 80KN | Length | Unlimited | |
Rolling material diameter range | Radial feed | Φ5-Φ30mm | Spindle speed | 34,43, 57,72(r/min) |
| Axial feed | Φ5-Φ22mm |
|
|
Thread roller | Outer roller diameter | Φ120-Φ170mm | Active power | 4.0kw-4 |
| Inner roller diameter | Φ54mm | Hydraulic power | 1.5kw-4 |
| Max thickness of roller | 100mm | Cooling power | 90w |
Axis tilt angle | ±5° | Weight | 1000kg±50kg | |
Spindle center distance | 120-240mm | Dimensions | 1480×1500×1050mm | |
Hydraulic system is the machine's feed power, it is mainly to move the spindle seat for feeding and return movement.
During the rolling, the feed amount per axis of the workpiece can be determined according to the parameters of the workpiece and the mechanical properties of the workpiece material.
Thread Rolling machine two spindle center distance adjusted for the two spindle seat were adjusted to the center, that is, when the workpiece is in the center of the machine rolling, the rolling long workpiece and through the machine more aspects. The angle between the spindle axis and the table surface can be adjusted between ± 3 °.
Packaging & Shipping
Express logistics can be transported according to customer's requirements as long as you pay for it.
Our Services
Pre-sale Service
1.Supply item design,process design.
2.Help you to chose the fitest machine.
3.Making the machine according to your requirement.
Sale Service
1.Acceptance equipment together with you .
2.Help you to make the method statement and the details of the process.
After Service
1.Guarantee for a year.
2.Quality problem,we will sent you the accessories.
3.Free repair whole using life(without the freight and accessories charge).
3.Making the machine according to your requirement.
Sale Service
1.Acceptance equipment together with you .
2.Help you to make the method statement and the details of the process.
After Service
1.Guarantee for a year.
2.Quality problem,we will sent you the accessories.
3.Free repair whole using life(without the freight and accessories charge).
Company Information
FAQ
1. Are you a factory or trading company?
We are the factory, which in this field for more than 20 years.
2. How should I do if meet some trouble while using?
We can supply English manual book and also take a video for showing how to resolve the problems or dispatch our worker to your factory.
3. What’s your MOQ ?
1 set.
4. How long can we get the goods?
we usually delivery in 3-5 working days, we will inform you shipping time based on your seaport.
5. What about Payment term?
T/T(Telegraphic Transfer ) --30% as prepayment by T/T, after seen the copy of the B/L sent by fax, the balance of 70% should be effected . Western Union ,L/C ,Trade Assurance,Etc.
6. How long is the guarantee?
we promise guarantee as one year for non-human damage factor.
7. How does your factory do regarding quality control?
Quality is priority. Our factory has gained ISO 9001 and CE authentication.
