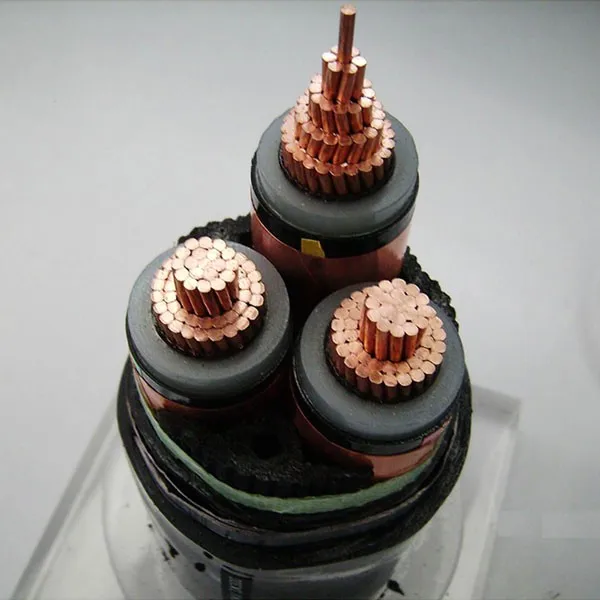

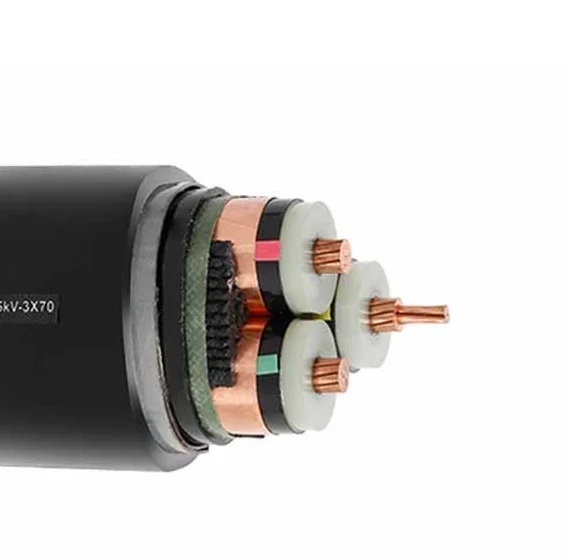

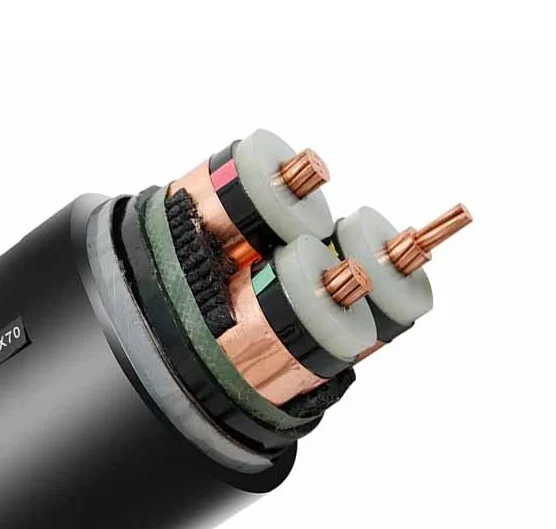

3 core cable 240mm2 copper Conductor XLPE Insulated electric cable 33KV electric cable
Product Description
product name
power cable
color
customized
certificate
ISO9001
core
muti-core
conductor
copper
insulation
XLPE PE PVC
delivery time
within 10 days after receiving your payment
Model
Name
Application site
Section area
Cores
Rate voltag
YJV
XLPE insulated PVC sheathed power cable
Indoors, in tunnel or cable trench, unable to bear external mechanical forces. Single-core cables laid in magnetic ducts are not allowed .
35 50
70 95 120 150 185
240 300 400
1 3
6/10kv
8.7/15kv
12/20kv
18/30kv
21/35kv
YJLV
XLPE insulated PVC sheathed power cable
YJY
XLPE insulated PE sheathed power cable
YJLY
XLPE insulated PE sheathed power cable
YJV22
XLPE insulated steel tape armored PVC sheathed power cable
Indoor, tunnel, cable trench or underground laying, able to bear external mechanical forces, but can not afford a big pull.
YJLV22
XLPE insulated steel tape armored PVC sheathed power cable
YJV23
XLPE insulated steel tape armored PE sheathed power cable
YJLV23
XLPE insulated steel tape armored PE sheathed power cable
YJV32
XLPE insulated, steel wire armored PVC sheathed power cable
Indoors, in tunnel, cable trench, well or burying, able to bear external mechanical forces and a certain tension.
YJLV32
XLPE insulated, steel wire armored PVC sheathed power cable
YJV33
XLPE insulated, steel wire armored PE sheathed power cable
YJLV33
XLPE insulated, steel wire armored PE sheathed power cable
FAQ
1).When can I get the price? We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, pleasecall us or tell us in your e-mail so that we will regard your inquiry priority.
(2).How can I get a sample to check your quality? After price confirmation, you can require for samples to check our quality. Sample is free, but the freight charge should be paid.
(3).How long can I expect to get the sample? After you pay the freight charge and send us confirmed files,the samples will be ready for delivery in 37 days. The samples will be sent to you via express and arrive in 3~5 days. You can use your own express account orprepay us if you do not have an account.
(4).What about the lead time for mass production? Honestly, it depends on the order quantity and the season you place the order.The best record we keep is delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.
