DS-1108 Solid Ink Roller Code Printer Coding Machine use to date printing
Product Description

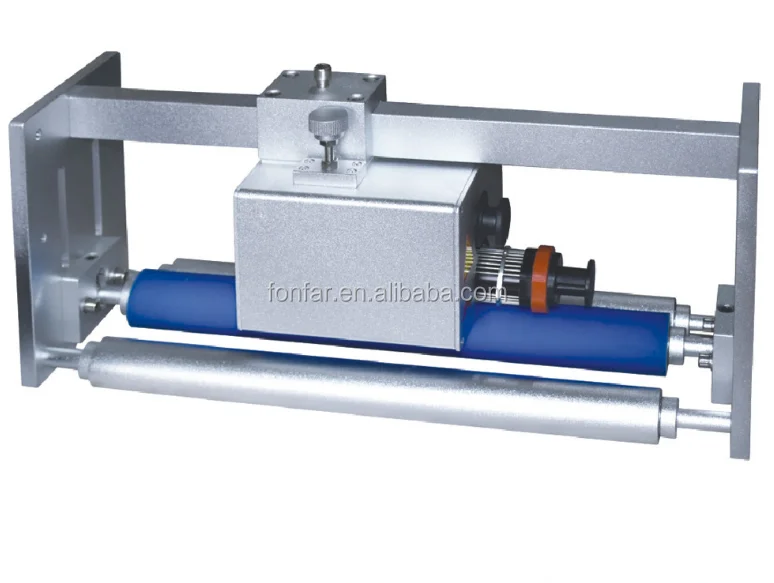

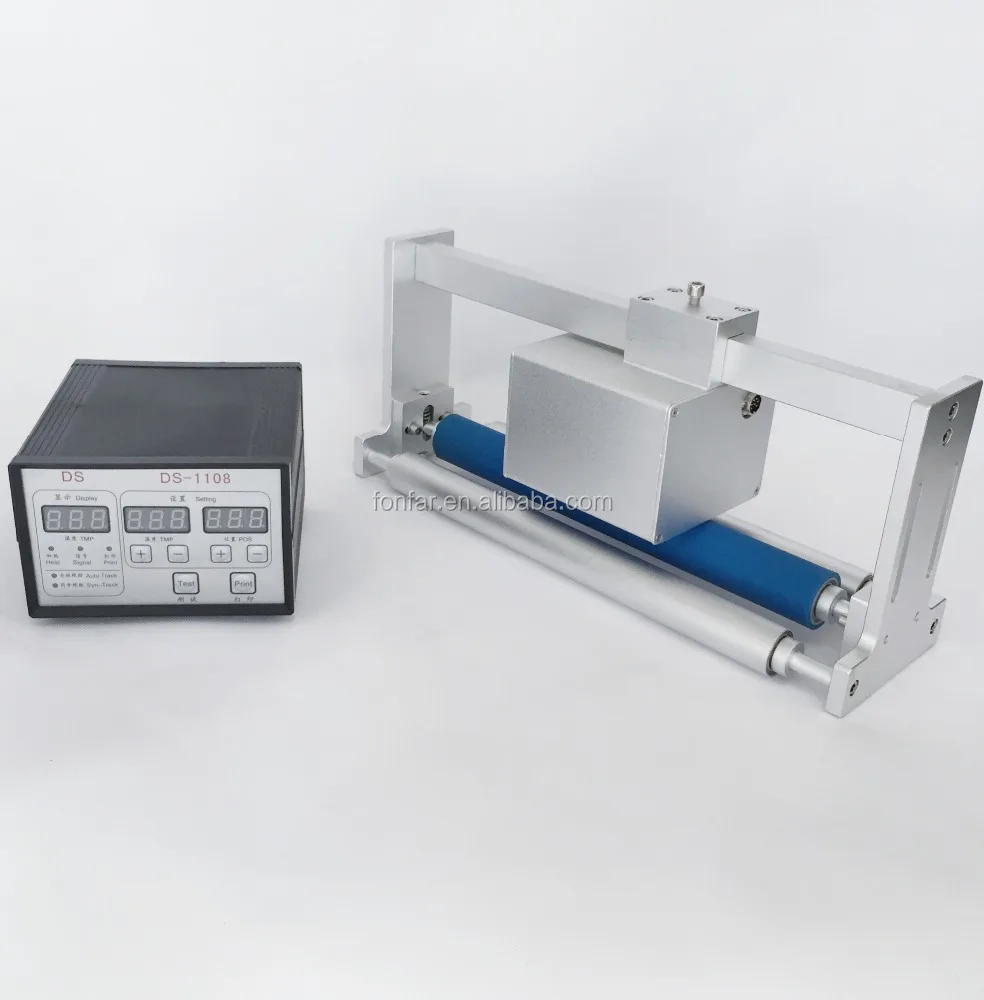

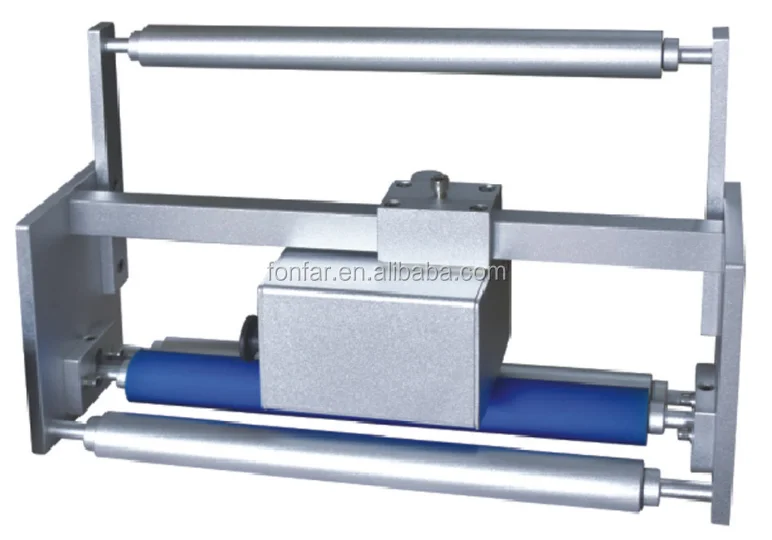

Model DS-1108 Ink roll coder machine is a newly date code pinter with novel structure, developed from the original design of our factory. It can be equipped with all kinds of flow packing machine and continuously vertical packing machine for tracing and printing production date, lot number, expire date, etc. automatically. Compact in structure, convenient in assembling and using, fast in printing with large printing cover, flexible in formatting types, and much shorter in the minimum printing distance, it has widely used in food and drug industries.
Technical Parameter
Print Area
Axial=40mm, Radial=60mm
Type of Print Head
Right-hand, Clockwise
Printing Lines
T-type (Axial) Max.13 lines, Max.20 C per line
Left-hand, Counter-clockwise
R-type (Radial) Max.11 lines, max.13 C per line
Ink Roll
Φ36 * 40mm
Font Size
T-type 1.5mm, 2.0mm, 2.5mm, 3.0mm * 3.5mm
Electrical
AC 220 ± 10V, 50/60Hz
R-type 3.5mm * 3.5mm, 4.5mm, 5.5mm
Power
130W, 2A Fuse
Cycle Rate
Max.300 print per minute
Enviromental Temp.
4°C - 40°C
Surface Speed
Max.35 meters per minute
Relative Humidity
10% - 95%
Pouch Length
≥38mm, 4-up printer
Weight
Print head 2.0Kg, Control box 1.0Kg
≥75mm, 2-up printer
Dimension (L*W*H)
Print head 170 * 120 * 100

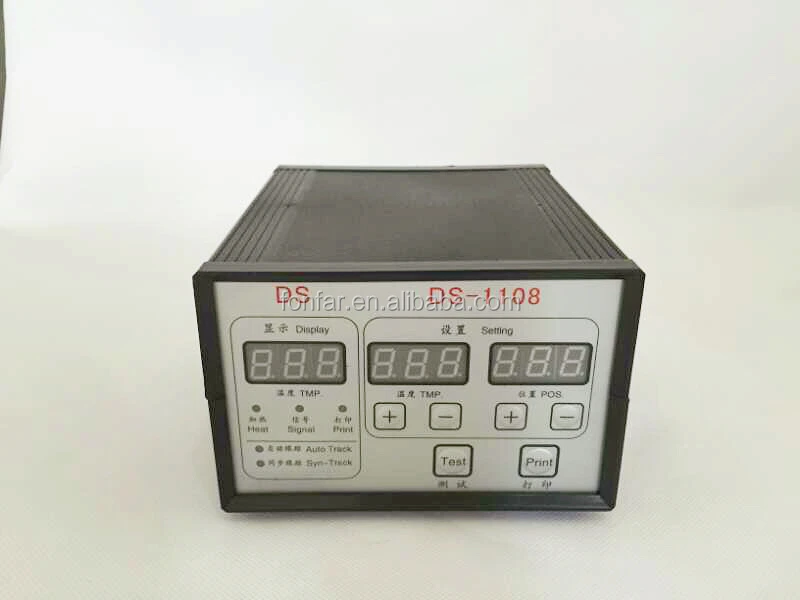

Control Box
LED display
Control box 180 * 160 *105
Packaging & Shipping
Contct Us
Company Information
Jiaozuo Fonfar International Trade Co., Ltd. is a professional manufacturer and exporter in Heat transfer field. Heat transfer foil all here.She owns a strong technology team,incorperated by experts with over 10 years’ experiences in the field,to assure every product to clients,is all in steady,reliable and consistent situation,Meanwhile,every client can enjoy her first class aftersales service and excellent technology support. All our products are of ISO9001, BS-OHSAS18001, ISO14001 approved.
Factory pictures:
Employee pictures:
FAQ
Q1. What’s your product range?
-Hot Coding Foil, Hot Stamping Foil, Hot Ink Roller, Thermal Thransfer Ribbon,
Coding and Sealing Machine.
Q2. What's the information should I let you know if I want to get a quotation?
-For the hot coding foil: The width, the length, the color, the quantity and the type.
-For the hot ink roller: The outer diameter, the height, the color, the quantity and your printing temperature.
-For the coding machine: The type and the quantity.
-For the sealing machine:The type and the quantity.
-The destination port.
-The shipping term: By sea, by air or by courier.
Q3. What’s the usage and what medium are they used for?
-Usually for pharmaceutical, food, packaging industries to print expiration date and batch / lot number.
-Suitable medium: AL, PP, PET, PVC, PE, PS ect.
Q4. Can I get the sample free of charge?
-Yes, we could provide you the samples free of charge under your account number in express company, usually 2 rolls of each size, but for samples just the usual sizes such as: 25mm*100m, 30mm*100m, 35mm*100m ect. After you confirm our quality, in the coming order, we can make any size for you asspecial requirements.
Q5. How do you ship the products?
-By sea
-By air
-By courier, DHL, FEDEX, TNT, UPS, EMS. Ect.
Q6. How long can I expect to get the sample?
-After you send us confirmed files, the samples will be ready for delivery within 3 days. The samples will reach you within 3-10 days according to the destination country.
