Характеристики
Discount Portable Pile Integrity Tester
Packaging & Shipping
Delivery Time: Shipped in 3 days after payment By DHL &UPS

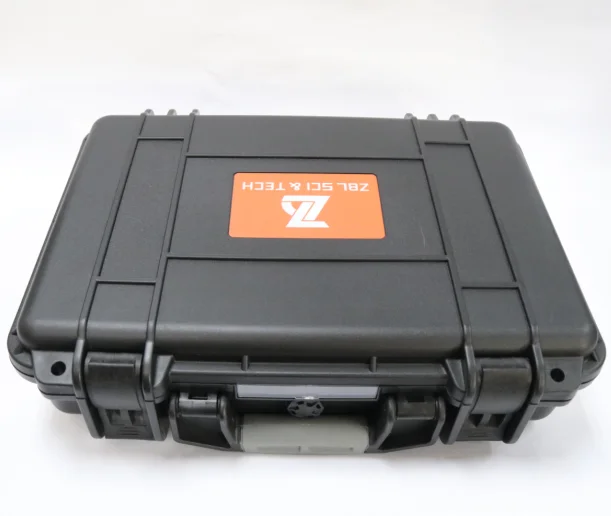

Packaging Details: Carton outside, plastic box inside Qualified and durable carton for long-way shipping
Warranty and Price
Our products have three-year warranty.
Beijing ZBL Science and Technology Co., Ltd. is the original manufacturer of ZBL Products, so we can offer you the best price, and meanwhile guarantee the quality of ZBL Products.
Product Description
Field of use of Portable Pile Integrity Tester
By using the reflected wave method, the device is used to assess the integrity of concrete pile and identify the extent and location of the pile defect. It can be used for testing bored concrete pile and hammer pile. It can also be used for testing the constructions with an exposed top surface such as pillars.
Features of Portable Pile Integrity Tester
- Wireless connectivity between accelerated sensor and PDA allows easy and more flexible usage on site. PDA can work up to 10 meters away from the accelerated sensor.

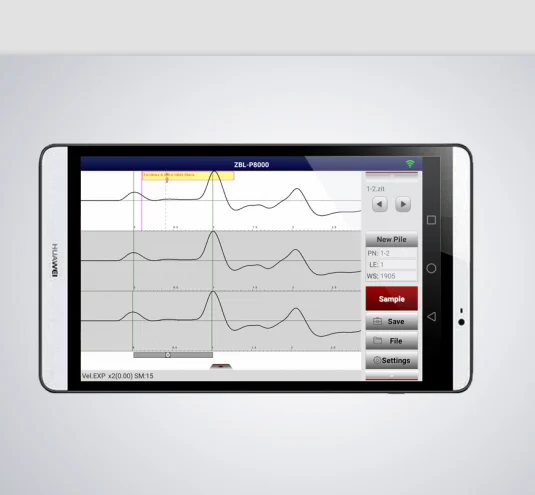

- Real time on-site processing such as smoothing, differential, filtering, exponent and linear amplification can be given to tested waveform.
- The signal noise can be eliminated by taking average superposition of multiple signals. Superposition signals can be checked at any time, and poor-quality signals can be rejected.
- Project/pile testing data can be easily saved, accessed, edited, or deleted.
- Gain value can be adjusted according to length of pile and top surface condition of pile.
- Intelligent sensor can complete the acquisition work, and upload the data to the computer through the Wi-Fi, get rid of signal wire entanglement, efficient, fast and smooth.
- True 24 bit A/D data acquisition makes test waveform more real, avoiding the noise and signal distortion caused by floating point amplification.
- New wavelet processing method can effectively judge the integrity of foundation pile in complex situation.
Technical specifications of Portable Pile Integrity Tester
Item | Specifications | |
Model | ZBL-P8000 | |
Control Mode | Android platform | |
Screen | High brightness, TFT color LCD screen | |
Data Storage | ≥8GB | |
Operation Mode | touch screen | |
Sentinel magnify (time) | 1,2,4,8,16,32 adjustable | |
A/D resolution (bit) | 24 bits A/D | |
Sampling time intervals(μs) | 6.4~1638.4 adjustable | |
Max length of sampling | ≥2048 | |
Trigger | Signal trigger | |
Noise voltage of the system (mV) | ≤2 | |
Dynamic range(dB) | ≥180 | |
Amplifier frequency range(Hz) | 1~10k | |
Max storage length | 2048 | |
Amplitude nonlinear degree | ≤10% | |
Fixed point magnification | 1, 2, 4, 8, 16, 32,64 | |
Error of time indication | ≤1% | |
Time resolution(us) | 6.4 | |
Gain error(dB) | ≤1 | |
Continuous working time(h) | >5 | |
Number of channels | 1 | |
Interference between the channels | no | |
Transducer/Probe Sensitivity (acceleration mode)(mv/g) | ≥100 | |
Frequency range of Probe (Acceleration probe) (Hz) | 0.5 ~ 9000 | |
Power | Internal | Built-in-battery |
External | 220V AC/DC | |
Wi-fi | yes | |
Weight(kg) | 0.34kg(lithium battery included) | |
Total volume(mm) | φ5×120 | |

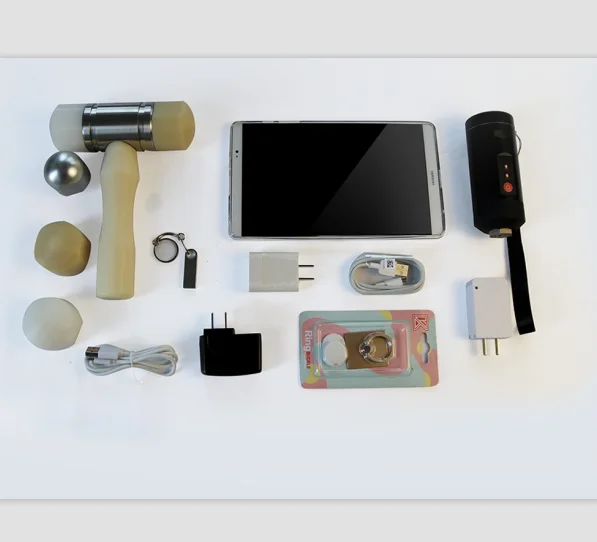

Standard Parts of Portable Pile Integrity Tester
 |  |  |

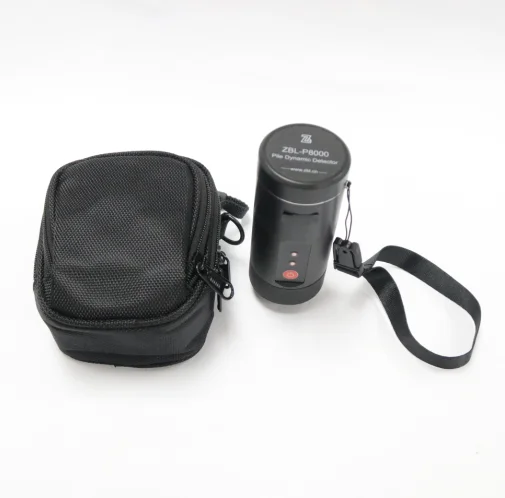

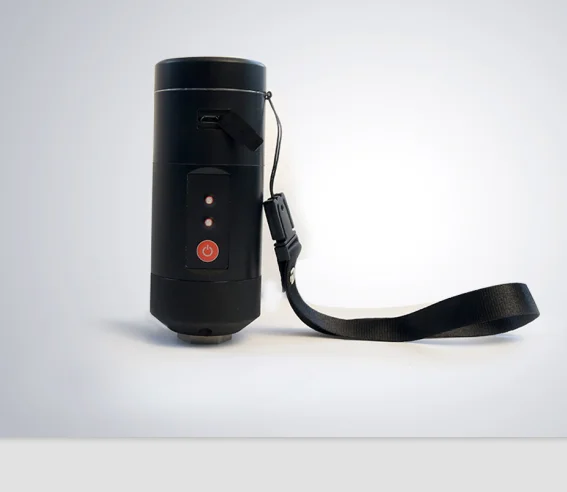

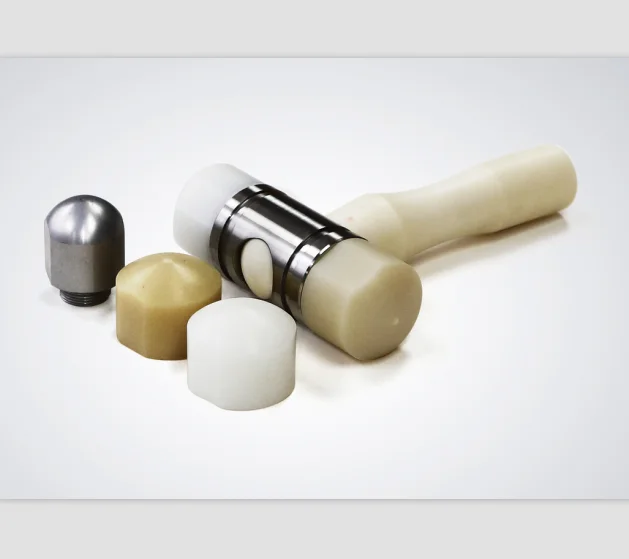

Wireless sensor | PAD | Hammer |
Detailed Images
Certifications
After-Sales Service
Our products have three-year warranty, and we also prepare training vidoe to our dear customers, assisting them to learn our products easily.
Company Information
Beijing ZBL Science and Technology Co., Ltd., established in 2002, is primarily engaged in the R&D, production and sale of Intelligent nondestructive testing instrumentation and equipment. ZBL is a national high-tech enterprise, identified as a key strategic enterprise under the Beijing City ”Gazelle plan”, and are also members of the professional committee of nondestructive testing. Our company has independently developed a series of advanced equipment including Rebar scanners, Ultrasonic Detectors, Rebar Rust Detectors, Foundation Pile Dynamic Detectors and Crack Detectors etc. In total more than ten classes and over thirty different categories of products have been crafted by ZBL, while over forty relevant intellectual property rights have been granted. We have participated in the compilation of 4 national level and 5 provincial level engineering quality standards. Our products are exported to worldwide clients in such countries as Japan, India, Italy, and Nepal. ZBL employees will continue to forge ahead, innovate and persist relentlessly towards our vision of “being the leading enterprise of the nondestructive testing field”.
