GGE-OR808 catv волоконно-оптический приемник 8 способов ftth

Цена:5,30 $ - 6,50 $*

Количество:

Product Description

GGE-OR808 catv optical fiber receiver 8 ways ftth mini node R808

FEATURES:

l Model Number: GGE-OR808

l Designed For FTTH (Fiber To The Home Network)

l No Power Required

l Good Linearity and Flatness

l Frequency range 40-1000MHz For CATV End-users

l Optical Connector: SC/APC/FC/APC

l Aluminum Profiles casing, excellent heat dissipation performance

l Smaller size and easier install

l High responsivity pin diode, low noise figure

Specifications

Number Item		Unit	Description	Remark
Customer Interface
1	RF Connector		75Ω"F" connector
2	Optical Connector		SC/APC or FC/APC	Customized
Optical Parameter
4	Input Optical Power	dBm	0~-8	Digital TV
5	Optical Return Loss	dB	>45
6	Optical Receiver Wavelength	nm	1100~1600
7	Optical Fiber Type		Single Mode
RF Parameter
8	Frequency Range	MHz	40-1000
9	Flatness	dB	±0.5
10	Output Level RF1~8	dBuV	55 each	0dBm input power
11	Output Impedance	Ω	75
12	C/N	dBc	37	0dBm input power
13	CTB	dB	55.2	0dBm input power
14	CSO	dB	53.3	0dBm input power
Other Parameter
15	Power Consumption	mA	N/A
16	Dimensions	mm	1154632
17	Net weight	KG	0.115

Packaging & Shipping

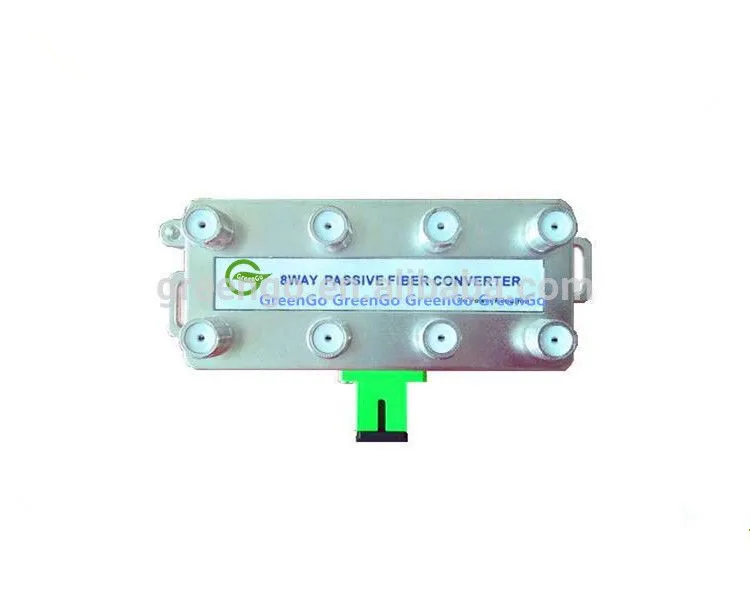

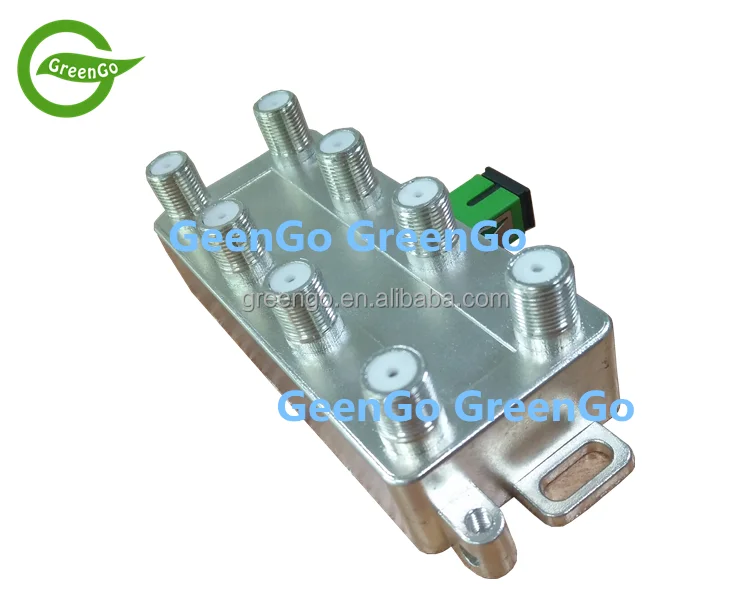

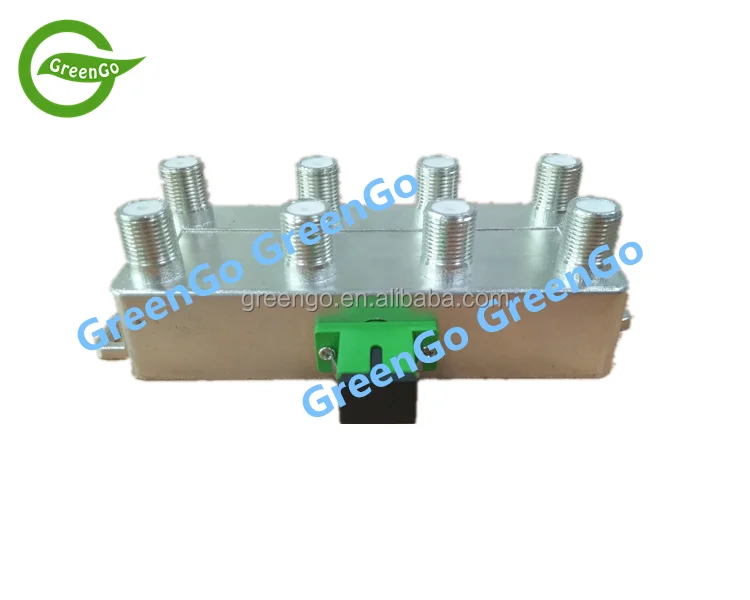

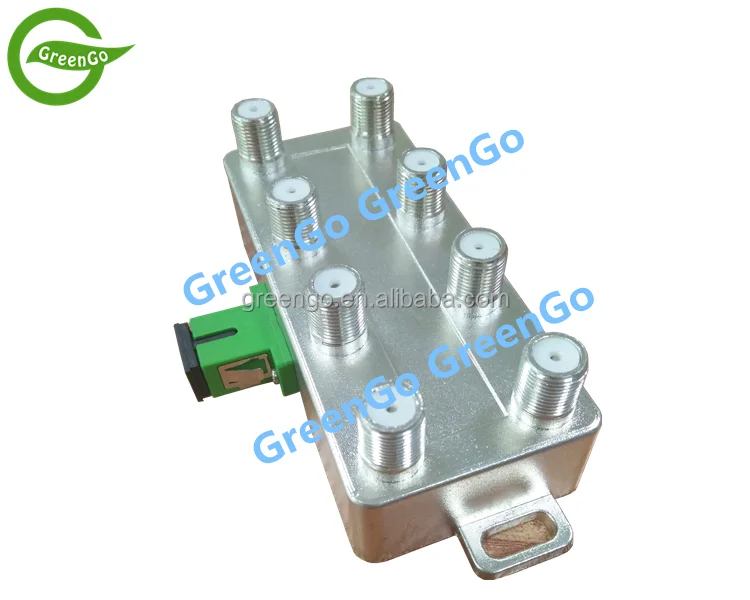

Detailed Images

GGE-OR808-7 GGE-OR808-6
