Домашний и наружный подъемник для инвалидных колясок с сертификатом

Домашний и наружный подъемник для инвалидных колясок с сертификатом

Категория: Lift Tables >>>
Поставщик: Jinan,Moral,International,Co.,ltd

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	0.96 $*	0.86 $*
Aug-16-2025	0.89 $*	0.5 $*
Jul-16-2025	0.34 $*	0.63 $*
Jun-16-2025	0.31 $*	0.18 $*
May-16-2025	0.77 $*	0.79 $*
Apr-16-2025	0.46 $*	0.96 $*
Mar-16-2025	0.49 $*	0.64 $*
Feb-16-2025	0.10 $*	0.0 $*
Jan-16-2025	0.47 $*	0.92 $*

Характеристики

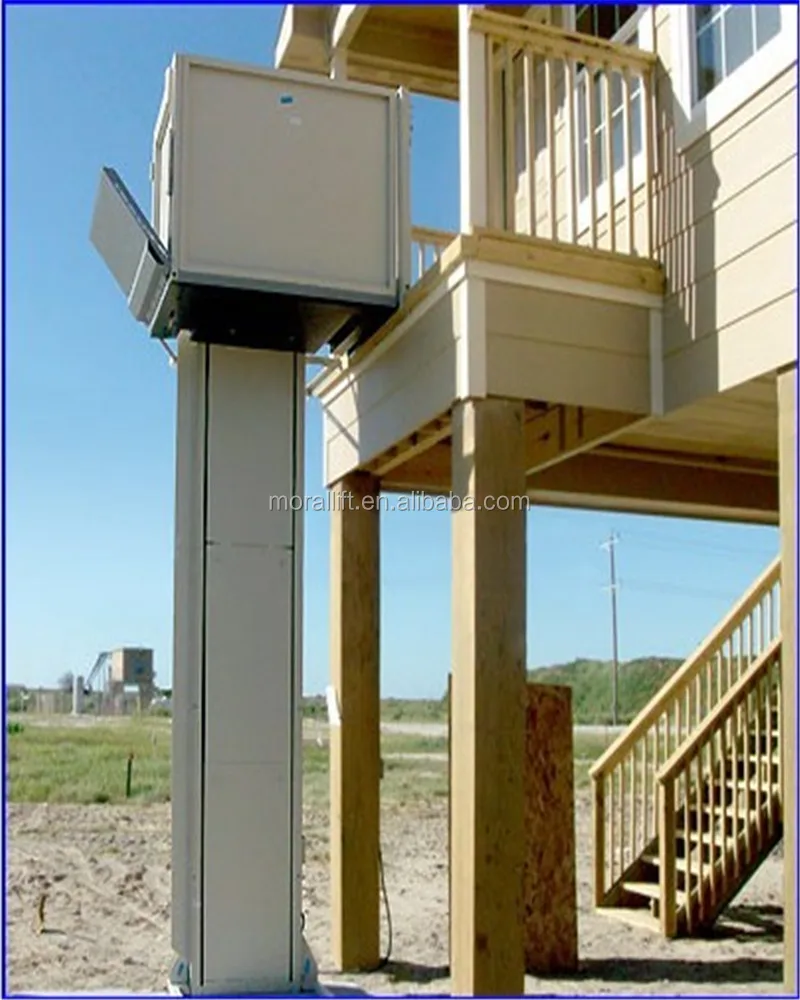

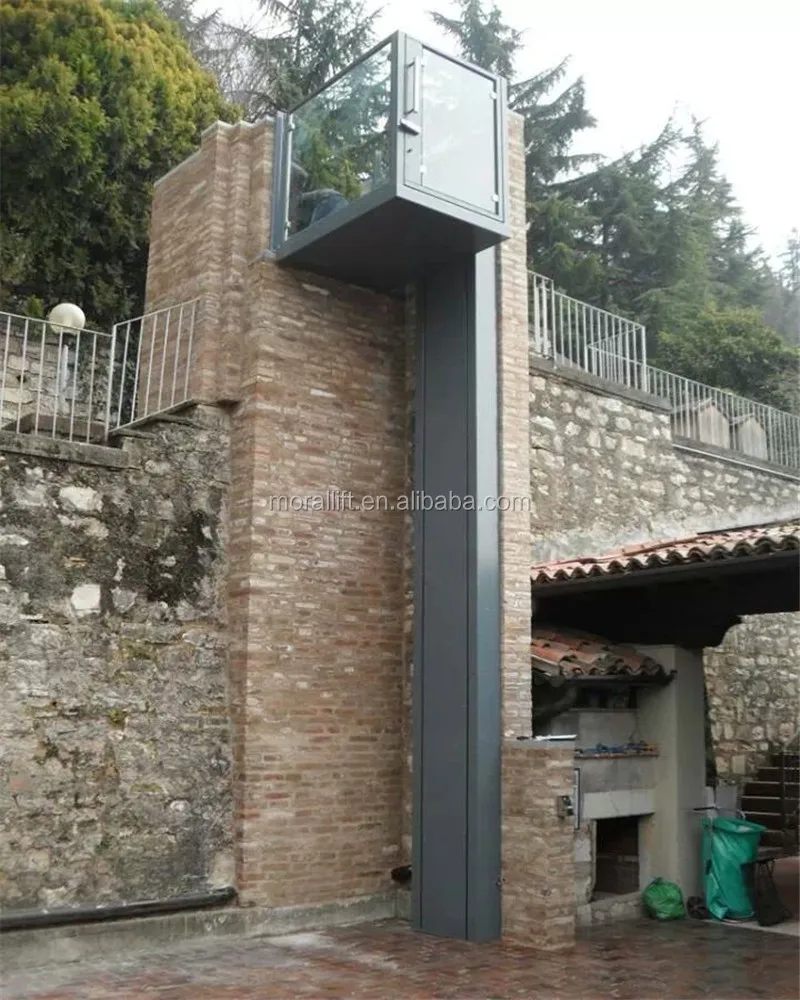

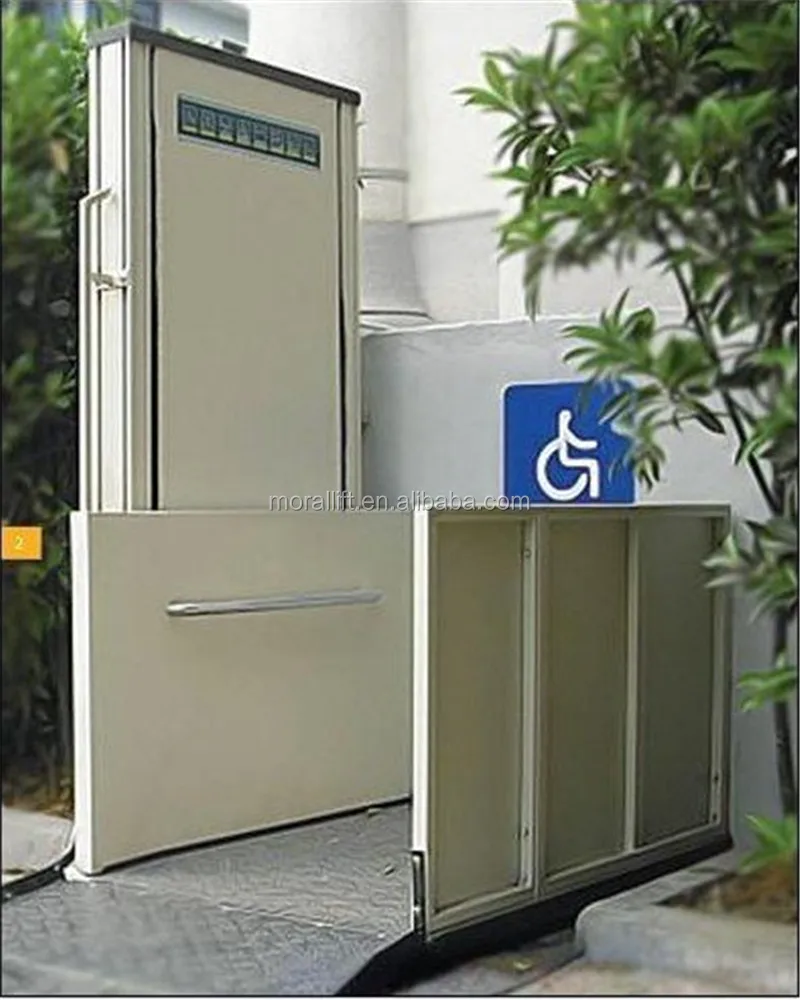

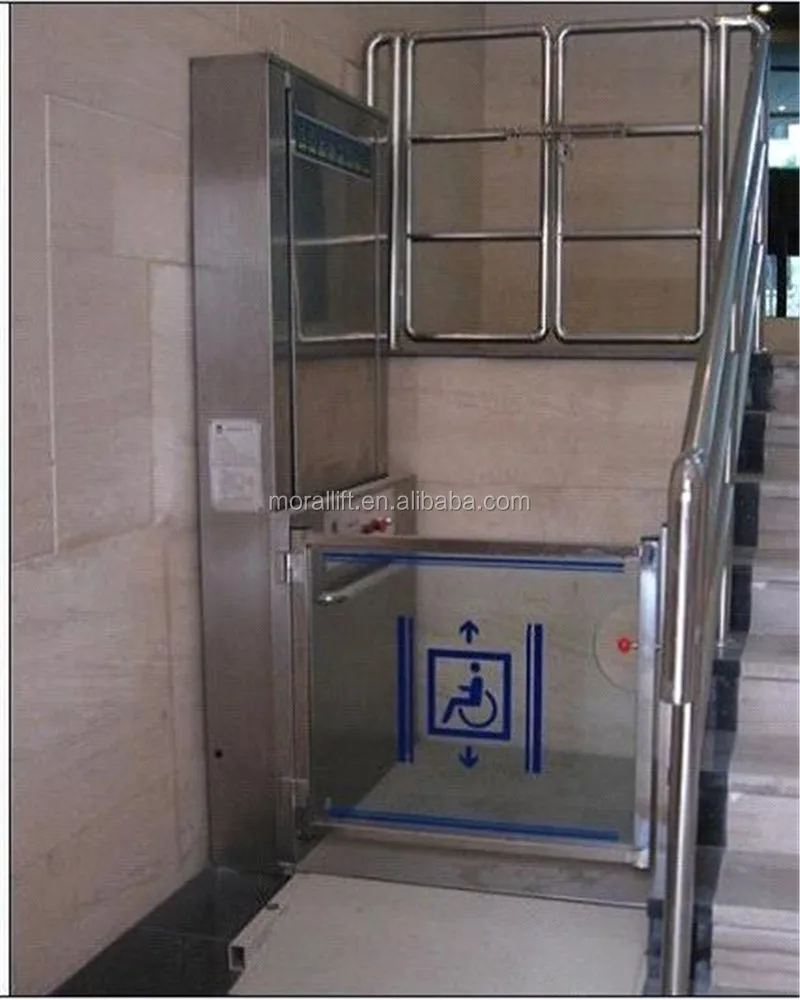

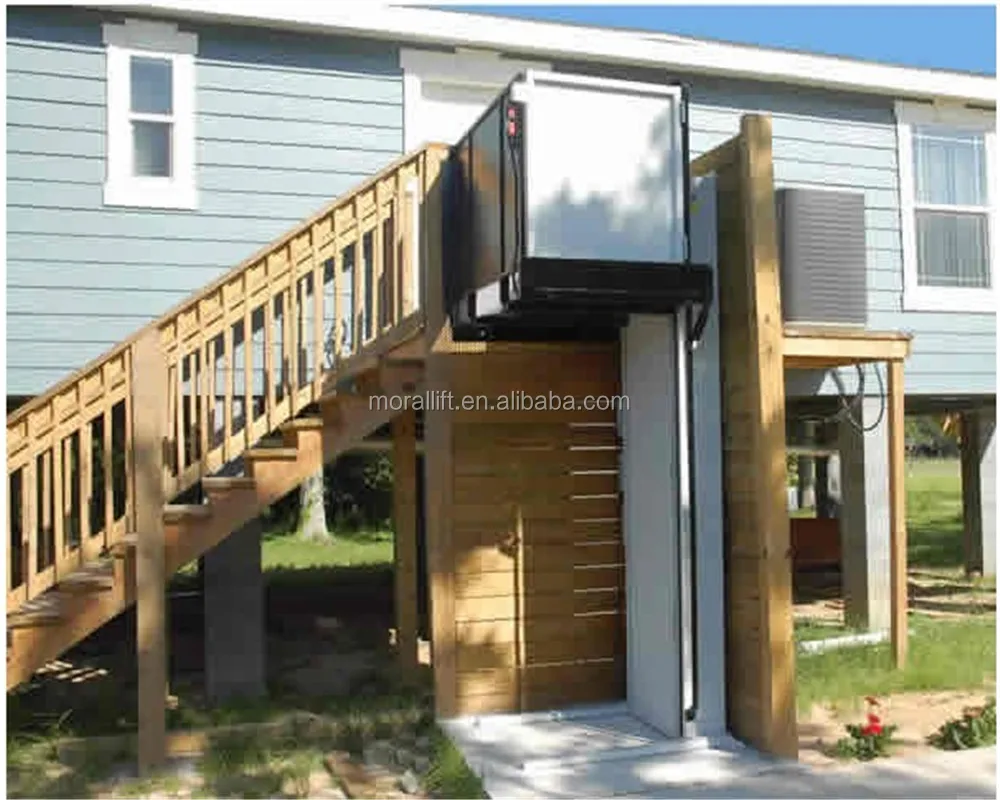

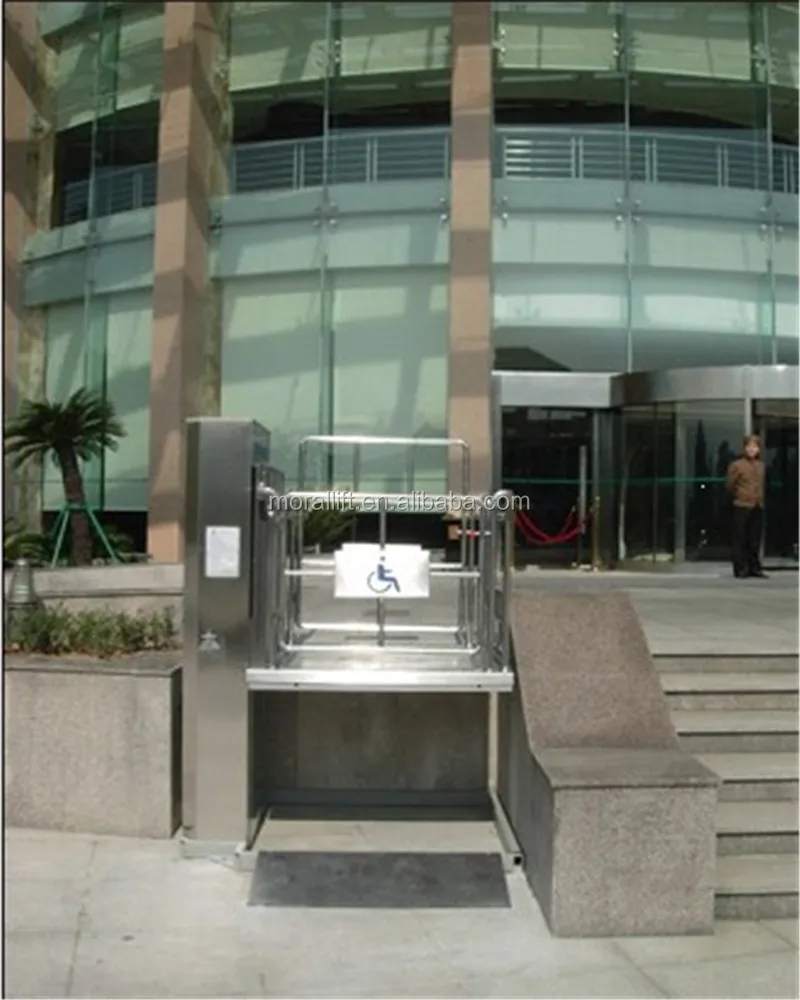

Indoor and outdoor wheelchair elevator home lift with CE

Brief introduction:

1.vertical elevating system. This durable and easy-to-use vertical lift is suitable for indoor or outdoor applications requiring vertical transportation up to 6 meters.

2.It can be directly installed into the ground without architectural supporting pits and easy to operate.

3.Its hydraulic system offers passengers smooth and comfortable transportation and different safety devices remove every hiding risk.

4.Emergency Descending:When there is no power or malfunctions, manually descend the device

5.It’s suitable for large-sized newly-built residential estates and those areas where there is compact land resource and etc.

6.this machine max.lifting height is 6000mm

Function:

If you have difficulty using stairs, or use a wheelchair or mobility scooter, then a residential vertical lift is a great way to ensure that you can always safely and conveniently enter and exit your home. All of our porch lifts are designed to be completely resistant to the harshest weather conditions and are an affordable alternative to residential elevators

Parameter:

Platform size	1200mm(L)* 900mm(W)
Dimension	1200mm(L)*1400mm(W)
MaxPlatform Height	6000mm
Min Platform height	80mm
Configuration	Open through or front and side entrances
Speed	70mm/s
Load capacity	300KG
Control voltage	24V/DC
Power Output	1.5KW
Power Input	220V/50HZ/ (or customized for local power supply)
Drive System	Hydraulic
Control Mode	Automatic
Drive Control	Self-resetting system
Overload	Protection Over current relay
Material of Platform	Checkered slip-proof aluminum alloy
Painting	Plastic electrostatic spraying
Guard panel & drivecabinet (framework)	Aluminum Alloy / 304 stainless steel
Operation Panel	Polished aluminum Alloy
Safety Wane WorkingRange	75°
Working Condition	Both indoors and outdoors
Working temperature	From -10°~60°
Installation	Non-pit installation, directly fixed to concrete floor (the concrete floor below the platform shall not be lower than the ground)
Control Device	Calling box (installed on the wall nearby) and remote controller(Extra optional)
Emergency Stop	The lifting and lowering process can be stopped immediately by pressing the emergency button.
Safety device	Safety Interlock	Lock the platform when it is out of control
	SafetySensor	The operation must be stopped immediately thesafety edge meets obstacles during operation.
	Emergencylowering	The platform can be lowered by opening hydraulic valve manually or rolling screw rod.
	Auto-flap	Turn up after lifting
