Оптический приемник FTTH CATV с RF

Цена:21,50 $ - 24,00 $*

Количество:

Product Description

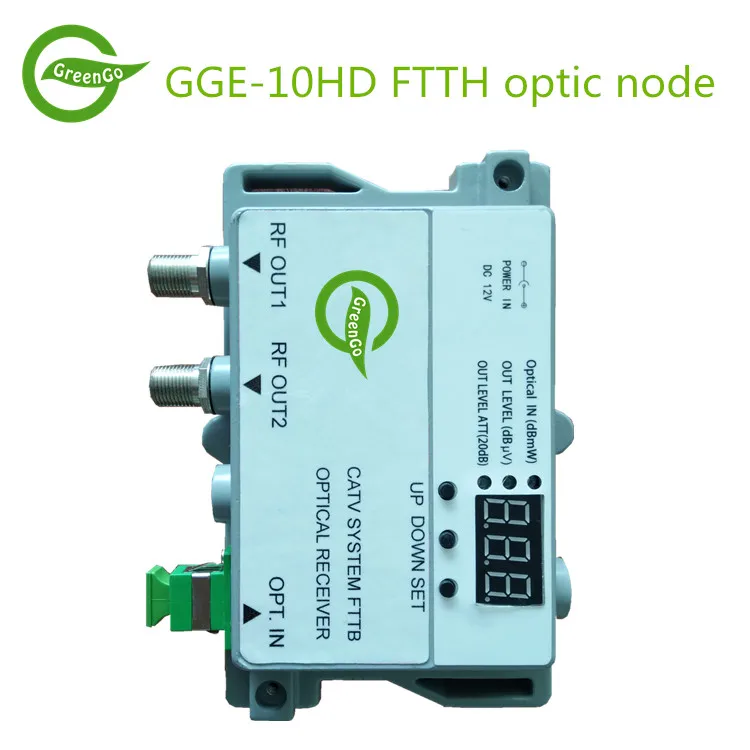

FTTH CATV Optical Receiver with RF AGC

GGE-10HD-1

FEATURES:

l Special RF AGC circuit. More accurate data then Optical AGC

l Digital display and digital control bring convenience for the user.

l Power Input Range: -15 to +2dbm.when in -15dbm, output level 72dBμv

l In the range of 40~870MHz,all have good flatness(FL≤±0.8dB)

l Extra-low noise (3.8% modulate,-10dBm receive, CNR≥45dB)

l Metal shell, supply safeguards to opto-electrical sensing device

l High output level can suitable for many users

l Low power consumption, high cost performance

l InGaP pHEMT IC technology

Specifications

Parameter	Unit	CMOR-10HD
Bandwidth	MHz	47 – 862
Optical Working Wavelength	nm	1290 – 1600
Optical Input Power Range	dBm	-9 - +2
AGC Range	dB	FTTB:92dBμV(-5~+2) / FTTH:72dBμV(-15~+2)
Optical Reflection Loss	dB	≥ 45
Equivalent Noise Figure	PA√HZ	≤8
In-Band Flatness	dB	±0.75
Reflection Loss	dB	≥ 16
RF Output Impendence	Ω	75
CNR	dB	51
CTB	dB	≥65
CSO	dB	≥60
Output Level	dBμV	95(One Way); 92(Two Way Equal)
Test Condition	3.8% OMI, -1dBm Optical Power Receiving
DC Input Voltage Range	v	12
Working Temperature	℃	-40 - +60
Power Loss	W	<25
Dimension	mm	130(L) ×32(H)×90(W)

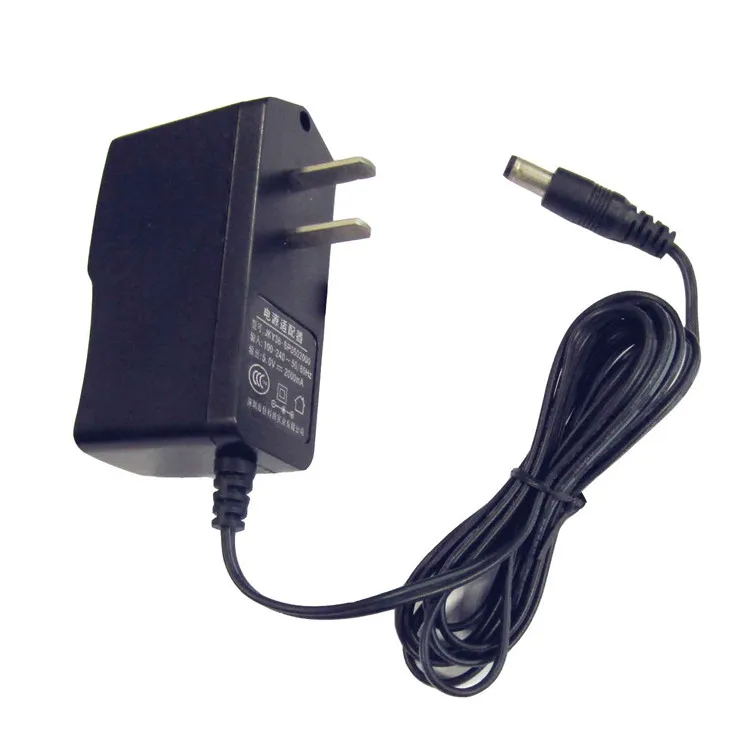

Packaging & Shipping

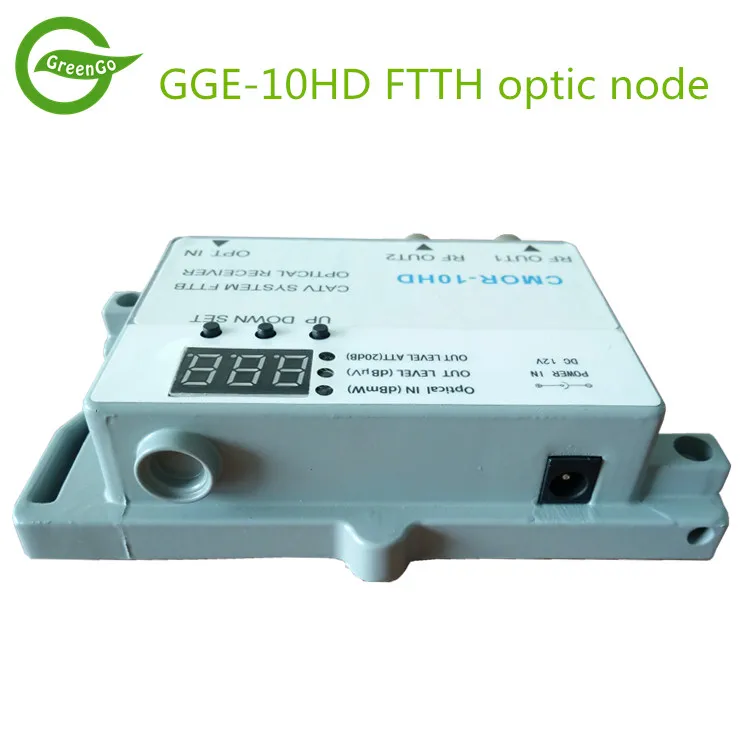

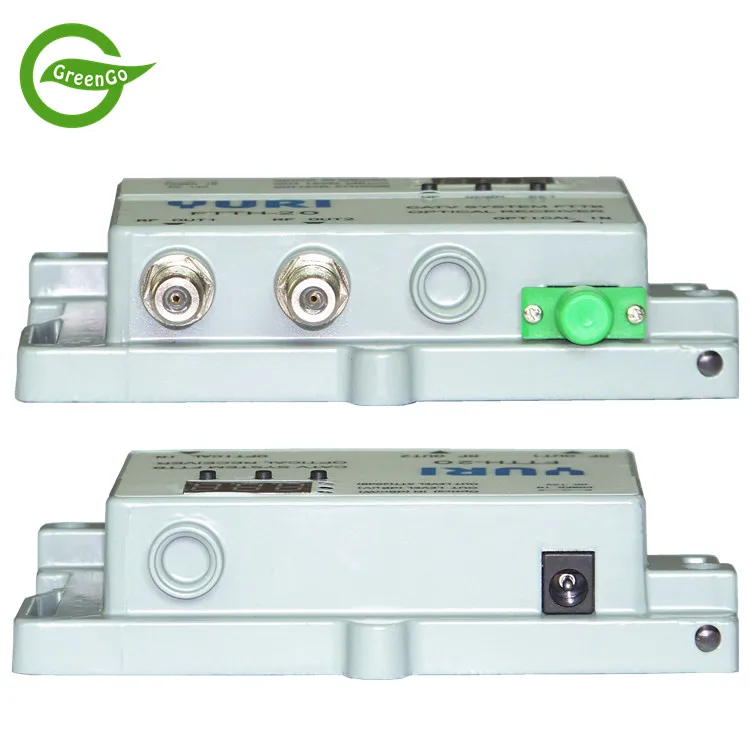

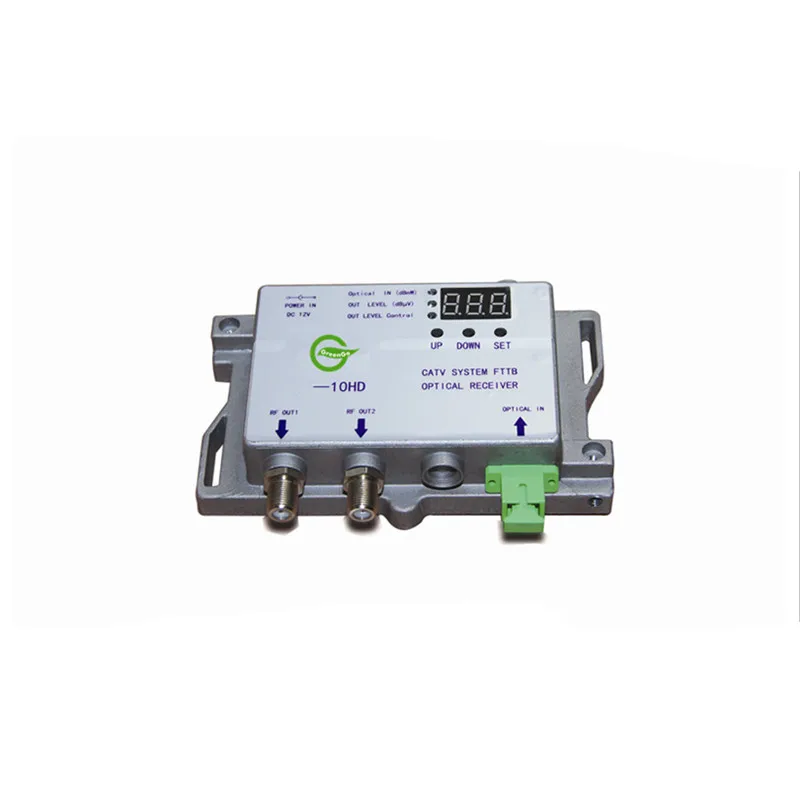

Detailed Images

GGE-10HD-7
