Прокладка для пресной воды ST200 морской
- Категория: Refrigeration & Heat Exchange Equipment >>>
- Поставщик: Jiangsu,Baode,Heat-Exchanger,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.87 $* | 0.25 $* |
| Aug-16-2025 | 0.25 $* | 0.91 $* |
| Jul-16-2025 | 0.52 $* | 0.23 $* |
| Jun-16-2025 | 0.25 $* | 0.67 $* |
| May-16-2025 | 0.8 $* | 0.40 $* |
| Apr-16-2025 | 0.17 $* | 0.95 $* |
| Mar-16-2025 | 0.79 $* | 0.14 $* |
| Feb-16-2025 | 0.86 $* | 0.66 $* |
| Jan-16-2025 | 0.18 $* | 0.86 $* |
Характеристики

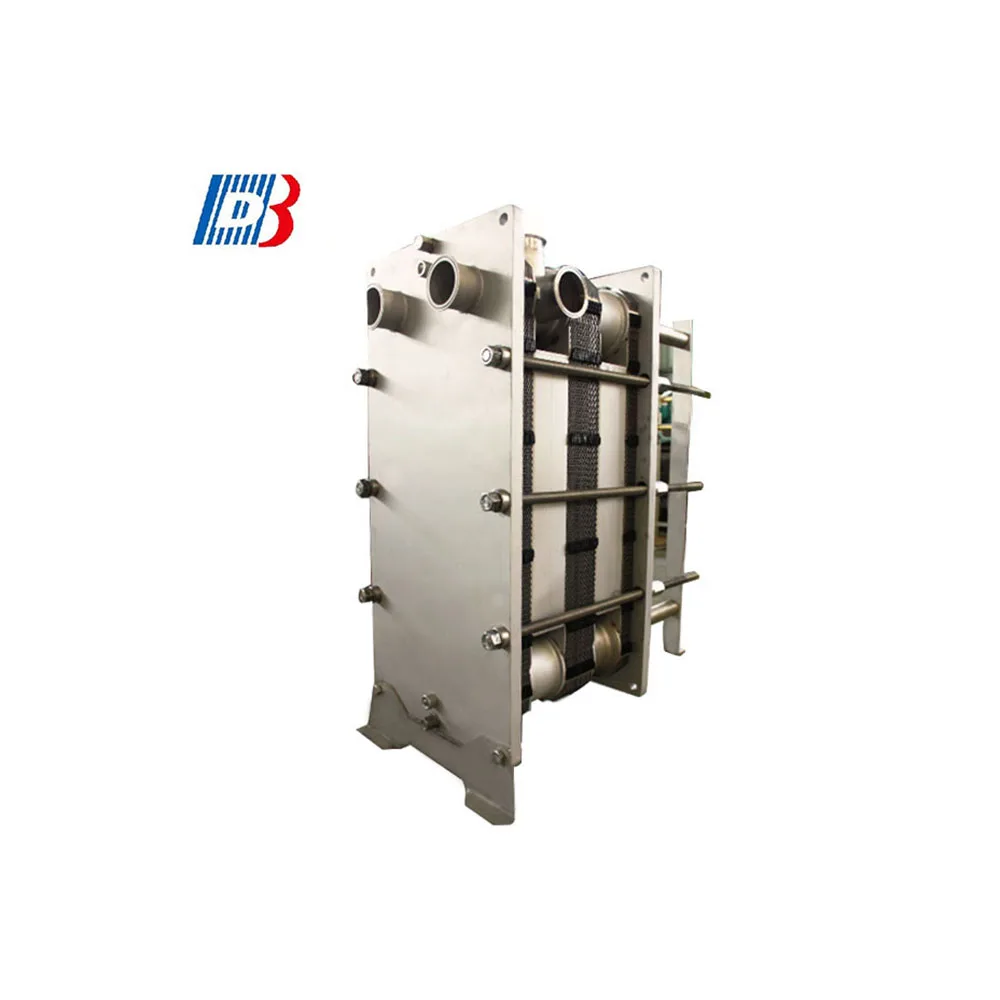

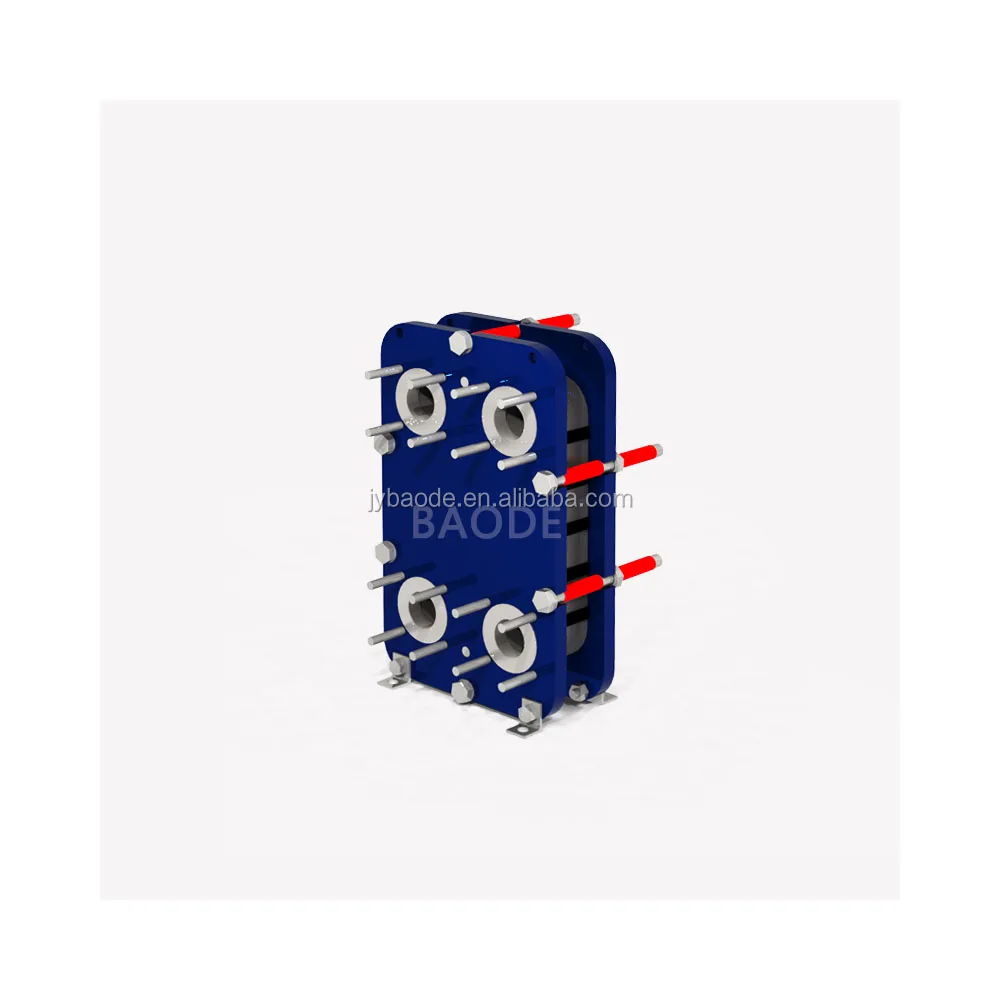

Alibaba ST200 Fresh water gasket sea water Marine oil plate heat exchangerAliba
Product Description
| Model | BH30 | BH60B / BH60H | SH60H | BH100B / BH100H | LB100B | BH150B / BH150H | |||||
| Cross Reference | M3 | M6, M6M | TS6M | M10M, M10B | TL10B | M15M, M15B | |||||
| Height, H [mm] | 480 | 920 | 940 | 704 | 704 | 1084 | 1084 | 1885 | 1923 | 1885 | 1885 |
| Width, W [mm] | 180 | 320 | 330 | 400 | 410 | 470 | 470 | 480 | 480 | 610 | 650 |
| Min standard length, L [mm] | 400 | 500 | 500 | 530 | 540 | 700 | 700 | 850 | 850 | 1150 | 1150 |
| Max standard length, L [mm] | 650 | 1500 | 1500 | 1430 | 1440 | 2300 | 2300 | 2350 | 3250 | 2050 | 3250 |
| Vertical port distance, VC [mm] | 357 | 640 | 640 | 380 | 380 | 719 | 719 | 1338 | 1338 | 1294 | 1294 |
| Horizontal port distance, HC [mm] | 60 | 140 | 140 | 203 | 203 | 225 | 225 | 225 | 225 | 298 | 298 |
| Max temperature [°C] | 180 | 180 | 180 | 180 | 180 | 180 | 180 | 160 | 160 | 180 | 180 |
| Max pressure [barg] | 16 | 10 | 16 | 16 | 20.6 | 10 | 16 | 10 | 16 | 10 | 16 |
| Flange size | Pipe 1 1/4" | DN50/2" | DN50/2" | DN65/2" | DN65/2" | DN100/4" | DN100/4" | DN100/4" | DN100/4" | DN150/6" | DN150/6" |
| Max. flow rate [kg/s] | 4 | 16 | 20 | 50 | 50 | 80 | |||||
| Model | SH200 | BH200 | BH250 | BH300 |
| Cross Reference | TS20M | M20M,T20M,T20B | MX25B | M30 |
| Height, H [mm] | 1405 | 2150 | 2595 | 2920 |
| Width, W [mm] | 740 | 750 | 920 | 1190 |
| Min standard length, L [mm] | 900 | 1250 | 1550 | 1650 |
| Max standard length, L [mm] | 2700 | 3350 | 3350 | 5200 |
| Vertical port distance, VC [mm] | 698 | 698 | 1939 | 1842 |
| Horizontal port distance, HC [mm] | 363 | 353 | 439 | 596 |
| Max temperature | 180 | 180 | 180 | 180 |
| Max pressure [barg] | 10/16 | 10/16 | 10/16 | 10/16 |
| Flange size | DN200/8" | DN200/8" | DN200/DN250/8"/10" | DN300/DN350/12"/14" |
| Max. flow rate [kg/s] | 190 | 225 | 250 | 497 |
Related Products
Certifications
Company Information
Click picture watch our company video
BAODE Plate Heat Exchanger Co., Ltd. Is a Chinese Plate Heat Exchanger manufacturer specialized in development,Production and global marketing of gasket heat exchangers. Since the very start in 2004 BAODE has grown to one of the leading companies in China Plate heat exchanger market and has developed a big range of gasket heat exchangers for any task
Our main products are Brazed gasket heat exchanger & Gasket gasket heat exchanger & Air cross gasket heat exchanger (Flat gasket heat exchanger and frame and gasket heat exchanger, welded gasket heat exchanger). Braze gasket heat exchanger include Copper brazed gasket heat exchanger and Nickel brazed gasket heat exchanger.
Our mission is to help you to achieve the optimum solution with regards to performance efficiency, payback and energy conservation, whatever the application. This is based on a marketing orientation concept which makes us a highly valuable partner. Our combined experience in the gasket heat exchanger industry, allow us giving the best technical recommendation for our customers and end users for applications such as:Refrigeration Systems that includes,HVAC includes,Other Industrial applications.
Packaging & Shipping
FAQ
FAQ
Q : 1. Can I have a sample order?
A : Yes,we welcome sample order to test and check quality.Mixed samples are acceptable.
Q : 2. What is the lead time?
A : Sample needs 1-3 days,mass production needs 7-15days,also according to the order volume.
Q : 3. Can you accept mixed batch of different products?
A : Yes,we are support different product mix wholesale.
Q : 4. How do you ship the goods and how long does it take arrive?
A : For sample order ,we usually ship by DHL,UPS,FedEx or TNT.It usually takes 3-5 days to arrive.
Q : 5. Can you provide container packed in wooden cases if I order more products?
A : Yes,we are can provide a set of wooden packaging products,but only in big quantity.
Q : 6. We want to visit your company?
A : No problem,we are a production and processing enterprises,look forward to your arrival and we will lead you to visit our factory and processing factory.
