0.5L TEC водяной охладитель мини система водяного

Specitication

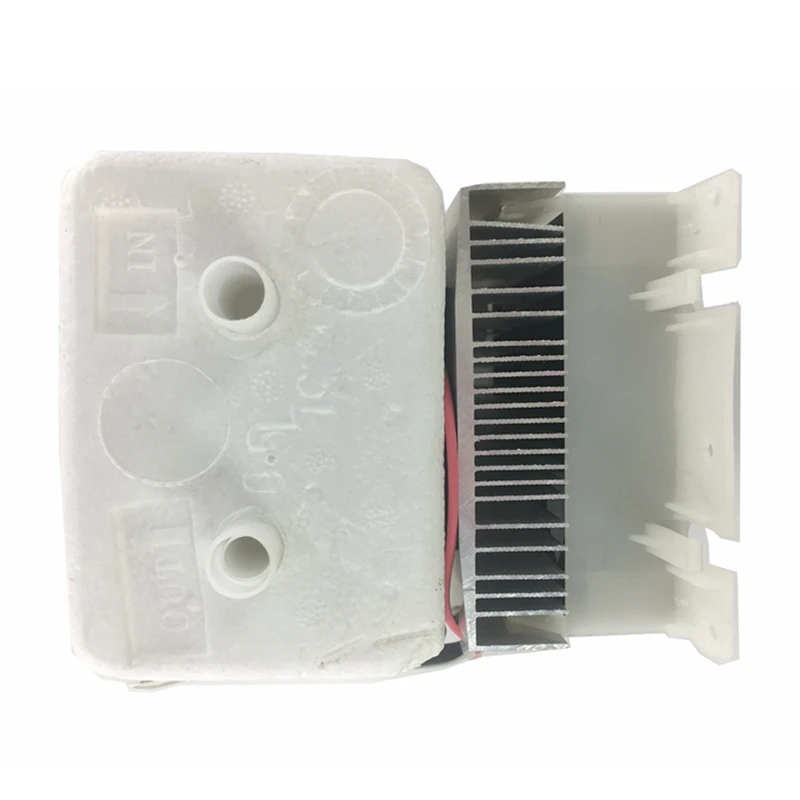

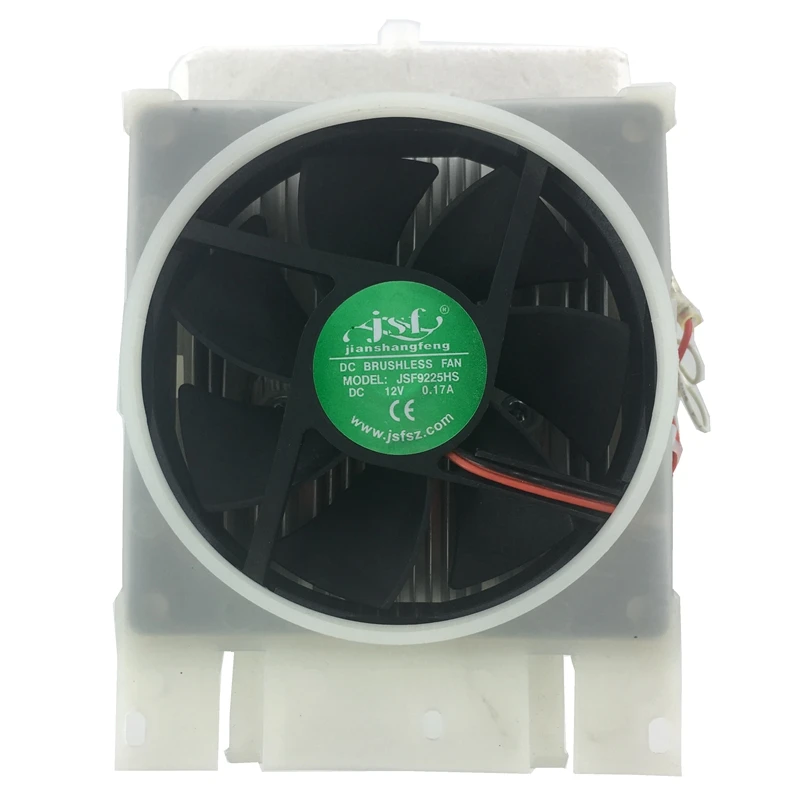

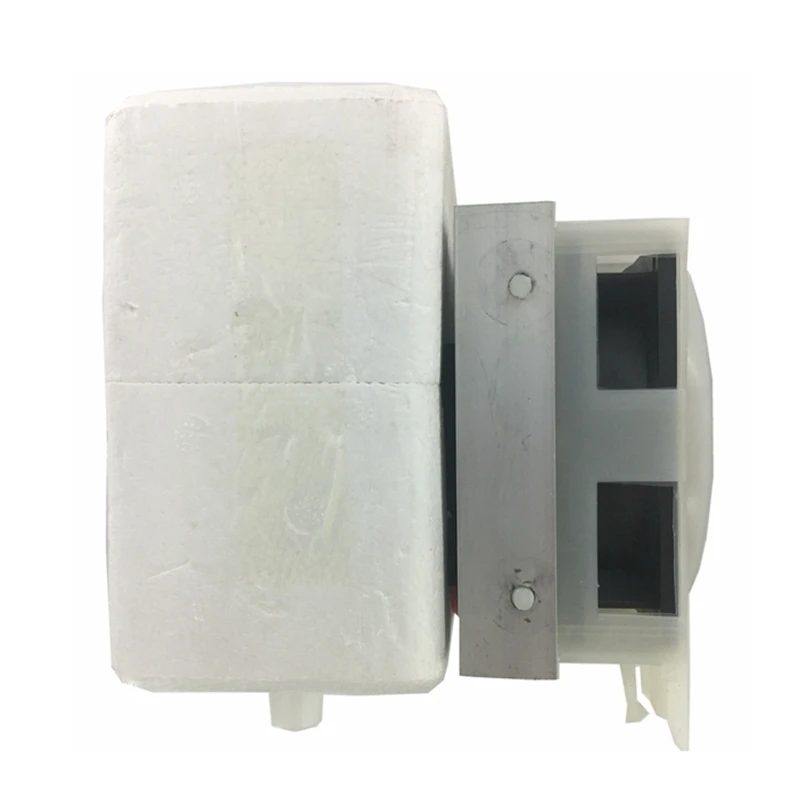

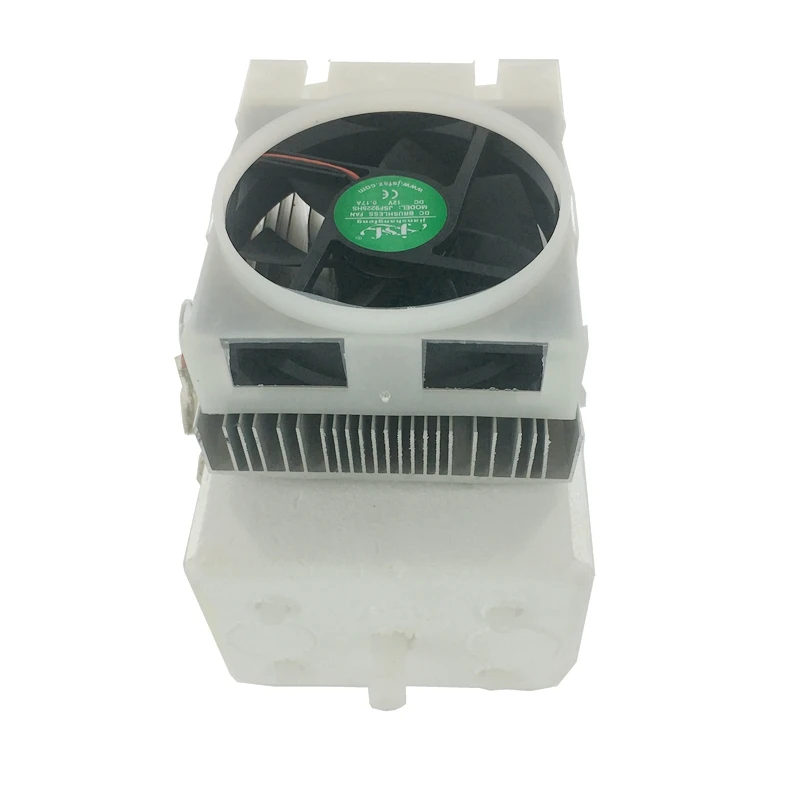

Dtail images

Product Note

1, When use self-tapping screws to work with water cooler, must avoid the melt surface ice at the bottom of the gallbladder, otherwise, once the self tapping screw twist into the melt surface, can cause leakage phenomenon. Melt surface position dimensions as shown in figure (ice bile installed at the bottom of the aperture Φ2.5 or 3.0 Φ; fixed screw choose 4 x 12 ba tapping screw).

2, The center of the water cooler vents must be at the center of the backboard of the water fountain, the fan side of the water   is 96mm high.

3,Don't make the fan of water cooler cover water machine back contact directly, and must be set by the fan cover and add a rubber horn ring or sponge coil and water cooler back contact.

4, All the silicone tube, set into the water cooler inlet and outlet pipe, drainage pipe, must be fitting, and sets of not less than 10 mm in length, and nylon cable tie or card to lock ring (note: silicone tube before assembly, application of boiling water for 30 minutes).

Product Note

1, When use self-tapping screws to work with water cooler, must avoid the melt surface ice at the bottom of the gallbladder, otherwise, once the self tapping screw twist into the melt surface, can cause leakage phenomenon. Melt surface position dimensions as shown in figure (ice bile installed at the bottom of the aperture Φ2.5 or 3.0 Φ; fixed screw choose 4 x 12 ba tapping screw).

2, The center of the water cooler vents must be at the center of the backboard of the water fountain, the fan side of the water   is 96mm high.

3,Don't make the fan of water cooler cover water machine back contact directly, and must be set by the fan cover and add a rubber horn ring or sponge coil and water cooler back contact.

4, All the silicone tube, set into the water cooler inlet and outlet pipe, drainage pipe, must be fitting, and sets of not less than 10 mm in length, and nylon cable tie or card to lock ring (note: silicone tube before assembly, application of boiling water for 30 minutes).

Connection diagram

Packing & Delivery

Packing:Carton or Customerized

Delivery:One day after receving the payment

  Pre-sales service                                        After-Sales Service

                   *Inquiy and consulting support                    *Training how to instal the machine

                   *Sample testing support                              * Training how to use the machine

                  * View our Factory

      Huizhou Fudi Electrical appliance Co., LTD., founded in 1999, is China's one of the earliest production of ice water machine and water cooler.

     Company has always been adhering to the " technology strives for the development, quality strives for the survival, manage for efficiency, integrity-based" business philosophy, We also in strict accordance with ISO standard GB/T19001-2008 quality management system requirements, strengthen enterprise management and quality management.On the quality of the products, Our company's products has become a recognized high quality first-class products.

Product process

Packing&Delivery

     Packaging:Carton box or customized

        Delivery time: Two weeks
