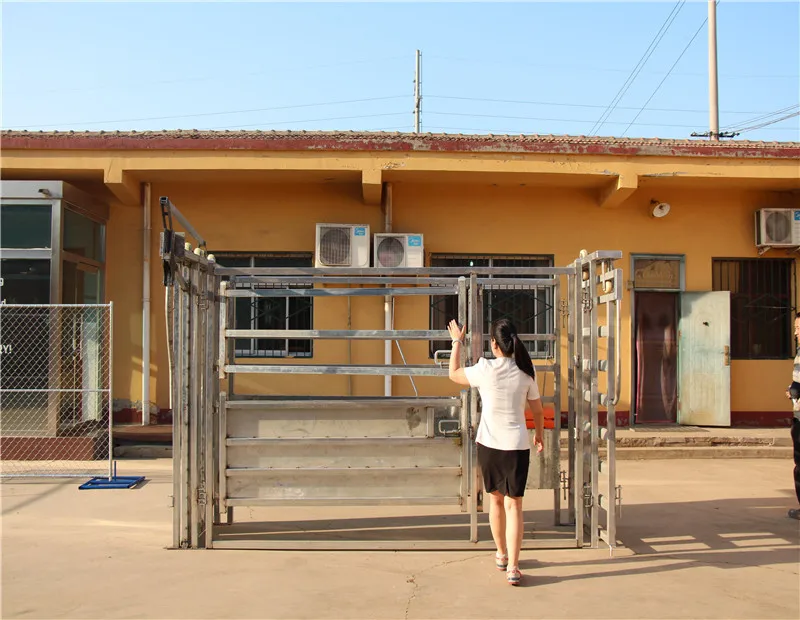

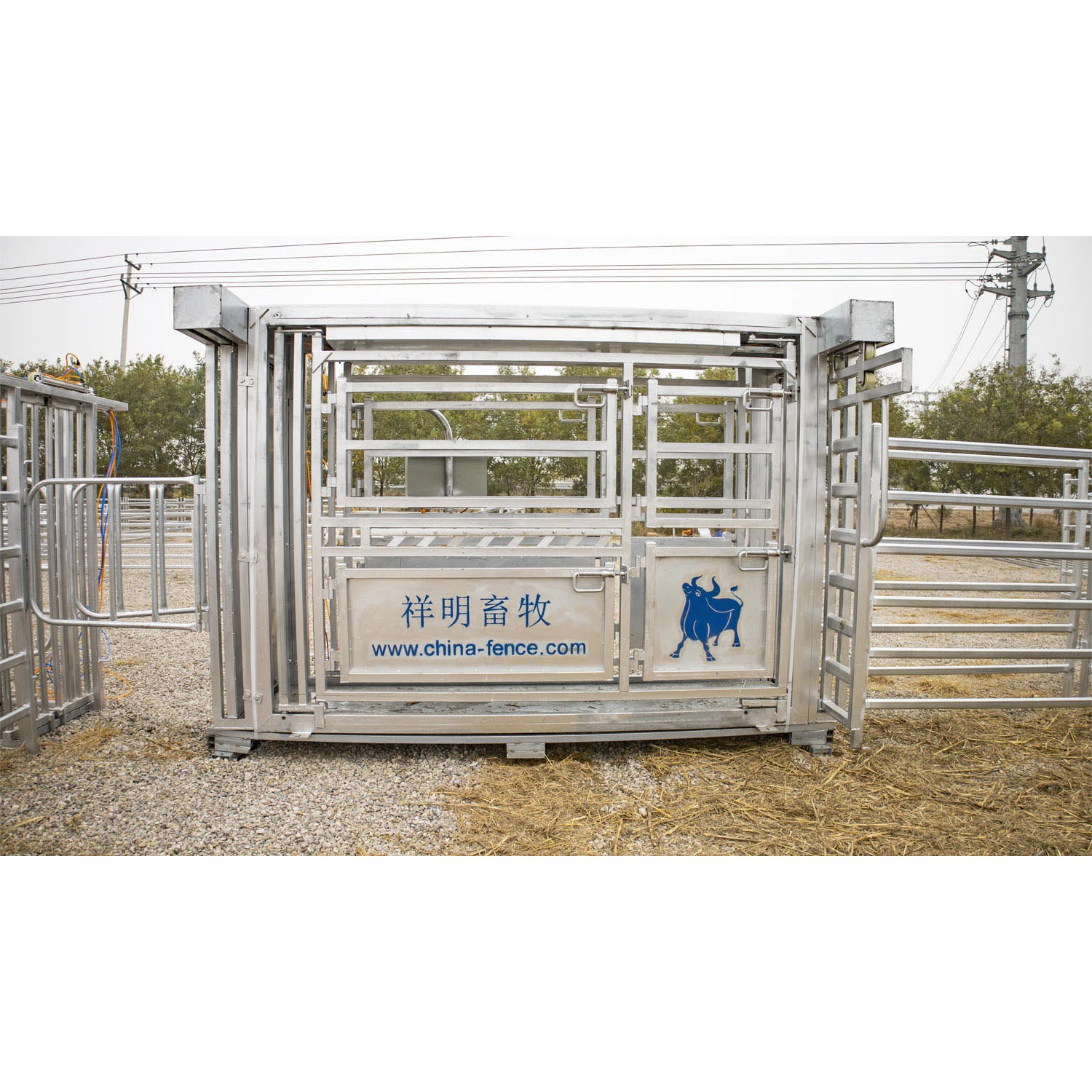

Galvanized cattle crush

Cattle crush has an internal width 750mm, overall length about 3.05m, 4 doors on the operating side and no doors on the other side. The cattle crush is supplied as 4 pieces kit(headbale, 2 sides & a slide gate)which just pins together.



Detail show

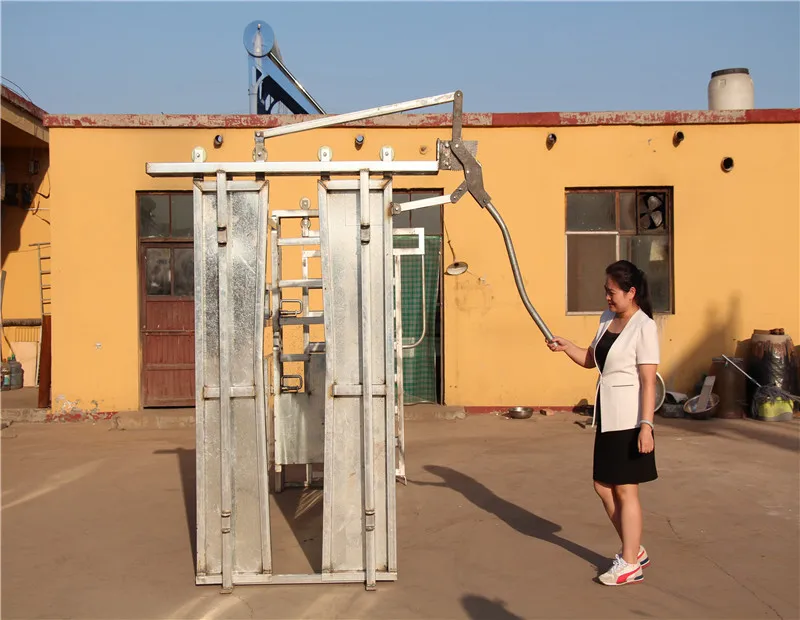

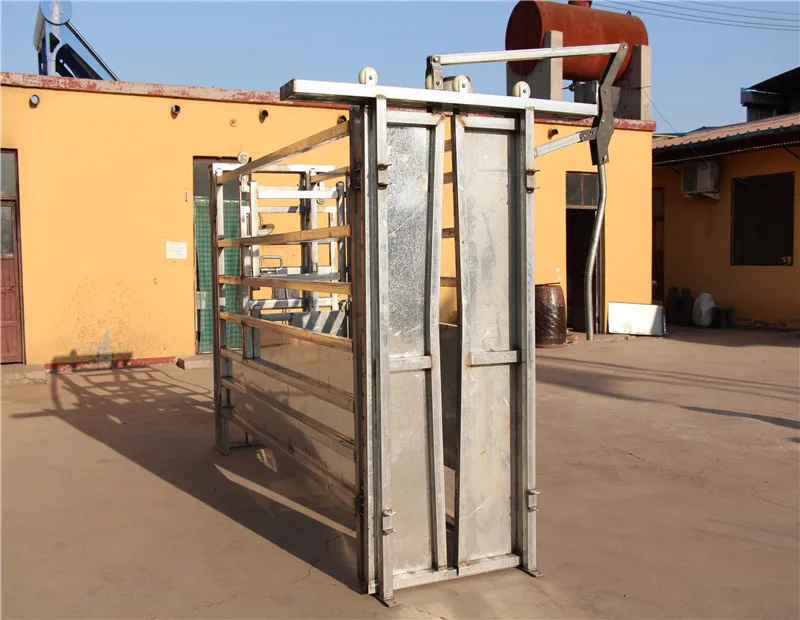

Cattle headbale
Pre galvanized, zinc coating 100g/m2
Fully 360 degree welded
2050mm high, 1060mm wide
Internal width is 750mm(does not including vertical tube)
All the tubes are 50x50x2mm square tubes
Galvanized sheet, 1.0mm thick
With welded caps
8 U lugs, 100x60x4mm
2 flat feet, 50x110x4mm
And pins hang on the lugs

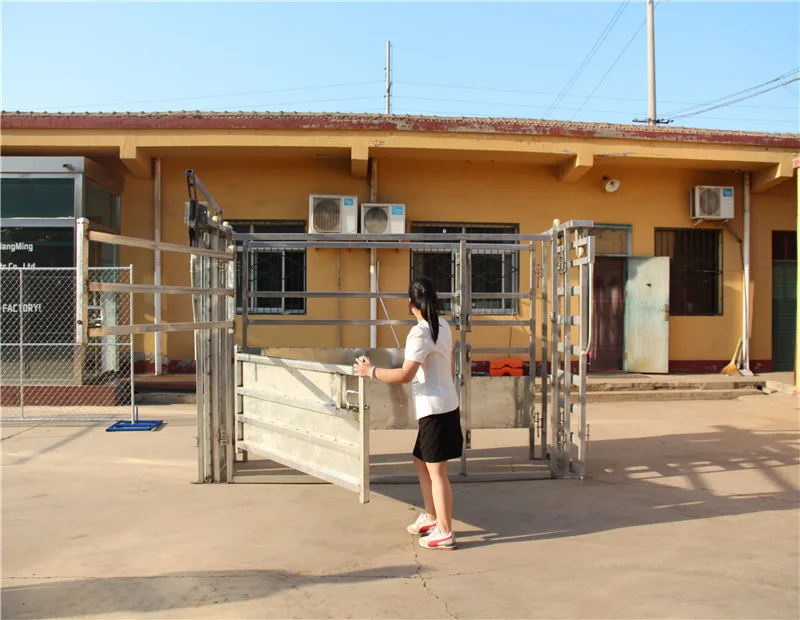

Sliding gate
Pre hot dipped galvanized,zinc coating 100g/m2
2050mm high, 1060mm wide
Frame tube: 50x50x2mm
Internal width is 750mm(does not including vertical tube)
6 Rail of 40x80x2mm with the rail evenly spaced
Big Pulley: 3 sets per door
A small plastic wheel in the bottom
Handle:32mm round pipes
With welded caps 1 flat feet
With 8 U lugs: 100x60x4mm
And pins hang on the lugs

Cattle panel on one side
Pre galvanized, zinc coating 100g/m2
Fully 360 degree welded
2000mm high, 3050mm long.
All the tubes are 50x50x2mm
With 7 rails, 4 rails with galvanized sheet, 3 rails are not.
Galvanized sheet is 1.0mm thick.
With caps, lugs and pins

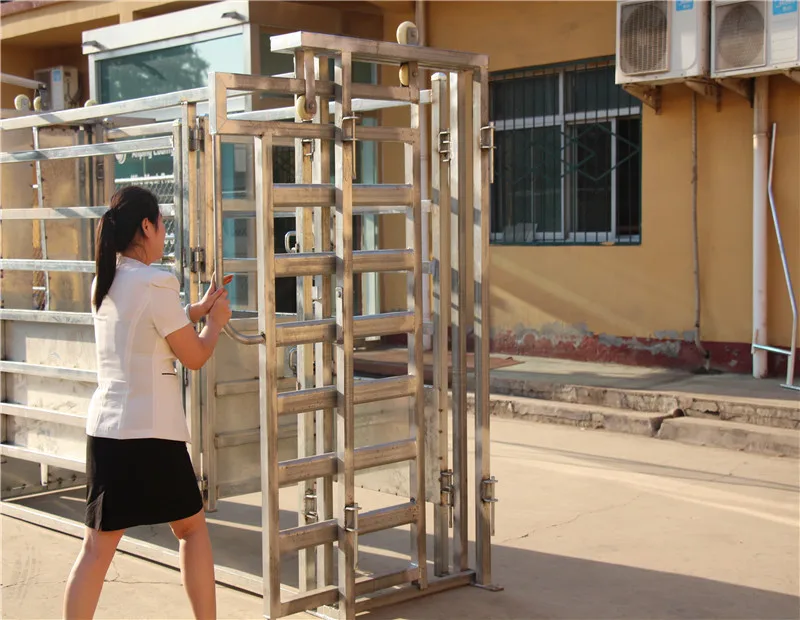

Cattle panel gates on the other side
Total 2000mm high, 3050mm long.
All the tubes are 50x50x2mm
Total 4 doors, with spring latched lock
Longer door, inertnal wide is 1995mm
Smaller door, internal wide is 725mm
With caps, lugs and pins





passed the AS46872007 standard test. The quality of our fence be assured.
