Характеристики


4/5/6 inch IP65 Industrial Rugged PDA Barcode Scanner Android 11



Product Description



R&D,MANUFACTURE,INDUSTRY RUGGED TABLET & TERMINAL PRODUCTS SOLUTIONS PROVIDER


Feature:


1.Support Android 11;
2.Support type-c OTG connector;
4.Support NXP NFC(13.56M);
5.Support GPS navigation;
6.Rugged IP65 protection level;
7.Support high strength Glass Touch Panel;
8.Support Wrist Sling




































































































Specification
CPU
MT6762 (8 cores octa-core)2.3 GHz,

OSAndroid 11
LCD5 Inch 16:9  (720x1280 IPS)  300Nit
TP5points Capacitive,G+G,Corning Glass
Rigidity: 7H up, anti-scratch,TP thickness:1.1mm,COF,support glove and wet hand touch
RAM4GB DDR3L
Flash64GB             Support SDHC/SDXC   x1    Max:128G
Wi-Fi
WIFI 802.11(a/b/g/n/ac) frequency 2.4G+5G dual band WIFI

CameraFront 5.0MP,Rear 13.0MP,with flash and auto-focus
BTBT5.0 (BLE) class1transmission distance:10m
Battery3.7V/4000mAH   Removeable Battery ,  7hrs(default50%volumn,default 200lumens brightness,play720PHD video)
Speakerbuilt in8Ω/0.8W waterproof speaker x 1
SensorG-sensor,Evironmental light sensor,Distance sensor,E-compass sensor
4G
GSM(B2/3/5/8)+WCDMA(B1/B2/5/8)+TDS(B34/B39)+FDD(B1/2/3/4/5/

7/8/13/17/20/28AB)+TDD(B38/39/40/41)

StrapsExtensible belt on the back case, convenient to hold
GPS
Support GPS,Glonass,beidou(G+G+B)

2D barcode scanner
Zebra4710 Built-in,
Honeywell6703 Optional


NFCBuilt-in NFC   Support 13.56mHz
Button KeyPower on/off,Volumn up/down, Scan(left and right) x2, System HOME key*1,BACK*1,CUSTOM*1
PortMicr usb2.0*1  OTG,charge and OTG  x1,3.5mm standard earphone  x1,SIM card connector  x1,(12pin back panel upside)extend back dock function x1,(4pin downside of unit)charging function  x1
Product ReliabilityDrop Height:1.2m composite wood floors, in operation status ,Operate Temperature:-10 °C to 50 °C (-20 °C to 60 °C  optional),Store Temperature:-30 °C to 70 °C ,Humidity: 95% Non-Condensing
Certificate System

IP65 Report: Water resistance:IP-X5,Dust resistance:IP-6X
a.Inner Nozzle diameter:6.3mm;


b. water speed:12.5±0.625L/min;
c. Water Pressure:adjust according to water volumn;
d.Central part of water volumn:diameter of 40mm, distance from nozzle: 2.5M
e.Spray time in surface of panel:about 1min


f.test time:at least 3min;
g.distance between nozzle and panel surface:2.5~3m.
After test,there is no water leakage in sample.


OptionalScan Trigger, Three-in-one Adaptor, Charging Docking

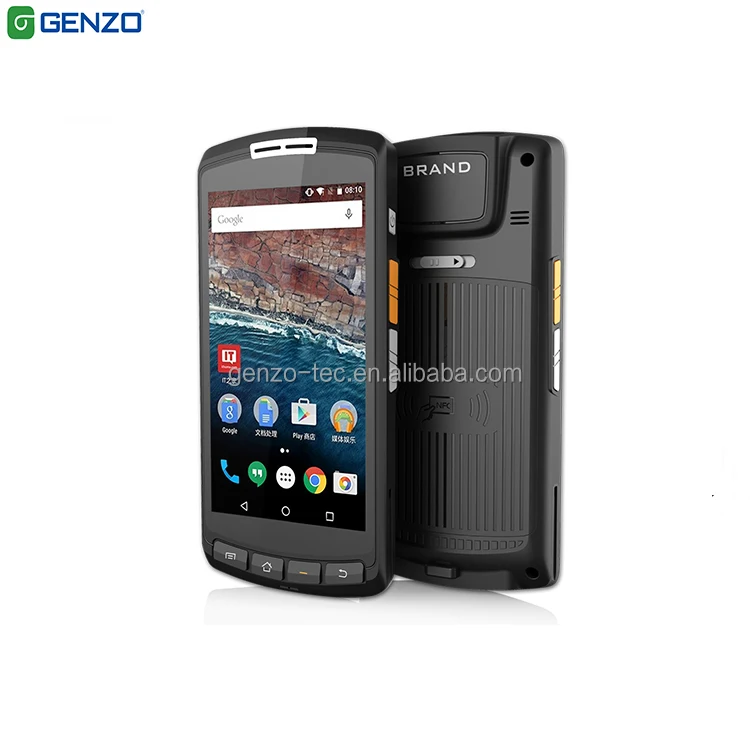

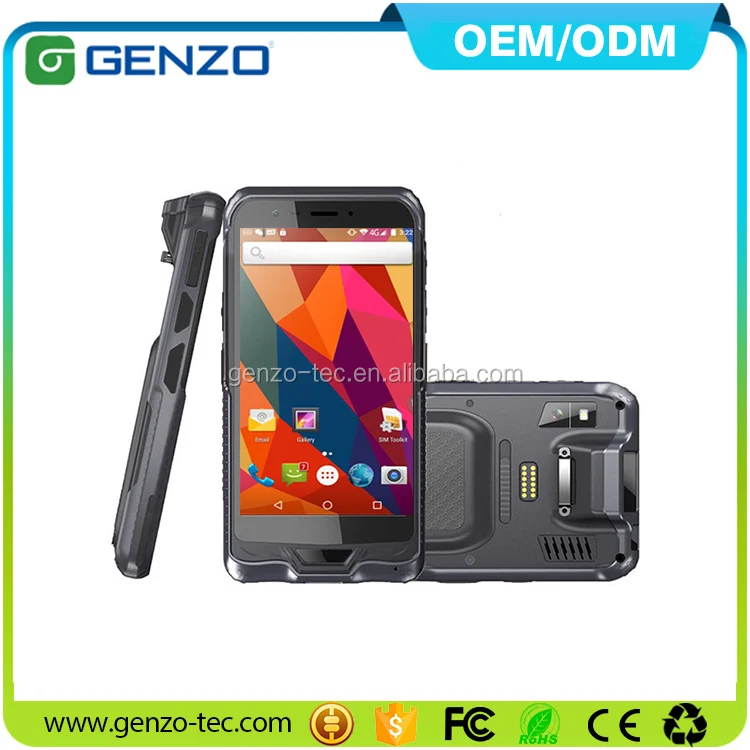

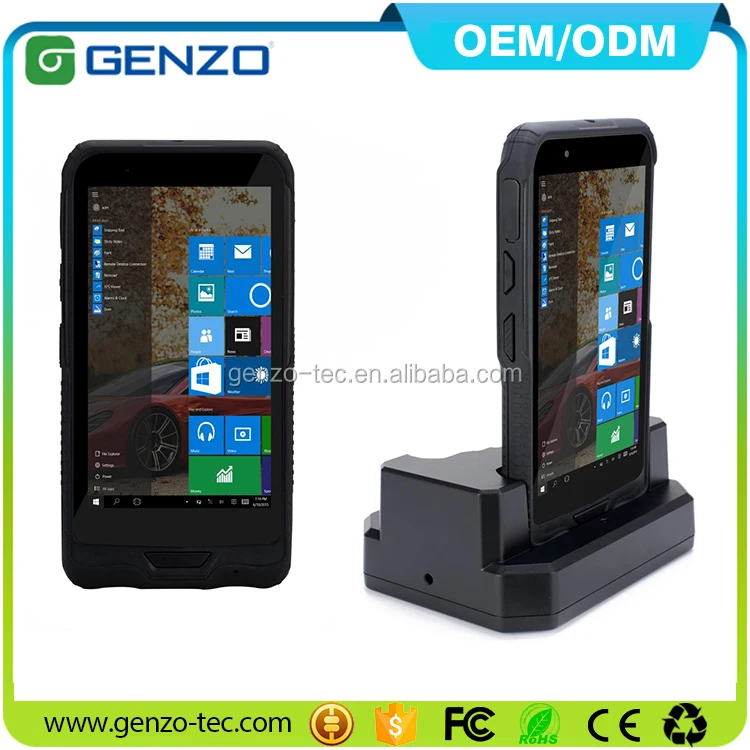

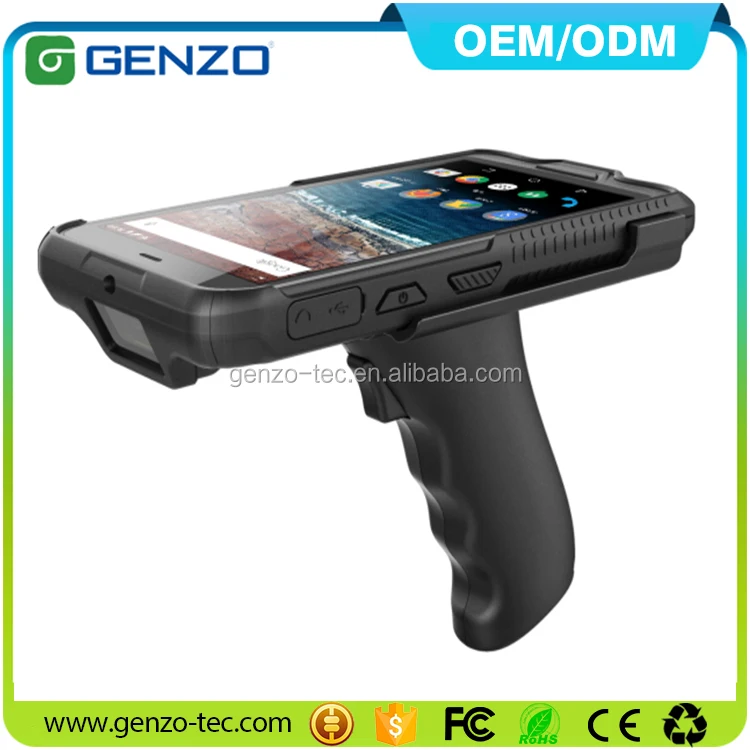

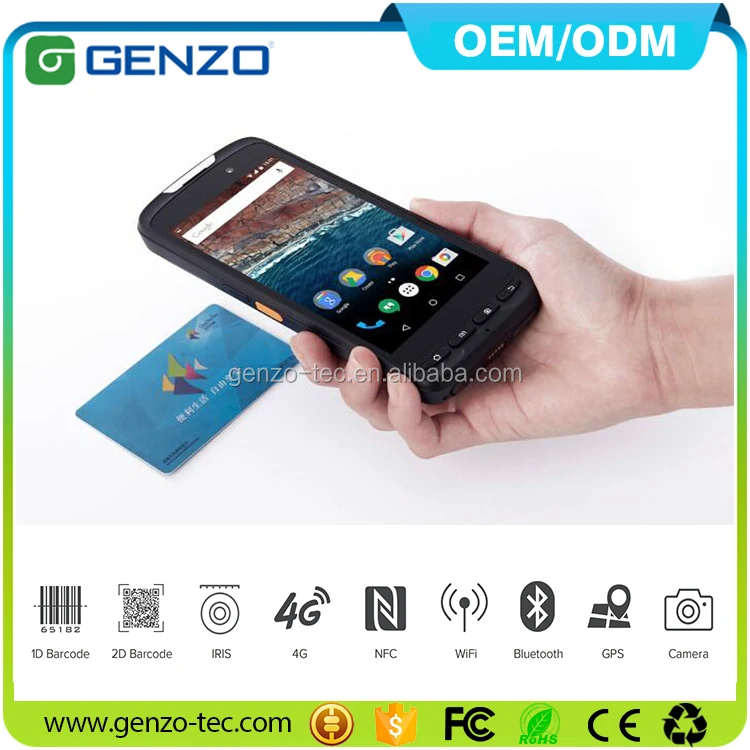

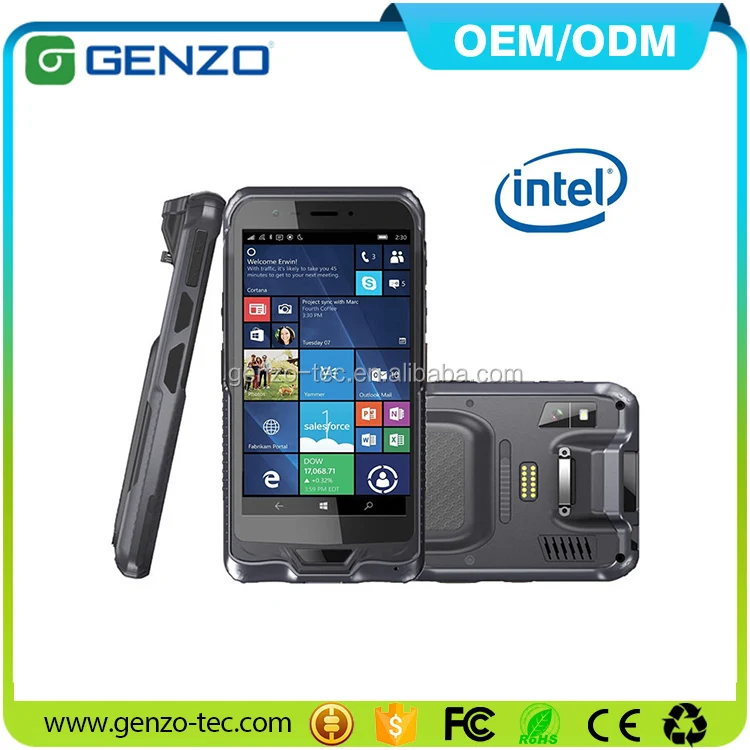

Product Pictures


F1122E3233223221121all HolderALLH21 Other Modles 3M3M-3M



Packaging Shipping











Company Pntroduction











Factory Pictures











Certificate








Our Service


OEM&ODM:


We accept OEM&ODM for customer's request. It includes:



1. Burn customer's logo name as Boot Animation name.

2. Print customer's logo on shell or do customer's logo sticker.

3. Do customer's giftbox, we can offer beautiful giftbox for customer's reference.or provide AI/CDR  file for customer's own design.

4. Usuer Manual,customer can choice different languages and put them together.

5. Customer's Master Carton design are acceptable.





6.Develop products for customers,including appearance and internal structure design,motherboard development and mold design and production.








Warranty:

For all our products,we offer 24 months warranty.After the warranty period, we will also provide necessary replacement parts and technical support.

Usual,our Production line and QC department will test all the goods one by one for more than 3 times before send out.

So,there are almost no defective.if really have,you can send back us for repair or replacement.

You send back to us, you pay the shipping cost.

We send back to you,we pay the shipping cost.

But, all this warranty does not include accident, human fault or improper use.





Why choose us?



1. We are China leading
Rugged Tablet & PDA  manufacturer.



2. Alibaba Gold Supplier.



3. Inspected by the inspection of Bureau Veritas Certification.



4. 100% QC inspection before shippment.



5. Best quality & service with competitive price.






FAQ





1.Q: Are you a factory or trading company?
    A: We are factory.we are manufacturing of Rugged PDA (4"/5"/6"), Rugged tablet    (7"/8"/10"),    Rugged and Semi-Rugged Notebook (11.6"/12.2"/14").



2.Q: Where is your factory located? How can I wisit there?
   A: Our factory is located in Shenzhen City, China. You can fly to Shenzhen airport directly, and    we will pick you up. Welcome to visit our factory.



3.Q: How can I get some samples?
   A: We are honored to offer you samples.



4.Q: How does your factory do regarding quality control?
   A: Quality is priority. We always attach great importance to quality controlling from to the end. Our
        factory has gained CE, FCC, ROHS,IP65,IP67 certifications and so on.
