FTTH Device 4 Ports Mini Net Link 10G SFP 1,2,4,8,16 PON OLT Gepon Epon Gpon OLT

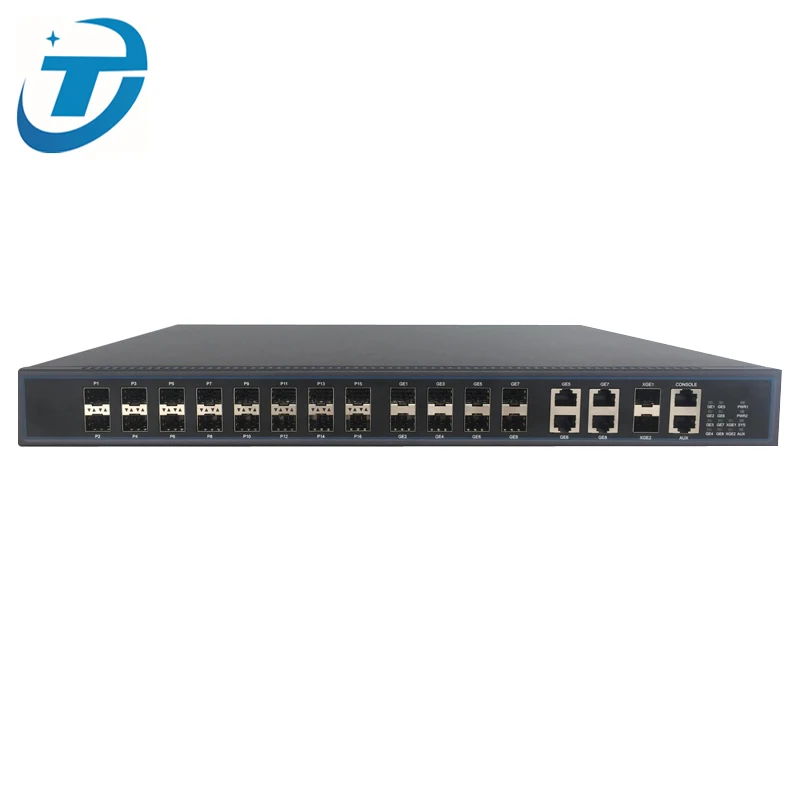

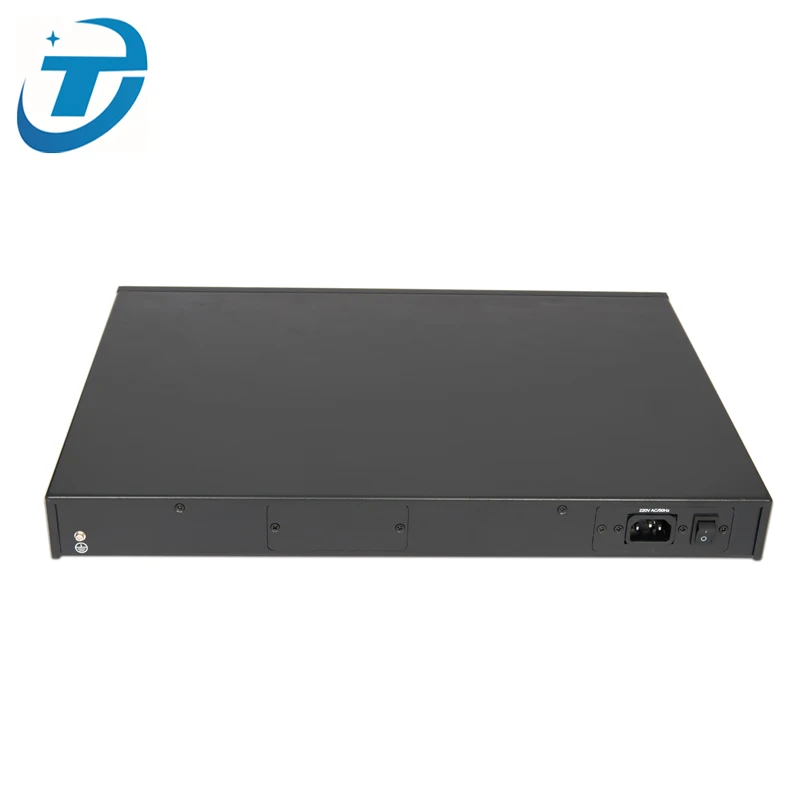

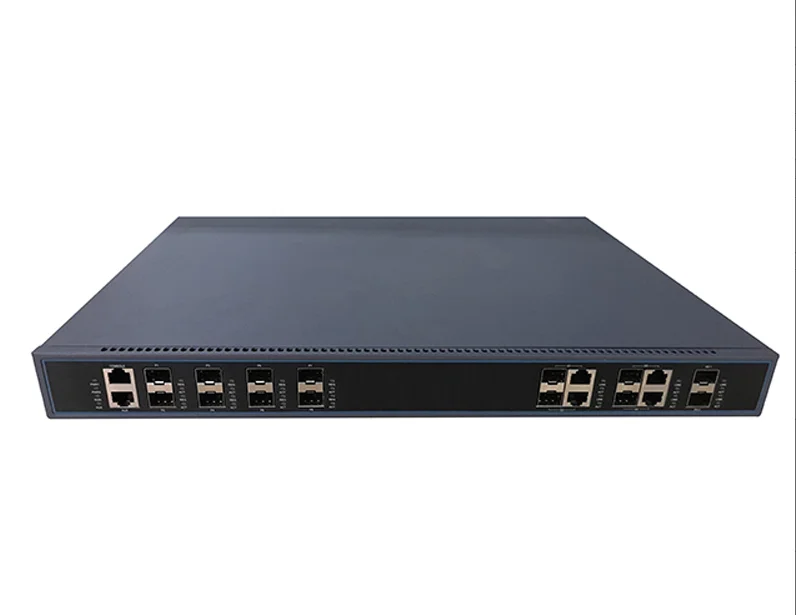

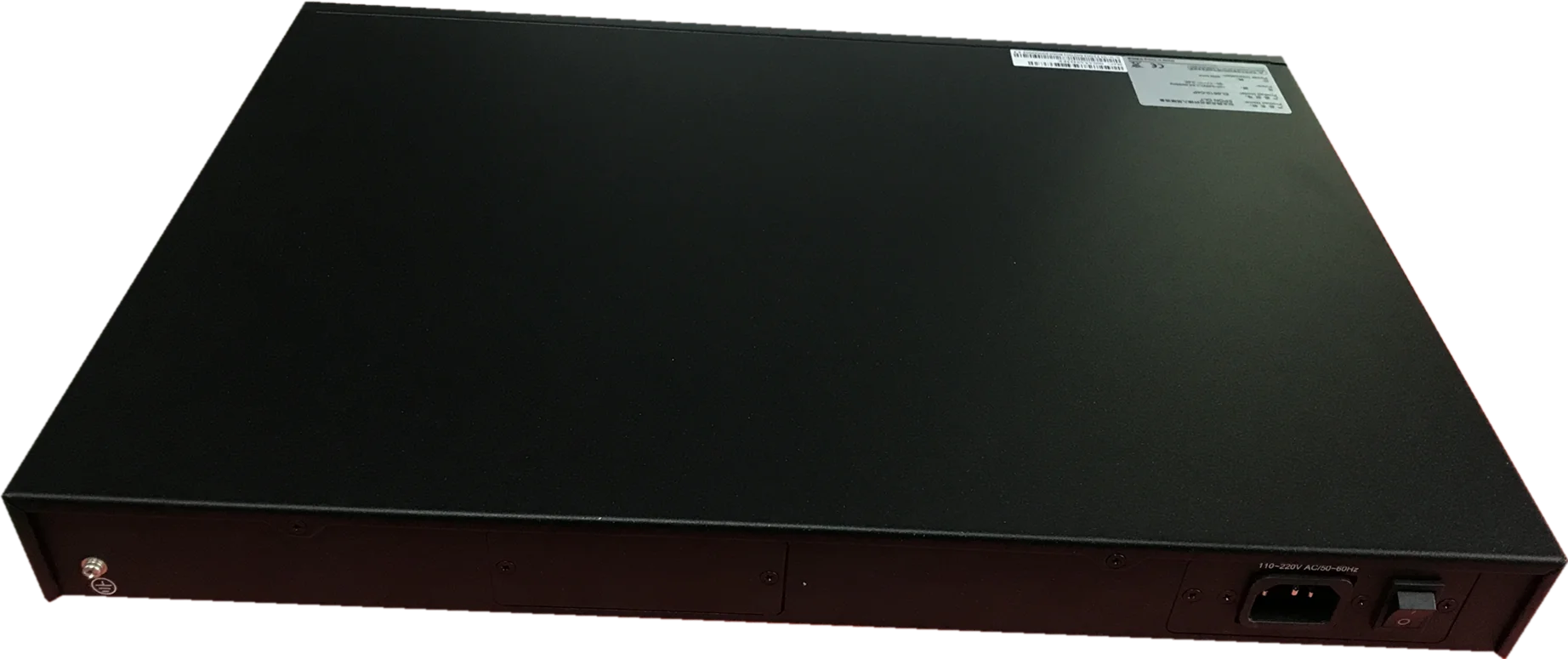

FOC-E8616T-ATG is designed for chassis OLT device which provides 16 downlink 1000M PON ports, 4 uplink GE Combo ports ,4 GE SFP PORTS,2 uplink 10GE ports by Foclink Co., Ltd. The height is only 1U for easy installation and space saving. Each PON supports up to 64 terminals, the whole device supports up to 1024 ONUs under full configuration.E8604T/08T-ATG adopts advanced technology to support SLA and DBA to keep strong function on the Ethernet and QoS features. FOC-E8616T-ATG is applied for commercial and grid network digital management to provide perfect, smart, strong, advanced, professional solutions for “automatic distribution” and “electricity information collection” in the implemented project for the national grid. Manufacturer 1G 10G Uplink GEPON EPON GPON OLT Device Price, 1U 19 inch FTTH 1 2 4 8 16 port pon OLT Optical Line Terminal.



Key Features:

Carrier-class stability and network resiliency
(1)Adopt large-scale NGBN operation system with intellectual property rights in the global carrier network.
(2)Support PON fiber redundancy protection and device redundancy protection protocol
(3)Support rich security features to protect the users, devices and network.
(4)Dual power supply input and power redundancy
(5)All PON GE and 10GE ports provide L2/L3 full-line speed without losing packets



Full PON Service:

(1)Each PON support 1:64 splitting ratio ( The maximum quantity of 64 ONU)
(2)Hot plug PON fibber module design, the farthest 20Km transmission distance
(3)Support 128bits triple churning function to ensure the confidential for the data transmission.
(4)Support dynamic bandwidth distribution DBA algorithm



Powerful OAM:

(1)Use packet forwarding based on hardware to be effective for feature detection and packet filtering
(2)Support auto protection and user blocking for ARP attack based on MAC address
(3)Support all kinds of protecting DDoS, CPU over-current and VRRP etc
(4)Support BFD, FlexLink, auto linkage aggregation and Ethernet Ring protection



Product Specification:



Item	FOC-E8616T-ATG
Switching capacity	128Gbps
Throughput(IPv4/IPv6)	95.23Mpps
Service port	16*PON,4*GE SFP,4*GE Combo,2*10GE
Redundancy design	Dual power supply, support AC input,dual DC input and AC+DC input
Power supply	AC:90~240V,47~63Hz ; DC:-36V~-72V;
Power consumption	≤85W
Outline dimensions (mm) (W*D*H)	442mm×44mm×315mm
Weight (in maximum configuration)	≤3kg
Environmental parameter	Working temperature:0℃~50℃ Storage temperature:-20℃~70℃ Relative humidity:10%~90%,no condensing
