Центробежная Вентиляция с обратным наклоном 180 мм В переменного
- Категория: Центробежные вентиляторы >>>
- Поставщик: Shanghai,Anneng,Fan,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 26.6 $* | 27.46 $* |
| Aug-16-2025 | 26.17 $* | 27.55 $* |
| Jul-16-2025 | 22.78 $* | 23.11 $* |
| Jun-16-2025 | 26.79 $* | 27.86 $* |
| May-16-2025 | 22.86 $* | 23.8 $* |
| Apr-16-2025 | 25.69 $* | 26.69 $* |
| Mar-16-2025 | 25.34 $* | 26.18 $* |
| Feb-16-2025 | 25.78 $* | 26.61 $* |
| Jan-16-2025 | 24.59 $* | 25.89 $* |
Характеристики
Type: R2E180-H035-01B

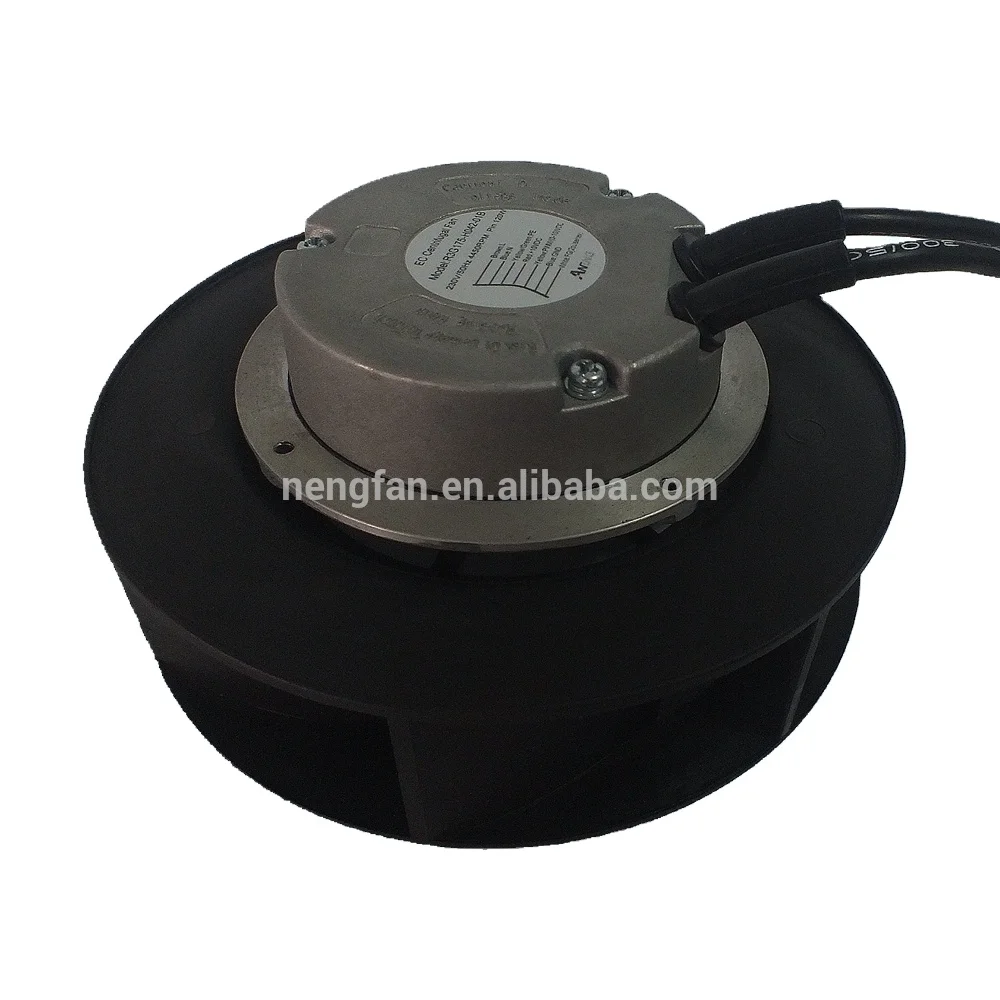

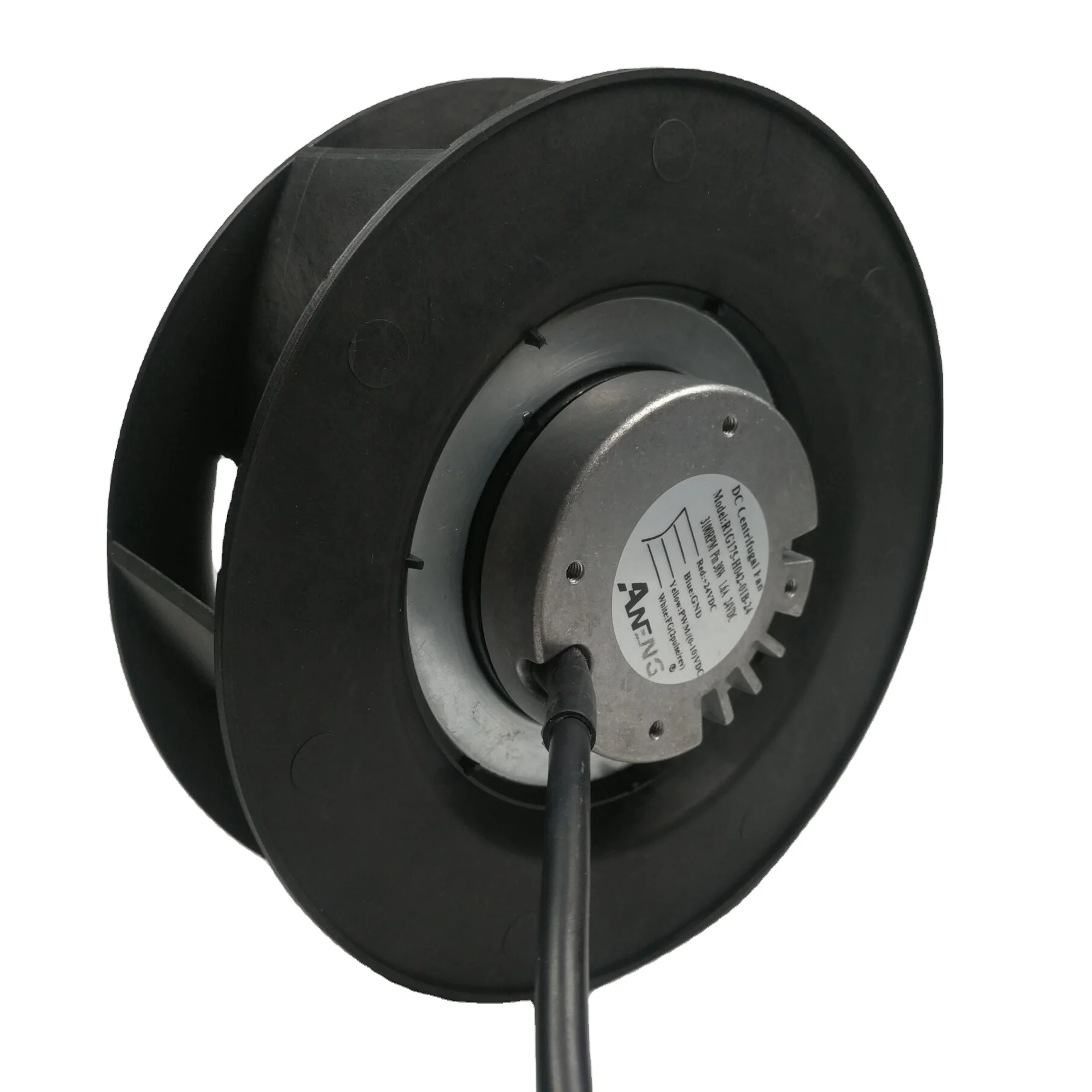

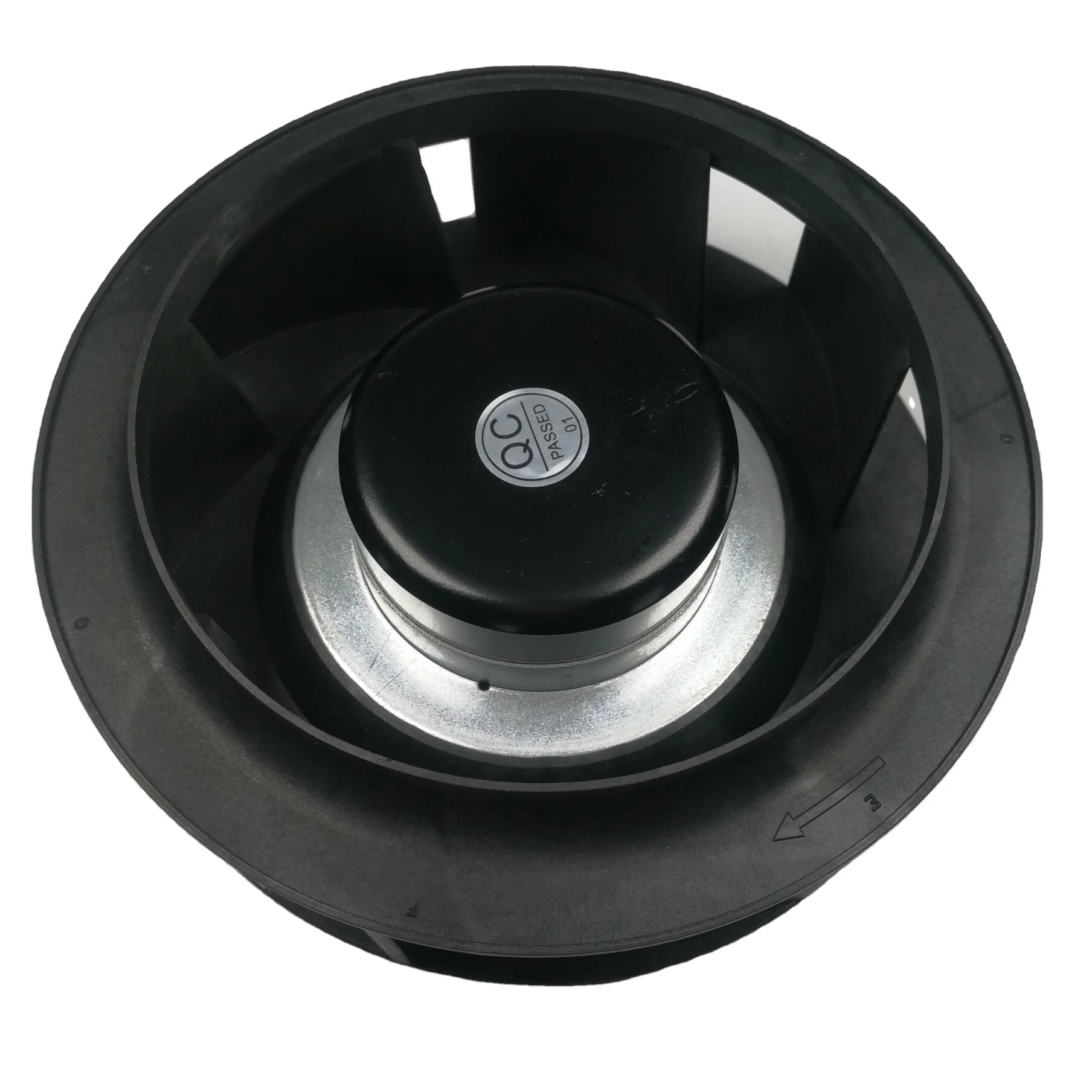

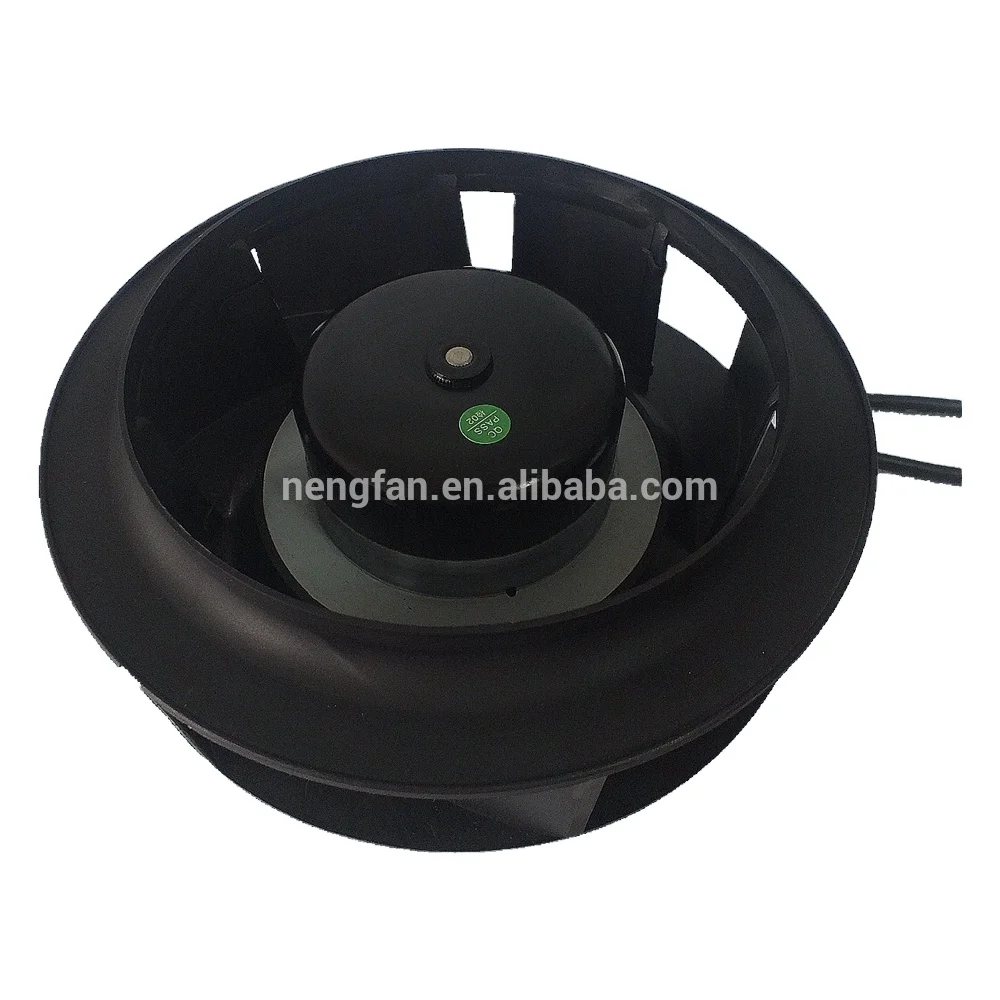

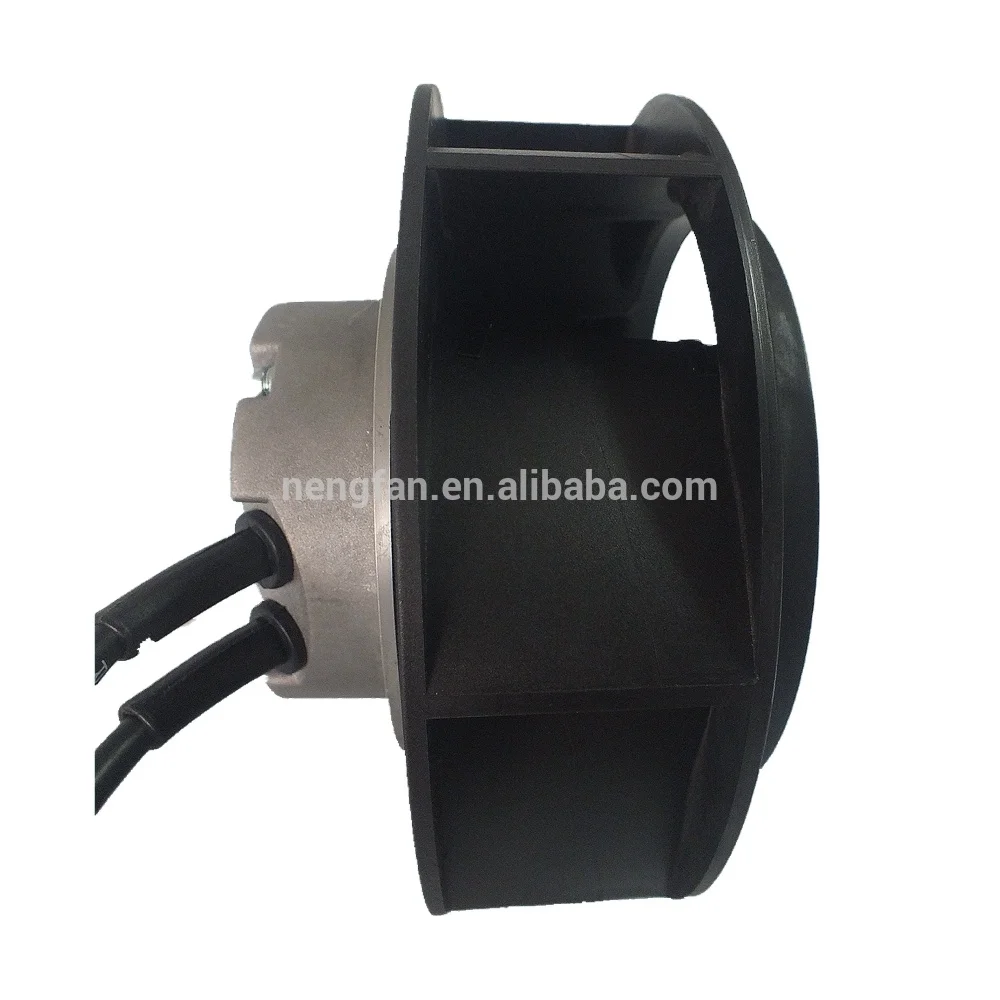

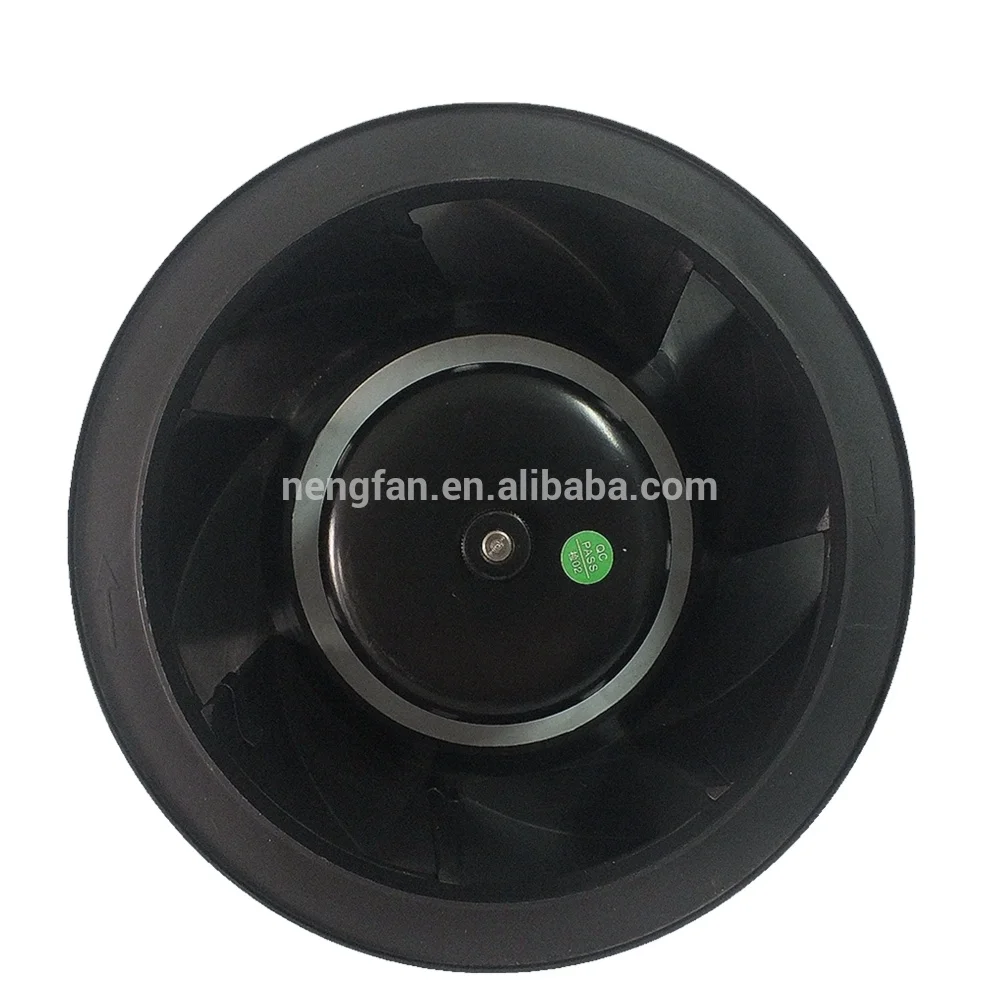

Product Pictures
(PS: ANNENG Reserved, Pirates Must Investigate.)
Product Datasheet
| Specification | ||||||
| Model Type: R2E180-H035-01B / Motor Type: 92mm | ||||||
| Rated Voltage | Frequency | Rated Current | Input Power | Speed | Air Flow | Static Pressure |
| (VAC) | (Hz) | (A) | (W) | (RPM) | (m3/h) | (Pa) |
| 230 | 60 | 0.24 | 52 | 2550 | 430 | 325 |
| Details Description | ||||||
| Current Leakage | <=3.5mA | |||||
| Operation Mode | continuous operation S1 | |||||
| Direction of Rotation | clockwise, seen on rotor | |||||
| Mounting Position | at will | |||||
| Insulation Class | "F" | |||||
| Cable Length | 450mm | |||||
| Bearing | ball bearing (NMB) | |||||
| Net weight | 1.5kg | |||||
| Motor Protection | Thermal overload protector (TOP) brought out | |||||
| Surface of Rotor | Cast in aluminum | |||||
| Number of Blades | "7" | |||||
| Type of Protection | IP44 | |||||
| Approval | CE | |||||
| Operate Life | >=40,000hours | |||||
| Noise | <66dB(a) 1 meter away | |||||
specification
Factory Display
Production Line
Packaging
1. for Sample, packing individually by foam carton; 2. for Mass, pallet package 120x100x120CM. |
 |
Certifications
 |
Our Guarantees
Quality Guarantee We are professional manufacturer in ac,dc,ec centrifugal fans with brushless external rotor motor. All the fans are produced by ourselves independently, including the motor. So we have more confidence on the products' qulaity and performance. Price Guarantee The products are sold by our own factory directly. So the reason for low price is simple: no middlemen. Delivery Time Guarantee We will make production on time as order and send the goods according to mutual confirmed delivery time. We will try our best to avoid risk of any delay. Service Guarantee We adopt the mode of combining the sales team and engineers team. So we can provide the responsible suggestion and recommendation when we contact at first time.We will check all details before accepting the order, and keep quality before delivery.
