Wood shaving machine for poultry farm bedding/timber shaving machine
Product Description
Description of timber shaving machine
1. The wood shaving machine can make wood shavings from wood logs, tree branches, process wood.
2. The shaving is the same as that produced from furniture factory, automatic feeding equipment, greatly improved the speed of production, and also saves time and manpower.The wood shaving thickness can be adjustable.The thickness of shavings can be adjusted in range 0.1-1mm.
3. Applicable for: particle board, paper producing, wood pulp paper making and biomass fuel.
Working principle of timber shaving machine
Wood shaving machine includes the rack, operating platform placed on the frame, the blades fixed on the platform. The wood material is sent into the machine from the feeding inlet,and cut by blades in the chamber, finally processed into shavings just the same as hand work by workers.
Technical date of timber shaving machine
Model
QM-420
QM-600
QM-800
QM-1200
QM-1500
Cutter head dia. (mm)
420
610
750
1000
1150
Knife quantity(pcs)
4
4
8
9
12
Knife length( mm)
90*60*8
150*70*8
150*100*10
150*120*10
150*120*10
Inlet size(mm)
140*100
190*150
190*220
220*300
330*420
Main shaft rota speed( mim/h)
700
600
560
560
560
Capacity (kg/h)
300
500
1000
1500
2000
Power(Kw)
7.5
15
30
55
75
Dimension(mm)
1200*500*700
1550*630*950
1850*800*1100
2400*1000*1400
3000*1200*1800
Weight (kg)
700
1200
1500
2000
3000

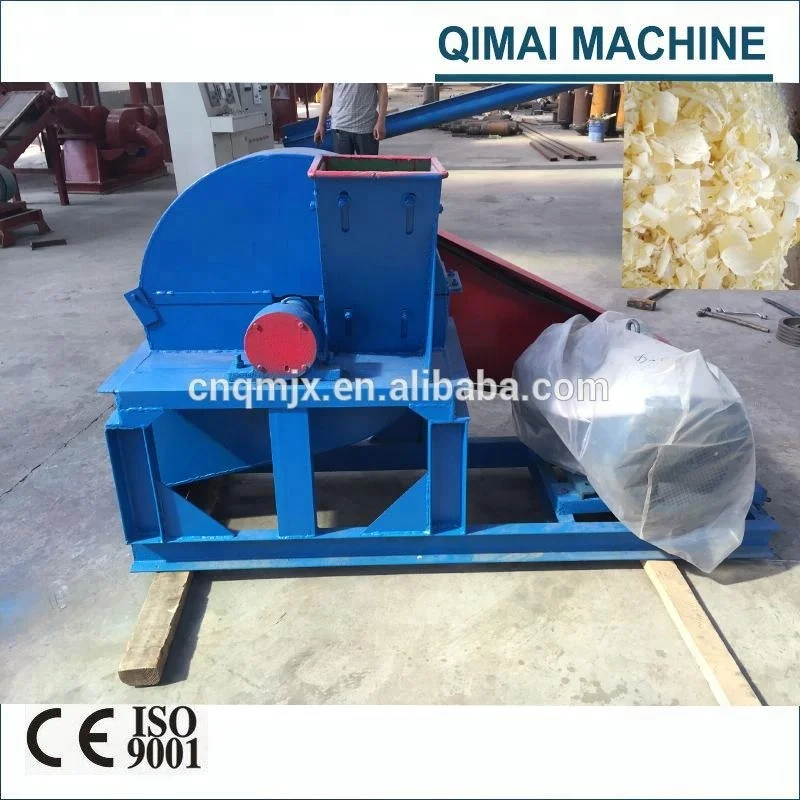

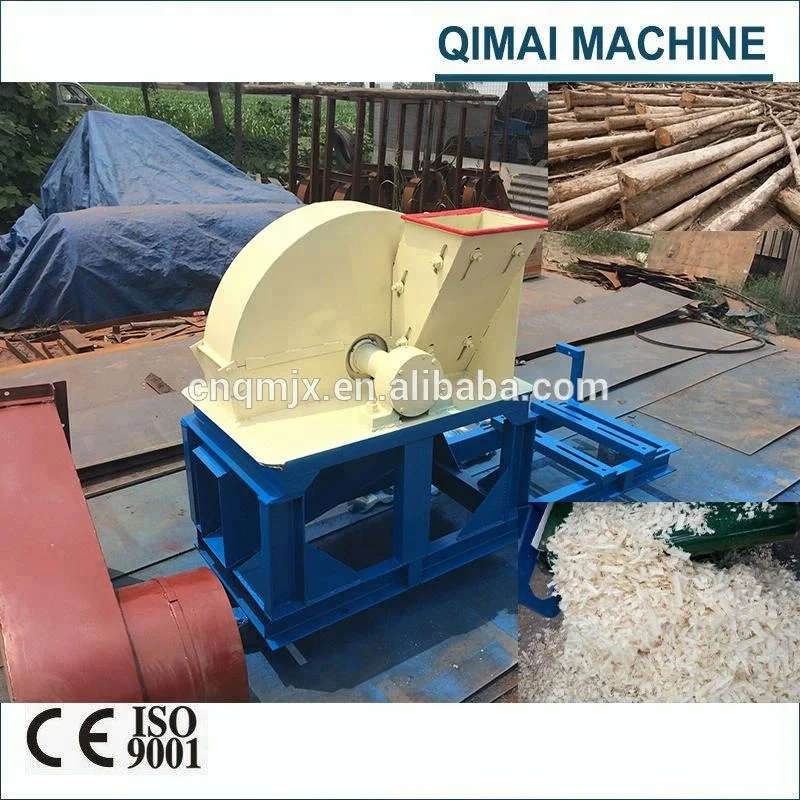

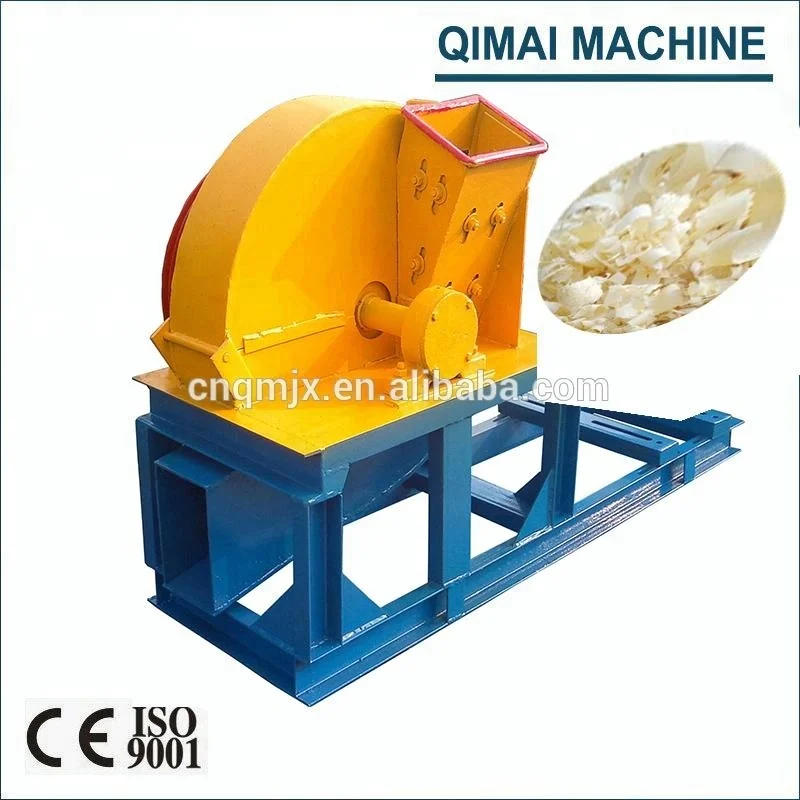

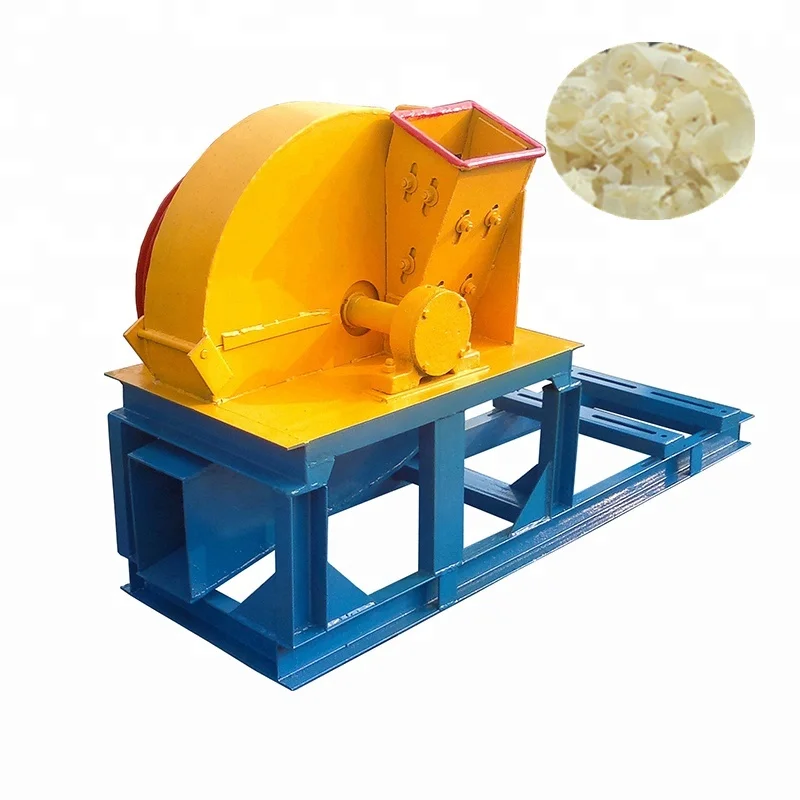

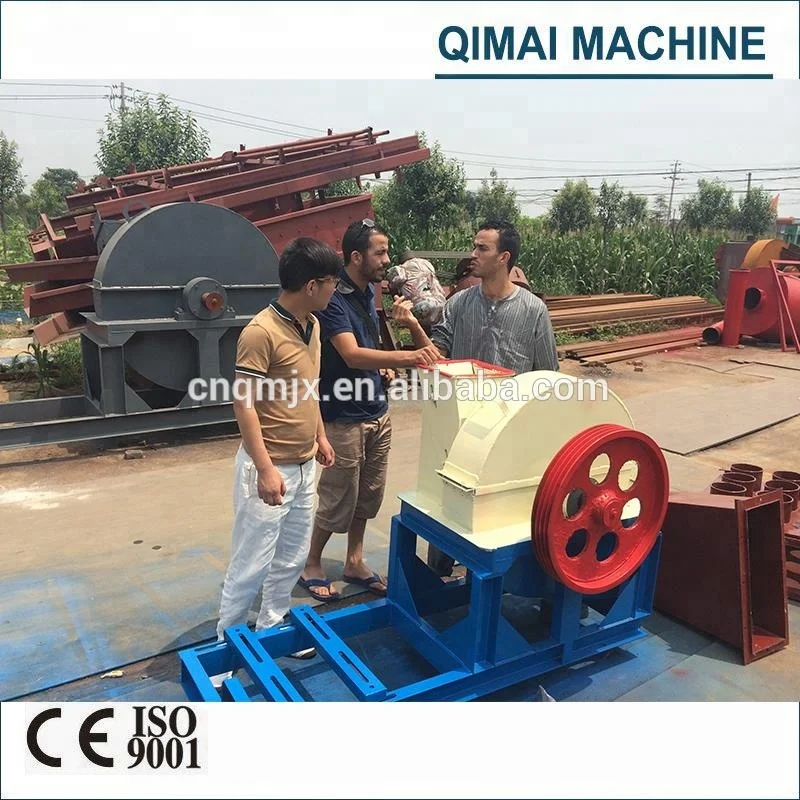

Pictures of timber shaving machine taken from our factory

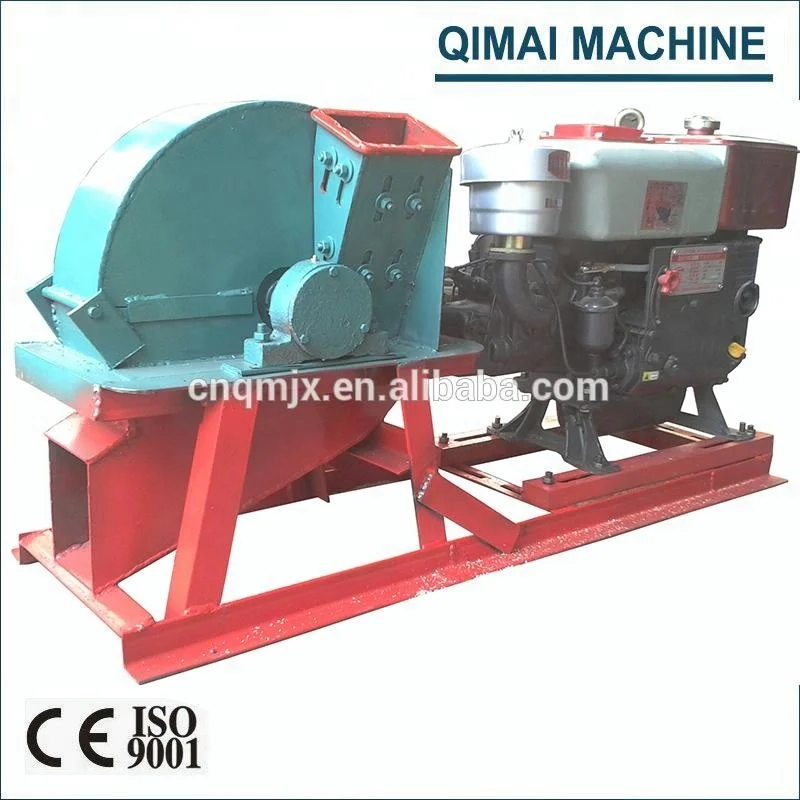

Diesel enginer wood shaving machine
Packaging & Shipping
After wood shaving machine finished,our factory will delivery to you ASAP
Company Information
Henan Qimai Mechanical Equipment Co.,Ltd
Our factory is a professional manufacturer of wood working machine,charcoal making machine, carbonization furnace,dryer machine, wood working machine and construction machine, etc.Our factory is located in Gongyi City, Henan Province.
With the development and changing market demand, our company also insist on the development of product diversity. The biomass briquette machine, a charcoal briquette machine, a coal briquette machine, shisha charcoal machine are become our popular product in the global market.
Contact me
We hope to establish a growing, healthy and mutually beneficial trade relationship with you!
