Description of Manual turret Micro hardness tester :

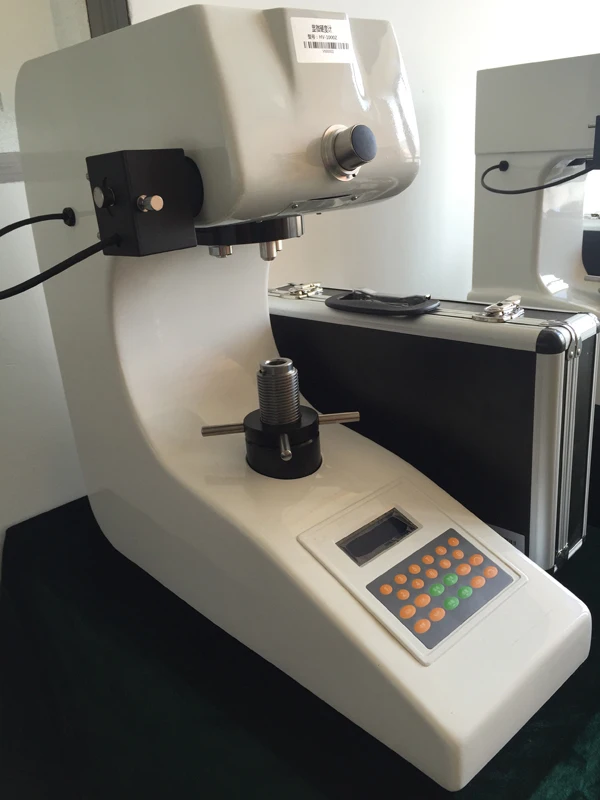

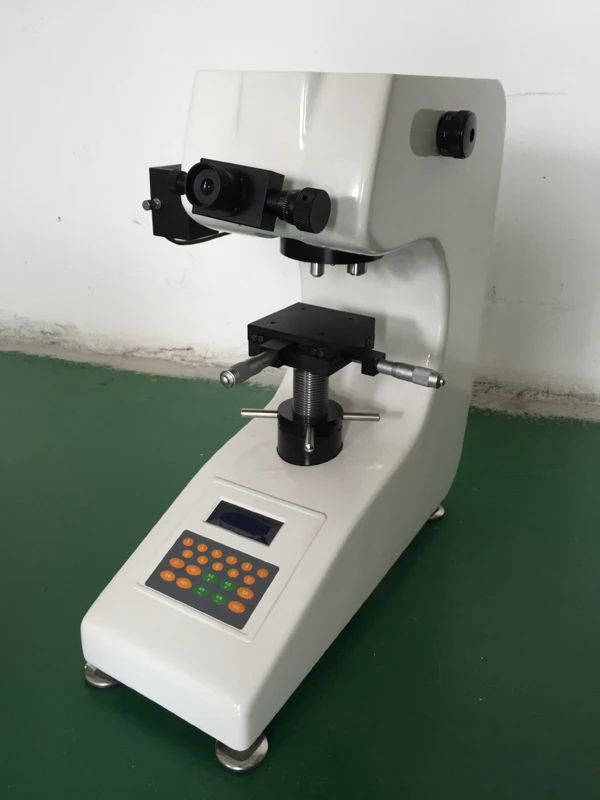

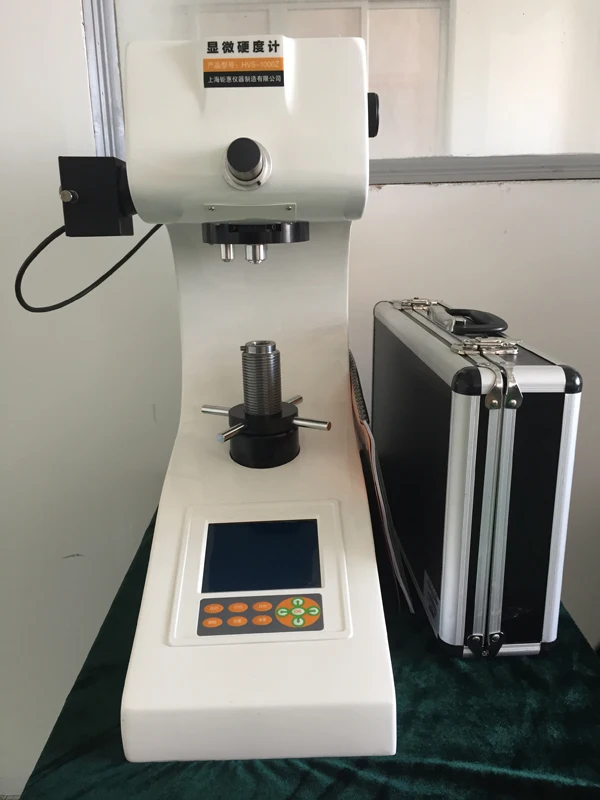

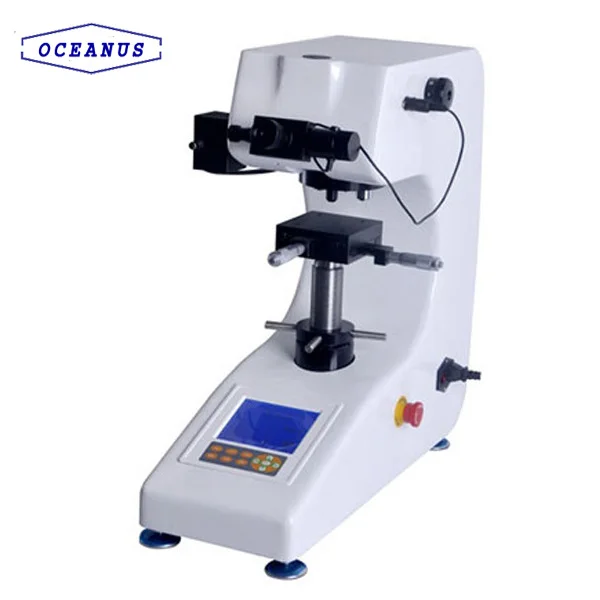

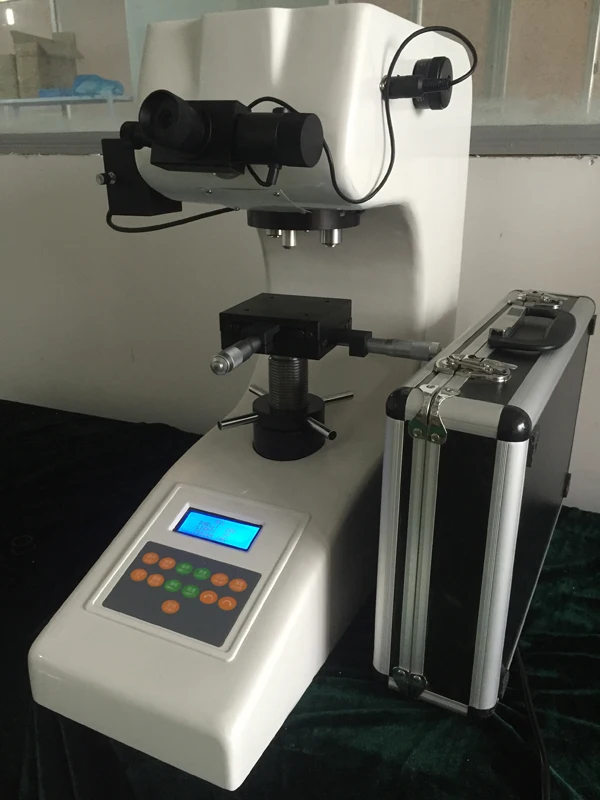

HVS-1000 big screen Micro vickers hardness tester on the basis of the Vickers Hardness tester, it could meet all the requirements of the Vickers hardness tester, upgrade the control system makes it can provide more measuring data, also with high precision.



Features of Manual turret Micro hardness tester:

The optical system with the clear image, also could be as the usage of the microscope, the adjustable brightness is good for the worker eyes.

The big LCD display the Hardness value, conversion hardness, testing method, testing force, duration time, test frequency, the worker can monitor the testing process clearly.

The shell made by the special foundry molding casting, with the stable structure, can work under the severe environment; with the high class automobile paint with high anti scratch ability.

Our company with the R& D team and we provide the service for the maintenance and upgrade.

HVS-1000 big screen Micro vickers hardness tester is operated by the manual turret.



Applications of Manual turret Micro hardness tester:

Iron, Steel, Nonferrous metal, Metal foil, Hard alloy, Sheet metal, Microstructure.

Carburizing, Nitriding, Decarburization layer, Surface Hardening layer, Electroplating, Coating.

Glass, Chip. Ceramic material.





Technical parameter of Manual turret Micro hardness tester:



Item	Details
Hardness scale	HV0.01,HV0.025,HV0.05,HV0.1,HV0.2,HV0.3,HV0.5,HV1
Display	Retention time and Hardness value
Testing force(gf)	10gf (0.098N),25gf (0.245N),50gf (0.49N),100gf (0.98N ), 200gf (1.96N),300gf (2.94N),500gf (4.9N),1000gf (9.8N)
Loading Method	Automatically (load, keep, unload)
Turret	Manual turret
Duration time (s)	5~60
Testing force choose	External knob, the testing force display on the LCD screen automatically
Magnification of objective lens	10×,40×
Optical channel	Dual optical channel(Eyepiece and CCD camera channel)
Optical system	Total magnification (μm):100×(For Observation ), 400×(For Measurement); Measuring range(μm):  200; Resolution(μm):    0.01
Hardness measuring range	(5-3000)HV
X-Y Testing table	Dimension(mm):100×100   Max. travel(mm):25×25 Min data(mm):0.01
Max, height of the specimen (mm)	110
Max, width of the specimen (mm)	85
Data output	RS-232 port, optional built-in printer
Power	AC220V/50HZ
Weight(kg)	35
Dimension	(540×200×530)mm



Standard accessories of Manual turret Micro hardness tester:

Micro Vickers Indenter    1pc	Flat Clamp      1pc
Objectives 40x   1pc	Filament Clamp   1pc
Objectives 10x   1pc	Water level    1pc
Accessories Box   1pc	Screw driver   2pcs
Weights/Gradienter  6pc	Level Screw      4pcs
X-Y testing table        1pc	Power Cable    1pc
Thin-piece Clamp   1pc	Micro eyepiece 10x   1pc
Micro Vickers Hardness block  2pcs	Fuse (1A)       2pcs
Manual      1pc	Anti-dust Cover   1pc







Our company provides the different type Hardness tester, including of the Rockwell Hardness tester, Leeb Hardness tester, Barcol Hardness tester, Webster Hardness tester, Micro Hardness tester.



If you want to know more details, welcome to contact us.
