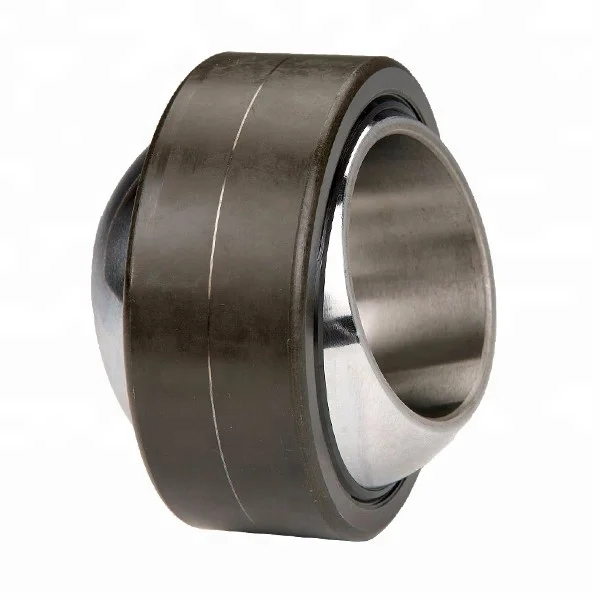

GE35FW 2RS maintenance free heavy duty sealed radial spherical plain bearing



Features

  • Maitenance free,heavy duty.sealed

  • Inner Ring: chrome steel 52100(100Cr6),heat treated HRC58-64,hard chrome plated

  • Outer Ring: chrome steel 52100(100Cr6),heat treated HRC54-60,phosphating

  • Sliding Contact Surfaces: Steel/PTFE fabric



Dimensions

  • Inside Diameter: 35mm

  • Outside Diameter: 62mm

  • Net Weight: 0.39kg

  • Load Ratings: 175KN(dynamic); 419KN(static)

  • Angular Misalignment: 16 Degree

  • Length Through Bore: 35mm

  • Length Through Outer Ring: 22mm



Features    • sliding contact surface: steel / PTFE fabric • maintenance free,heavy duty,sealed • inner ring    —bearing steel     —heat treated HRC 58-64    —hard chrome plated  • outer ring    —bearing steel     —heat treated HRC 54-60    —phosphating

Part No.	Dimensions mm						Load ratings KN		Weight
	d	D	B	C	dk	α	Dyn	Sta	kg
						≈	C	C0
GE15FW 2RS	15	30	16	10	25	16	32	75	0.046
GE17FW 2RS	17	35	20	12	29	19	45	104	0.078
GE20FW 2RS	20	42	25	16	35.5	17	85	204	0.15
GE25FW 2RS	25	47	28	18	40.7	17	110	263	0.19
GE30FW 2RS	30	55	32	20	47	17	140	338	0.29
GE35FW 2RS	35	62	35	22	53	16	175	419	0.39
GE40FW 2RS	40	68	40	25	60	17	225	540	0.52
GE45FW 2RS	45	75	43	28	66	15	275	665	0.68
GE50FW 2RS	50	90	56	36	80	17	430	1030	1.4
GE60FW 2RS	60	105	63	40	92	17	550	1320	2.0
GE70FW 2RS	70	120	70	45	105	16	705	1700	2.9
GE80FW 2RS	80	130	75	50	115	14	860	2070	3.5
GE90FW 2RS	90	150	85	55	130	15	1070	2570	5.4
GE100FW 2RS	100	160	85	55	140	14	1150	2770	6.0
GE110FW 2RS	110	180	100	70	160	12	1680	4030	9.7
GE120FW 2RS	120	210	115	70	180	16	1890	4530	14.0
GE140FW 2RS	140	230	130	80	200	16	2400	5760	19.0
GE160FW 2RS	160	260	135	80	225	16	2700	6480	24.7
GE180FW 2RS	180	290	155	100	250	14	3750	9000	35.9
GE200FW 2RS	200	320	165	100	275	15	4120	9900	45.3
GE220FW 2RS	220	340	175	100	300	16	4500	10800	51.1
GE240FW 2RS	240	370	190	110	325	15	5360	12870	65.1
GE260FW 2RS	260	400	205	120	350	15	6300	15120	82.4
GE280FW 2RS	280	430	210	120	375	15	6750	16200	97.2
