Пуш-ап Тип Промышленный настенный система вентиляции вентилятор отрицательного
- Категория: Центробежные вентиляторы >>>
- Поставщик: Liaocheng,Motong,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 235.79 $* | 240.98 $* |
| Jul-16-2025 | 191.59 $* | 195.89 $* |
| Jun-16-2025 | 231.46 $* | 236.35 $* |
| May-16-2025 | 229.16 $* | 234.37 $* |
| Apr-16-2025 | 183.13 $* | 187.75 $* |
| Mar-16-2025 | 226.92 $* | 231.67 $* |
| Feb-16-2025 | 224.29 $* | 228.28 $* |
| Jan-16-2025 | 222.63 $* | 226.83 $* |
Характеристики
push pull type industrial wall mounted ventilation system negative pressure fan
![XEMP]QKADEK%3XPB2C7A1TR.png](http://sc01.alicdn.com/kf/HTB1fyqqk25TBuNjSspc762nGFXad/223455763/HTB1fyqqk25TBuNjSspc762nGFXad.png)
Product Description
Exhaust fan is also called negtive pressure exhaust fan. It's an axial fan.Mainly used for ventilation and temperature cooling . It is a more economical ventilation and cooling products. It has a simple structure, easy to maintenance, large air volume, easy to install, etc.
It's widely used in factory, greenhouse, poultry farm, livestock farm, etc.
SPECIFICATIONS FOR EXHAUST FAN
| Ordinary /Heavy hammer type/Push type Negative pressure fan | ||||||
| Model | Dimension (mm) | Aif flow (m3/h) | Motor(380v)/KW | Total pressure (Pa) | Noise decibels (db) | Voltage (V) |
| 400 | 400*400*320 | 4500 | 0.25 | 45 | ≤80 | 380/220 |
| 480 | 480*480*320 | 6000 | 0.25 | 50 | ≤75 | 380/220 |
| 600 | 600*600*370 | 18000 | 0.37 | 55 | ≤70 | 380/220 |
| 710 | 800*800*370 | 21000 | 0.37 | 55 | ≤70 | 380/220 |
| 800 | 900*900*370 | 28000 | 0.55 | 60 | ≤60 | 380/220 |
| 900 | 1000*1000*370 | 29000 | 0.55 | 65 | ≤65 | 380/220 |
| 1000 | 1100*1100*370 | 30000 | 0.75 | 70 | ≤70 | 380/220 |
| 1100 | 1220*1220*370 | 36000 | 0.75 | 70 | ≤70 | 380/220 |
| 1250 | 1380*1380*370 | 42000 | 1.1 | 70 | ≤70 | 380/220 |
| 1400 | 1530*1530*370 | 52000 | 1.5 | 70 | ≤70 | 380/220 |
Main Features
1) Simple structure, easy to maintenance and install.
2) Drop thAutomatic shutter open and close.
3) Low noise and large airflow
4) Long service life
5) Can be widely used for the place need ventilation

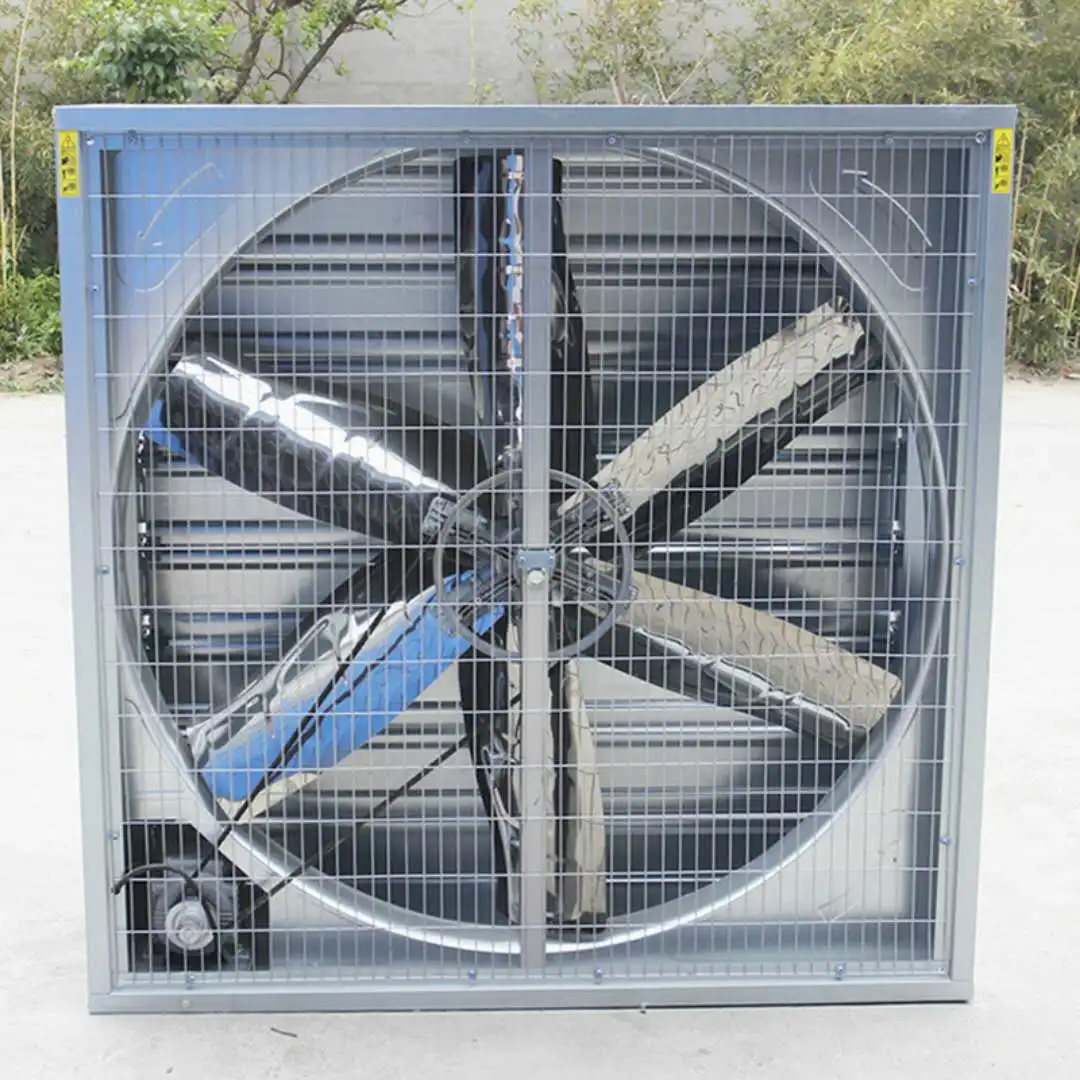

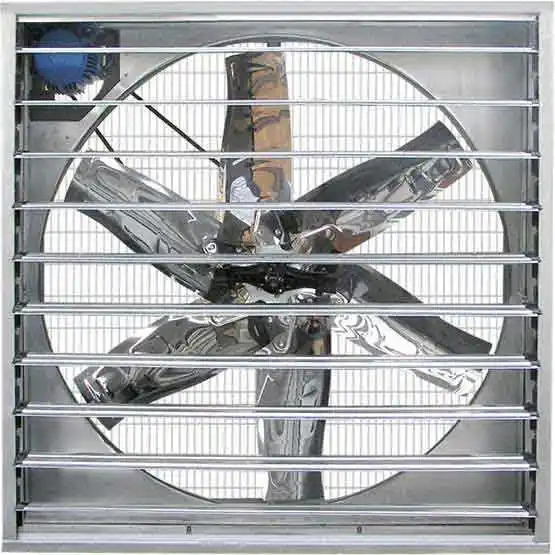

Products show
}{Z`[MGJDE9]L8XB7V{%P.png" width="669" height="656" style="vertical-align: middle;" ori-width="482" ori-height="559"/>

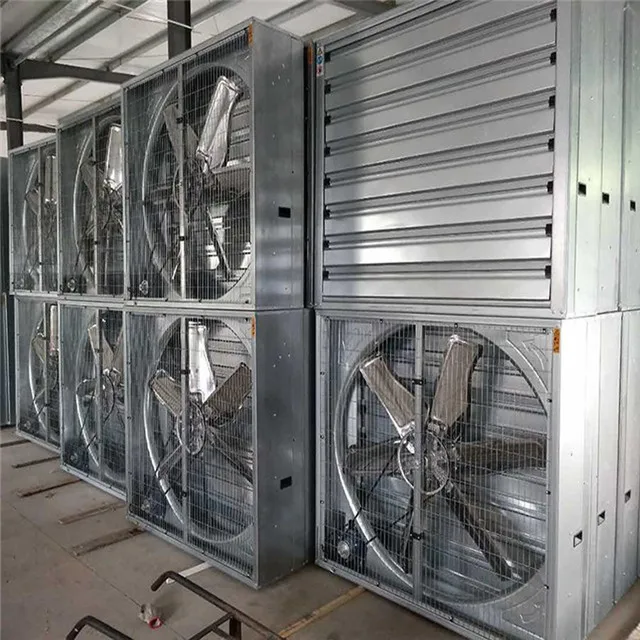

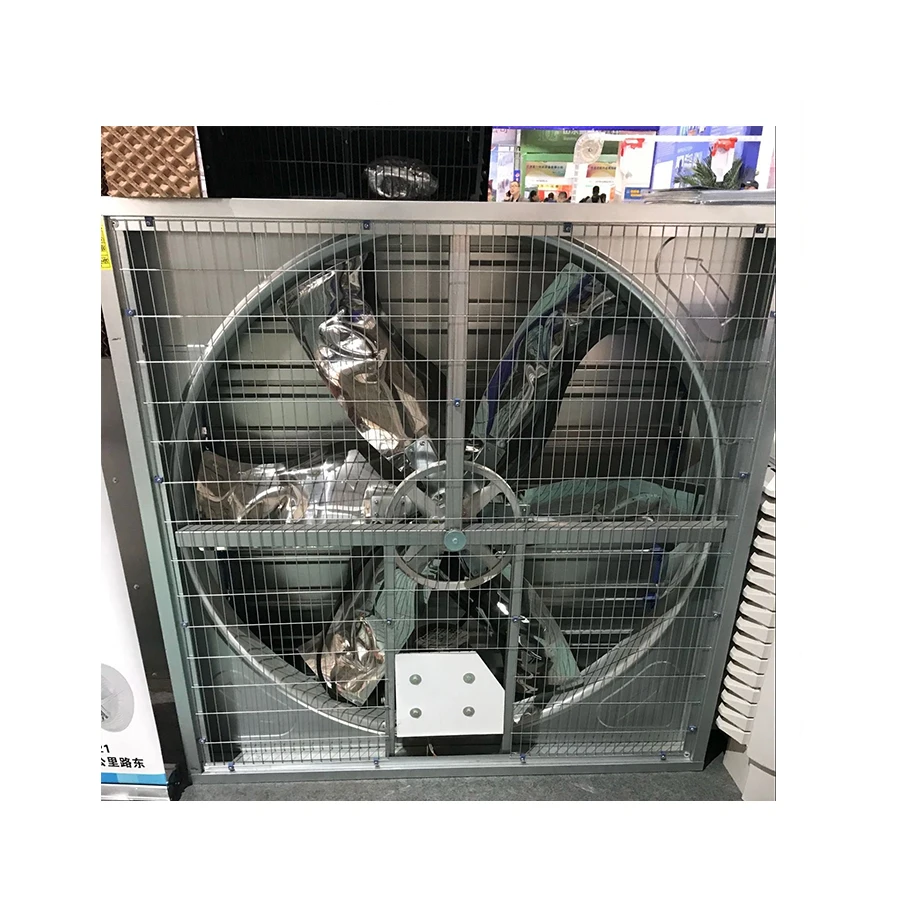

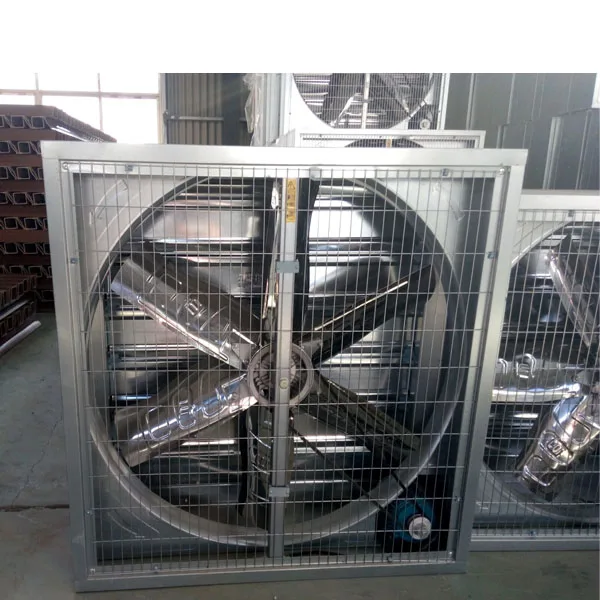

Details show
CE certificate
![$ZK4GQGAZWDJ1}EQ]3Q$MA.png](http://sc02.alicdn.com/kf/HTB1dB0_g29TBuNjy0Fc762eiFXad/223455763/HTB1dB0_g29TBuNjy0Fc762eiFXad.png)

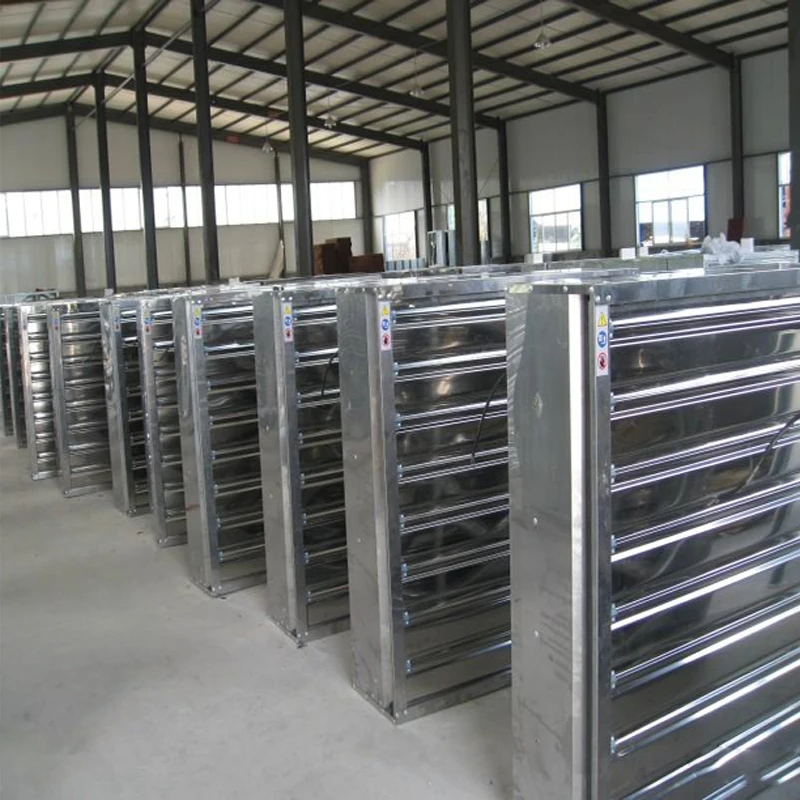

Factory corner
Our service
Pre-Sales Service
* Inquiry and consulting support.
* Sample order available.
* View our Factory.
After-Sales Service
* Training how to instal the fan, training how to mount the fan.
* Engineers available to service machinery overseas.
Packaging & Shipping
