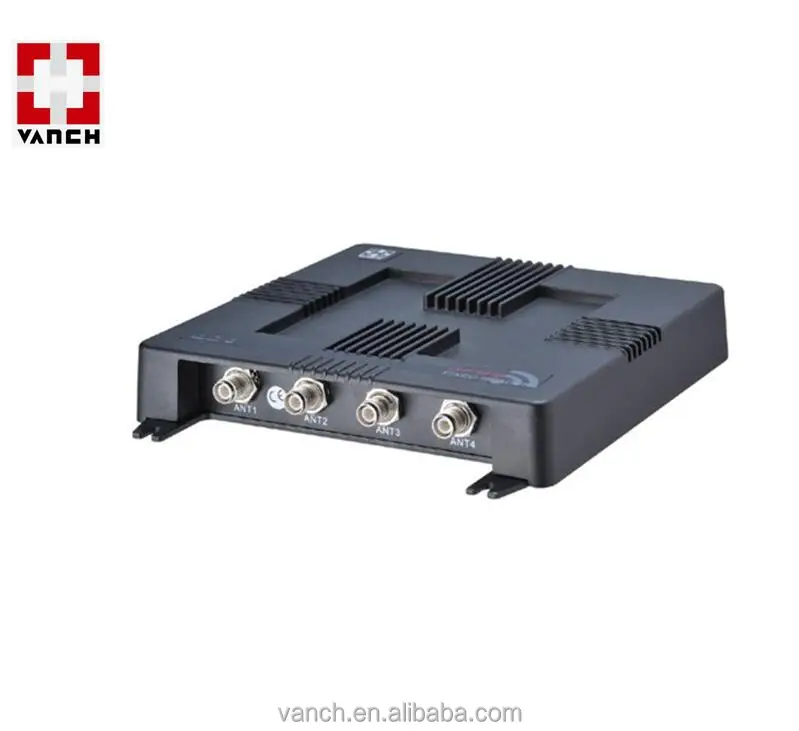

Warehouse inventory management uhf rfid reader





Overview:

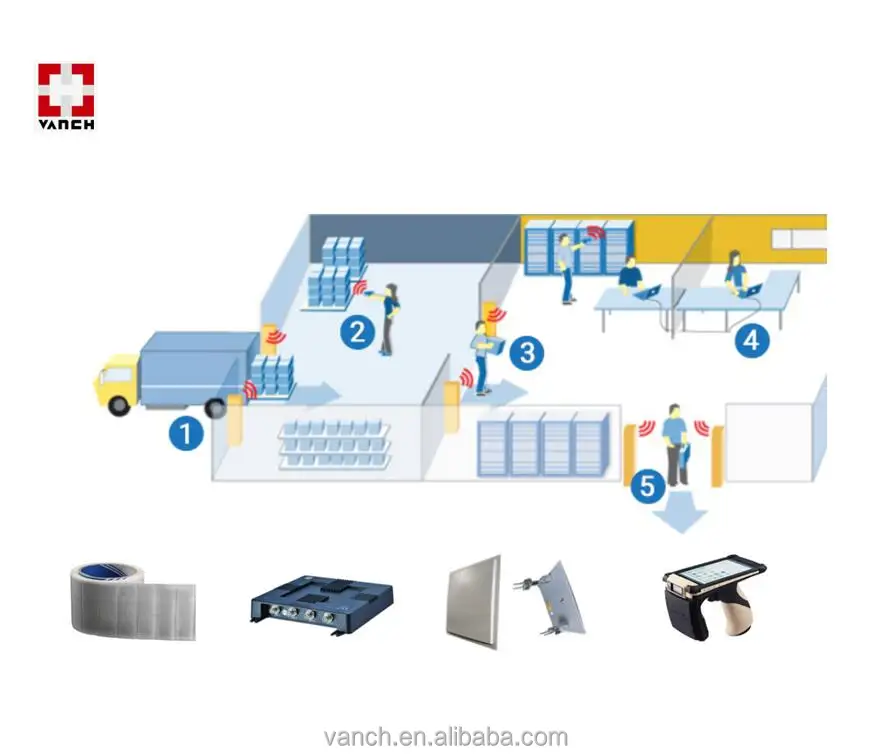

This high perfornance fixed reader adopt Impinj RFID reader chip, which is R2000 serials. support high density reading, able to read 100 pcs tags above at a time, time used only is 5 seconds.it is extensively applied to retail, library and warehouse management.



Features:



1, more than 400 pcs tags reading simultaneously  at a time.

2, more than 6 meter reading distance

3, comply with EPC G2 protocol



Parameters:



Model	VF-747
Dimension	220(L)*230(W)*53(H)mm
Weight	1.5KG
Operating Temp	-10°C to 55°C
Storage Temp	-20°C to 80°C
Humidity	10% to 95%
Non-condensing Enclosure	IP-40
Reader chip	Indy R2000
Frequency Range	902-928MHz,865-868MHz or Customized
Operation Mode	FHSS or fixed frequency (set by software)
Work Mode	Command, Auto
RF power control	20-30dBm
Protocol	EPC Class 1 Gen 2
Communication Interface	RS232/RS485/ TCP/IP(RJ45)
Power supply	External 110-220V AC,DC +9V 3A Power adapter
Antenna Connection	4 Antenna SMA(female) connector
Reading Clue	Buzzer and LED
Reade Range	Depend on Antenna Gain and Length of RF Cable Connect 9dBi Antenna and 3m standard cable, the reading distance is about 6-8m















Other products available: rfid reader, rfid tag, uhf rfid, rfid software, rfid module, hf rfid, rfid handheld reader, rfid system, rfid solution, rfid smart card, SDK, rfid mobile reader, 902-928MHz rfid reader, 865-868MHz rfid reader, rfid forklift reader, OEM rfid antenna, rfid transponder, rfid access control, rfid tracking, rfid laundry tag, passive rfid reader, rfid reader rs232 and so on.
