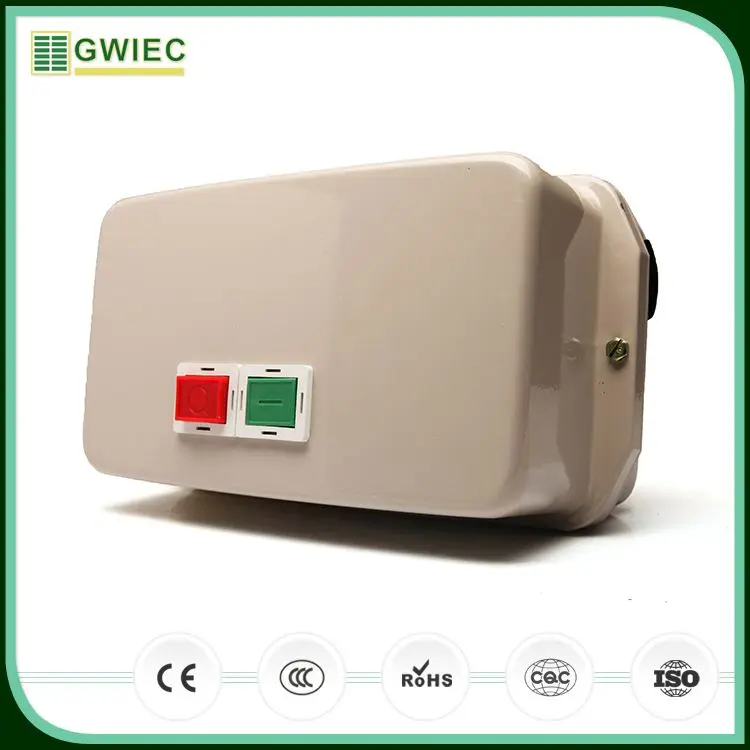

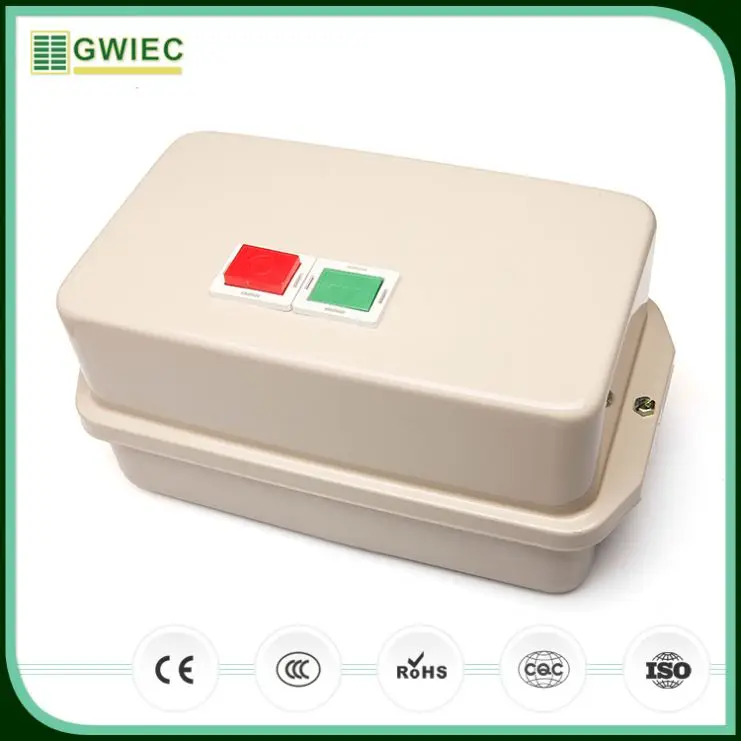

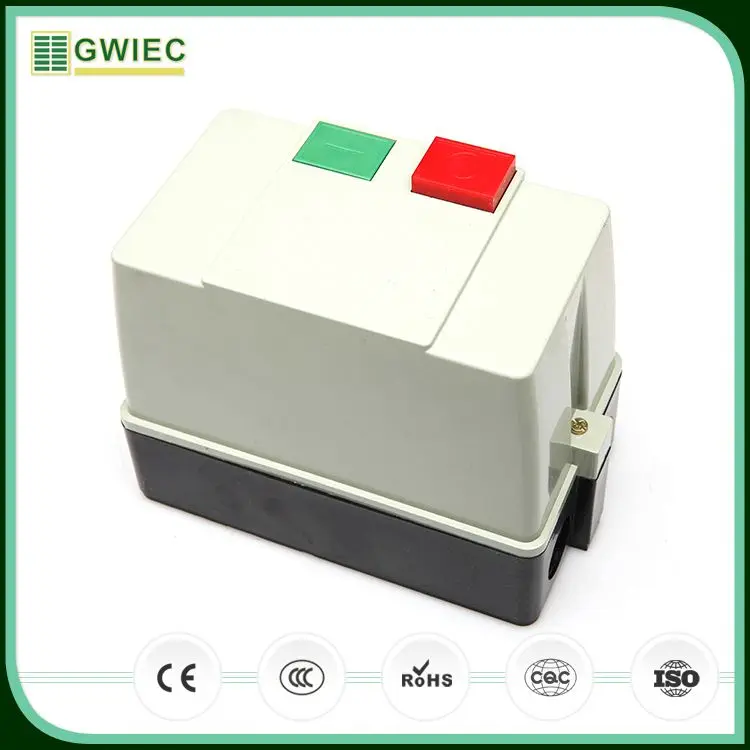

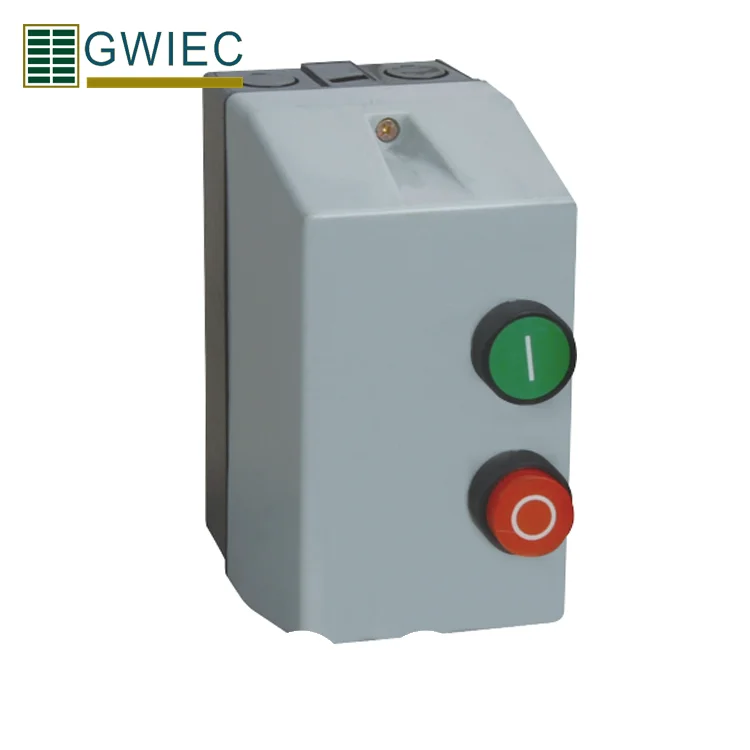

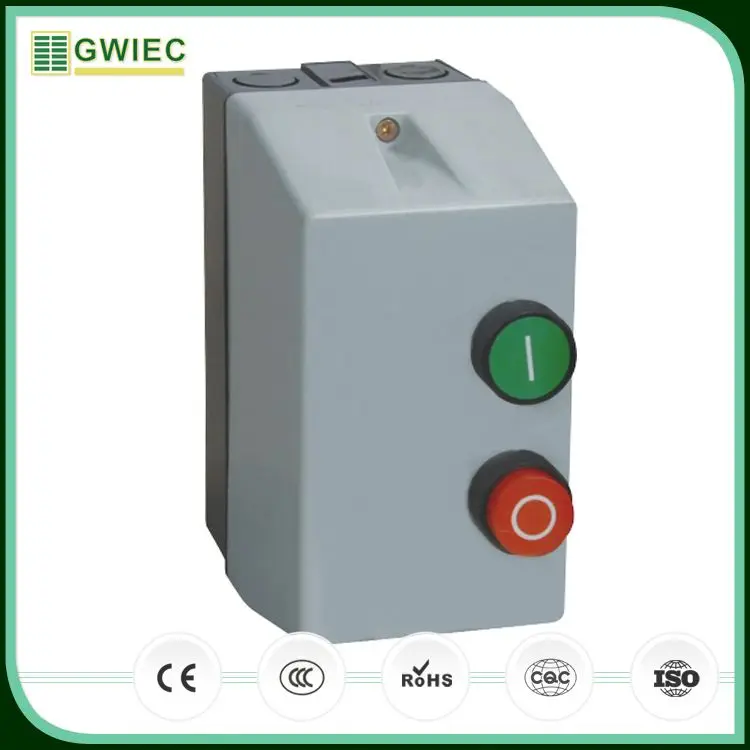

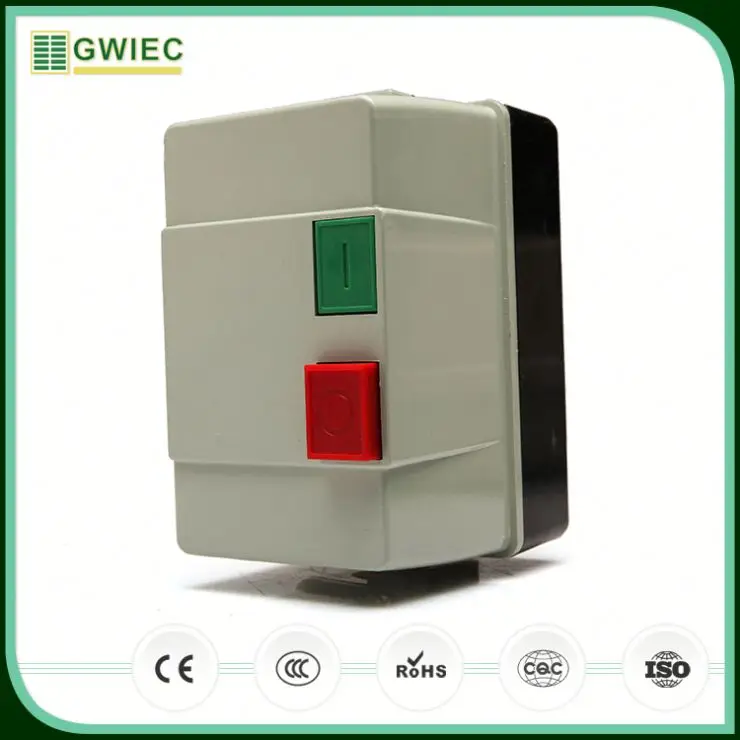

GWIEC High Quality Products Le1-D18 Dol Magnetic Motor Starter 7.5KW 380V 18A
Product Description
Application:
LE-D Series magnetic starter is mainly applied to circuit of AC 50 or Hz.voltage 550V for far distance making and breaking circuit and frequently starting and controlling motor
It has the features small volume,light weight,low power consumption,high efficiency safe and reliable performance
It complies to IEC947-4-1
Specification:
Type
Rated Current(A)
Maximum Power AC3 duty (KW)
Type of enclosure
SuitableThermal Relay(A)
220V 230V
380V 400V
415V
440V
500V
660V 690V
LE-D09
9
2.2
4
4
4
5.5
5.5
IP42 IP65
LR2 D1312 LR2 D1314
LE-D12
12
3
5.5
5.5
5.5
7.5
7.5
LR2 D1316
LE-D18
18
4
7.5
9
9
10
10
LR2 D1321
LE-D25
25
5.5
11
11
11
15
15
LR2 D1322 LR2 D2353
LE-D32
32
7.5
15
15
15
18.5
18.5
IP55
LR2 D2355
LE-D40
40
11
18.5
22
22
22
30
LR2 D3353 LR2 D3355
LE-D50
50
15
22
25
30
30
33
LR2 D3357 LR2 D3359
LE-D65
65
18.5
30
37
37
37
37
LR2 D3361
LE-D80
80
22
37
45
45
55
45
LR2 D3363 LR2 D3365
LE-D95
95
25
45
45
45
55
45
LR2 D3365
outline and mounting dimension:
