 Brief introduction

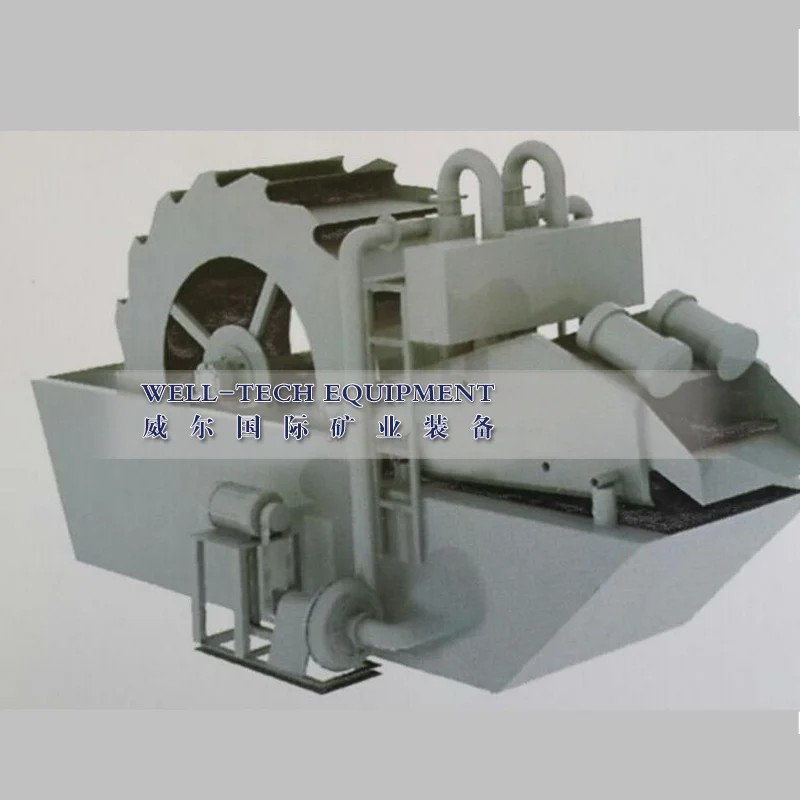

GD sand washing & recycling machine is based on sand washer and sand recycling system main tech, we make it a compact multiple function sand washer. It is widely used for crushed sand, river sand, lake sand or sea sand washing, screening, recycling and dewatering.



Working principle

*Washing: The bucket is driven by the motor through the reducer and rotates in circle. There are many sand storage web grooves and bucket screen for sand storage and primary dewatering. When the bucket moves, sand can be put out by sand storage web groove after being cleaned in the cleaning tank and primary dewatered on the bucket screen.

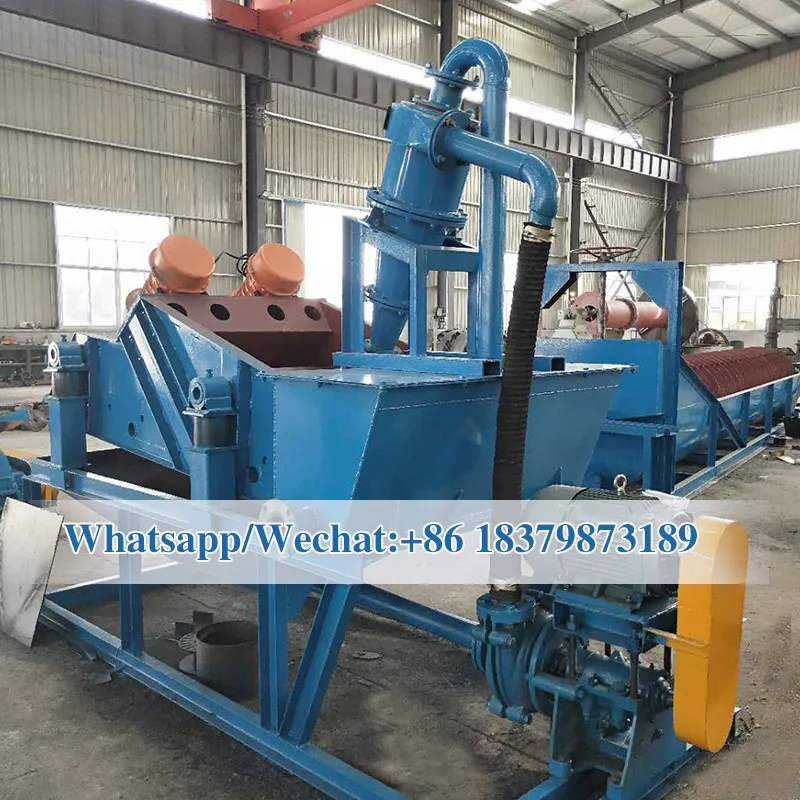

*Recycling: Flowing slurry water is extracted by slurry pump, fine sand is collected by the centrifugal force of the cyclone, then fed to the polyurethane screen from the apex spray. The 0.16-3mm fine sand and water are efficiently separated through the vibration screen.

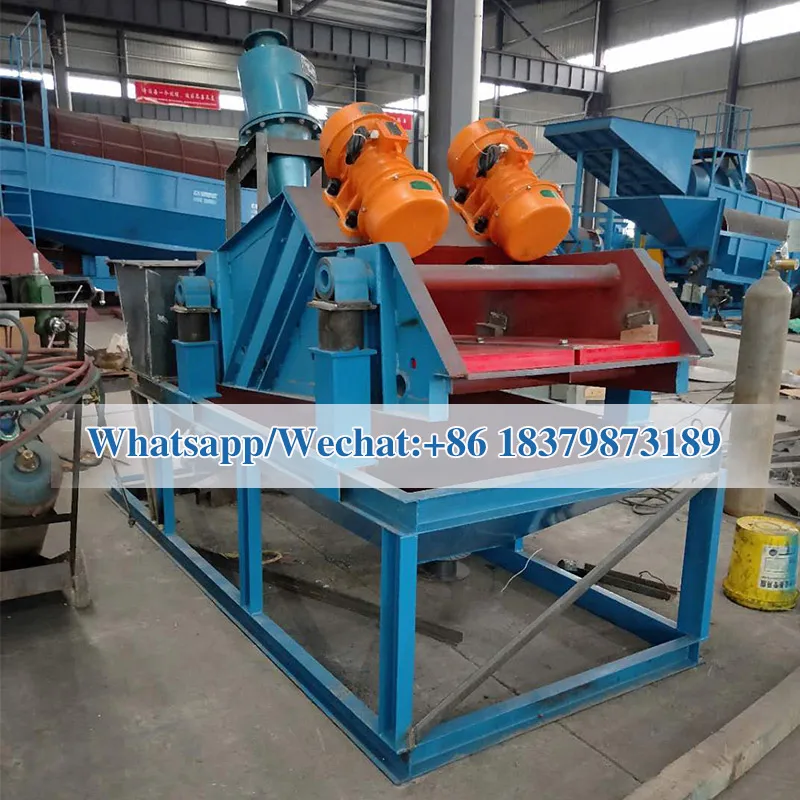

*Dewatering: coarse sand (3-10mm) and fine sand (0.16-3mm) are feed onto polyurethane vibrating screen for dewatering.



Features

1.Higher sand quality, lower moisture content.

2.Recycled fine size 0.16-3mm sand, lower mud content.

3.Compact structure, multiple functions, easy install, convenient maintenance, small occupation area.

4.High capacity, after this machine 95% sand can be washed.

5.Solve sedimentation tank cleaning problem, higher economical profit.



Main technical parameters

Model	XSHJX-2630	XSHJX-2635	XSHJX-3050	XSHJX-3060	XSHJX-3070
Motor(kw)	7.5kw 1set 15kw 1set 1.5kw*2	7.5kw 1set 18.5kw 1set 1.5kw*2	15kw 1set 18.5kw 1set 2.2kw*2	15kw 1set 15kw 2set 2.2kw*2	18.5kw/set 18.5kw 2set 2.2kw*2
Feeding size (mm)	≤10	≤10	≤10	≤10	≤10
Capacity (t/h)	20-50	20-50	50-120	50-120	120-180
Fine sand capacity(t/h)	1-3	3-8	3-8	10-18	12-20
Water capacity (t/h)	30-100	80-110	80-120	130-200	180-300
Dimension (mm)	5720*2125*2670	5720*2125*2670	6300*2686*2750	6300*2686* 2900	6300*2686* 3000
