Характеристики

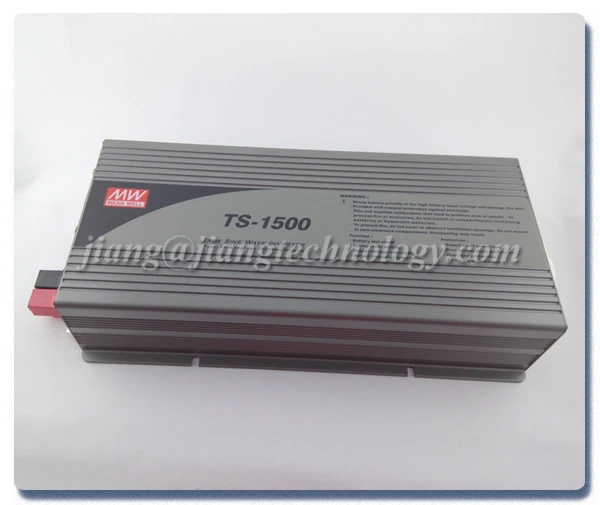

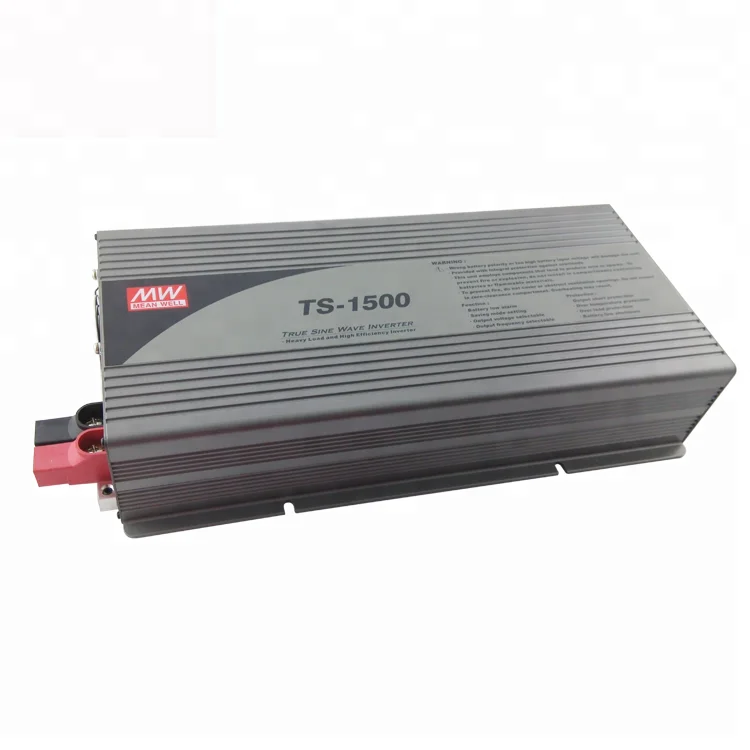

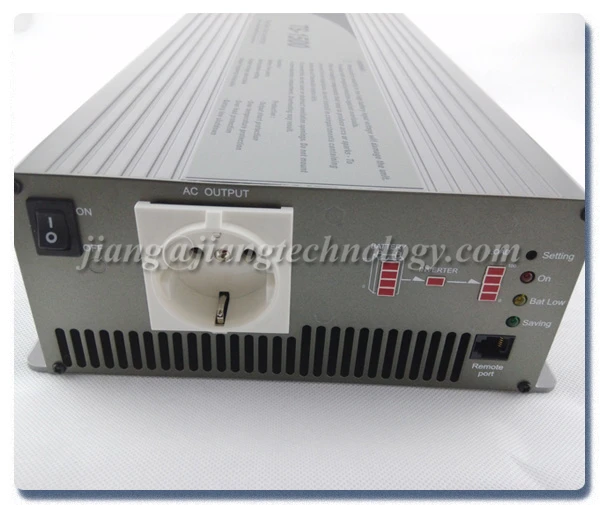

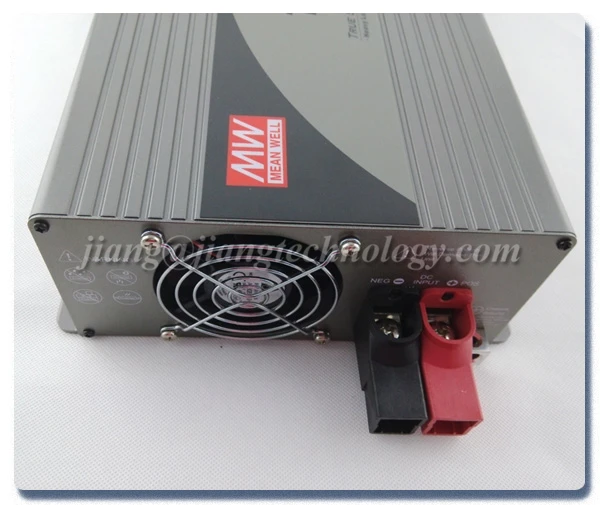

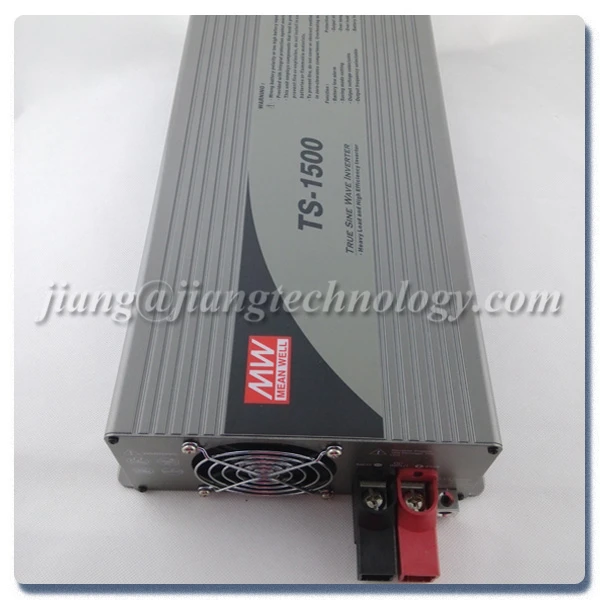

Meanwell 1500W 48V TrueSineWave Power Inverter TS-1500
Features:
- Mean well 1500W Inverter
- True sine wave output (THD<3%)
- High surge power up to 3000W
- High efficiency up to 91%
- Power ON-OFF switch
- Standby saving mode can be selectable
- Front panel indicator for operation status
- Thermostatically controlled cooling fan
- Protections: Bat. low alarm / Bat. low shutdown / Over voltage / Over temperature / Output short / Input polarity reverse / Overload
- Applications: Home appliance, power tools, office and portable equipment, vehicle and yacht...etc
- Optional monitoring software
- 3 years warranty
Model Series:
TS-1500-112 / TS-1500-124 / TS-1500-148 / TS-1500-212 / TS-1500-224 / TS-1500-248
AC Output Receptacles (optional):
| Model | TS-1500-112 | TS-1500-124 | TS-1500-148 | |
| OUTPUT | RATED POWER | 1500W | ||
| MAXIMUM OUTPUT POWER | 1725W for 180 sec. / 1875W for 10 sec. / surge power 3000W for 30 cycles | |||
| AC VOLTAGE | 100 / 110 / 115 / 120VAC selectable by setting button | |||
| FREQUENCY | 60±0.1Hz 50/60Hz selectable by setting button S.W | |||
| WAVEFORM | True sine wave (THD<3%) | |||
| AC REGULATION (Typ.) | ±3.0% | |||
| SAVING MODE (Typ.) | Default disabled. Load ≤ 5Wwill be changed to standby mode | |||
| FRONT PANEL INDICATOR | Battery voltage level, output load level, saving mode, fault and operation status | |||
| INPUT | BAT. VOLTAGE | 12V | 24V | 48V |
| VOLTAGE RANGE (Typ.) | 10.5 ~ 15VDC | 21 ~ 30VDC | 42 ~ 60VDC | |
| DC CURRENT (Typ.) | 150A | 75A | 37.5A | |
| NO LOAD CURRENT DRAW (Typ.) | ≤18W @ standby saving mode | |||
| OFF MODE CURRENT DRAW | ≤1mA | |||
| EFFICIENCY (Typ.) | 88% | 90% | 91% | |
| BATTERY TYPES | Open & sealed Lead Acid | |||
| BATTERY INPUT PROTECTION | FUSE | 40A*5 | 30A*3 | 30A*2 |
| BAT. LOW ALARM | 11.3±4% | 22.5±4% | 45±4% | |
| BAT. LOW SHUTDOWN | 10.5±4% | 21±4% | 42±4% | |
| BAT. POLARITY | By internal fuse open | |||
| OUTPUT PROTECTION | OVER TEMPERATURE | Protection type : Shut down o/p voltage, re-power on to recover; by internal RTH3 detect on heatsink of power transistor | ||
| OUTPUT SHORT | Protection type : Shut down o/p voltage, re-power on to recover | |||
| OVER LOAD (Typ.) | 105 ~ 115% load for 180 sec., 115% ~ 125% load for 10 sec. | |||
| Protection type : Shut down o/p voltage, re-power on to recover | ||||
| GFCI PROCTECTION | None | |||
| ENVIRONMENT | WORKING TEMP. | 0 ~ +40°C @ 100% load ; +60°C @ 50% load | ||
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | |||
| STORAGE TEMP. HUMIDITY | -30 ~ +70°C / -22 ~ +158 °F 10 ~ 95% RH | |||
| VIBRATION | 10 ~ 500Hz, 3G 10min./1cycle, 60min. each along X, Y, Z axes | |||
| SAFETY & EMC | SAFETY STANDARDS | U458 (only for "GFCI" receptacle-Type F ) | ||
| LVD | EN60950-1 | |||
| WITHSTAND VOLTAGE | Bat. I/P - AC O/P:3.0KVAC AC O/P - FG:1.5KVAC | |||
| ISOLATION RESISTANCE | Bat. I/P-AC O/P, AC O/P-FG:100M Ohms / 500VDC / 25°C / 70%RH | |||
| EMC EMISSION | Compliance to EN55022 class A, 72/ 245/ CEE, 95/ 54/ CE, E-Mark | |||
| EMC IMMUNITY | Compliance to EN61000-4-2,3,8 | |||
| OTHERS | CONTROL WIRING | RJ11 -RS232 (Option) | ||
| DIMENSION | 420*220*88mm (L*W*H) | |||
| PACKING | 6.81Kg; 2pcs/14.6Kg/1.61CUFT | |||
Meanwell 1500W 48V TrueSineWave Power Inverter TS-1500
Packing
Packing:
Shipping:
Factory View
Strict, professional production and test, large stock for fast shipping
Certifications
What Certification do we have?
Application
What our Power Supply can do for you?
Why Choose us?
SUCCESS IS A RESULT OF OUR COMMITMENT TO A QUALITY SERVICE IN PARTNERSHIP WITH OUR CLIENTS
1. What we sell is 100% Genuine Mean Well Power Supply;
2. Small quantity orders acceptable;
3. We will choose the most suitable shipping way for you and inform you the cost advance, decision will be made by you;
4. We have larger stocks and this support us can make a very prompt shipping;
5. To assure you the maximum comfort and satisfaction, we accept pay via T/T, Paypal, Western Union;
6. Price could be negotiated for more and large quantity;
7. Your enquiry will be quickly responsed, we will choose the most suitable products and quote the most competitive price for you.
