Вентиляционная мембрана Youkun водонепроницаемая

Описание и отзывы

Трекер стоимости

Характеристики

Youkun vent membrane e-PTFE waterproof acoustic membrane

performance parameters

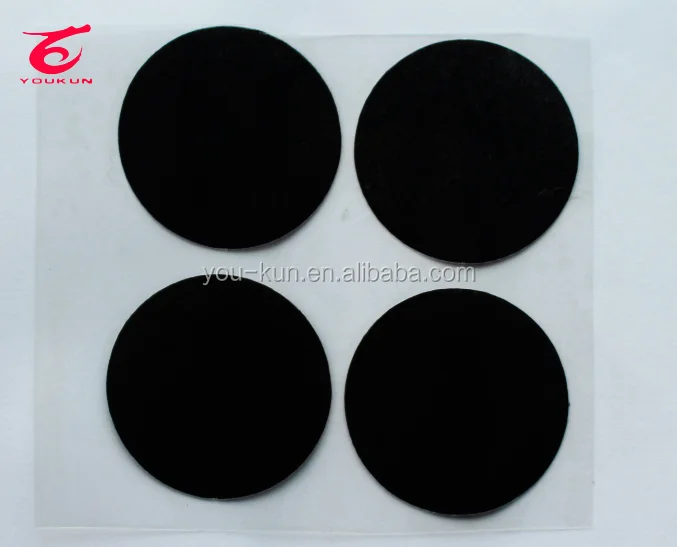

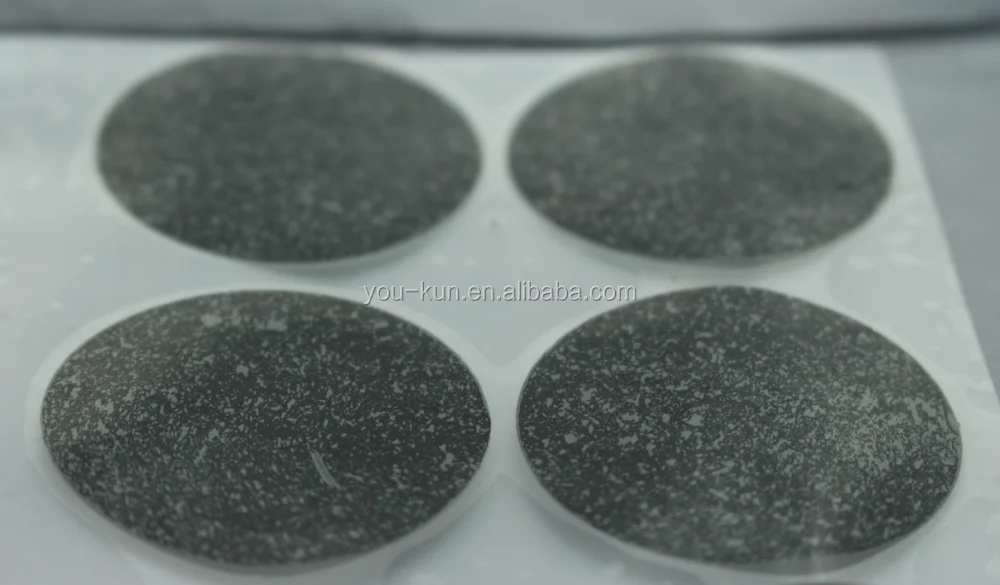

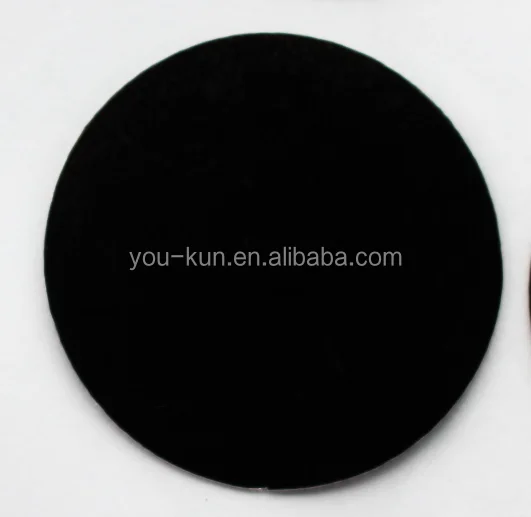

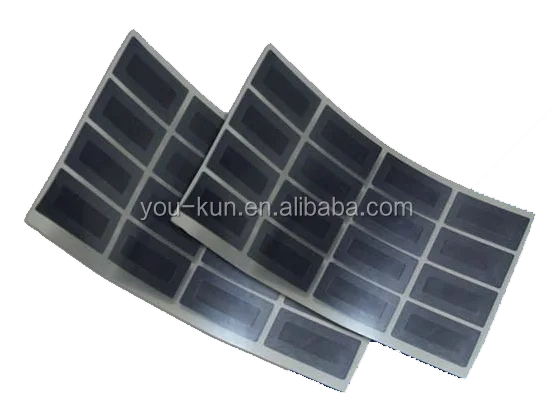

Product pictures



* Caution: for industrial use only, not for food, medicine, cosmetic or medical facility etc.



Specific Application:

Widely used in portable electronics, telecommunication,LED, solar system, medical equipment and  all kinds of outdoor sealed component for protective waterproof  purpose.

Benefits:

1.The high air permeability vent can reduce the pressure of   the casing seal by balancing the pressure. This E-PTFE  membrane is chemically inert and,UV-resistant, salt and spray resistance as well as hydrophobic and oleophobic.

2.It greatly reduces fog and condensation.

3.Protective vent can prolong the service life and ensure the product  operate trouble- free and  maintenance-free in the  extreme environments.



Installation:



Steps:

1) Use tweezers place the adhesive tape on the surface of the counterbore, and then press the patch against the mounting surface edge .

2) Press the rim after the adhesion for about 1.5s ;Don’t make any move on the membrane after adhesion until 24 hours.



Ensure that the enclosure’s mounting surfaces are smooth, clean and free from oils, particles or other contaminants;

Ensure that the enclosure’s mounting surface is dry prior to vent installation



Customization:  YK Tech’s protective vents can be customized to match your products in spec., color, property and  we can  provide you with specific solutions. For more information, please contact us.





Note:The adhesive vent structure is shown in the figure on the left:L×W/mm,the size can be customized
         Y=ePTFE   D=0.01/mm  Gel:3Mgel and 3M9495MP



About YK

Huizhou YK ElectronicTechnology Co., Ltd is a technology-driven company focused on professional protective vent development and manufacture.

With professional protective vent technology, we manufacture great  products which are waterproof, oil-resistant, sound through, decompression ,anti-explosion, radiating and filtration in e-PTFE.



 We have many PV/MV/BAE production lines and test rooms now, including injection molding machine, fuse machine, ultrasonic and so on. By going through on-site simulation pressure, air permeability, VPI and so on. We are trying to develop high quality products continuously, apply to LED, AVS, ECU, Photovoltaic, Communication, Outdoor cabinet, Electrical appliance, Military industry, Chemical packaging, Portable electronic, Battery and Module.



YK concentrates on waterproof vent technology, making the sustainable development of material technology, manufacture technology and  practical technology, we will always regard the technology as core, service as carrier, provide professional solutions to you sincerely.
