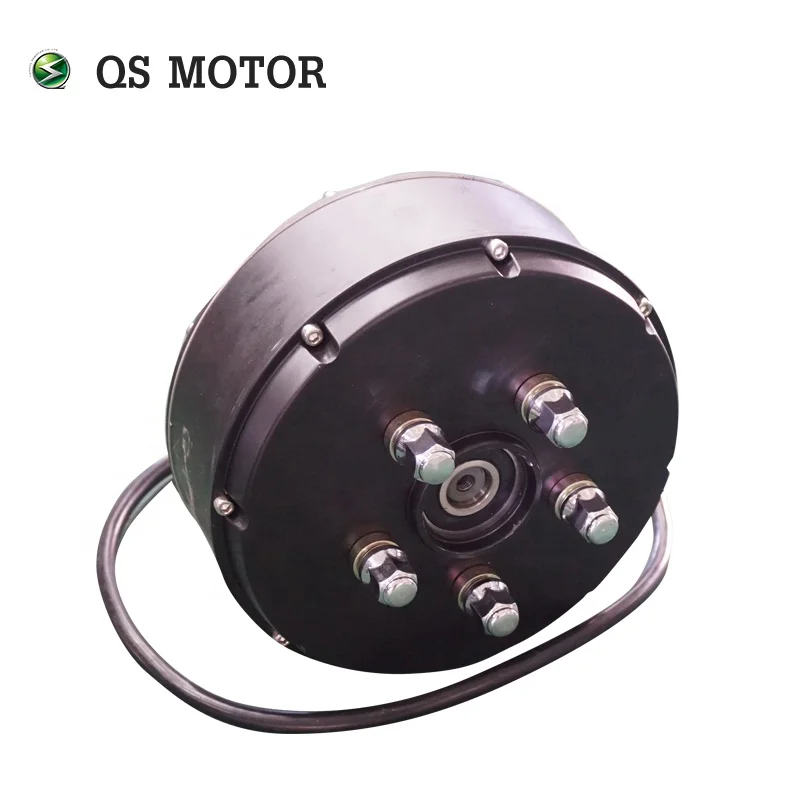

QS Motor 1000W-3000W 205 Electric Car Hub Motor



For 205 E-Car wheel hub motor, it could be used for electric scooter, tricycle, mini/golf car.

205 motor means the diameter of iron ring of rotor is 205mm, for all 205 motor, e.g. 10inch & 12inch 205 e-scooter hub motor,

205 spoke hub motor, 10inch & 12inch 205 single shaft hub motor, 205 E-car Hub motor etc., the configuration & performance is the same as 10inch 205 Hub Motor.

For E-Car hub motor, we can also provide 273 type, you can refer to below hyperlink for the detailed:



1. Key Features



1). Simplify to make a electric-car. Gearbox, transmission shaft, clutch are no need. Which save space.

2). It could be installed in the rear to save more space for battery.

3). Support regenerative braking

4). High efficiency: 85~92%



2. QS Motor 205 1000-3000W E-car hub motor List



P.s.: 1. Above quotation base on 205 electric car wheel hub motor.

      2. For 205 motor, the voltage is 48V~96V.

      3. Above configuration is suggested for mass production,

for EV enthusiast, V2 & V3 motor could be over-voltaged to gain more speed/performance (customizable).



3. Production Description

QS Motor Specification (e.g. 3000W 205 50H V3)

• Motor Type: BLDC Outer Rotor In-Wheel Hub Motor With Hall Sensor


• Brand: QS Motor,QSMOTOR

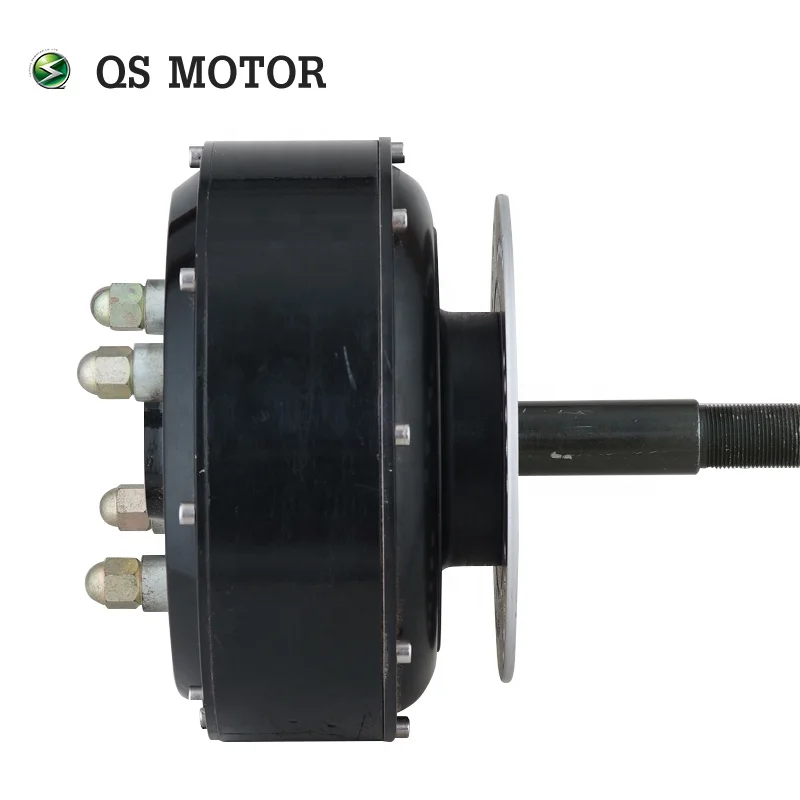

• Motor Design: Single axle without wheel rim


• Suitable Rim size: 12inch, 13inch & above wheel rim, CB ≥60mm,PCD ≤110mm(PCD 4*100mm, CB60mm as default)


• Magnet Height: 50mm, 16 pole pairs


• Stator: Aluminmum Core


• Rated Power: 3000W (could be 12kW peak),


• Speed(customizable): 48V~96V, 30~80RPM


• Max Torque approix 180N.m


• Thermic Probe: KTY83/122 (as default)


• Max Efficiency above 86%

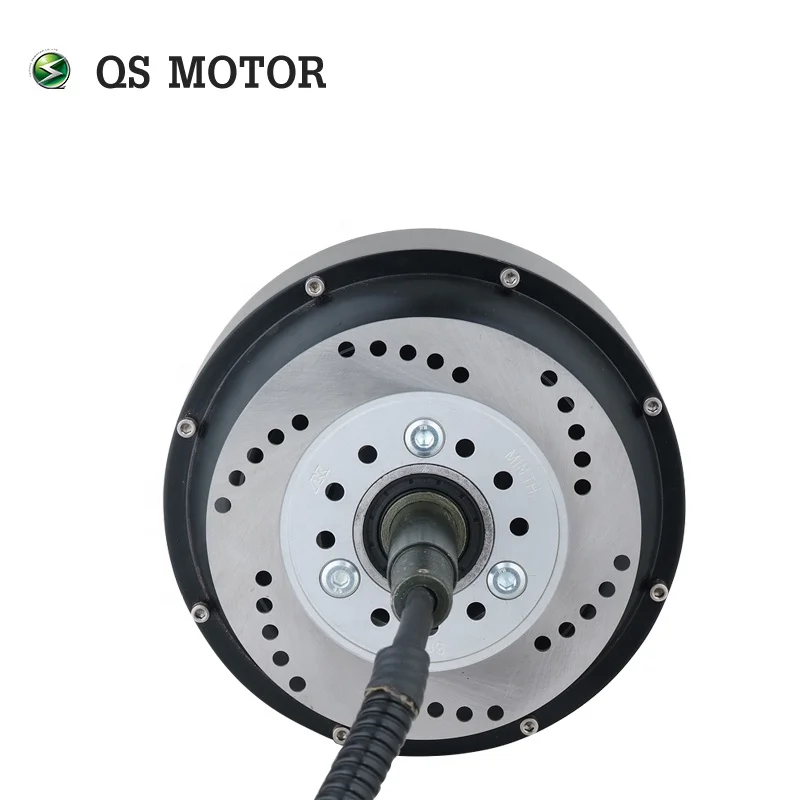

• Brake type: Disc brake, PCD3*80mm-M8, CB 58mm(as default)


• Drop-outs: 200mm

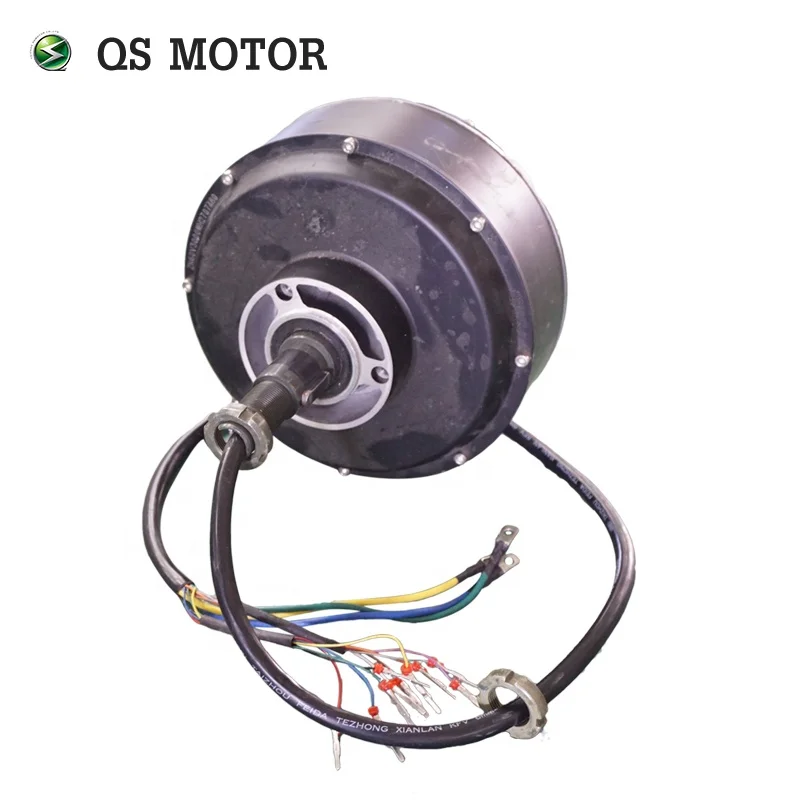

• Dual Hall Set with water proof connectos


• 10mm² Phase Wire (not include insulation)


• Waterproof Grade: IP54


• Color: Black (as default)







Differences between V1, V2 and V3



1). Difference between V1 & V2

Holder: Iron(V1), Aluminum (V2)

Hall: One hall with Normal connector(V1), Two halls with Waterproof connector(V2)

Stator: V2 have a stronger configuration, more cooper, thicker section surface, energy saving in usage.

Magnetic Steel Grade: V2 ≥ V1

Efficiency: 84~87%(V1) 86~88%(V2)

In short, normal type is standard configuration, while export type is high configuration.The price differs because of the cost of raw materials.



2). Difference between V2 & V3

The raw materials are alike, main difference in inner construction.

For V3 (16 Pole Pairs): stronger configuration than V2, wider lamination, more cooper wire /thicker Cross-sectional area section, bear more current in usage.

Higher torque at same current, lower temperature rise, more stable in high current.

Magentic Steel: V3 is wider and thicker.

Efficiency: 86~88%(V2) 88~92%(V3); Thus, V3 have best performance.

PS. for the same V1 steel/iron stator motors, QS Motor performance better on lifetime & stability becasue of good raw material. So the cost is more than normal hub motor in the market.
