CNC double end tenon machine for wooden furniture production

Описание и отзывы

Трекер стоимости

Характеристики

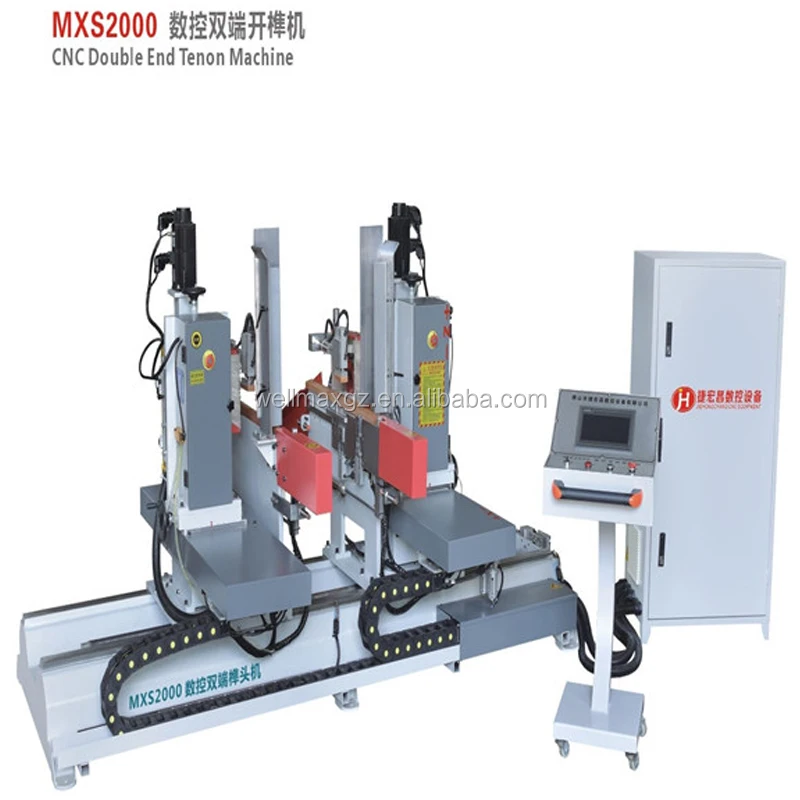

CNC Double End Tenoning Machine

MXS2000





MXS2000 CNC double end tononing machine:

This model CNC tenoning machine mainly used for wooden furniture slot mortising such as beds,chairs,tables,cabinets,blinds ,etc.





MXS2000 CNC double end tononing machine technical parameters:

Model	MXS2000
Cutter speed	8000-12000 rpm
Max working length	2000mm
Min working length	165mm
Max working thickness	80mm
Max working width	180mm
Max mortise length	60mm
Spindle motor power	3.7kW*2
Total power	14.5kW
Dust outlet diameter	100mm*4
Working air pressure	0.6Mpa
Dimensions	3400*1800*1650mm
Net weight	1850KG



MXS2000 CNC tenoning machine main features:

1. Using digital control, with touch-sensitive liquid crystal display, easy to control, fully automatic operation, at the same time processing the two ends of the workpiece, significantly increase production capacity.
2. Suitable for processing of rectangular, round, vertical and oblique.
3. The tool feed speed adopts stepless variable frequency control to achieve stepless speed change.
4. The feeding stroke is equipped with original German ball screw, and the feeding operation is fast and stable

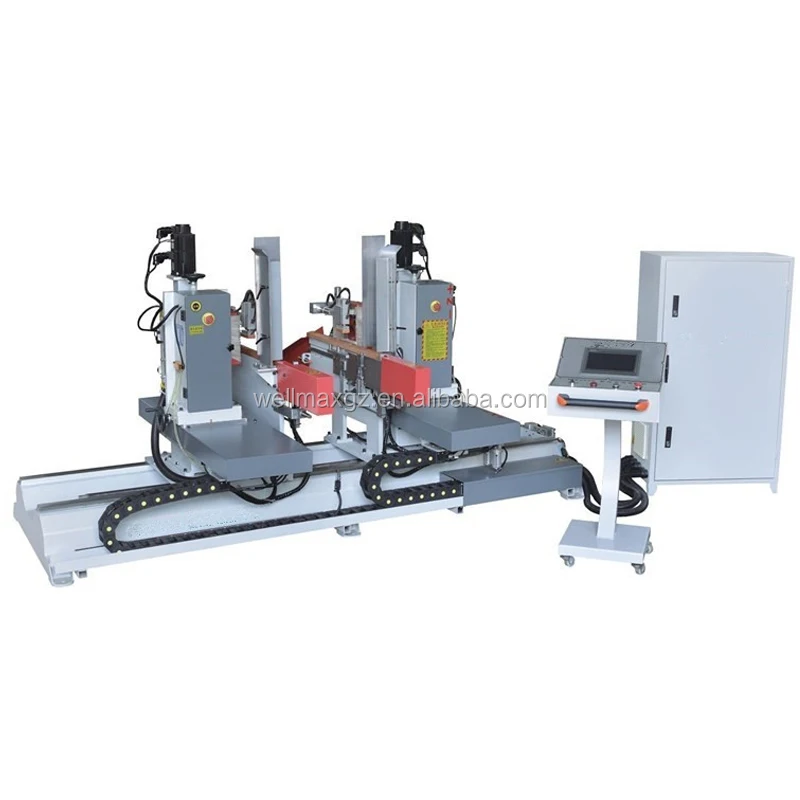

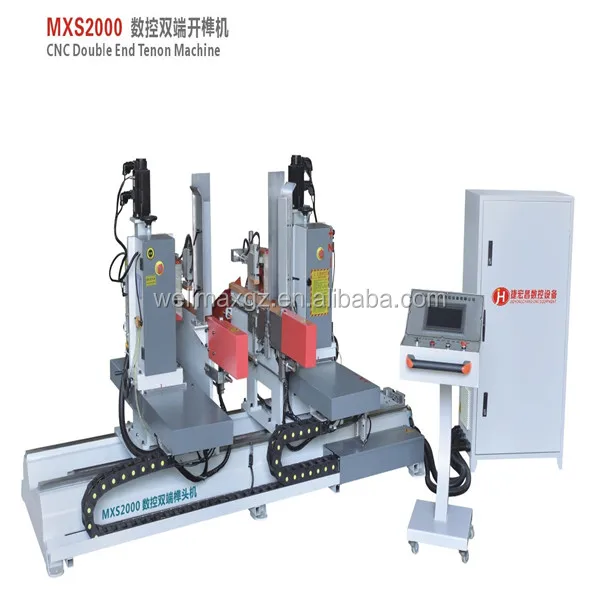

MXS2000 CNC tenoning machine details pictures:



CNC tenoning machine packing and shipping.



Our service for clients.

FAQ

1. Can I visit your company?
Warmly welcome to visit our factory, please contact us to make an appointment before coming.


2. How many days the machine can be delivered?
If machine in stock we can deliver it within 3 days,if no stock available the standard delivery time is 15 days.

3. What is your price term and payment term?
Price term: EXW,FOB,CIF ect.
Payment term: T/T, ect.

4. Whats the shipping cost?
This is decided by your import port and machine quantity,different size,different quantity,different port the shipping cost will be different.

5. Whats your company warranty policy?
The machine have standard one year warranty,during warranty period if machine meet quality issue we will send spare parts to replace or sending engineer to fix it.

6.How to install and operate the machine?
We will provide installation and operating manual book,you can follow the manual book to install and operate,also we can provide video for you to follow with.



Contact us for more details:
