Product Description

JL-308-3C Three Color Slipper Sandal Flip Flop Air Blowing Machine

308-1



Main Features:



1. Raw material:Suitable for all kinds of thermoplastic raw materials, foaming or non-foaming, such as PVC and TPR.

2.Products: specially designated to manufacture 1/2/3 color full plastic shoes.
3.The oil pressure circuit design ready for mold close will shorten the cycle time and upgrade productivity.

4. Pressure switch assures the locking strength by mold lock system for better product.

5.The turn table may run reversibly in case of emergency to eliminate the abnormality and upkeep the safety operation.

6. Furnished with mold air-blowing device, the finished products may be de-molded easily.





Specifications

Machine model

  JL-308-3C

Mould-clamping Unit

Work station



20/24

Clamping force

TON

120

Opening stroke

MM

210

Mould dimension

MM

500*480

Height of injection nozzle

MM

280

Injection Unit

Injector

SET

3

Screw diameter

MM

65/60/55

Screw L/D ratio

L/D

20

Max.injection volume

cm3

650-1000

Injection speed

Cm/s

500

Screw rotation speed

R.P.M

0-200

Electricity Consumption

Heating power of injector

KW

7*3

Hydraulic unit motor

KW

18.5,15,15

Total electric consumption

KW

69.5

Temperature control

Section

4*3

Dimension and Weight

Machine dimension

(L*W*H)MM

7500*5900*3200

Machine weight

KGS

16500

*Note:Above data only for reference.

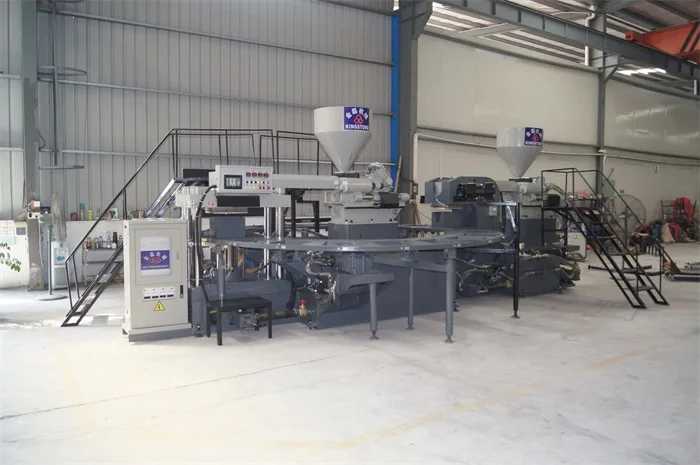

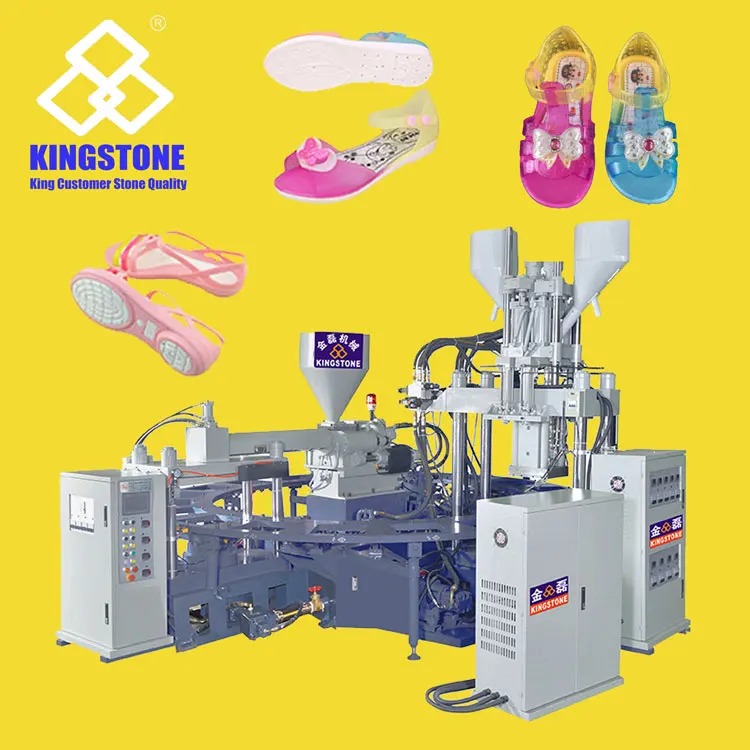

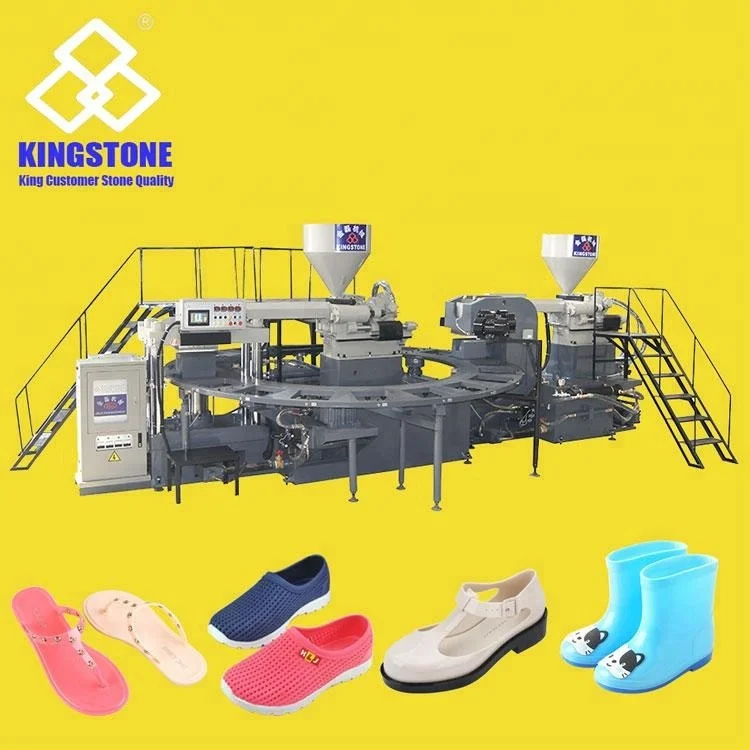

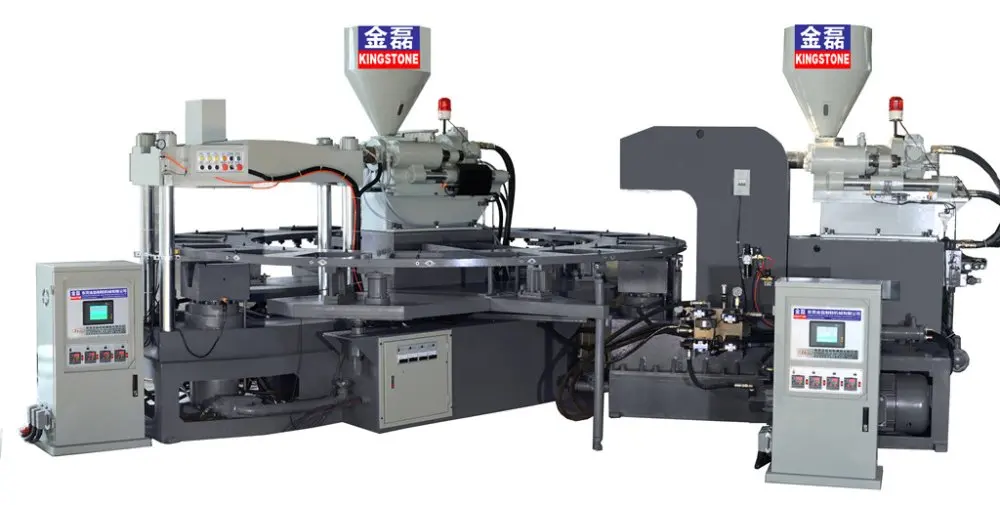

Products Show

Plastic Shoe Making Machine
