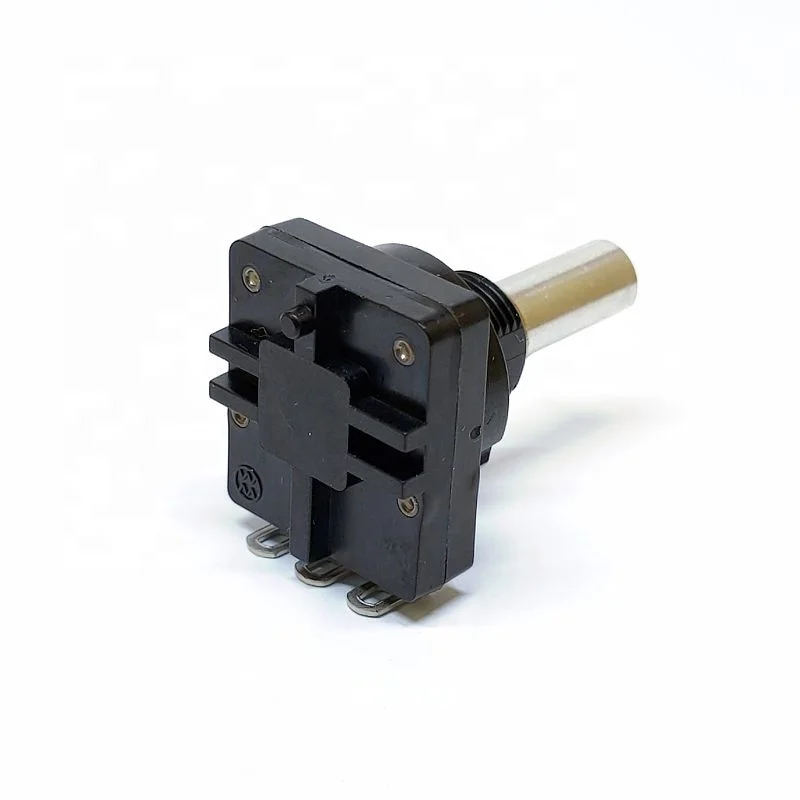

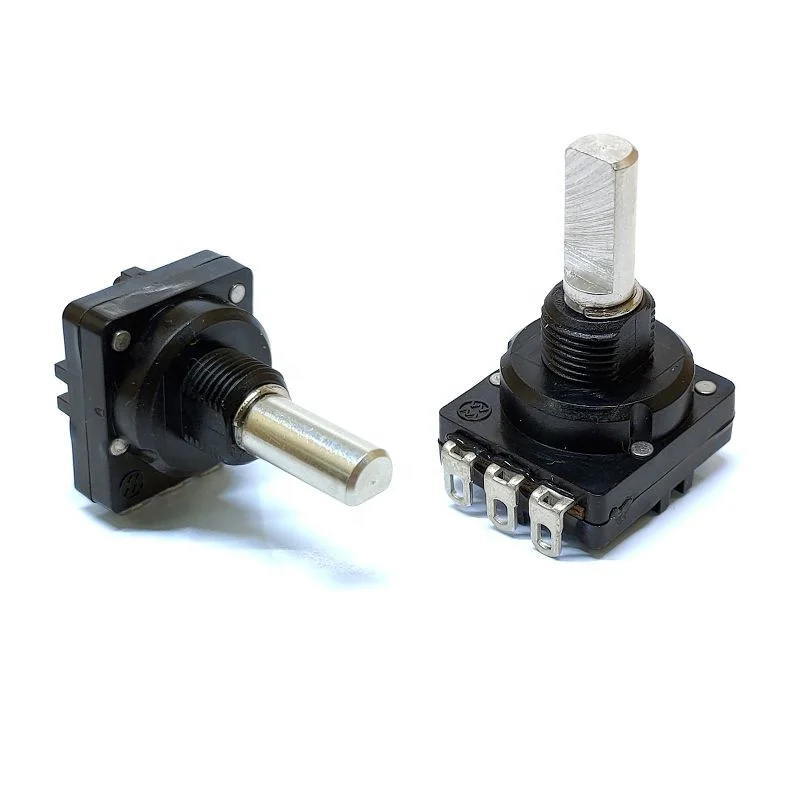

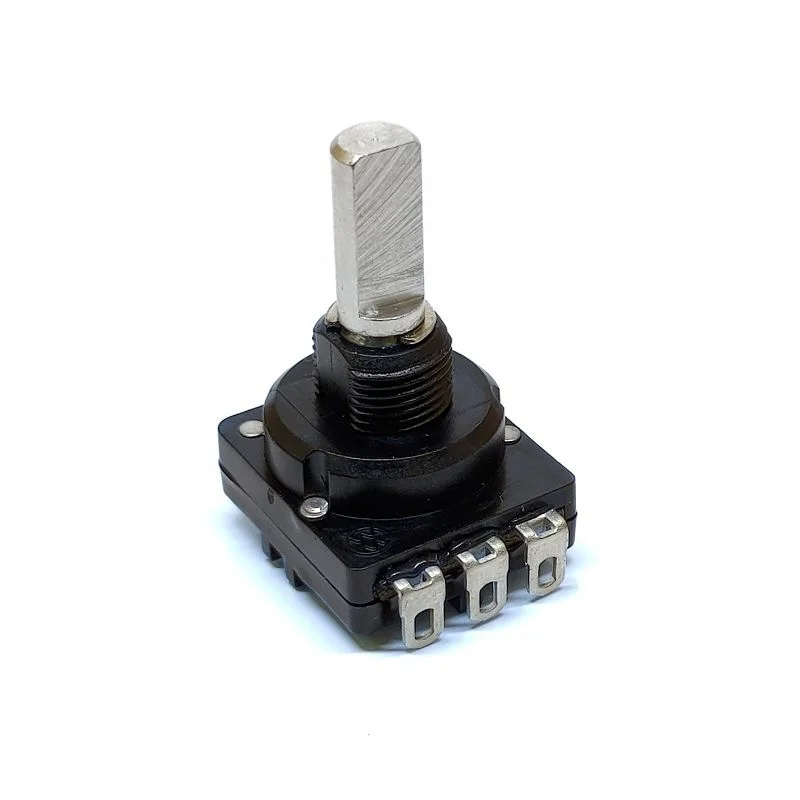

Популярный квадратный вращающийся потенциометр RP16K4RW 16 мм B100K водонепроницаемый тип уникальный дизайн высокий крутящий момент клик с тактовым
- Категория: Потенциометры >>>
- Поставщик: WORLD,WALK,CO.,LTD.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 5.92 $* | 5.83 $* |
| Aug-16-2025 | 5.13 $* | 5.13 $* |
| Jul-16-2025 | 4.93 $* | 4.25 $* |
| Jun-16-2025 | 5.76 $* | 5.31 $* |
| May-16-2025 | 4.75 $* | 4.8 $* |
| Apr-16-2025 | 5.14 $* | 5.75 $* |
| Mar-16-2025 | 5.33 $* | 5.91 $* |
| Feb-16-2025 | 4.79 $* | 4.71 $* |
| Jan-16-2025 | 4.95 $* | 4.11 $* |
Характеристики

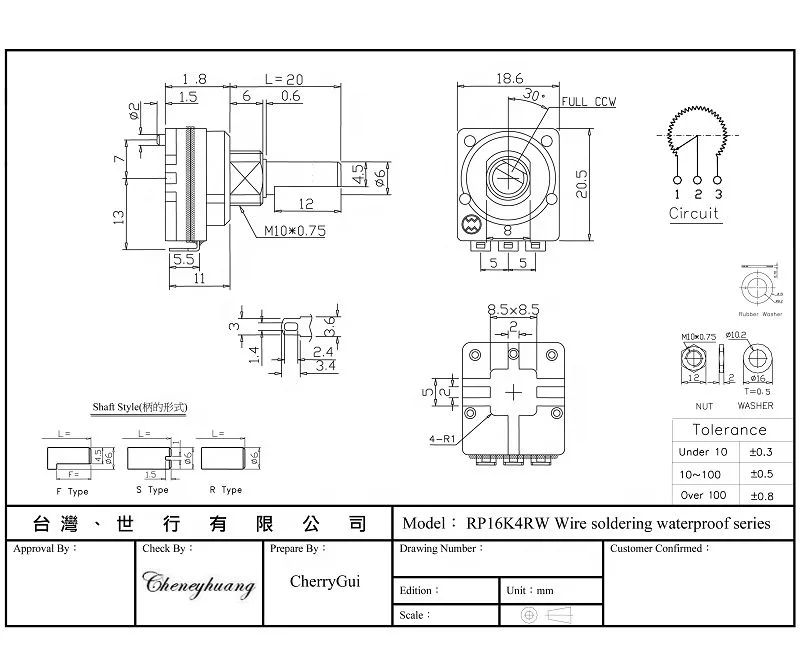

Rotary Potentiometer
RP16K4P-Waterproof
Application
1. Electronic Musical Instruments and Professional Mixer Consoles.
2. Game consoles, LCD Monitors, and Temperature Controllers.
3. Machinery and electrical equipment regulators.
Mechanical Data
| Total Rotational Angle | 300° ± 10° | ||||||
| Rotational Torque | 200~500 gf.cm | ||||||
| Rotational Stopper Strength | 5 kgf.cm Min | ||||||
| Push-pull Strength | 10 kg | ||||||
| Rotational Life | 15,000 Cycles | ||||||
Electrical Data
| Total Resistance | 500~1MΩ | ||||||
| Total Resistance Tolerance | ±10%, ±20% | ||||||
| Residual Resistance | < 10Ω | ||||||
| Resistance Taper (JIS) | B (Linear) ; A (Log) ; C (An-ti Log) | ||||||
| Power Rating | 0.2W / 1W-ceramic (B taper) | ||||||
| Max Operating Voltage | AC200V | ||||||
| Slide Noise | Under 47mV | ||||||
| Insulation Resistance | 100MΩ Min. at DC500V | ||||||
| Breakdown Voltage | 1 Minute at AC500V | ||||||
*Special characteristics on customer demand are available
Advantages
1. Closed type Potentiometer for dusty, water, and grease proofs.
2. Plastic / Metal shaft is available.
3. The molded terminals are more heat-resistant. Therefore is less likely to damage it during the soldering process.
