Commercial aspen wood shavings making machine/poplar wood shavings

1. The poplar wood shavings can make wood shavings from wood logs, tree branches, process wood.

2. The shaving is the same as that produced from furniture factory, automatic feeding     equipment, greatly improved the speed of production, and also saves time and manpower.The wood shaving thickness can be adjustable.The thickness of shavings can be adjusted in range 0.1-1mm.

3. Applicable for: particle board, paper producing, wood pulp paper making and biomass fuel.



Working principle of poplar wood shavings

poplar wood shavings includes the rack, operating platform placed on the frame, the blades fixed on the platform. The wood material is sent into the machine from the feeding inlet,and cut by blades in the chamber, finally processed into shavings just the same as hand work by workers.



Technical date of poplar wood shavings

Model	QM-420	QM-600	QM-800	QM-1200	QM-1500
Cutter head dia. (mm)	420	610	750	1000	1150
Knife quantity(pcs)	4	4	8	9	12
Knife length( mm)	90*60*8	150*70*8	150*100*10	150*120*10	150*120*10
Inlet size(mm)	140*100	190*150	190*220	220*300	330*420
Main shaft rota speed( mim/h)	700	600	560	560	560
Capacity (kg/h)	300	500	1000	1500	2000
Power(Kw)	7.5	15	30	55	75
Dimension(mm)	1200*500*700	1550*630*950	1850*800*1100	2400*1000*1400	3000*1200*1800
Weight (kg)	700	1200	1500	2000	3000

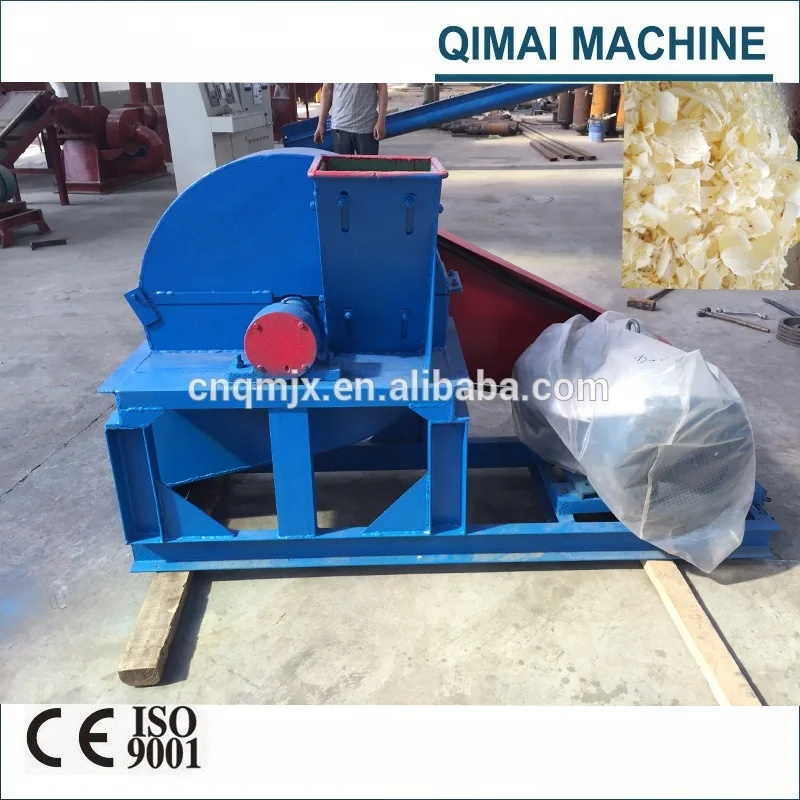

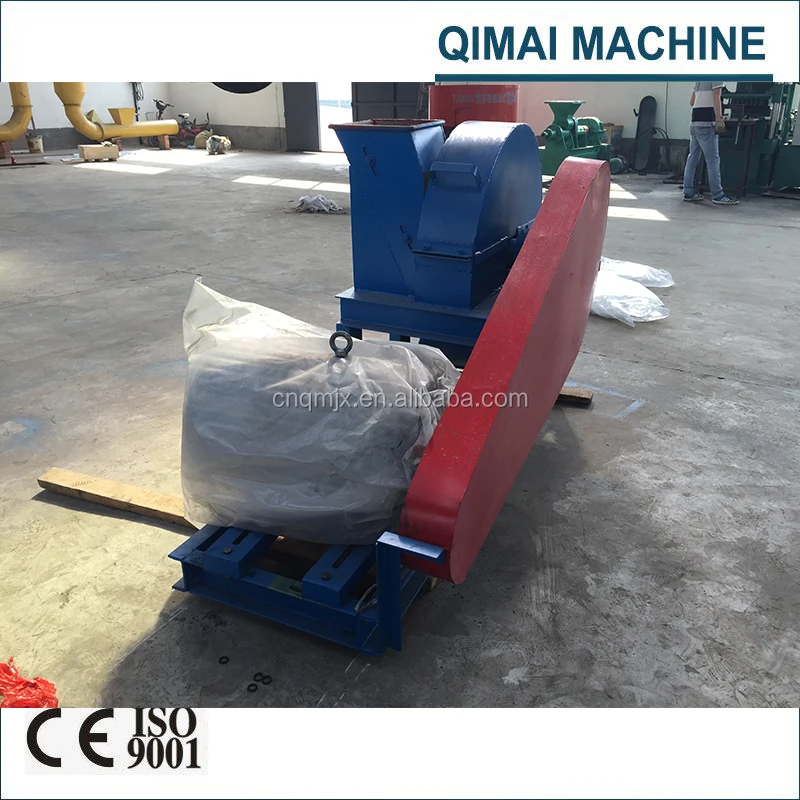

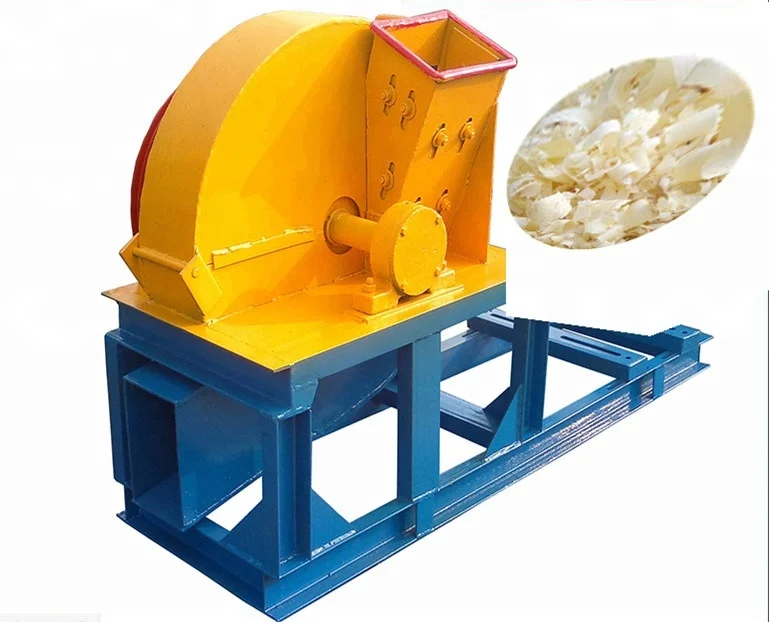

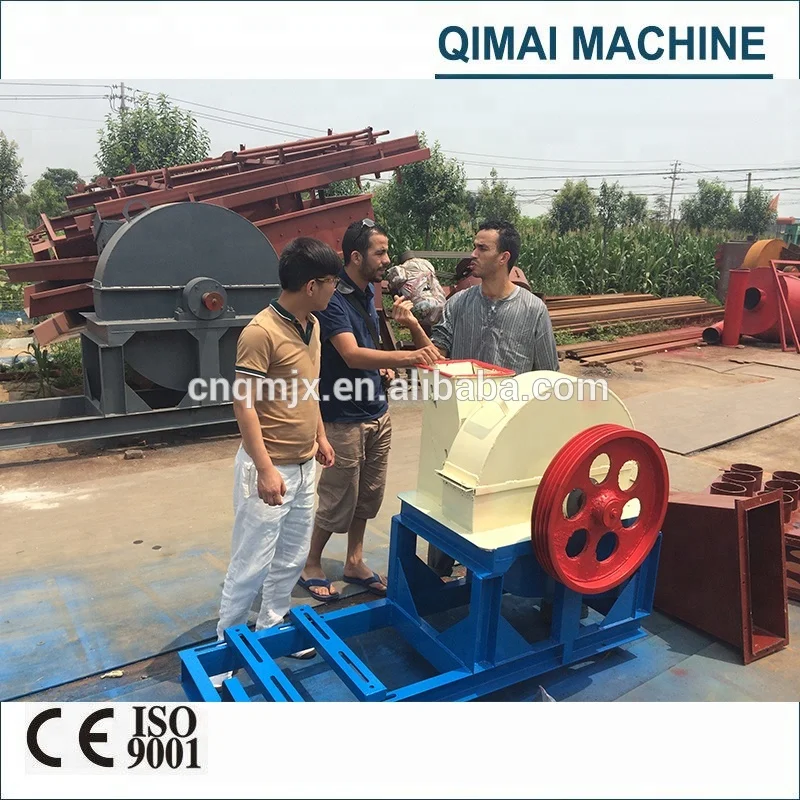

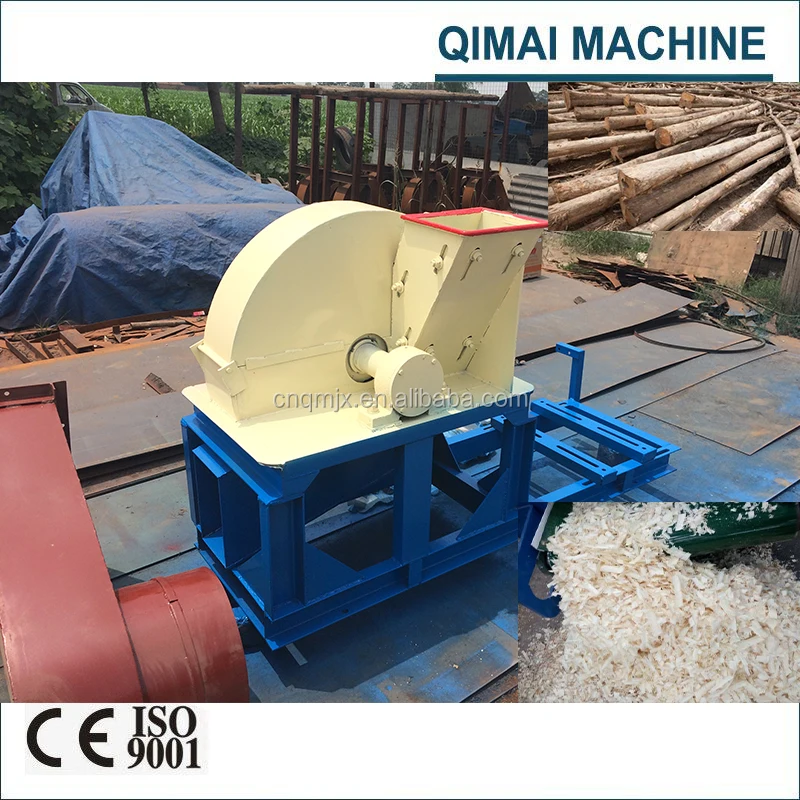

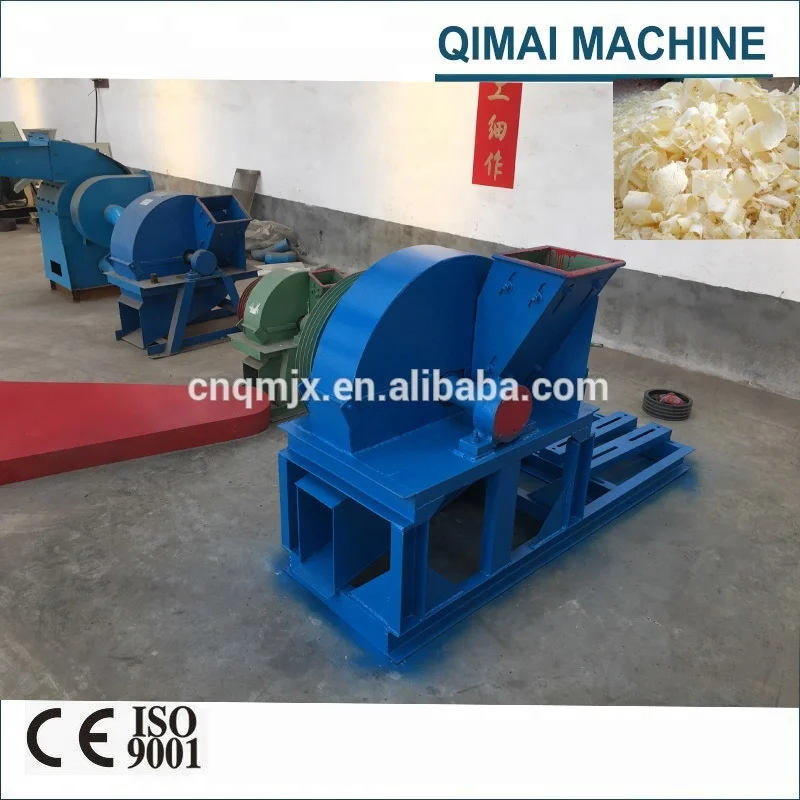

Pictures of poplar wood shavings taken from our factory



Diesel enginer poplar wood shavings
