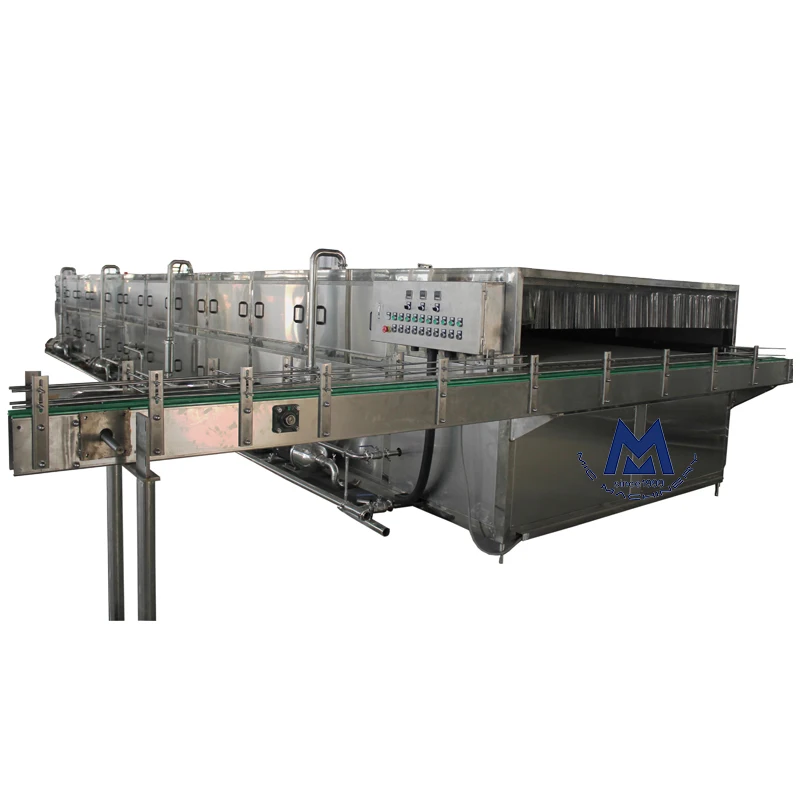

Automatic Steam Chamber Glass Bottle Aluminum Can Juice Beer Sterilizer Machine Sterilization Tunnel
This pasteurizer is designed and manufactured for use in beer and other beverage filling production lines. It is a tunnel pasteurizer which is a method of processing containers that have already been filled. The unprocessed product is poured into the container, the container is sealed, and then conveyed by the conveyor belt into the inside of the tunnel pasteurizer. In each temperature zone in the pasteurizer, the container is sprayed with water at different temperatures, that is, the sterilization phase and the cooling phase. It uses that the water sprayed on the cooler container will become hot. This part of the hotter water is used to cool the hotter container that has been sterilized, so that the container can be gradually cooled, which can avoid The taste loss caused by overheating can also prevent the sudden change of the thermal stress of the container from causing broken bottles or bottle deformation. And after the heating area and the cooling area are connected to each other, the energy is well regenerated-this is called the principle of energy regeneration. The tunnel pasteurizer makes full use of this heat balance principle, and the energy consumption is very low. Only the sterilization area uses limited energy.
Product Parameter
Technology Parameter
Bottle / Can
Height: 50-300mm Diameter: 40-80mm
Conveyor belt size
8-16m*1.2-1.8m (LXW)
Main motor power
1.5-2.5KW (Depends on the capacity)
Temperature range
30℃-90℃
Pump power
0.75-1.1KW (Each pump)
Pump flow rate
16m³/h
Detailed Images
Control Panel
It's very convenient to be able to do all the operations in one control panel. Use buttons to simplify operations

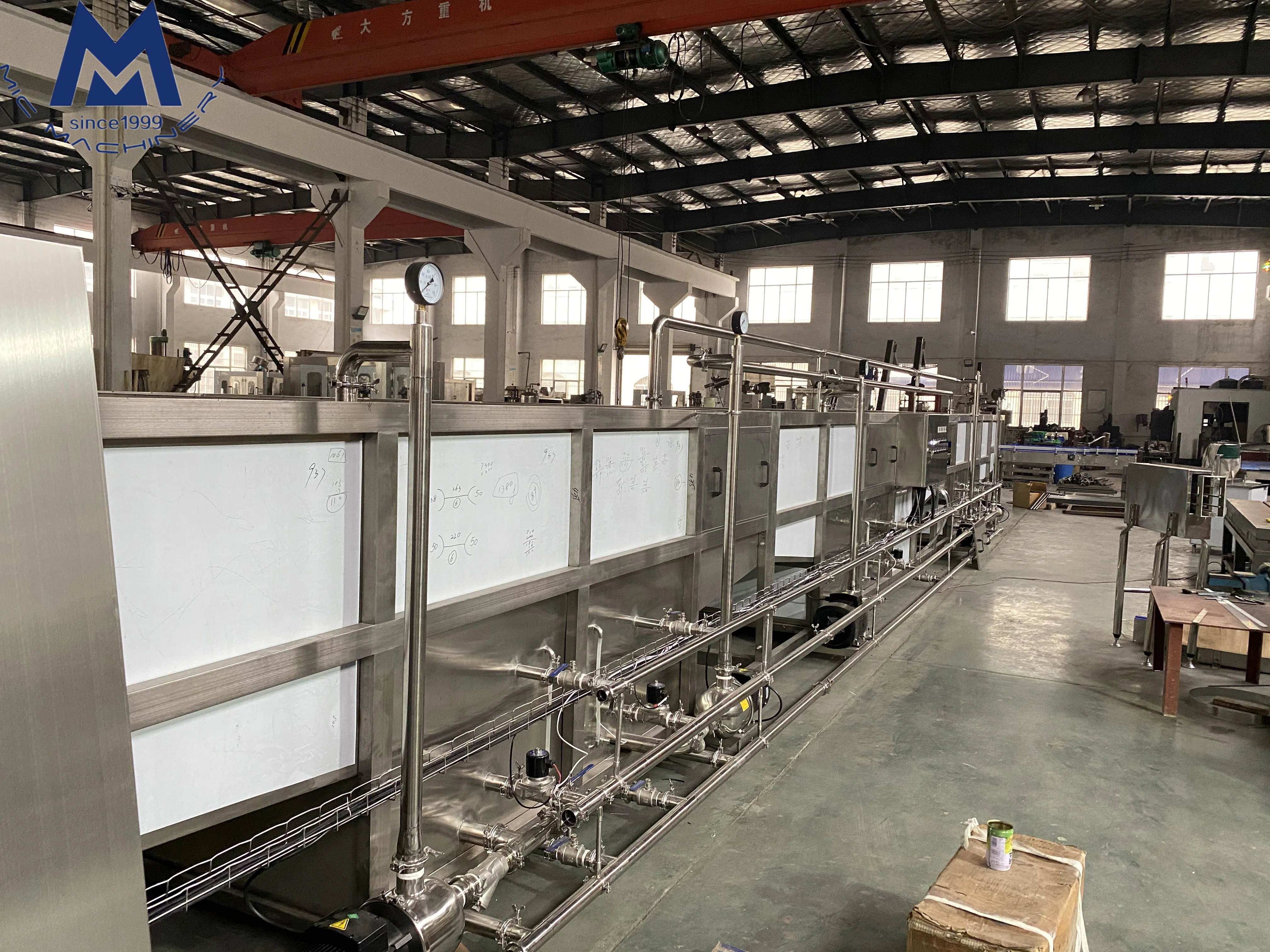

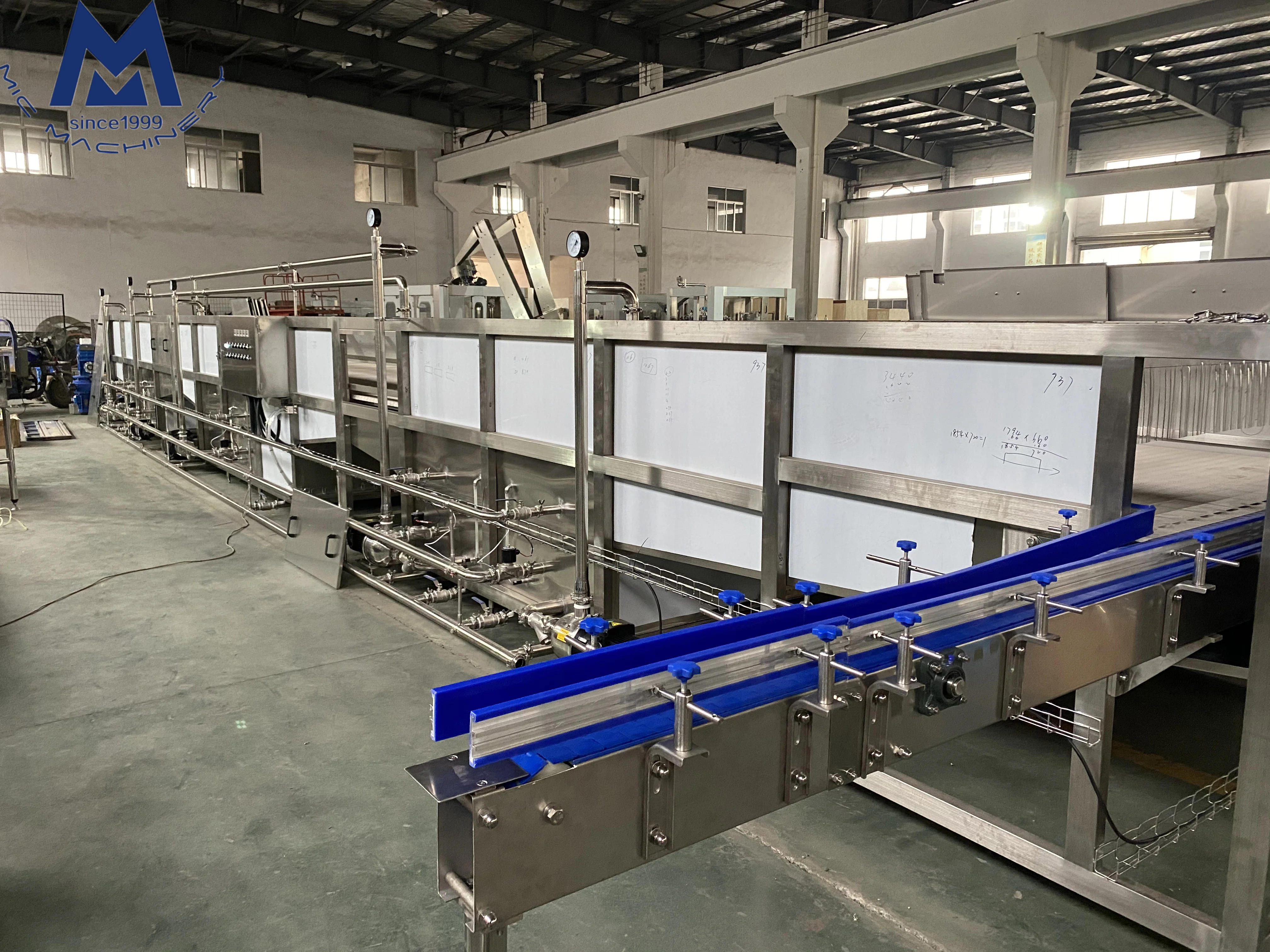

Water Pump and Water Input Pipe and Water Drain-pipe and Water-circulating Pipe
Water pump: The function is make the water in the tank is continuously circulated to the spray nozzles.
Water input pipe: The function is input the normal temperature water into the water tank. Water drain-pipe: The function is drain the dirty water which used for 2-3 days. Water-circulating pipe: When the temperature controller detect the water temperature is overheated, the solenoid valve will opened automaticlly to drain the overheated water to outside.

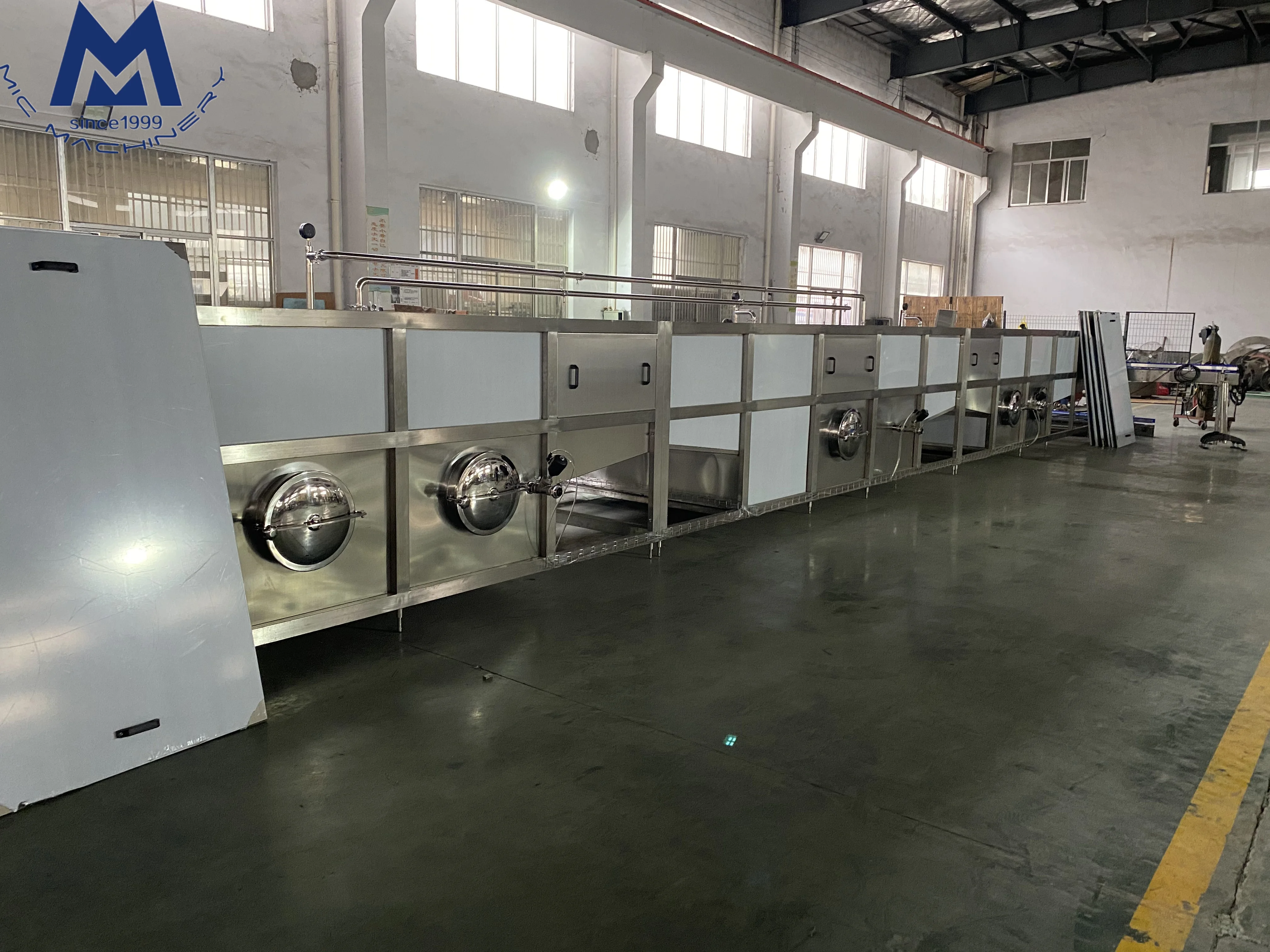

Checking Window
You can open it to check the inside working situation. But, we don't suggest to open it during the working process.
Pneumatic Angle Seat Valve
It's used to connect with your steam boiler. The solenoid valve will control steam flow when temperature changes.At the meantime, you need to add steam stop valve, pressure gauge, safety valve on your pipes.
Mechanical Float Ball and Overflow Pipe
Mechanical float ball: It's used to control the liquid level in water tank. When the water is enough, the float ball will auto stop the water input. Overflow pipe: When the function of float ball is failure, the excess water in the water tank will drain from this pipe.
