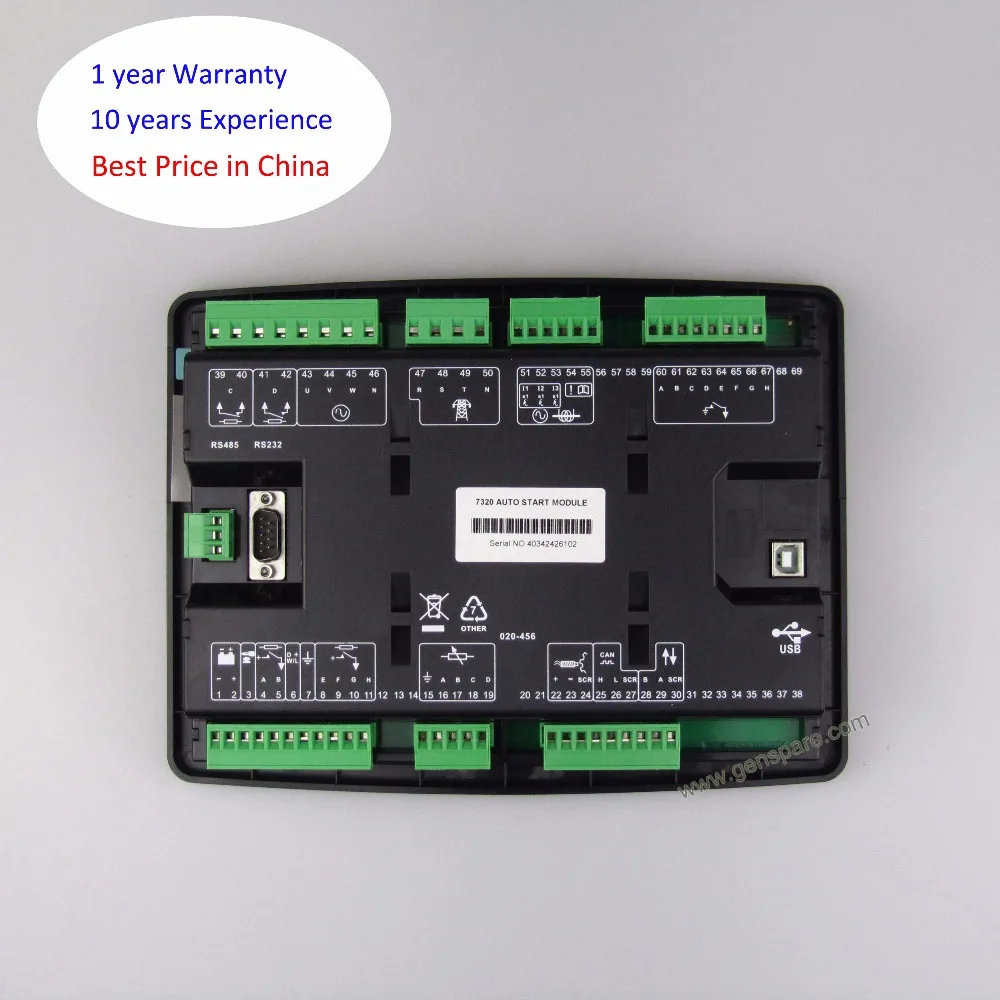

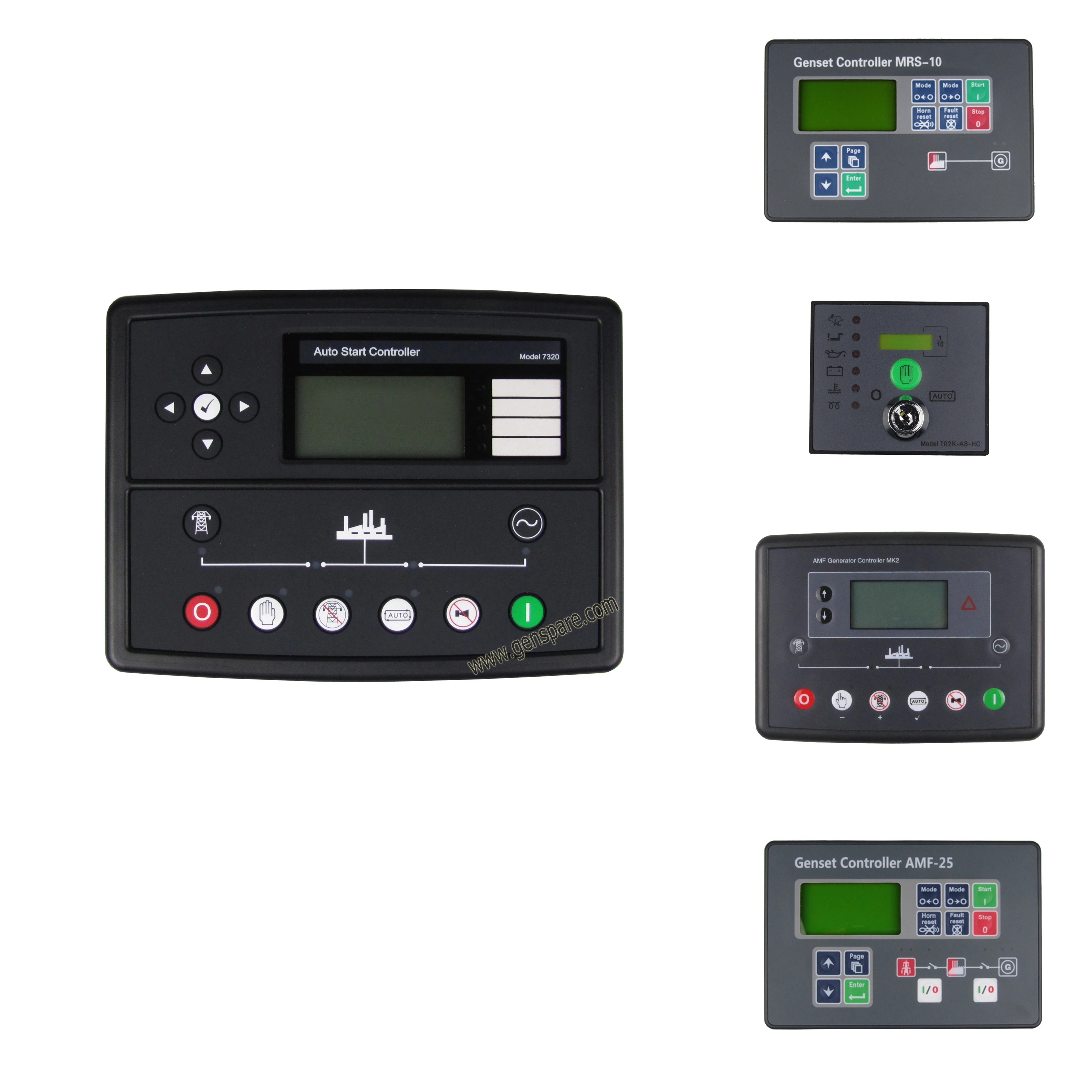

Replace DSE 7320 Genset AMF Controller Deep Sea DSE7320



We have DSE7320 in our Regular Stock!

AMF / AUTO MAINS FAILURE START CONTROL MODULES / GENERATOR AMF CONTROLLER

The Brands mentioned here are for reference only, our parts can exactly replace the original ones.



How to choose a suitable Generator Controller?

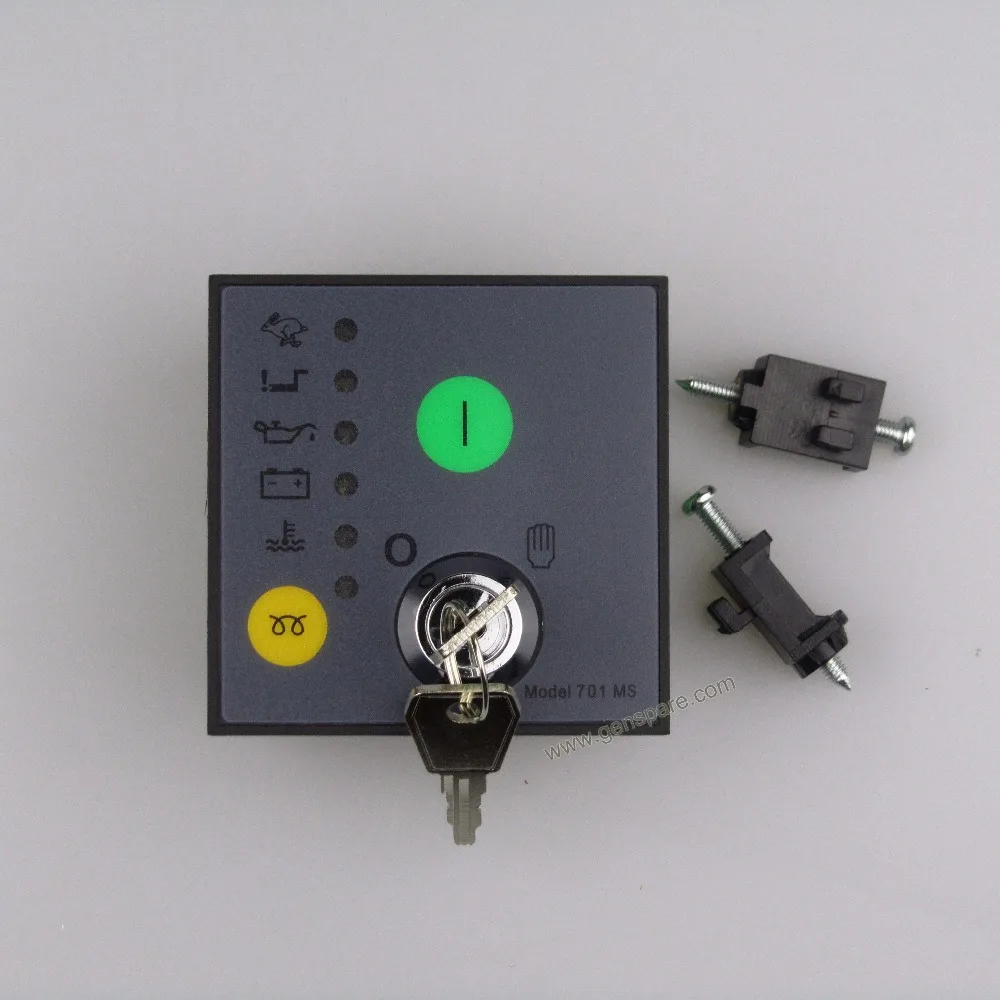

1. Cheap Geneset AMF Controller : DSE501K, DSE701, DSE702, DSE704, DSE3110, DSE4520, DSE4620 (for low cost small power generators)

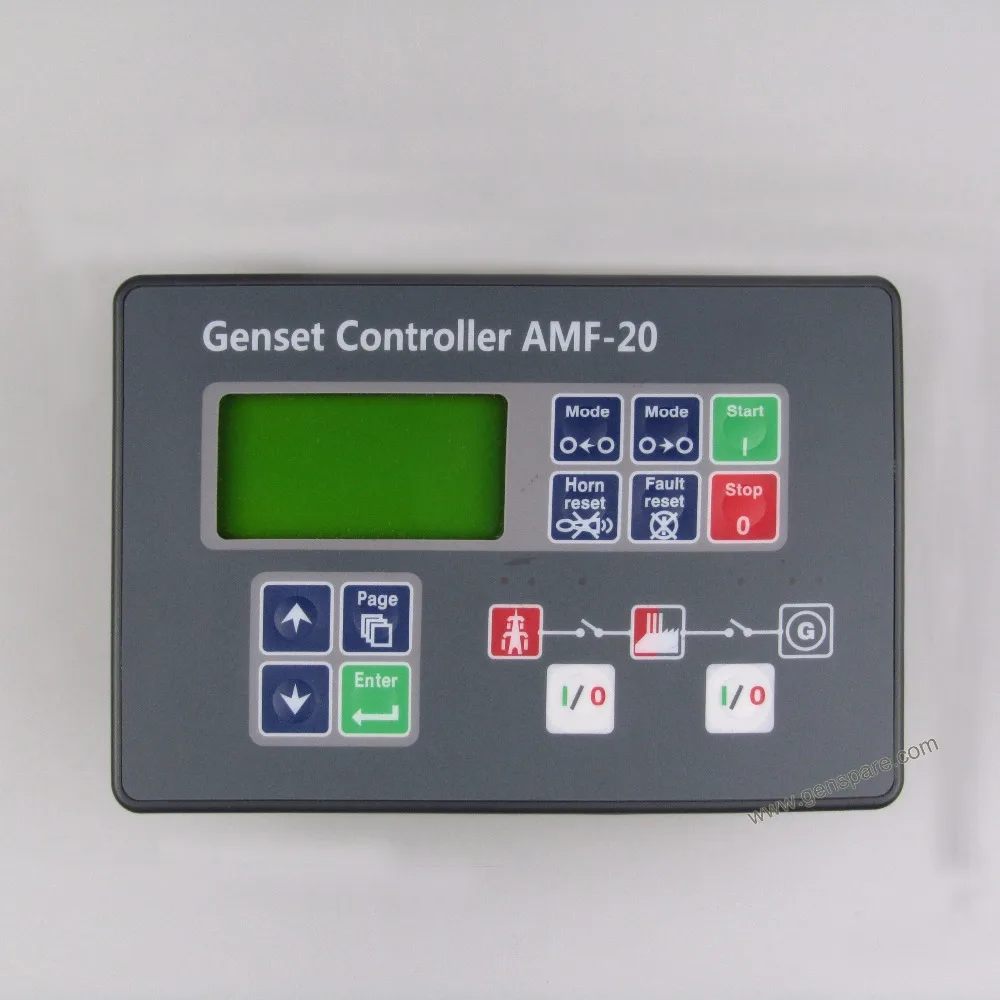

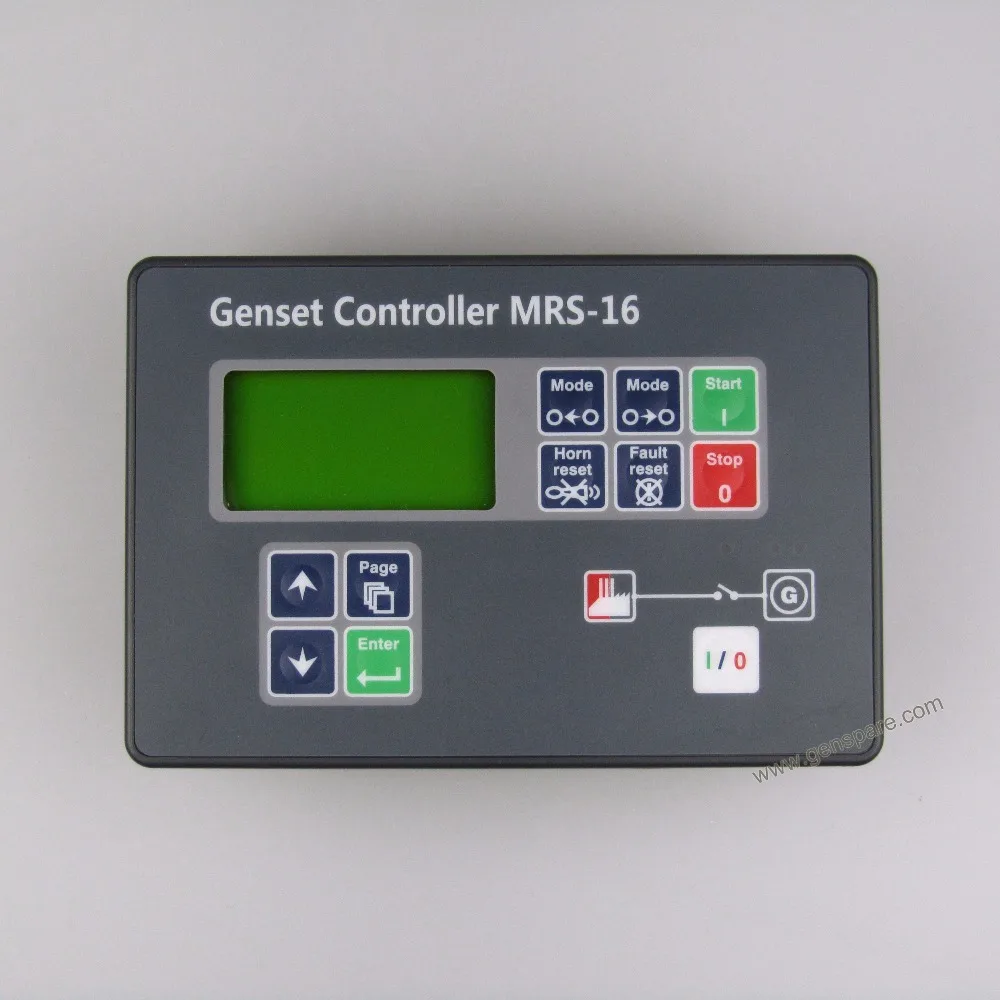

2. More Functions Genset Controller: DSE5110, DSE5220, DSE6020, DSE6120, DSE7210, DSE7220, DSE7310, DSE7320, MRS-10, MRS-16, AMF-20, AMF-25 (for high power generator)

3. More Languages DSE Genset Controller: DSE6120, DSE7210, DSE7220, DSE7310, DSE7320, MRS-10, MRS-16, AMF-20, AMF-25 (Avaliable Languages: English, Spanish, Portuguese, French, German, Russian, Chinese and etc.)

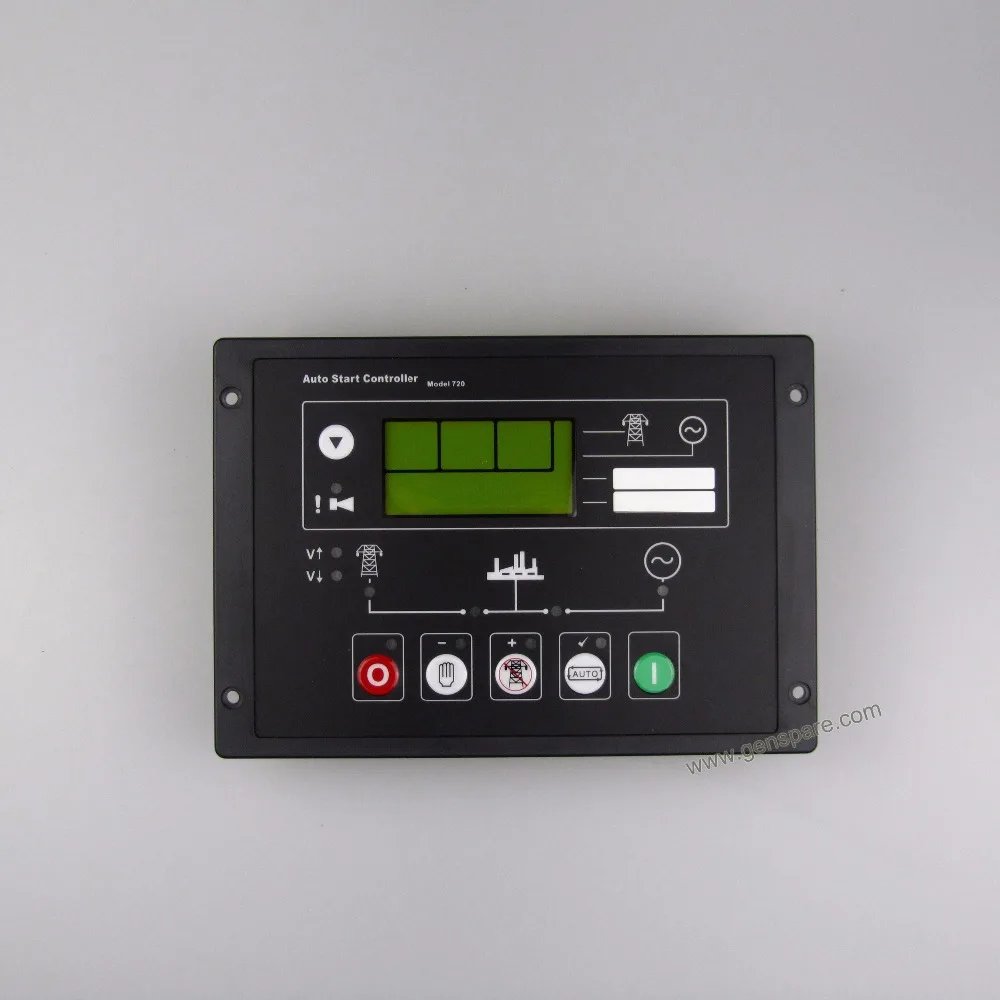

4. AMF Controller Modules: DSE704, DSE720, DSE5220, DSE6120, DSE7220, DSE7320; AMF-20, AMF-25 (Auto Mains Failure Generator Control Modules)

5. Synchronising and Load Share Controller: DSE8610, DSE8620, DSE8660, ICNT-MINT, ICNT-MCNT, ICNT-SPTM

6. Canbus ECU Communications Generator Control Panel: MRS-16, AMF-25, DSE7210, DSE7220, DSE7310, DSE7320, DSE3110 ECU, DSE4520, DSE7320 MKII



Supported languagesfor DSE Genset AMF Controller DSE7320:

English / Russian / German / French / Arabic / Portuguese / Spanish / Swedish / Thai Language / Chinese

The DSE DSE7320 Genset AMF Controller is an Auto Mains (Utility) Failure Control Module suitable for a wide variety of single, diesel or gas, gen-set applications. Monitoring an extensive number of engine parameters, the modules will display warnings, shutdown and engine status information on the back-lit LCD screen, illuminated LEDs, remote PC and via SMS text alerts (with external modem).

The DSE Genset Controller DSE7320 will also monitor the mains (utility) supply. The modules include USB, RS232 and RS485 ports as well as dedicated DSENet® terminals for system expansion.

Both modules are compatible with electronic (CAN) and non-electronic (magnetic pick-up/alternator sensing) engines and offer an extensive number of flexible inputs, outputs and extensive engine protections so the system can be easily adapted to meet the most demanding industry requirements.

The modules can be easily configured using the DSE Configuration Suite PC software.

Selected front panel editing is also available.



KEY FEATURES of Genset Controller Deep Sea DSE7320:

• 4-Line back-lit LCD text display

• Five key menu navigation

• Front panel editing with PIN protection

• LED and LCD alarm indication

• Customisable status screens

• Power save mode

• Support for up to three remote display units

• 9 configurable inputs

• 8 configurable outputs

• Flexible sender inputs

• Configurable timers and alarms

• 3 configurable maintenance alarms

• Multiple date and time scheduler

• Configurable event log (250)

• Control logic facilities

• Easy access diagnostic page

• CAN and Magnetic Pick-up/Alt. sensing

• Fuel usage monitor and low fuel alarms

• Charge alternator failure alarm

• Manual speed control (on compatible CAN engines)

• Manual fuel pump control

• Engine exerciser

• “Protections disabled” feature

• kW overload protection

• Reverse power protection

• Power monitoring (kW h, kV Ar, kV A h, kV Ar h)

• Load switching (load shedding and dummy load outputs)

• Automatic load transfer (DSE7320)

• Unbalanced load protection

• Independent Earth Fault trip

• USB connectivity

• Backed up real time clock

• Fully configurable via DSE Configuration Suite PC software

• Configurable display languages

• Remote SCADA monitoring via DSE Configuration Suite PC software

• User selectable RS232 and RS485 communications

• Configurable Gencomm pages

• AdvancedSMS messaging (additional external modem required)

• Start & stop capability via SMS messaging

• Additional display screens to help with modem diagnostics

• DSENet® expansion compatible

• Integral PLC editor



KEY BENEFITS of Controller Deep Sea DSE7320:

• 132 x 64 pixel ratio display for clarity

• Real-time clock provides accurate event logging

• Multiple date and time scheduler

• Set maintenance periods can be configured to maintain optimum engine performance

• Ethernet communications (via DSE860/865 modules), provides advanced remote monitoring at low cost

• Modules can be integrated into building management systems (BMS)

• Increased input and output expansion capability via DSENet®

• Licence-free PC software

• IP65 rating (with supplied gasket) offers increased resistance to water ingress

• PLC editor allows user configurable functions to meet specific application requirements
