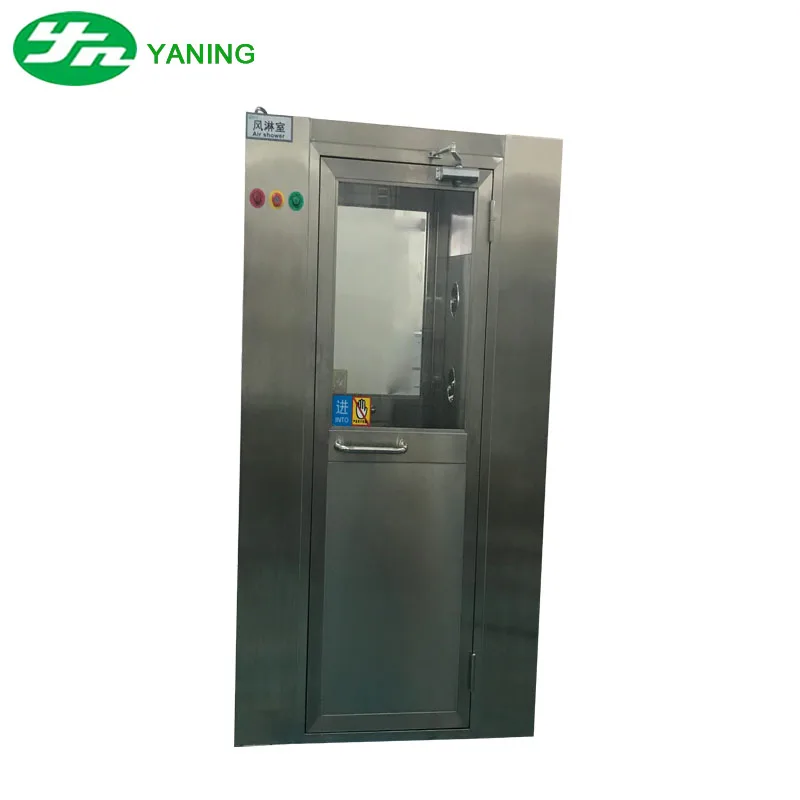

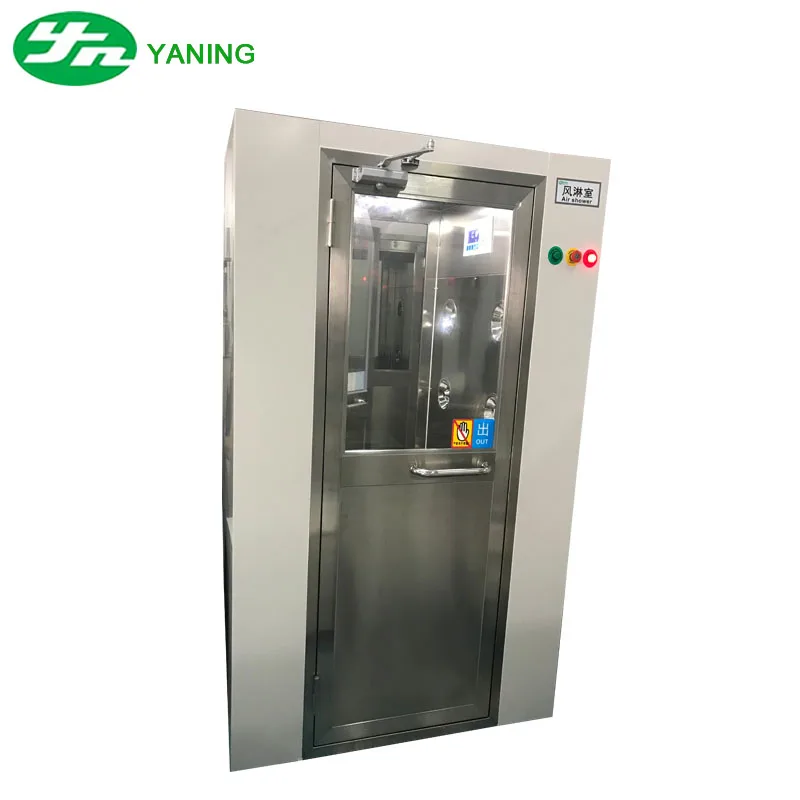

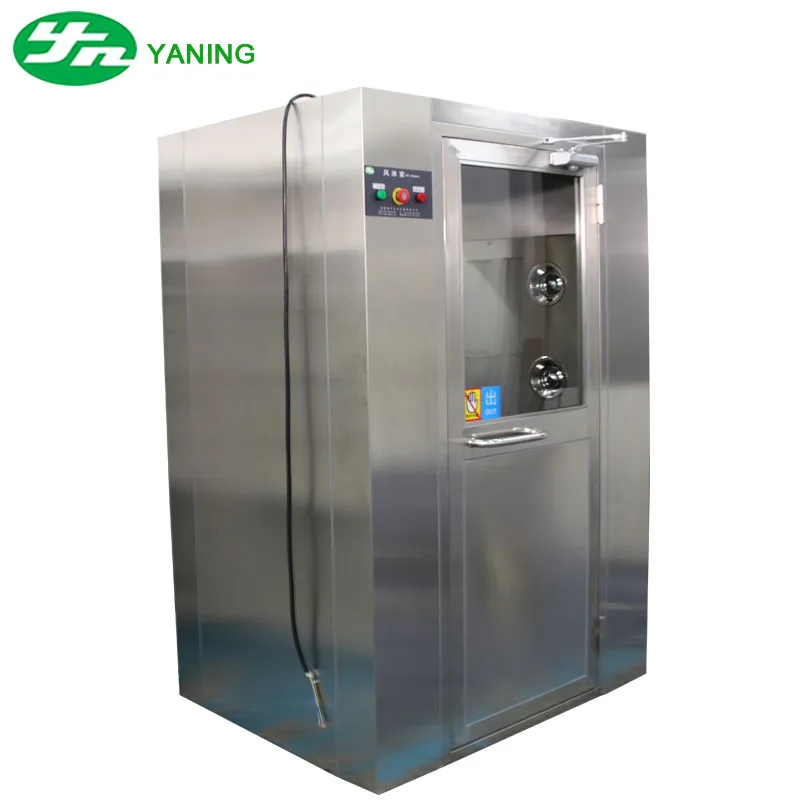

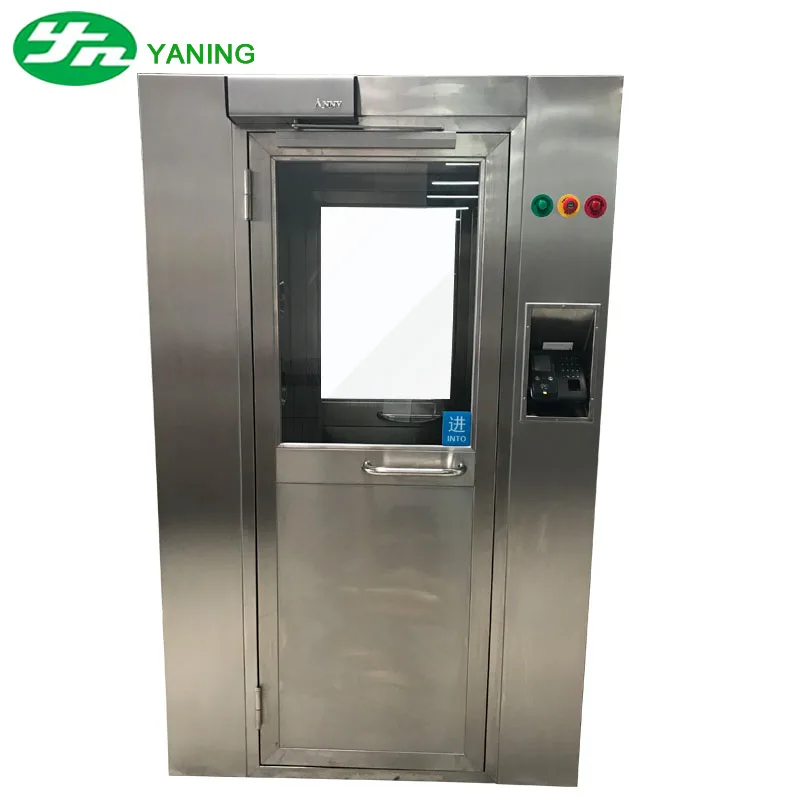

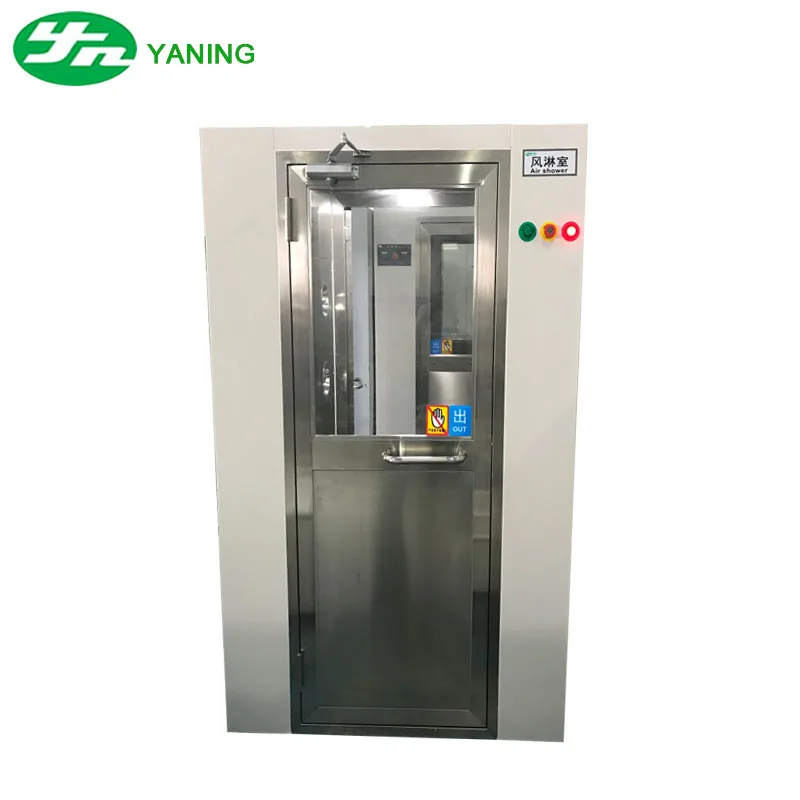

Air Shower

Air shower, air purification equipment being abing able to clean the surface os human body and articles, preventing the unclean air invade into it.to meet the cleanliness requirement of clean room with the help of air condition system.

Cabinet maderial:cold-rooled steel with multi-layer picking electrostatic painted or stainless steel

With G4 and H13 HEPA filter two level filtration to ensure the purfication class

High quality infrared sensor automatically showering,imported electronic interlock device

With corresponding number of multi-angle adjustable stainless steel nozzles,double side blowing design ,can flow results

Liqui-crystal display, air shower time 0-99S adjustable and display the time of air showering

Adopts big air volume with low noise external rotor fan ,surface air velocity greater than 25m/s,in line with national standards

Air showering factory test according to U.S.Federal Standard 209Eone by one to ensure product quality.





Model		YN-AS1290/1	YN-AS1290/1	YN-AS1290/1	Air Shower Tunnel
External Dimension		1290×1000×2050	1290×1000×2050	1290×2000×2050	1590×5000×2050
Internal Work Zone		790×860×1910	790×860×1910	790×1860×1910	790×4860×1910
Suitable Number		1-2 person	1-2person	2-4person	Tunnel type
Noise Level(dB)		<62	<62	<62	<62
Stainless Steel Nozzle		6PCS	12PCS	24PCS	72PCS
Wind Speed		≥25m/s	≥25m/s	≥25m/s	≥25m/s
Prefilter	Size	775×380×17×1pc	775×380×17×2pcs	775×380×17×4pcs	775×380×17×8pcs
	Efficiency	G4	G4	G4	G4
HEPA Filter	Size	610×610×120×1pc	610×610×120×2pcs	610×610×120×4pcs	610×610×120×8pcs
	Efficiency	99.99%@0.3µm	99.99%@0.3µm	99.99%@0.3µm	99.99%@0.3µm
Fluorescent Lamp		20W×1	20W×1	20W×2	40W×4
Power Supply		380V/50Hz	380V/50Hz	380V/50Hz	380V/50Hz
Total Power		780W	780W	780W	780W



 Component of air shower



 Structure of air shower





packaging&shipping

Stretch film strapped whole cabinet,

Foam inside protected,

Plywood case solid fixed

Samples be shipped by DHL/FedEx/USP and so on



Mass production be shippinh by Air or Sea

Company Information

Dongguan Yaning purification Technology Co.,Ltd.islocated in Dongguan city Changan ,is a set design development, production, sales, construction professional installation services in one purifier manufacturers,the company is committed to the purification

industry for more than ten years,the South China purification technology industry’s most Powerful enterprises.the main products used in health care,electronices technology ,bio-medicine ,food,precision instruments aerospace,automobile manufacturing and many another areas.



products

1.FFU ,air shower room ,cargo air shower ,HEPA filter ,horizontal clean bench ,pass box ,clean booth medical bench and so on

2.primer,middle and HEPA filter ,sub-high efficiency filter

3. undertake 1-300 thousand class level clean room design and construction of the project commission inspection and maintenance.
