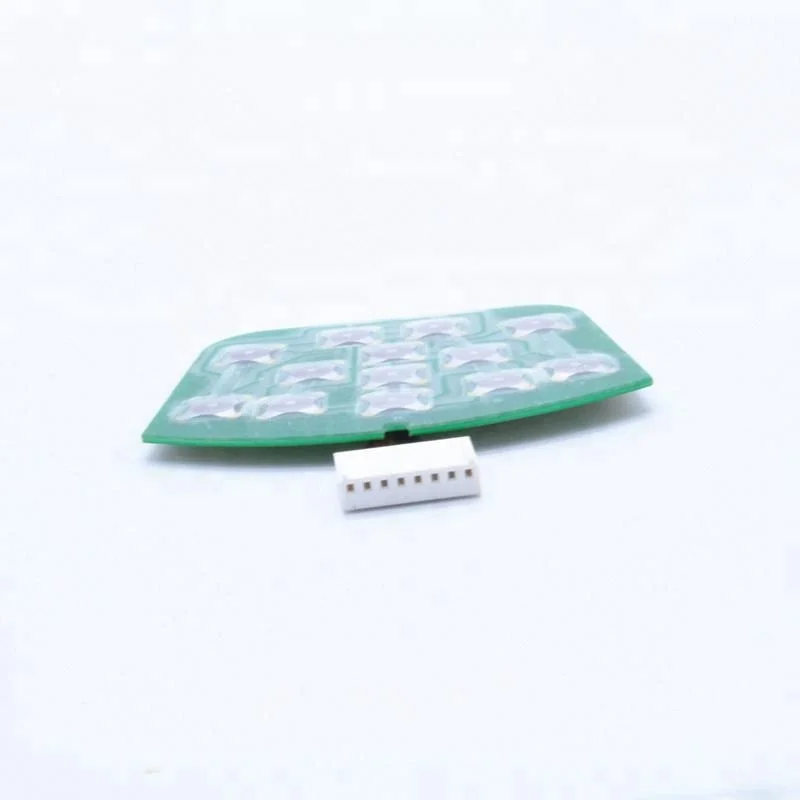

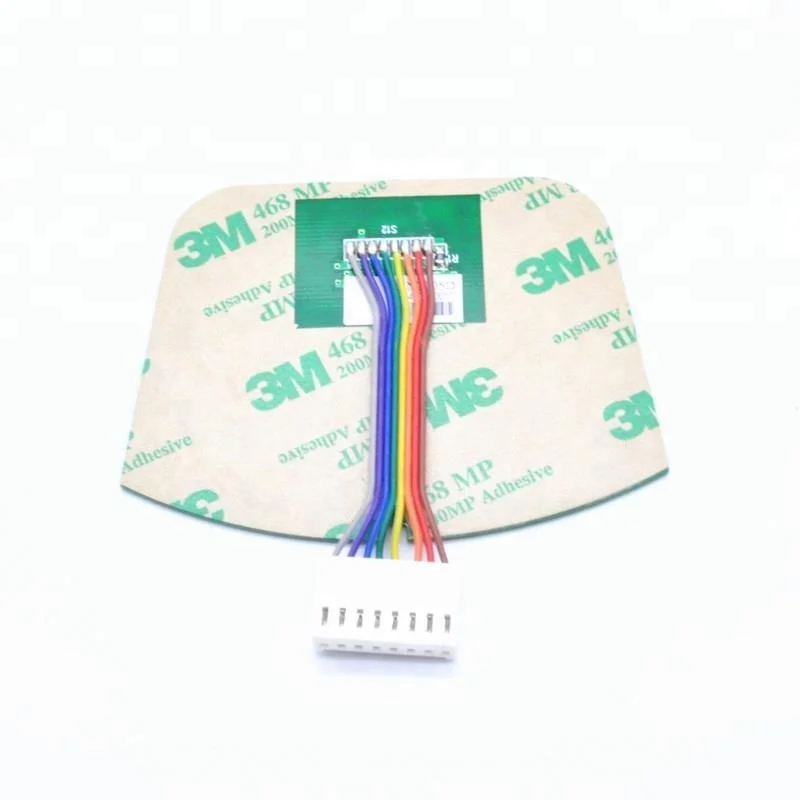

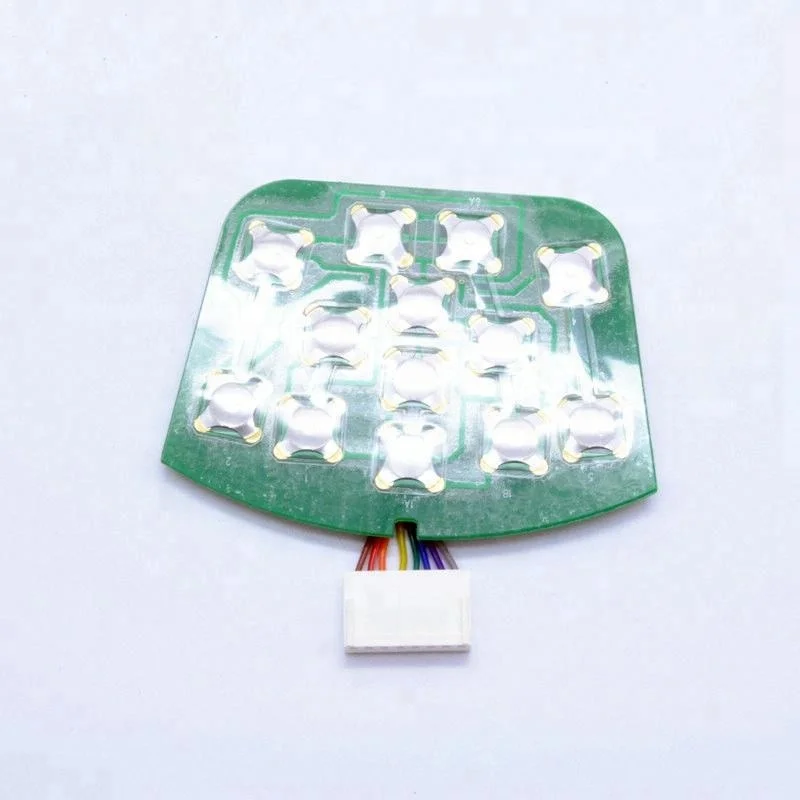

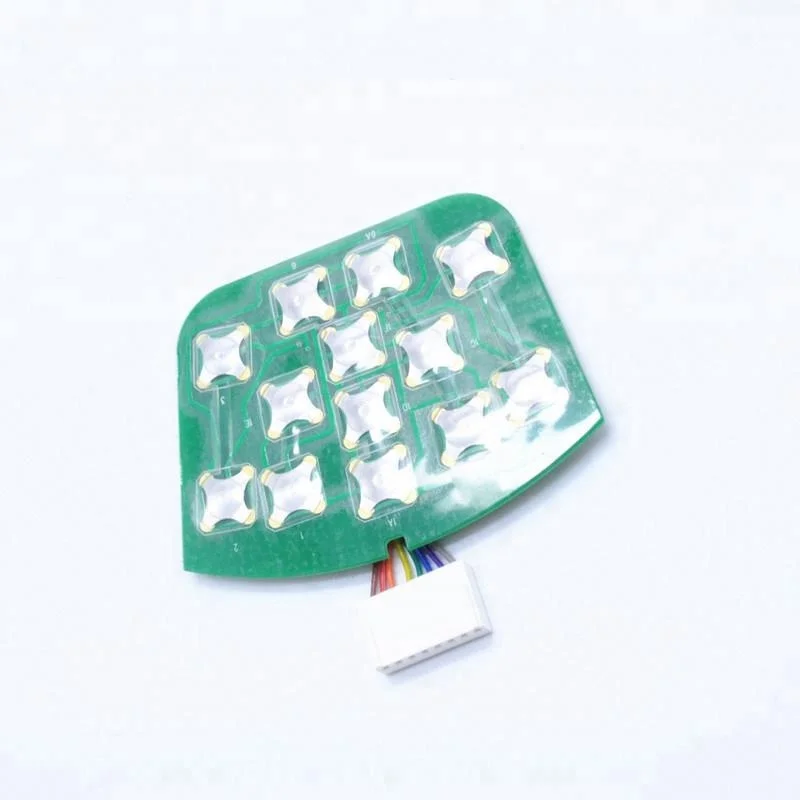

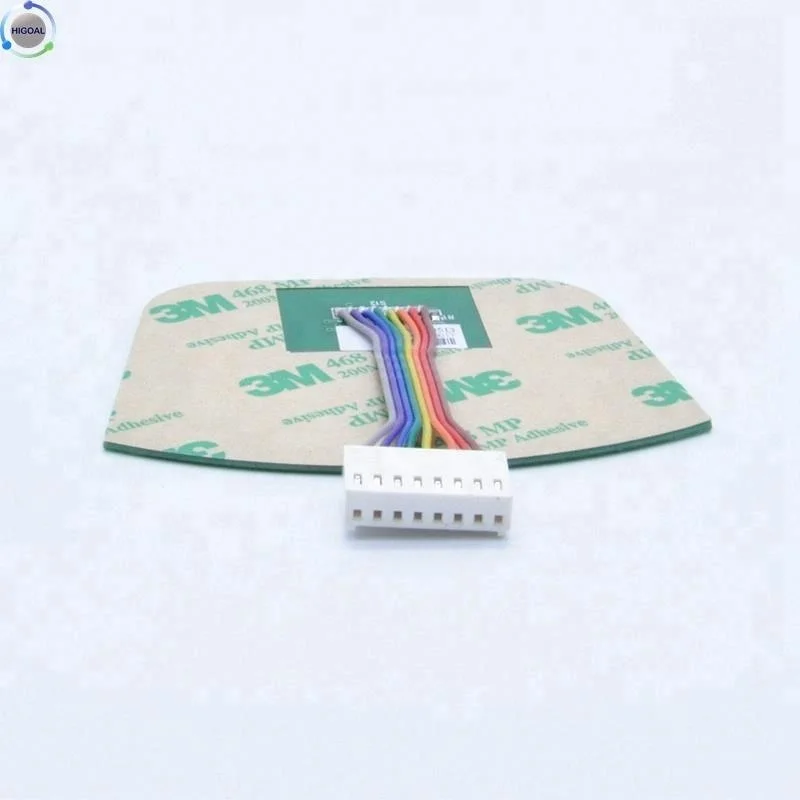

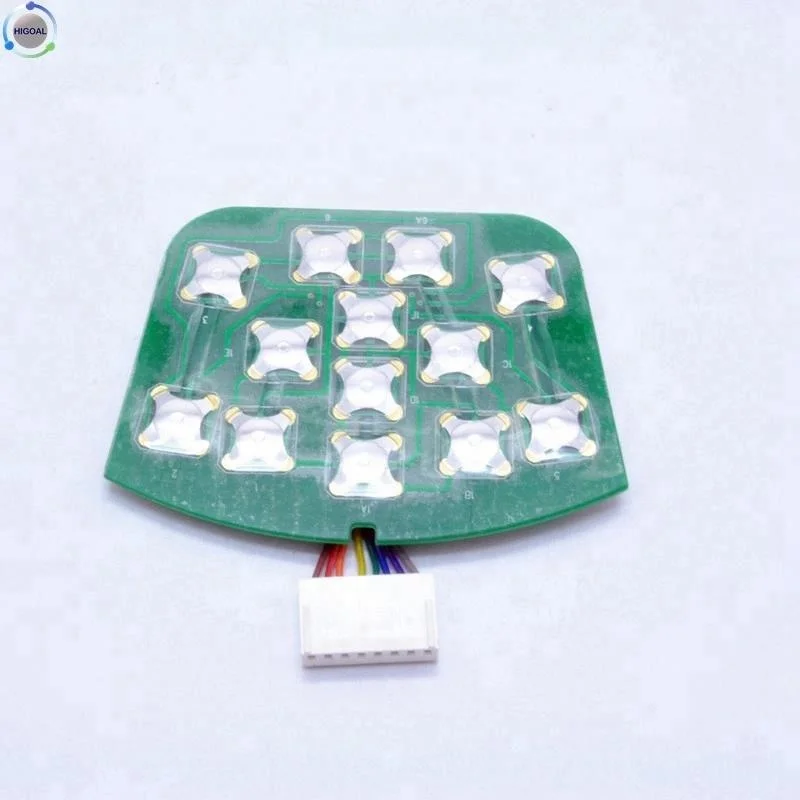

Изготовленная на заказ металлическая купольная печатная плата для Мембранного

Описание и отзывы

Трекер стоимости

Характеристики

Specifications:

Operating voltage :	35V DC	Life expectancy:	Flat type≥5,000,000 times  Tactile type≥1,000,000 times
Operating current:	100mA 1W	Switch stroke:	0.1 to 0.6mm
Contact resistance:	< 100 Ohms	Contact bounce:	5 to 30ms
Open circuit resistance:	≥ 10MΩ at 100V	Actuation force tolerance:	+/- 20 to 45g
Operating temperature:	Flat/Metal dome:-20°c to +80°c	Tactile ratio:	FC > 40%
Storage temperature:	Flat/Metal dome:-40°cto +80°c	Operating humidity:	up to 95% RH







1.100pcs usually putted into a poloybag,seperated by carbboard,5 bags packed into a 5-layer carton.

2.According to customers' requirements.

1. over 10 years' producing history and exporting experience.

2. Stable and experienced working team.

3.Professional engineering team will offer technical support in development step

of new project.

4. Provide one-stop production and assembly service from custom membrane

switch to PCBA, enclosure, back plate etc.

5. Using high standard mould to assure the products with high quality and precise

dimensions.

6. In-house 100% functionally tested.

1. How to order membrane switch?

You could advise us the size,color,material,surface,rear adhesive, etc. requirements. And you'd better send us the drawing together with panton color or RAL color.



2. What is the delievery time?

Delivery time for samples is about 7-10days.The quantities order would take 2 weeks. For complicated products should take 2-3 weeks.



3. Is the prototype necessary?

Yes.Most of the items are customzied orders,so the prototype will be sent to customer for approval.



4. What's the terms of payment?

 As the client need,we mainly receive trade assurance,TT,west union,PayPal etc.
