Электронный Триод Ламповый Усилитель Осциллятор вакуумный триодный
- Категория: >>>
- Поставщик: Shijiazhuang,Saga,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 1904.59 $* | 1999.9 $* |
| Aug-16-2025 | 1888.10 $* | 1982.31 $* |
| Jul-16-2025 | 1584.12 $* | 1663.19 $* |
| Jun-16-2025 | 1856.8 $* | 1949.61 $* |
| May-16-2025 | 1616.56 $* | 1697.23 $* |
| Apr-16-2025 | 1824.64 $* | 1915.70 $* |
| Mar-16-2025 | 1808.60 $* | 1898.33 $* |
| Feb-16-2025 | 1792.62 $* | 1882.72 $* |
| Jan-16-2025 | 1776.4 $* | 1865.15 $* |
Характеристики

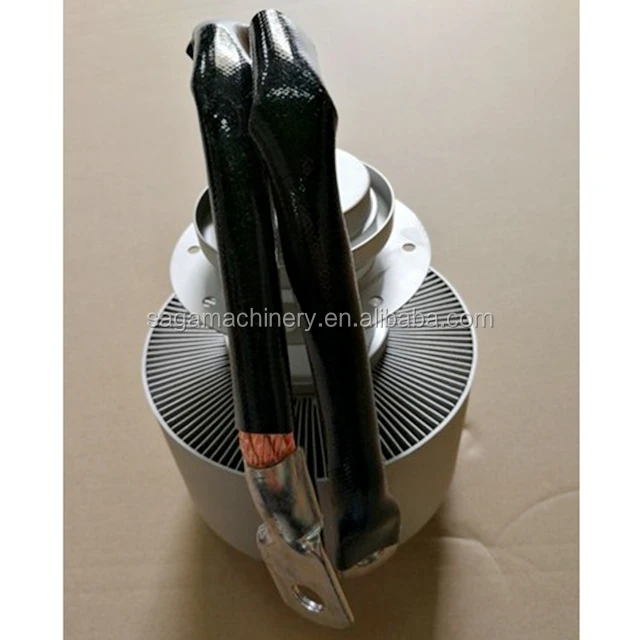

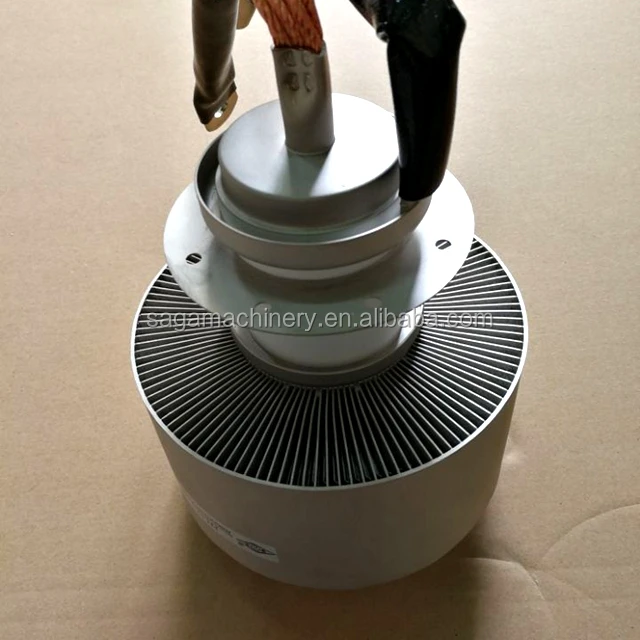

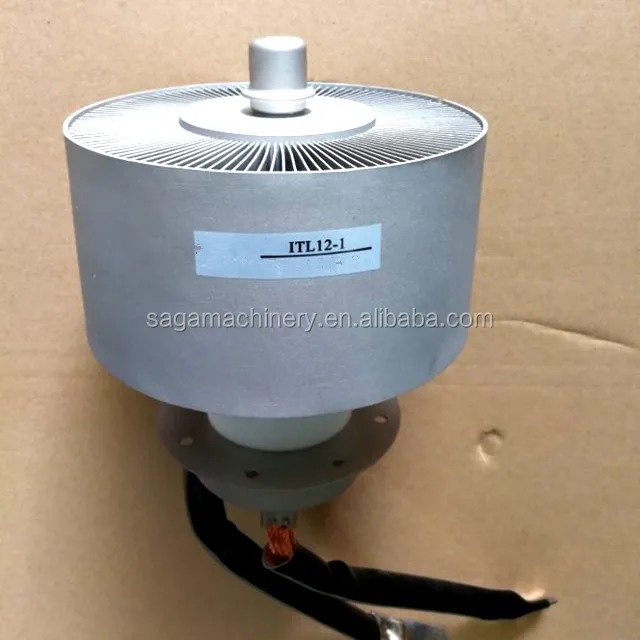

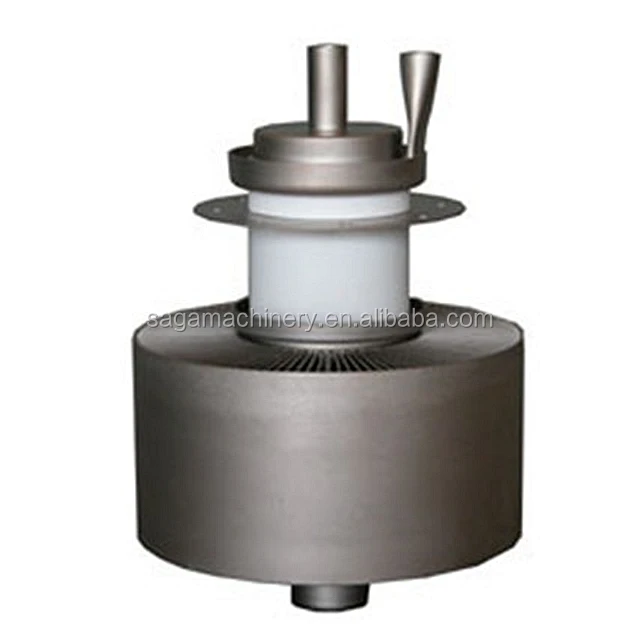

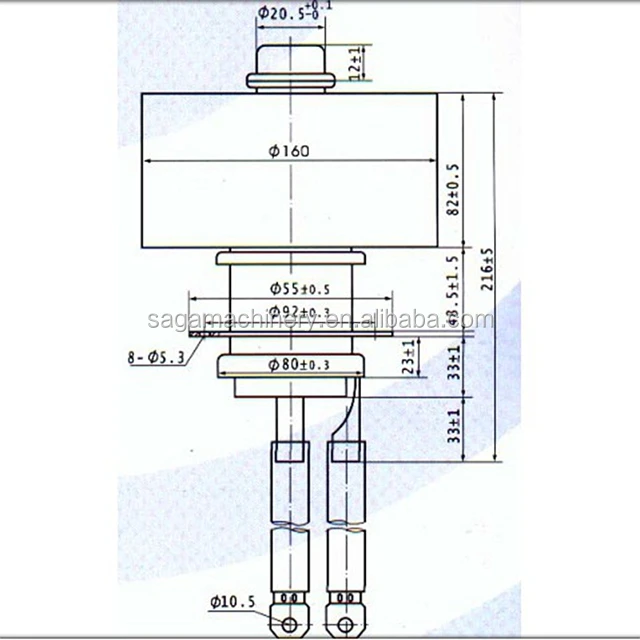

ITL12-1 Electronic Triode Amplifier Tube Oscillator Vacuum Triode
Product Description
ITL12-1 is a forced air cooled, metal/ceramic coaxial power triode, with thoriated-tungsten filament ,intended for use in industrial heating, as well as pulse oscillator. Max frequency: 120Mhz, max plate dissipation:12KW.
General Characteristics
| Filament Voltage | 5.8V |
| Filament Current | 145A |
| Filament Surge Current | 600A |
| Interelectrode Capacitance | |
| Grid Anode | 21 pF |
| Anod Cathode | 55 pF |
| Anode Cathode | 1 pF |
| Amplification Factor | 22 |
| Transconductance(Va=10Kv,Ia=4A) | 50 mA/V |
| Operating Position | Vertical,anode up or down |
| Cooling | Forced air |
| Cooling Air Flow,min | >=6 M3/m |
| Max Inlet Air Temperature | 45 C |
| Temperature At Seal,max | 250 C |
| Net Weight | 6.5 KGS |
Maximum Ratings
| Operating Frequency | 120MHz |
| Anode Voltage | |
| Below 30MHz | 12KV |
| 30~60MHz | 9KV |
| 60~90MHz | 7KV |
| 90~120MHz | 6KV |
| Anode Current | 5A |
| Grid Voltage | -1500V |
| Grid Current(full load) | 0.8A |
| Grid Current(no load) | 1.5A |
| Peak Cathode Current,CW | 28A |
| Peak athode Current,pluse | 38A |
| Anode Dissipation Power | 12KW |
| Grid Dissipation | |
| Below 30MHz | 350W |
| 30~60MHz | 320W |
| 60~90MHz | 300W |
| 90~120MHz | 280W |
Typical Operation
Class C Radio Frequency Oscillator for Industrial applications (30MHZ)
| Anode Voltage (KV) | 10 | 8 |
| Anode Current (A) | 4.3 | 4.8 |
| Grid Bias Voltage (V) | -640 | -560 |
| Grid Voltage (V) | 960 | 900 |
| Grid Current (A),on load | 0.53 | 0.71 |
| Grid Dissipation (W) | 145 | 220 |
| Grid Resistance (ohm) | 1210 | 790 |
| Anode Dissipatiom (KM) | 9.6 | 8.5 |
| Anode Input Power (KM) | 40 | 38.4 |
| Anode Output Power(KM) | 33 | 29 |
| Feedback Ratio | 10.5% | 12.9% |
| Oscillator Efficiency | 76.5% | 76% |
