Микроавтобус Электрический Outswing привод/оператор для Toyota

Product Description



Product Description

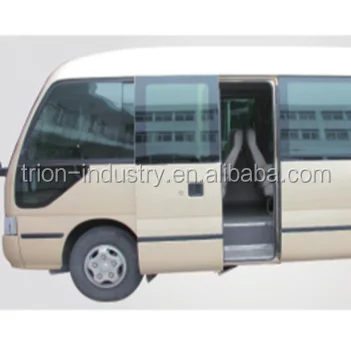

Application: shuttle bus, light and medium coach, utility vehicle, limo-bus and midi-bus.
System Component: Rotary actuator assembly, Shaft assembly and Door panel assembly.

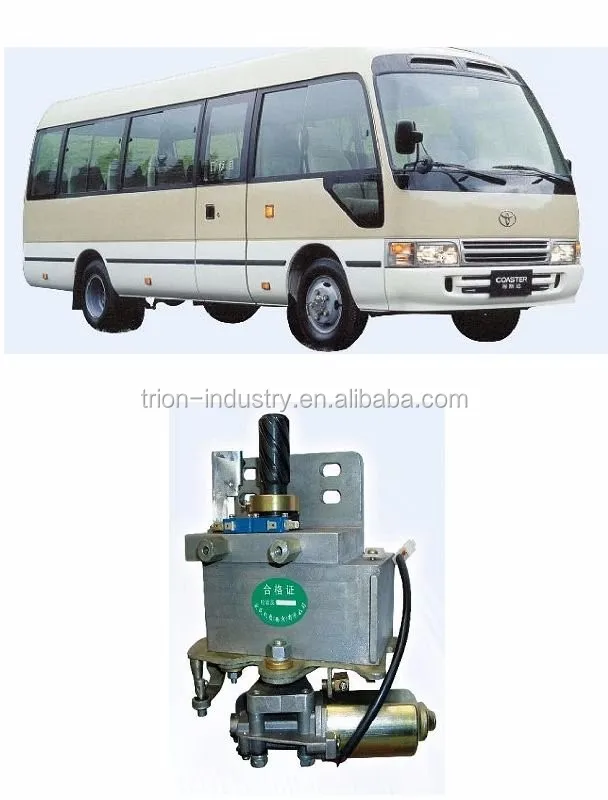

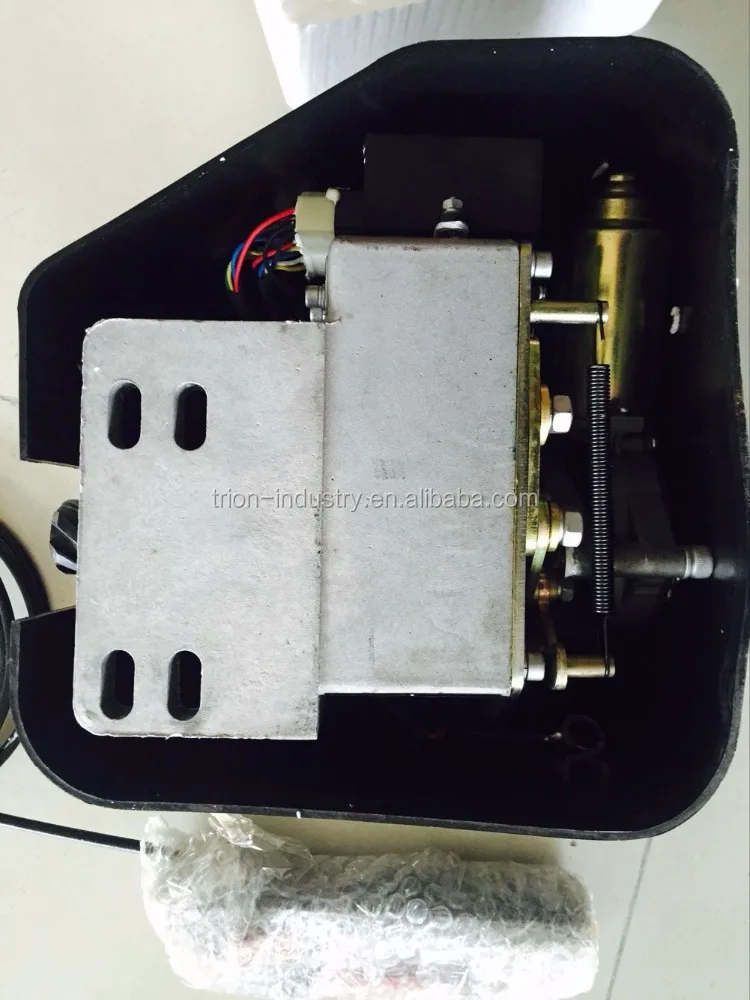

1) The Actuator assembly consist of welding motor structure and unit assemblage of pivoted arm.

2) The shaft assembly is designed for easy installation and maintenance.

3) The door panel is made of aluminum alloy, which has the attributes of light weight, high strength and long life.

Product Feature
Operating principle:

1)Auto operation :It uses direct current motor as power supply, controlled by power switch. The axle of motor rotates clockwise(or anticlockwise).The rotation is decelerated by a turbine-worm gear and two pairs of other gears. When there is rotary moment on the output axes of operator, the door will be opened(closed).After the door and door frame touch, screw lifting mechanism of pivoted arm will begin work, the door will be lifted, and the four locks installed on the door and door frame will be locked.

2)Emergency release: In case of emergency, put the red handle in ”manual” position, the door can be opened by hand easily.

3)Prevent from clipping: In the process of closing door, if something or somebody blocks it, the prevention from clipping will work immediately, and the door will open automatically.

Product Specification

Specified voltage	DC12V	DC24V
Electric motor specified power	40W	40W
Working speed	5r/min	5r/min
Max lifting height of the door	14mm	14mm
Rotary moment	More than 1000N.m	More than 1000N.m
Lifting load	Less than 1000N	Less than 1000N
Current of working	Process of revolution–3.5A	Process of revolution–3A
	Process of lifting–MAX 7A	Process of liftin–MAX 6A
Allowed ambient temperature	-40°C~+55°C
Durability of mechanism	500000
Durability of electric	500000
