Уличный повторитель Lintratek 700-2700 МГц Усилитель 2g 3g 4g полнодиапазонная антенна LPDA для
- Категория: Коммуникационная антенна >>>
- Поставщик: Foshan,Lintratek,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 10.59 $* | 11.72 $* |
| Aug-16-2025 | 9.19 $* | 9.80 $* |
| Jul-16-2025 | 8.30 $* | 8.36 $* |
| Jun-16-2025 | 9.72 $* | 9.34 $* |
| May-16-2025 | 8.10 $* | 8.1 $* |
| Apr-16-2025 | 9.36 $* | 9.0 $* |
| Mar-16-2025 | 9.86 $* | 9.56 $* |
| Feb-16-2025 | 9.50 $* | 9.87 $* |
| Jan-16-2025 | 9.26 $* | 9.87 $* |
Характеристики
Lintratek Repeater Outdoor 700-2700MHz 2g 3g 4g Booster Full Band LPDA Antenna Arial For Communication
Product Description
| Product Name | LPDA antenna | ||
| Model | ODS-10NK-70/270 | ||
| Frequency Range | 700-2700MHz | ||
| Bandwidth | wide band | ||
| Gain | 10 dBi | ||
| Beamwidth | H:60 E:60 | ||
| Front/Back ratio | ≥18 dB | ||
| VSWR | ≤1.5 | ||
| Polarization | Vertical | ||
| Max power | 50 W | ||
| Nominal Impedance | 50 Ω | ||
| Connector type | N female or customized type | ||
| Antenna Dimension | 330x215x65mm | ||
| Weight | 1 kg |
A regular cell phone repeater consists of: (full kit)
- 1 -Outdoor antenna log periodic(LPDA) antenna(or wall mounted, yagi antenna)
- 2 - Indoor Omni ceiling antenna( panel antenna)
- 3 – Power adapter
- 4 - User manual
- 5 - Cell phone repeater
- 6. 10 meters outdoor cable and 1 meter indoor cable
How should you install repeater (very easy and simple):
Step 1: Use your mobile phone to test signal strength outside house or on roof, -70dbm is the basic requirement (full bar).
Step 2 Install outdoor antenna in that location and keep adjusting, point it to signal tower station, try to get best signal.
Step3: Run outdoor coaxial cable into building in a convenient location to connect with signal repeater.
Step 4: Mount your indoor antenna with signal repeater
Step5: Power up signal repeater device to check the signal inside, moving outdoor antenna until you get satisfied signal.
Note: Connect outdoor (BTS) port with outdoor antenna, connect indoor ANT(MS) port with indoor antenna, outdoor antenna is mounted at a higher position. Both antennas should be 10 meters far away from each other at least.
Indoor and outdoor antenna must be separated by wall.

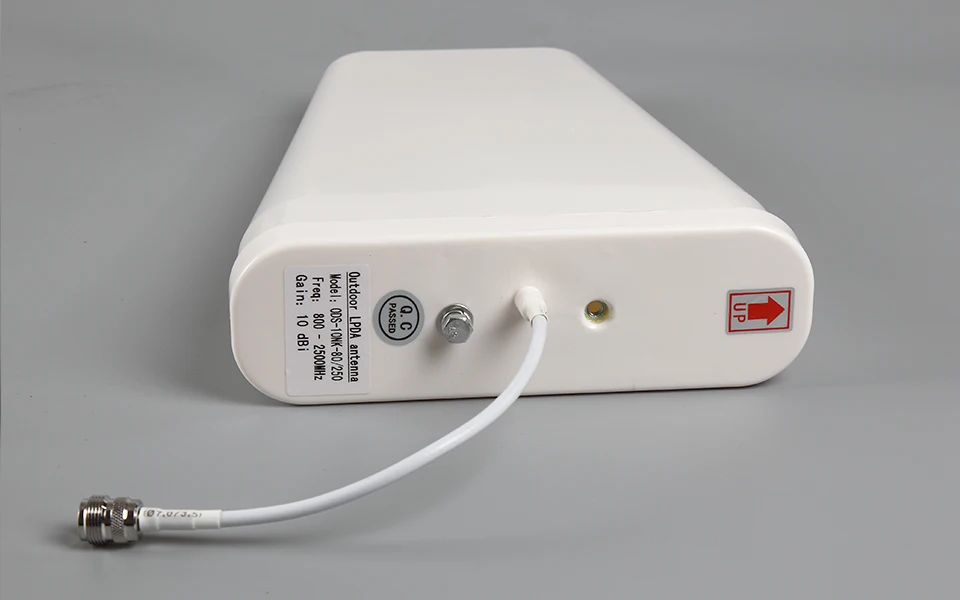

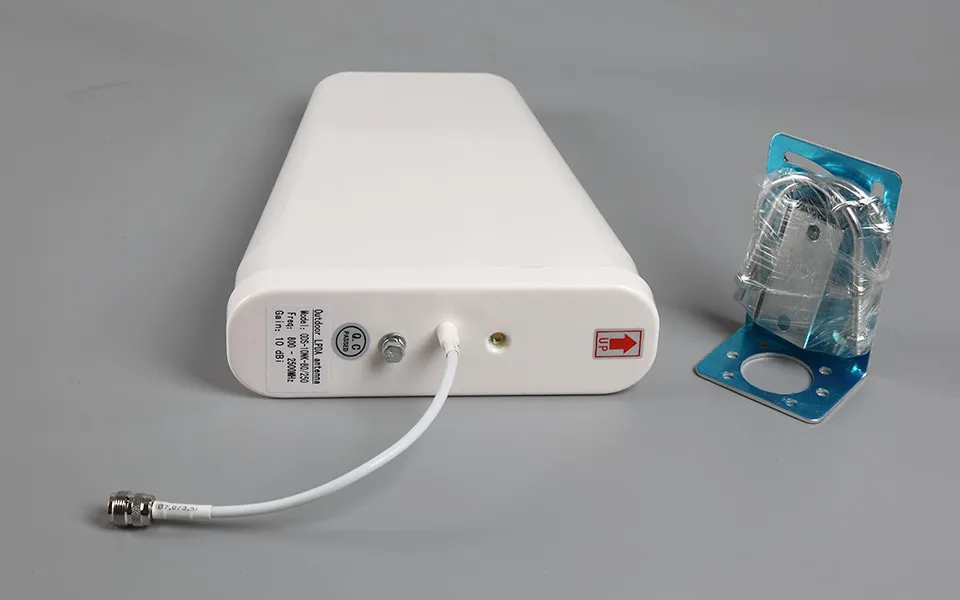

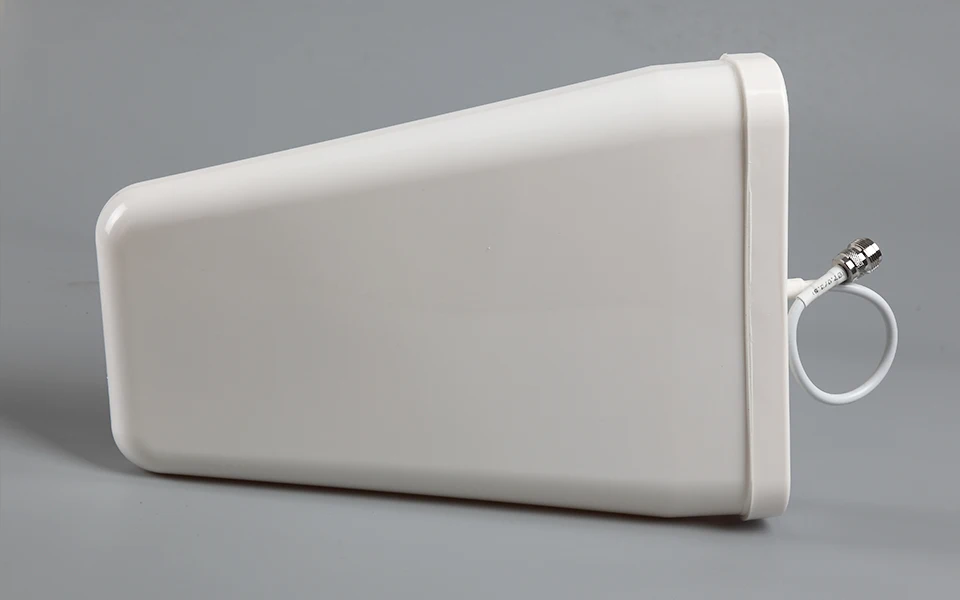

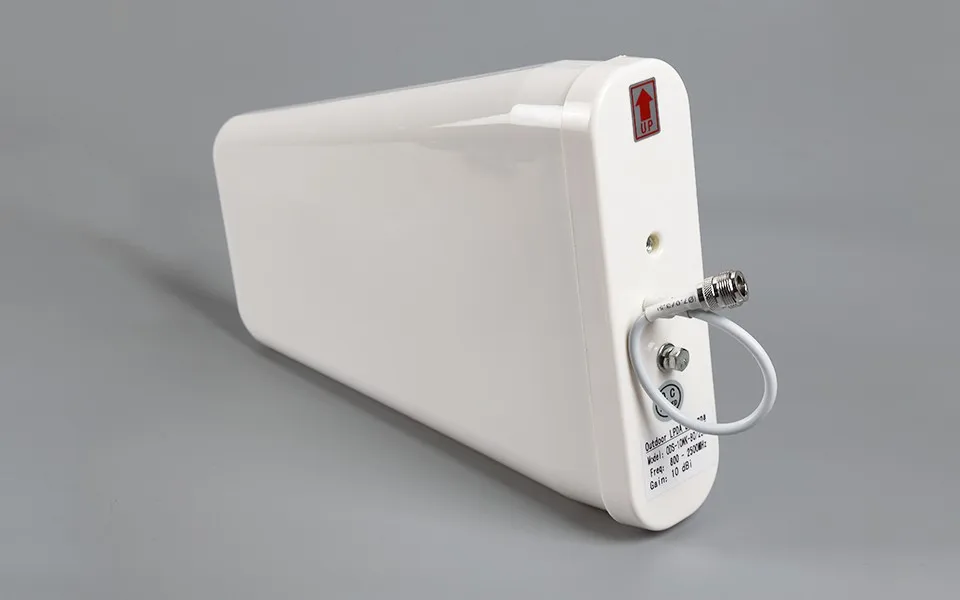

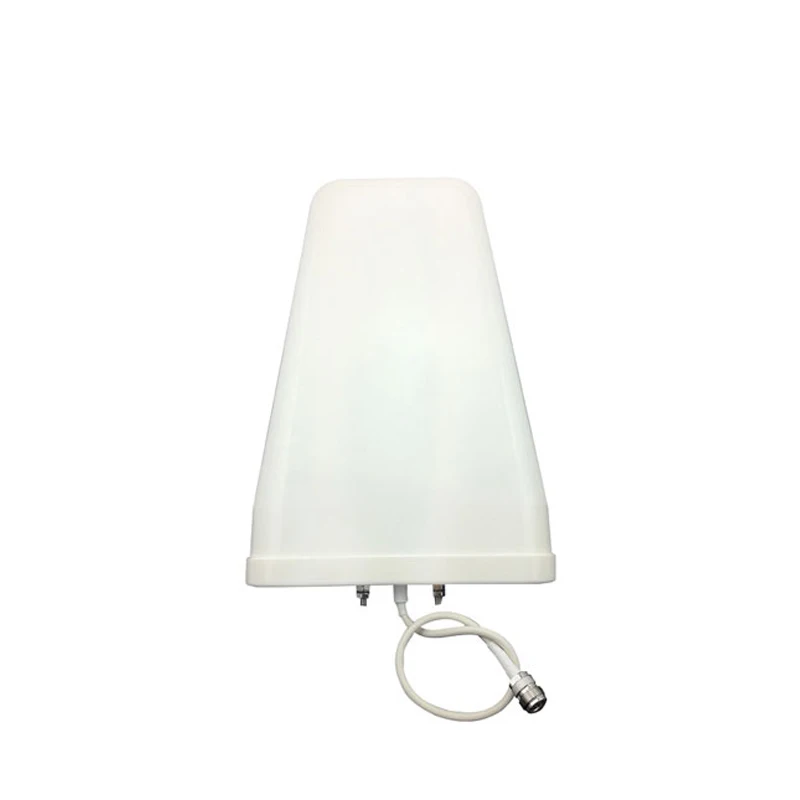

Photo:
