Covna 24V DC Электрический привод шаровой кран 2 пути 3 способа нержавеющей стали BSP /

Covna 24V DC Электрический привод шаровой кран 2 пути 3 способа нержавеющей стали BSP /

Категория: Valves >>>
Поставщик: Wenzhou,COVNA,Valve,Co.,Ltd.

Цена:45,24 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Aug-17-2025	57.59 $*	58.28 $*
Jul-17-2025	46.62 $*	47.16 $*
Jun-17-2025	56.80 $*	57.55 $*
May-17-2025	56.33 $*	57.80 $*
Apr-17-2025	45.87 $*	46.87 $*
Mar-17-2025	55.42 $*	56.77 $*
Feb-17-2025	54.54 $*	55.31 $*
Jan-17-2025	54.62 $*	55.53 $*

Характеристики

Our Advantages

Wenzhou COVNA aims to provide our customers the best quality products with the most competitive pricing, on-time delivery and full warranty service.

• Over 20 YEARS manufacturer of actuated valves, MASS CUSTOMIZATION acceptable.

• 3 production base, large stock, SHORT LEAD TIME, same day shipping.

• German imported manufacturing facilities, 100% Q.C passed before shipping, quality assured. Industrial standard 1 YEAR (12 months) warranty.

• ISO 9001 certificated, with extra certifications include CE, TUV, RoHS, SGS, BV, explosion & fire safe.

• OEM / ODM service available.

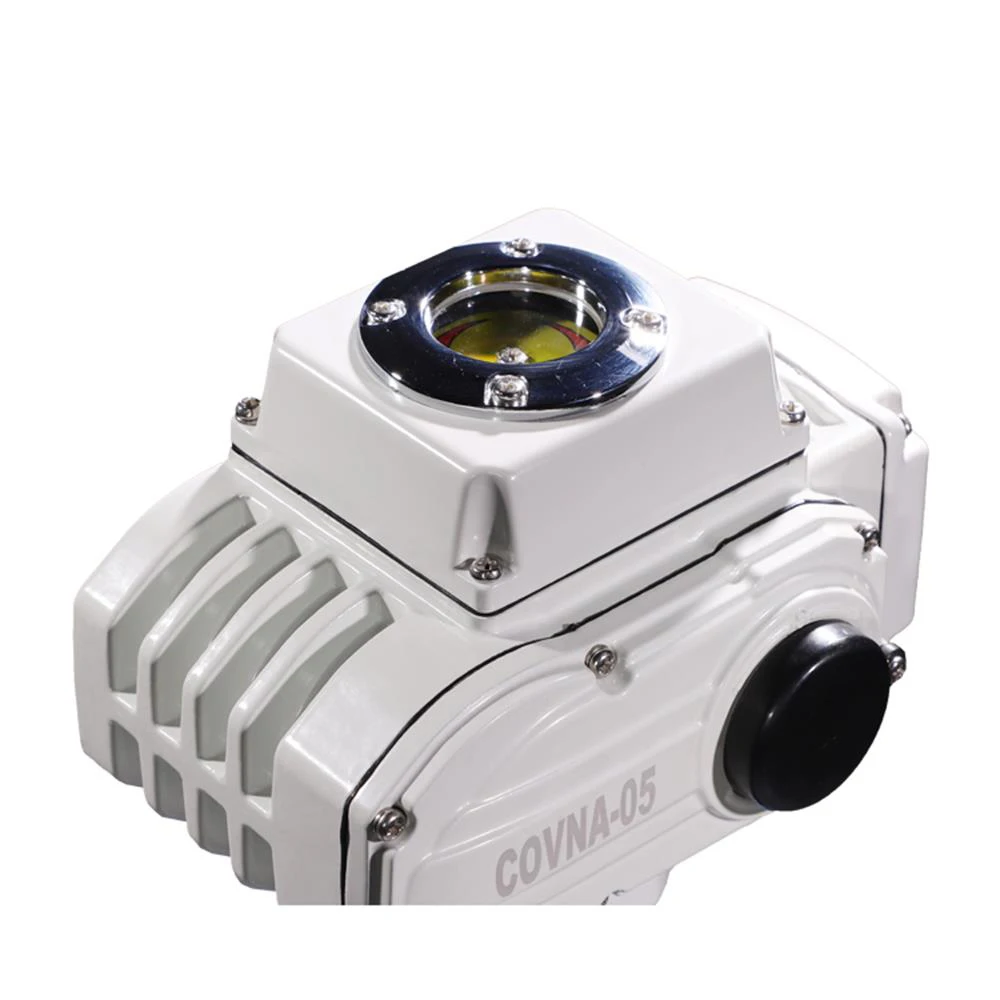

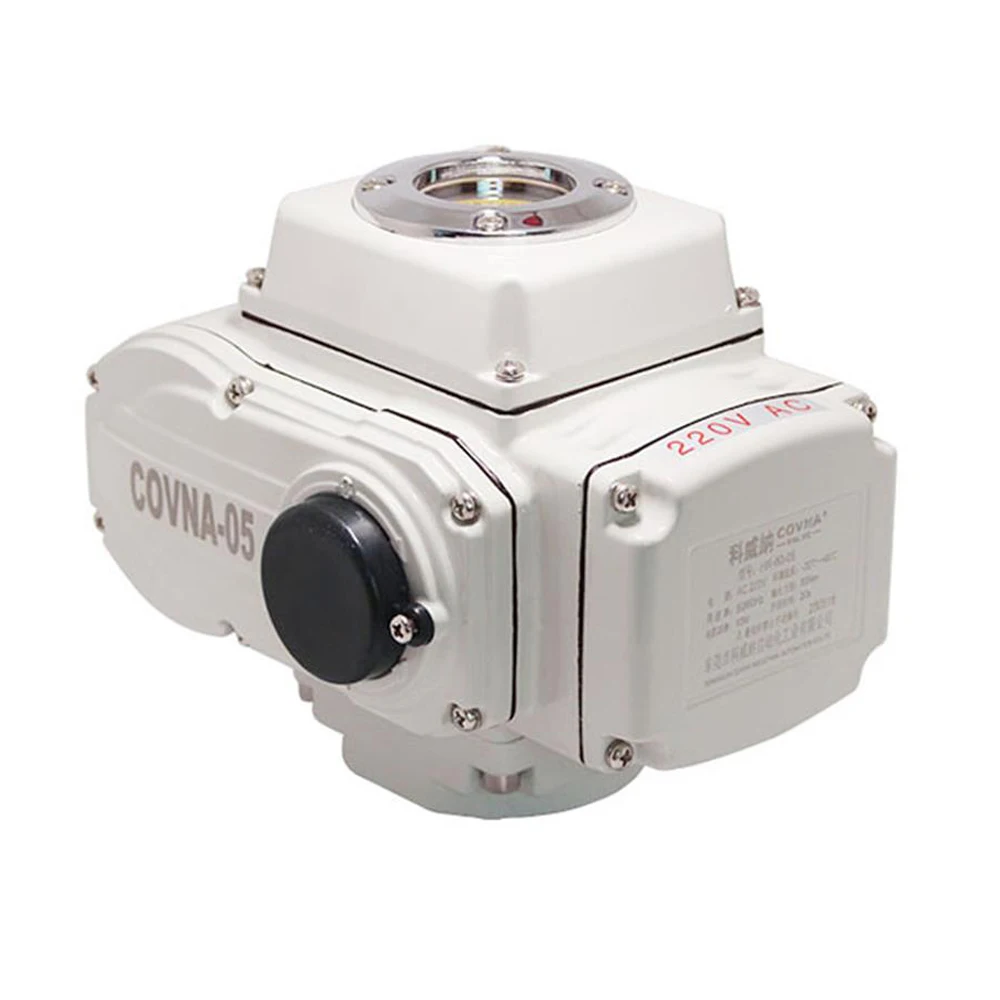

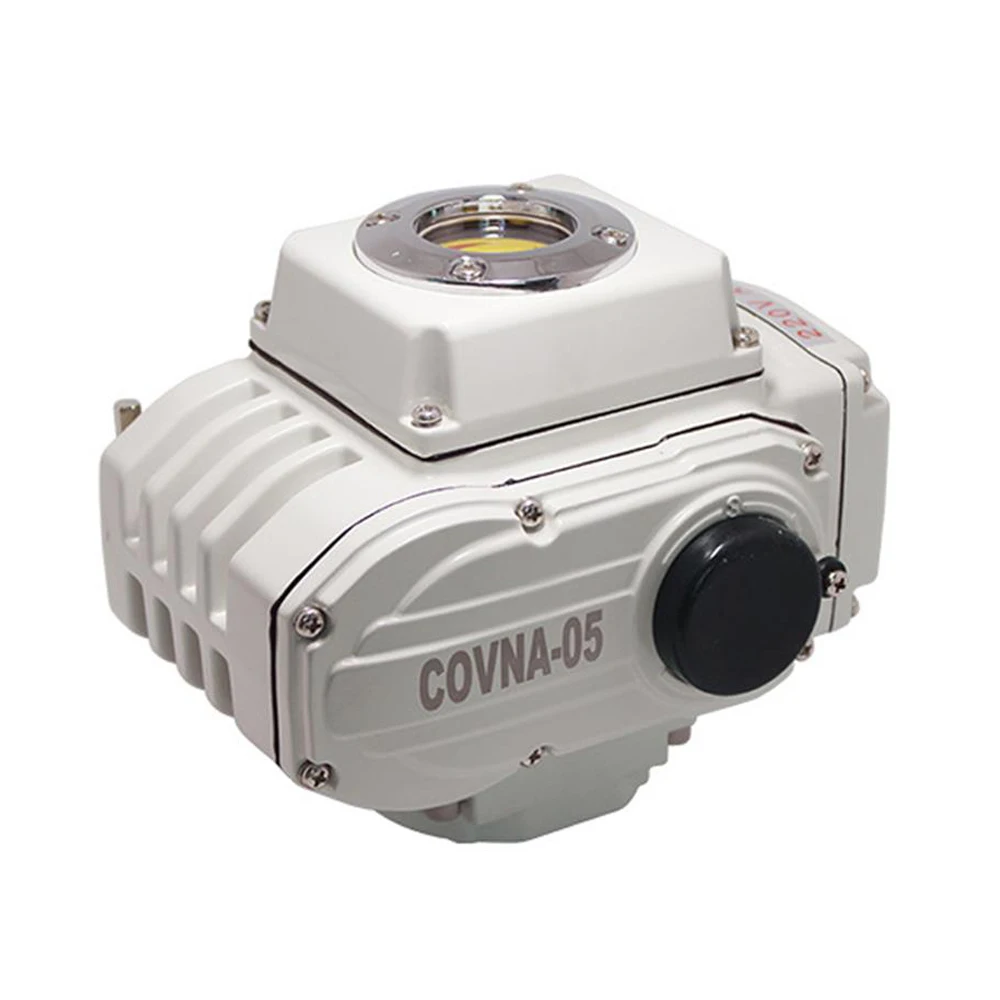

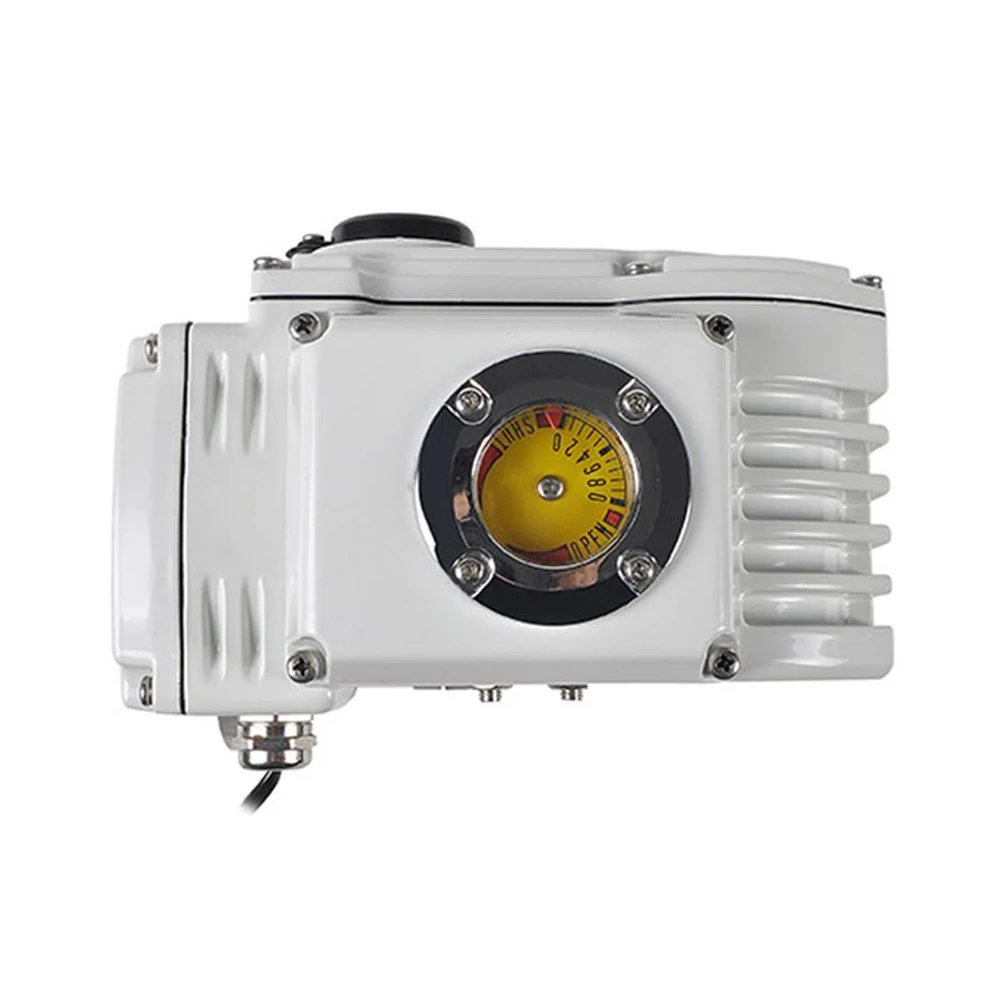

C-05 Electric Actuator

Specification of COVNA C-05 On/Off Electric Actuator
Model	C-05 \| C-10 \| C-16 \| C-30 \| C-60 \| C-125
Output Torque	50Nm \| 100Nm \| 160Nm \| 300Nm \| 600Nm \| 1250Nm
Cycle Time	20s \| 30s \| 30s \| 30s \|60s \| 100s
Rotation	0-90°
Rated Current	0.25A \| 0.48A \| 0.68A \| 0.8A \| 1.2A \| 2A
Motor Power	10W/F \| 25W/F \| 30W/F \| 40W/F \| 90W/F \| 100W/F
Weight	3.0KG \| 5.0KG \| 5.5KG \| 8.0KG \| 8.5KG \| 15.0KG
Voltage Options	AC110V/220V/380V, AC24V, DC24V
Insulation Resistance	DC24V: 100MΩ/250V; AC110V/220V/380V: 100MΩ/500V
Withstand Voltage	DC24V: 500V/Minute; AC110/220V: 1500V/Minute; AC380V: 1800V/Minute
Protection Class	IP65
Electrical Connection	G1/2 Water-proof Cable Connectors, Electric Power Wire, Signal Wire
Ambient Temp.	-30°C~+60°C
Control Circuit	A: On/Off type with light indicator signal feedback B: On/Off type with passive contact signal feedback C: On/Off type with resistance potentiometer signal feedback D: On/Off type with resistance potentiometer and neutral position signal feedback E: Modulating type with servo control module F: 12V DC / 24V DC direct on-off type G: AC380V three-phase power supply with passive signal feedback H: AC380V three-phase power supply with resistance potentiometer signal feedback

Explosion-proof

With handwheel

Multiturn

IP68 Water-proof

ISO 5211 Mounting Pad

750-224

Wiring Diagram

The left is On/Off type with passive contact signal feedback (B) while the right is Modulating type with servo control module (E).

GET A QUICK QUOTE

About Wenzhou COVNA

Wenzhou COVNA Valve Co., Ltd.

Wenzhou COVNA is one of the top manufacturers of quarter turn actuators and actuated valve products in China over 20 years experience. All COVNA products are designed and manufactured by experienced engineers to provide safe and reliable valves, actuators and solutions. COVNA aims to provide our customers the best quality products with the most competitive pricing, on-time delivery and full warranty service.

Our Certificates

Global Trusted

Packing Details

Packing details: each valve will be packed with foam in carton or in pallet to keep it safe during shipment.

Shipping method: we offer a variety of fast shipping methods, including DHL, Fedex, TNT, UPS, EMS, Airway, etc.

Delivery time: within 15 working days after payment due, stocking items same-day shipping.

GET A QUICK QUOTE

FAQs

1. When can I get the price?

We usually quote within 3 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.

2. How can I get a sample to check your quality?

After price confirmation, you can require for samples to check our quality. If you just need a blank sample to check the design and paper quality, we will provide you sample for free, as long as you afford the express freight.

3. How long can I expect to get the sample?

After you pay the sample charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3-5 workdays. You can use your own express account or prepay us if you do not have an account.

4. How long does the whole procedure being worked out?

After you place a order,the production handling time is about 45-60 days. We need 15 days to prepare all the stuff then 30 days for manufacturing.

5. What about the transportation and delivery date?

Normally we use shipment to transprot the goods.It is about 25-40 days. It also denpends on which coutry and port you are. It could be shorter if you need to send the goods like Asian.

If there are some emergencies we can send the goods via air express, as long as you afford the traffic expense.
