Shenzhen Universal Digital Ku Band Single Solution LNB / LNBF
Product Description
Item
Specification
Item
Specification
Input Frequency Range
Low Band:10.70~11.70GHz High Band:11.70~12.75GHz
L.O. Phase Noise
-50dBc/Hz@1KHz -75dBc/Hz@10KHz -95dBc/Hz@100KHz
Output Frequency Range
Low Band:950~1950MHz High Band:1100~2150MHz
Image Rejection
40dB(Min.)
Noise Figure
Low Band: 0.6 dB (Typ.) High Band: 0.6 dB (Typ.)
Output VSWR
2.0:1 (Max.)
Conversion Gain
60dB (Typ.)
Output Power
0dBm (Min.) (at 1dB gain compression)
Gain Flatness
±0.5dB/26MHz
Connector Type
75Ω Female Connector
Cross POL. Isolation
25 dB (Typ.)
DC Current Consumption
80mA (Typ.)
L.O. Frequency
Low Band: 9.75 GHz High Band : 10.60 GHz
Low/High Band Switching
Low Band: 0 Hz High Band:22KHz±4KHz
L.O. Frequency Stability
±1.0 MHz (Max.)@+25°C ±2.0 MHz (Max.)@30°C~+70°C
POL. Switching Voltage
10.5~14.0 V @VP 16.0~20.0 V @HP
Support
universal, high gain, waterproof
Operating Temperature
-30°C~+70°C

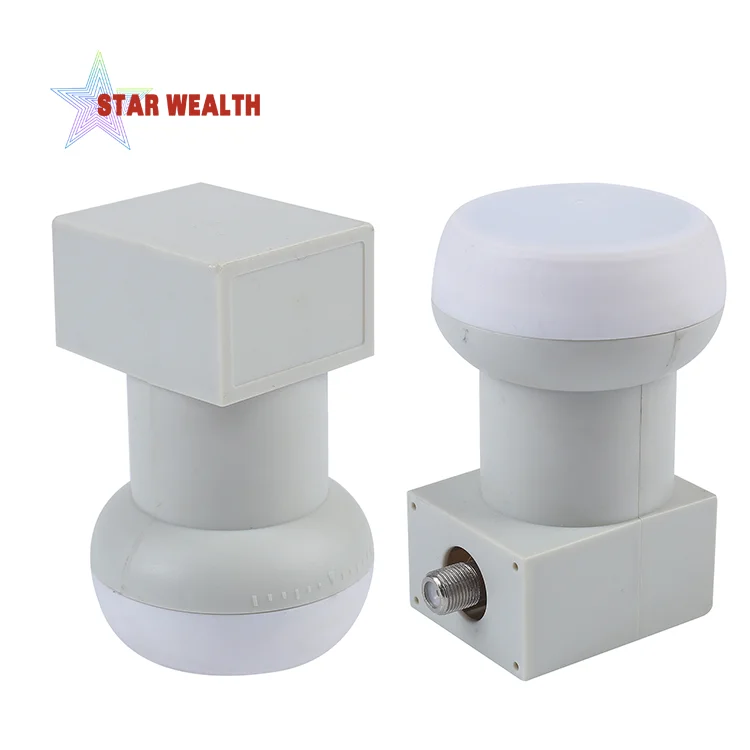

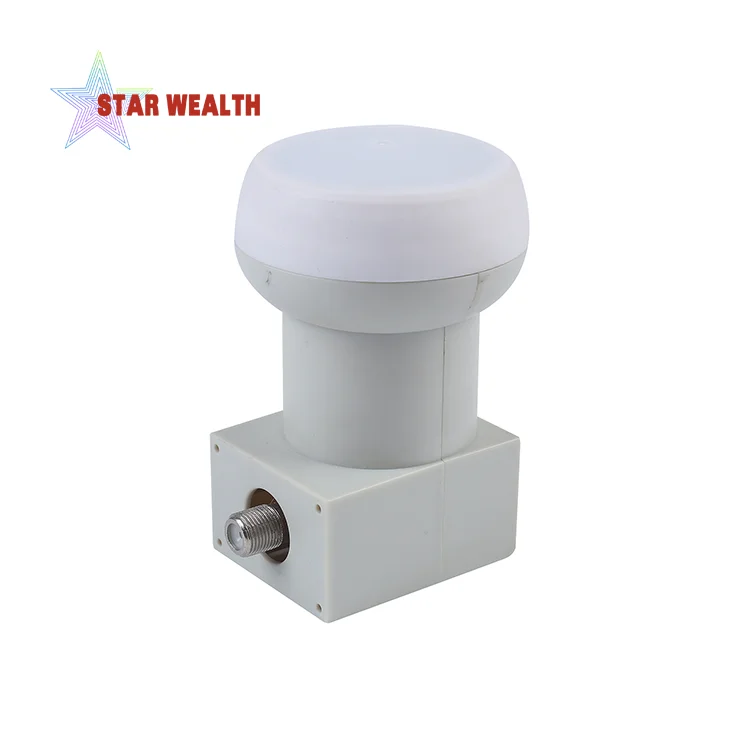

Gray color

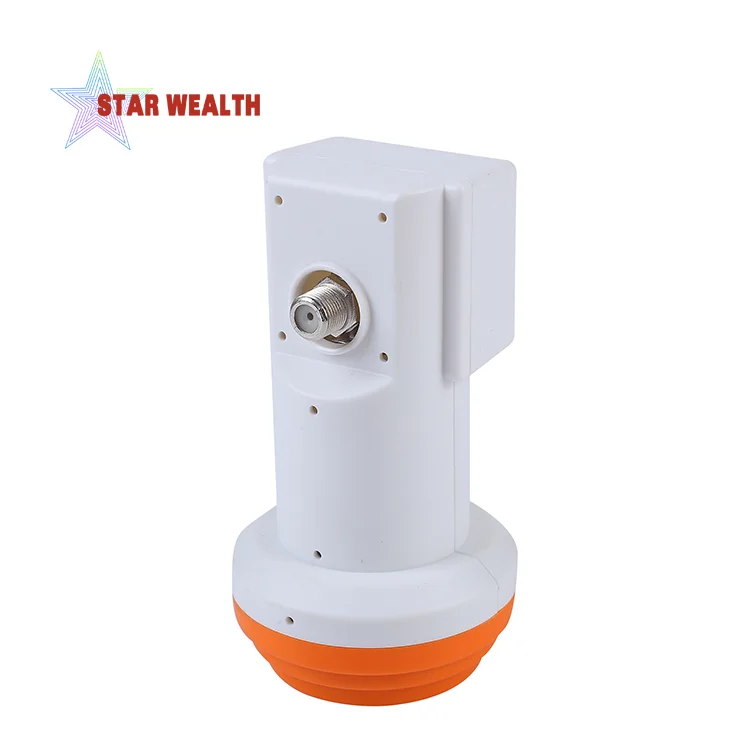

Orange color

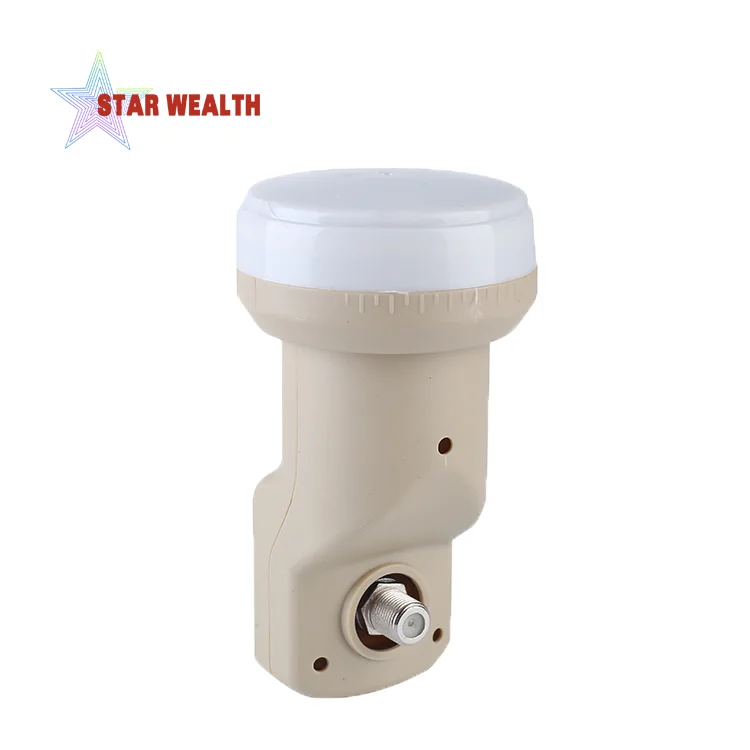

Khaki color
Hot Sale
