Прямоугольный центробежный вентилятор для вентиляции 180 мм 220
- Категория: Центробежные вентиляторы >>>
- Поставщик: Shanghai,Anneng,Fan,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 45.82 $* | 47.74 $* |
| Aug-16-2025 | 45.61 $* | 47.97 $* |
| Jul-16-2025 | 38.58 $* | 40.81 $* |
| Jun-16-2025 | 44.91 $* | 46.1 $* |
| May-16-2025 | 38.12 $* | 40.32 $* |
| Apr-16-2025 | 43.57 $* | 45.27 $* |
| Mar-16-2025 | 43.84 $* | 45.73 $* |
| Feb-16-2025 | 43.75 $* | 45.34 $* |
| Jan-16-2025 | 42.19 $* | 44.55 $* |
Характеристики
Type:R4E180-H092-01F-H

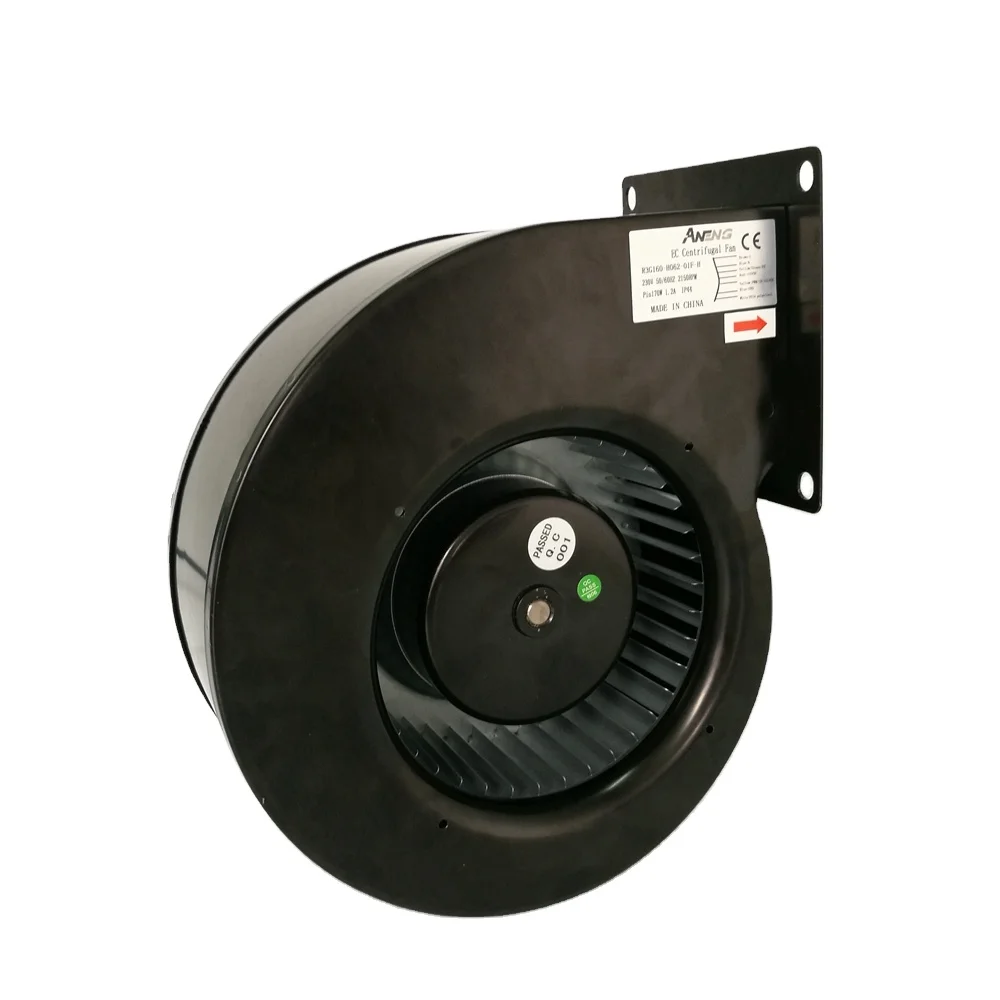

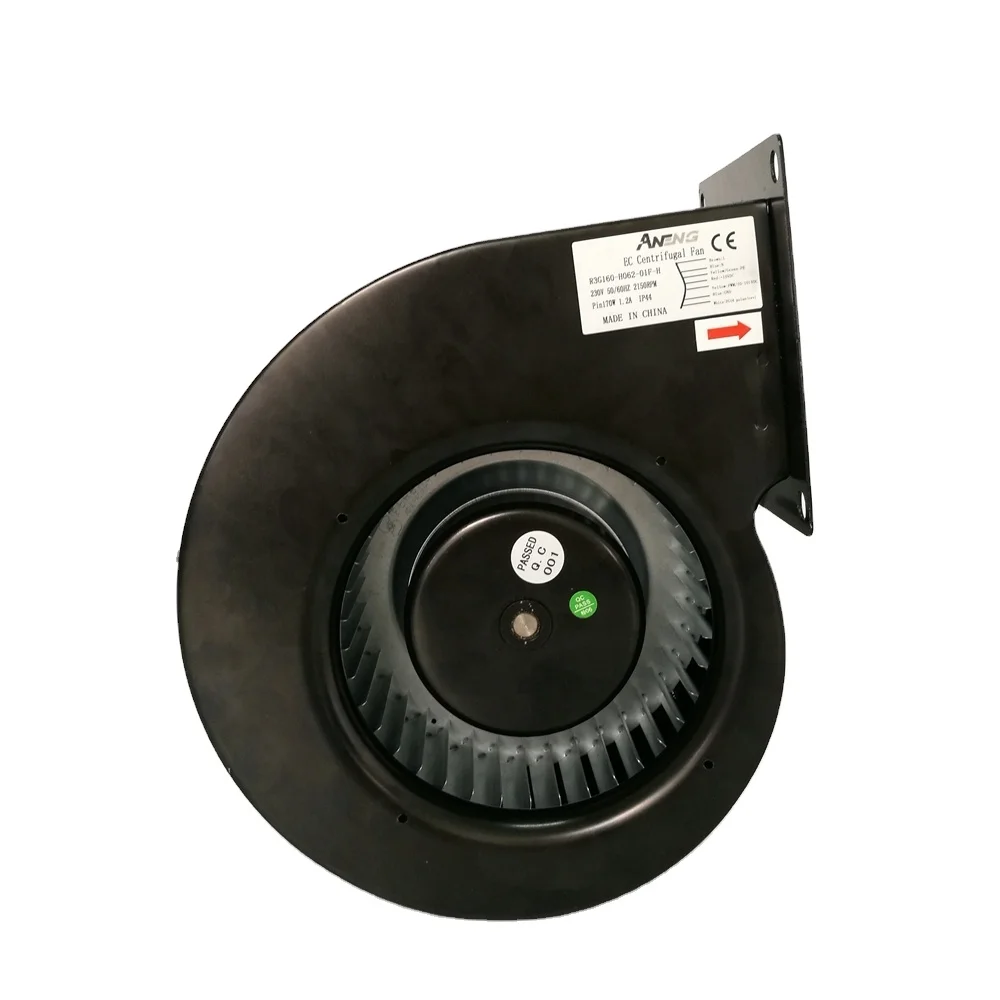

Product Pictures
(PS: ANNENG Reserved, Pirates Must Investigate.)
Product Datasheet
| Specification | |||||||
| Model Type: R4E180- H092-01F-H/ Motor Type: 72mm | |||||||
| Rated Voltage | Frequency | Rated Current | Input Power | Speed | Air Flow | Air Flow | Static Pressure |
| (VDC) | (Hz) | (A) | (W) | (RPM) | (CFM) | (m3/h) | (Pa) |
| 220 | / | 0.7 | 135 | 1330 | 441 | 750 | 200 |
| Details Description | |||||||
| Current Leakage | <=0.25mA | ||||||
| Operation Mode | continuous operation S1 | ||||||
| Direction of Rotation | clockwise, seen on rotor | ||||||
| Mounting Position | at will | ||||||
| Insulation Class | "F" | ||||||
| Cable Length | 450mm | ||||||
| Bearing | ball bearing (NMB) | ||||||
| Net weight | 4.5kg | ||||||
| Surface of Rotor | electrophoresis | ||||||
| Number of Blades | "7" | ||||||
| Type of Protection | IP44 | ||||||
| Speed control | 0-10v / PWM signal | ||||||
| Approval | CE | ||||||
| Operate Life | >=40,000hours | ||||||
| Noise | <65dB(a) 1 meter away | ||||||
| *Motor Protection Function | |||||||
| 1. Soft Start (8 seconds) | |||||||
| 2. Polarity Protection | |||||||
| 3. Undervoltage Protection | |||||||
| 4. Overvoltage Protection | |||||||
| 5. Current Limit Protection | |||||||
| 6. Over Current Protection | |||||||
| 7. Blocking Protection | |||||||
| 8. 3 Self Starting Function | |||||||
| 9. Stepless Speed regulation Function | |||||||
| 10. FG Speed Signal Output (open drain) | |||||||
| Characteristic Curves | |||||||
specification
Factory Display
Production Line
Packaging
1. for Sample, packing individually by foam carton; 2. for Mass, pallet package 120x100x120CM. |
 |
