Basic Functions:
- Android 7.0, 5 Inch Touch Screen, 4G, Wifi, Bluetooth, GPS, Camera
- Standard include function: Card Reader: Magnetic strip card reader,IC Card Reader, Contactless card reader /NFC,1D/2D barcode scanner
- Built-in 58mm Thermal Printer
- 1*Sim Card Slot, 2*PSAM Card Slot, 1* TF Card Slot
- Free SDK

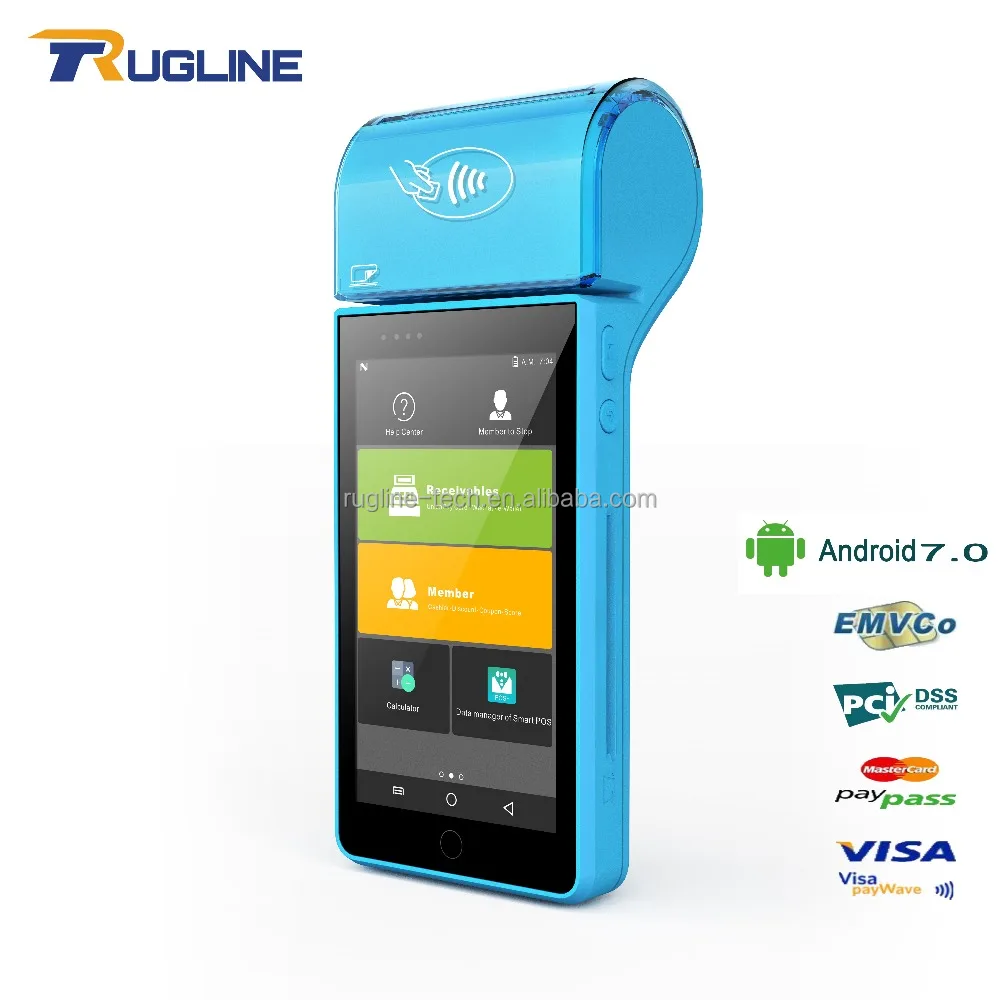

RP8050B Android pos terminal with Card payment/NFC/printer and more
Smart POS Terminal & Intelligent Interactive Experience
All-in-one: Card payment, QR code payment, NFC, scanner, Printer and more.
Depth customization system on Android, with flexible app control.
Covered with all wireless: 2G, 3G, 4G, wifi, Bluetooth, gps.
Fully secure: PCI and EMV approved.
Barcode Scanner: Mingde brand scanner head support all the mainly codes

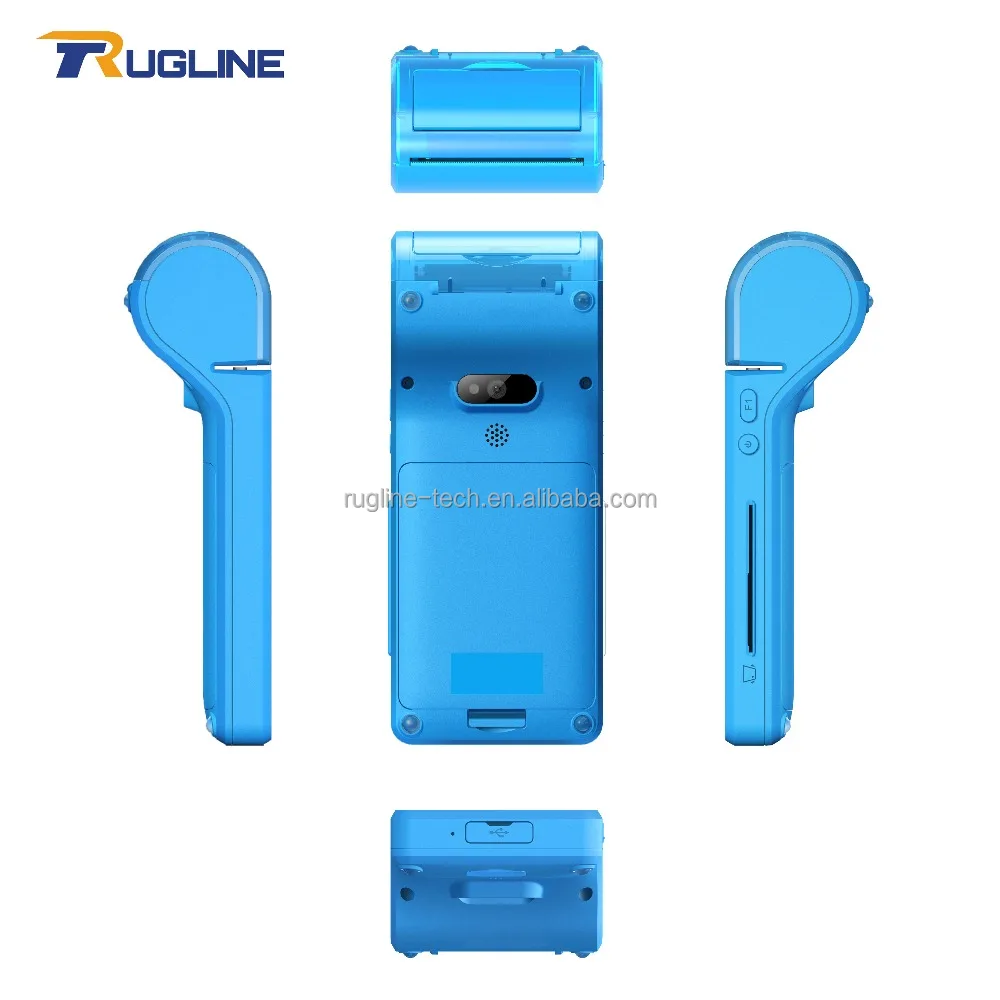

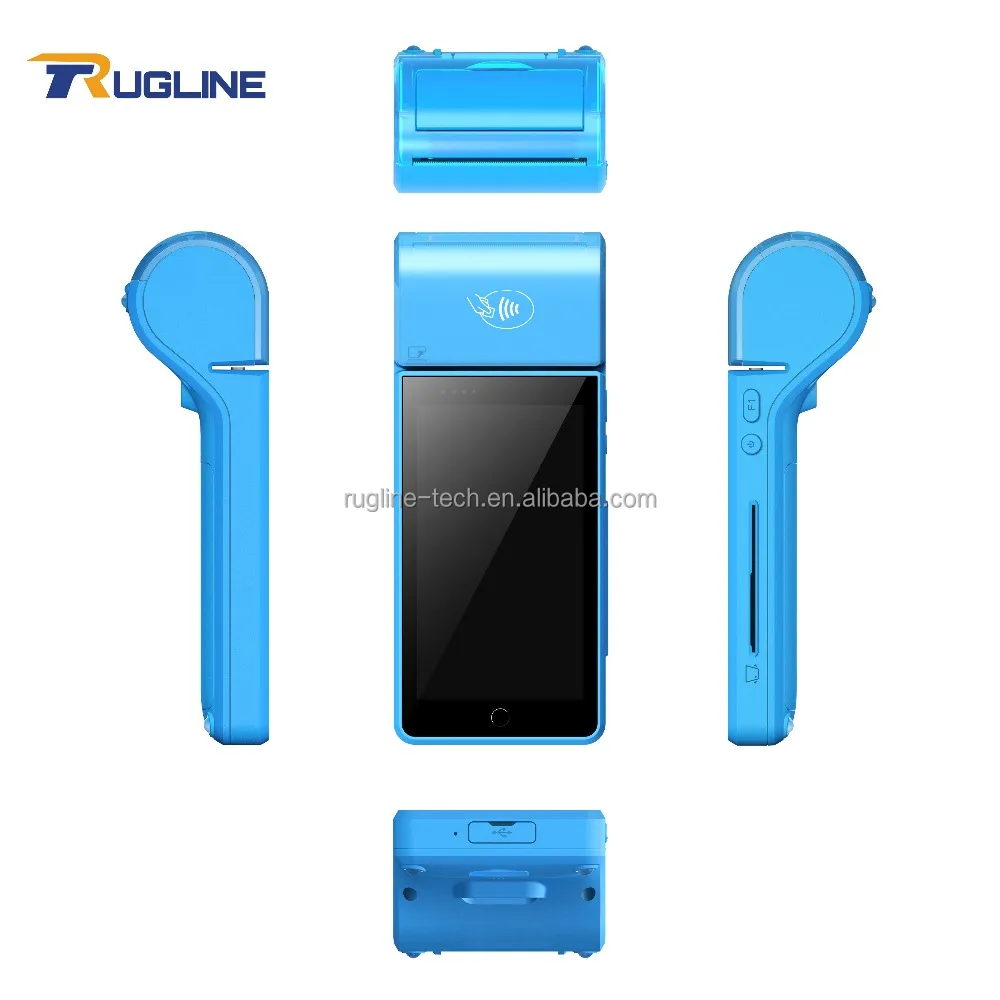

Product Show:
|
|
Size |
193*80*54.5mm |
OS |
Android 7.0 |
CPU |
MTK8735V/C 64 bits Quad-core A53 1.3 GHz |
Security Processor |
NXP KL81 |
Storage |
ROM: 8GB |
RAM: 1GB |
TF-card (Mirco SD): 32G |
Display |
5.0 inch color display screen,resolution:720*1280 |
Rear Camera |
2 million pixels, support lights, video. |
Band/Mode |
2G:GSM/EDGE/GPRS (850,900,1800,1900MHz) |
3G:UMTS/HSDPA/HSPA/HSPA+ (850,900,1900,2100 MHz)/CDMA EV-DO Rev.A (800MHz)(OPT) |
4G : TDD-LTE (B34,B38,B39,B40,B41),FDD-LTE (B1,B3,B8) |

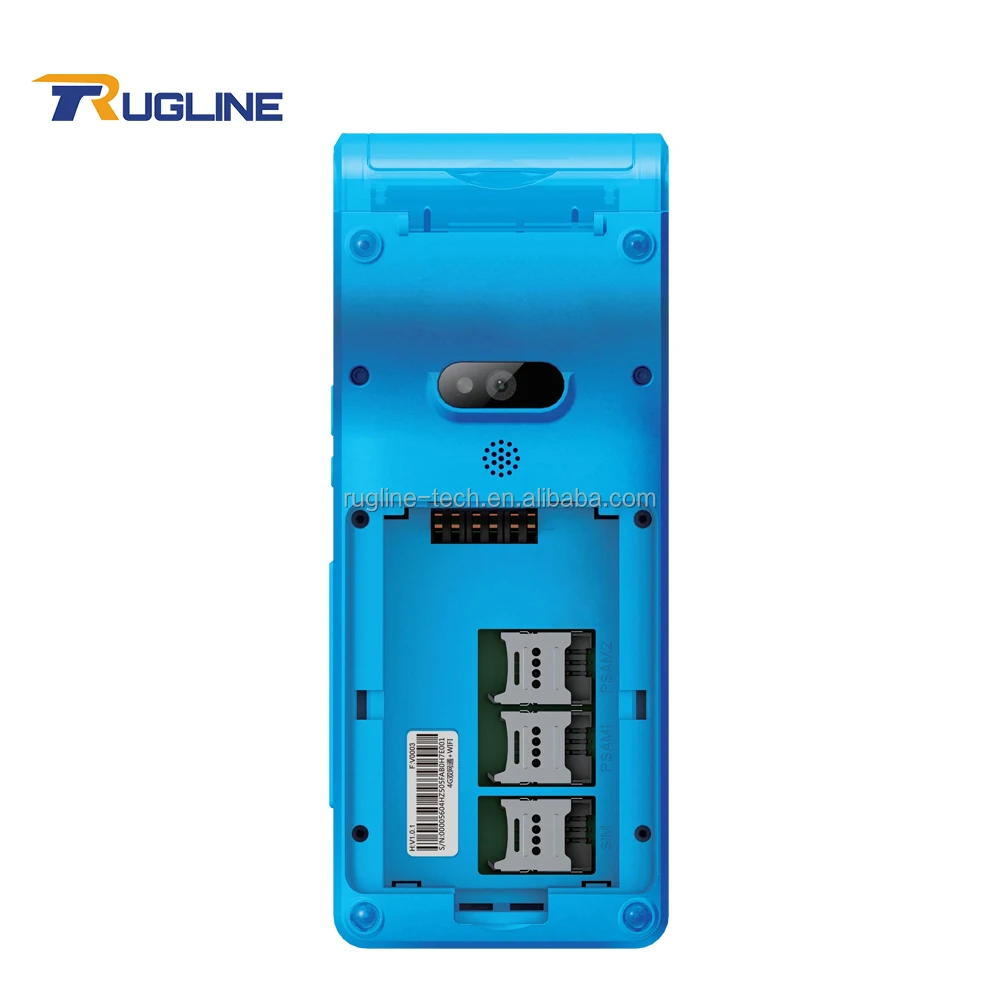

Sim |
1 * SIM card slot |
PSAM card slot |
2 * PSAM |
GPS |
Support GPS and A-GPS high-precision positioning |
Bar code |
1D/2D Bar code reader,Can read screen bar code and color bar code. |
NFC |
YES , support ISO/IEC 14443 A&B,Mifare1 card ; |
WIFI |
Dual frequency WIFI , supports 802.11a/b/g/n and supports coexistence of Wi-Fi and Bluetooth |
Bluetooth |
Bluetooth 4.2 HS low energy |
Printer |
Support high-speed mute thermal printing , paper width : 58mm , maximum roll diameter: 30mm. |
Magnetic card reader |
Support 1/2/3 tracks, support two-way swipe card , comply with IS07811/7812/7813 and other general standards. |
IC card reader |
Comply with ISO7816 standards, has passed the China UnionPay PBOC 3, EMV 4.3, LEVEL, 1&2 certification. |
Battery |
4.35V 4000mAh Polymer battery |
Material |
Shell |
Plastic |
Sidekey |
Plastic |
Interface |
USB |
Micro USB v2.0 High Speed; |
Charger interface |
Mico USB |
Acessories |
Data cable |
1.0M,MICRO 5PIN |
Charger |
DC 5V,2A |
User manual |
1PCS |
Industry Applications
1) card applications University / large enterprises canteens, shops member card , top-up payment, query, consumption
2) e-ticket cinema, karaoke, concerts, stadiums
3) Financial payment
Bank card payment, IC card payment, QR code payment, WeChat payment, NFC payment
4) Supermarkets cashier management retailers, chain stores, cosmetics stores, books and video stores, jewelry toy store
5) Queue number retrieval
Bank , hospital , electricity payment and convenience service hall
