Характеристики


Product Description

High timing accuracy electric countdown digital timer with pausing
timer

Features:

\t
1
\t
Dual-line 4 digits bright LED display
\t
2
\t
High timing accuracy
\t
3
\t
Power fail memory function
\t
4
\t
Optional dimension
\t
5
\t
Multiple output delay function modes selected by the menu
\t
6
\t
Passed strict EMC and reliability testing.
\t
7
\t
With decimal/centesimal/sexagesimal timing function.
\t
8
\t
With pausing,resetting function.

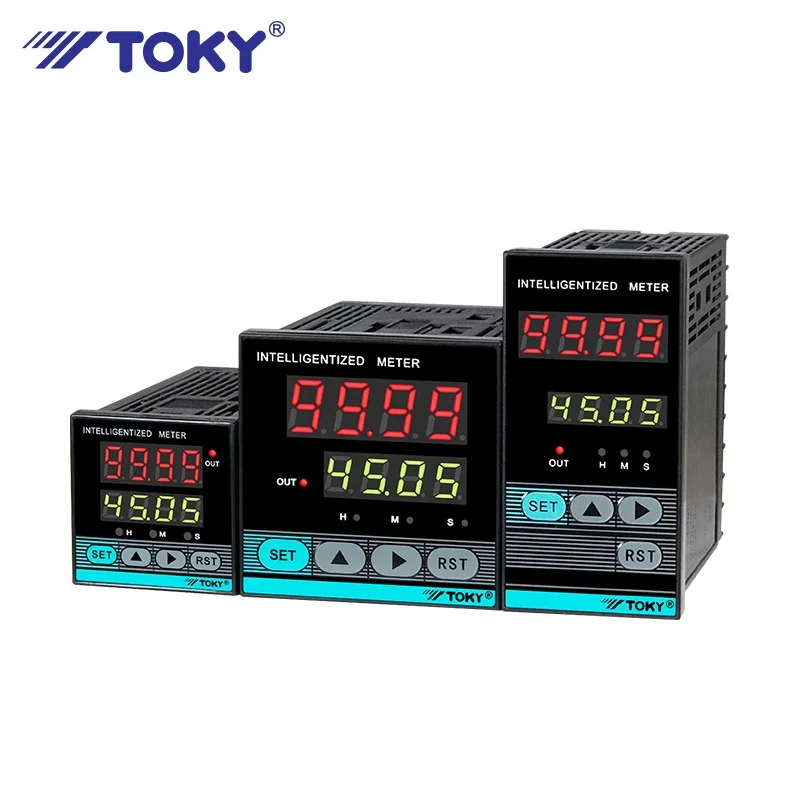

Ordering Information:

\t
Model
\t
Display
\t
Power supply
\t
Dimension
\t
Alarm
\t
HP4-RB40W
\t


Dual-line 4 digits
\t


220VAC 50Hz
\t
48H×48W
\t


one alarm
\t
HP6-RB40W
\t
96H×48W
\t
HP7-RB40W
\t
72H×72W
Specifications:
\t
Power Supply
\t
220±10% 50Hz (other power supply be ordered)
\t
Power Consumption
\t
≤3W
\t
Installation
\t
Panel mounting
\t
Timing Range
\t
0.01-99.99S,0.1-999.9S,1-9999S,1-99M59S,0.01-99.99M,0.1-999.9M,
1-9999M,1-99H59M,0.01-99.99H,0.1-999.9H,1-9999H
\t
Timing Accuracy
\t
±0.1%±0.05sec
\t
Reset Mode
\t
Panel reset/external reset/automatic reset/power-off reset selectable
\t
Input Signal
\t
Active Low
\t
Output Capacity
\t
AC/DC 250V 5A(Resistive load)
\t
Impulse Interference
\t
3 grade 2000Vp-p
\t
Lightning Surge
\t
3 grade Power port L-N ±2000V
\t
Working Environment
\t
0~50℃ ≤85%R.H
\t
Storage Environment
\t
-20~55℃ ≤85%R.H

\t
Withstand Voltage
\t
AC 2000V 50Hz 1 min
\t
Insulation Resistance
\t
DC 500V ≥100MΩ
\t
Vibration
\t
X\\Y\\Z axis 10~50Hz 0.75mm
Detailed Images
