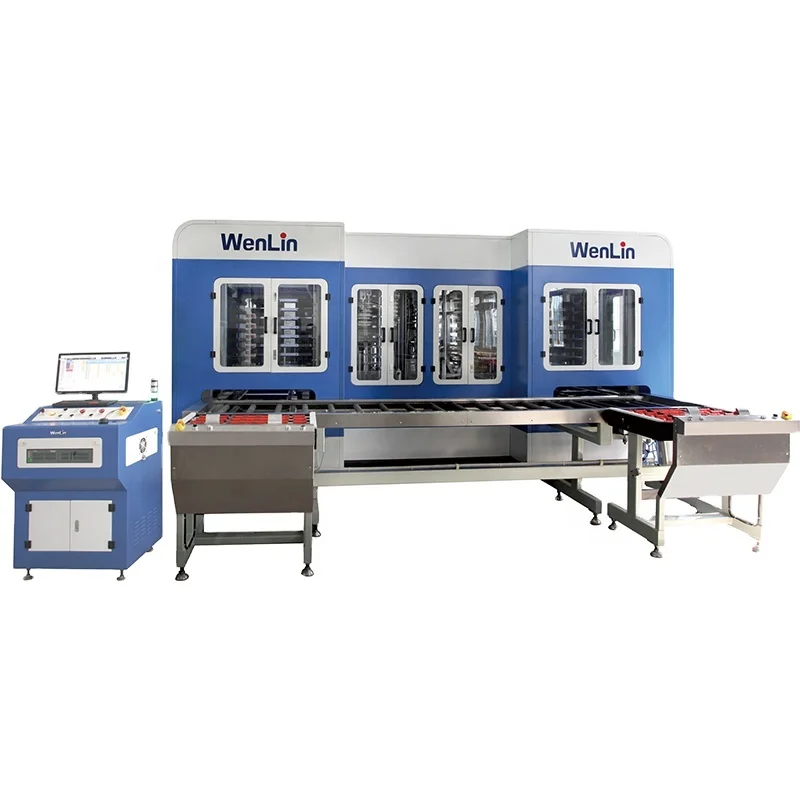

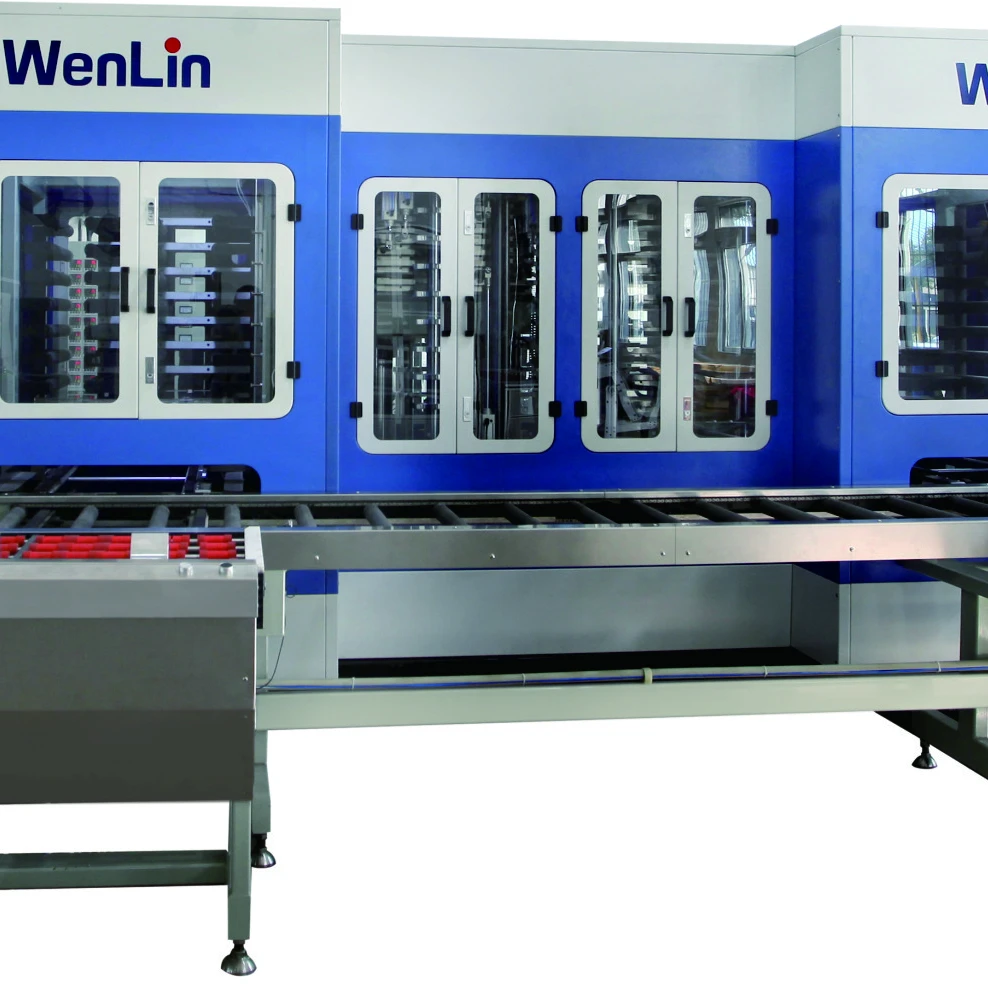

600X750mm large laminating id card making machine

Brand:WENLIN

Specifications:600mm×750mm

Features
1.Heating tower Auto Feeding System:

Auto-feeding materials, trays with laminated materials be conveyed to cooling tower automatically.

Feeding device goes up and down, automatic feeding and discharging transmission.

For convenient machine maintenance, feeding transmission system can be chosen to semi-automatic operation method.

2.Heating System:

Electric heating, hot pressure 0-16Mpa, pressure precision ±0.1Mpa.

Operation temperature can be adjusted in the range of 0-200 ºC, temperature precision ±2ºC.

Thermal platens flatness:0.05mm, parallelism: 0.05mm.

Each opening can work independently.

3.Cooling System:

Pressure range:0-16Mpa, pressure precision:±0.1Mpa, can be adjusted in the range.

Cooling platens flatness:0.05mm, parallelism: 0.05mm.

Platens adopt stainless steel and aluminum materials to avoid any rustiness.

4.Auto unloading System:

To receive the trays with materials from cooling tower automatically.

Lifting platform conveys trays with materials from discharge shelf to roller transmission belt.

Discharge shelf is on the right of the cooling tower, each opening is equipped with cross-feed convey roller for conveying.

5.Auto convey system:

Roller transmission belt is used for conveying of trays with non-laminated or laminated materials.

6.Lay and take out material System:

Convenient for taking out the materials manually.

Suitable for different size of steel plates and laminating materials.

Tilt table makes it easier for worker to lay the materials onto the trays.

7.PLC control system,data management system:

English and Chinese operation menu with strong power of data management, including pressure,temperature,time and production data.

Function of setting production parameters, temperature,pressure and time every cycle.

Failure detection function,alarm and show the error place.

Display the working status of each unit.

.Application range:

The high speed credit card  laminator suitable for making contact cards, contactless cards,Id cards,double interface cards and bank cards.

Parameter:

Model	WENLIN-Smartlam7500B-8
Cooling Method	Water Cooling
Heating Method	Electric Heating
Pressure Stages	Heating 12 stages/cooling 5 stages
Pressure Precision	±0.1 MPa
Temperature Precision	0-200ºC    ±2(ºC)
Plate Smoothness	±0.05mm
Laminating Plate	Aluminum Alloy
Hydraulic Cylinder	4 for each tower
Pressure	0-16Mpa
Platen Size	600mm×750mm
Opening	8
Opening Space	60mm
Plate thickness	48mm
Electric	380V ,50/60HZ, 80 KW
Dimension	L4900mm*W3670mm*H2500mm
Weight	10000 KGS
Output	Around 22,000 cards/hour





Certificates:



ALIBABA Gold Plus Supplier Certificate / Patents











Customer Visiting and Exhibition:



Company profile:

 Wuhan Wenlin Technology Co., Ltd. was founded in 2001, which is a smart card making equipment R & D, production and materials supply enterprise. The laminator and punching machine for IC, ID&RFID smart card is well-known in the world. There are more than 1000 customers in nearly more than 50 countries and regions around the world, including the world-famous card making enterprises.The machines are widely used in the production fields of Union Pay, VISA, MasterCard, second generation ID card, residence card,social security card, double interface card and IC, ID smart card and so on.

Wenlin is a high-tech and national Torch Program project enterprise identified by the Chinese government, as well as a demonstration enterprise of scientific & technological innovation and patent transformation.
The trademark "WENLIN" have been evaluated as famous trademarks of Hubei province and Wuhan city for more than 10 years.

Wenlin passed CE and ISO9001 certificates, and obtained 12 national invention patents, nearly 100 patent for utility models and software copyright.

Founding century name brand, Creating hundred-years-old Wenlin. To provide the best card making solution and service for all the customers is the eternal aim of Wenlin. We'd like to cooperate with agents all over the world.
